315T 500T 630T Hydraulic Press Metal Material Forming Press
500-Ton Four-Column Hydraulic Press with Water Cooling is a hydraulic device equipped with a water cooling system to regulate hydraulic oil temperature. With a rated capacity of 500 tons and a four-co
+86 13562463338
+86 13562463338
Video Display
Product Introduction

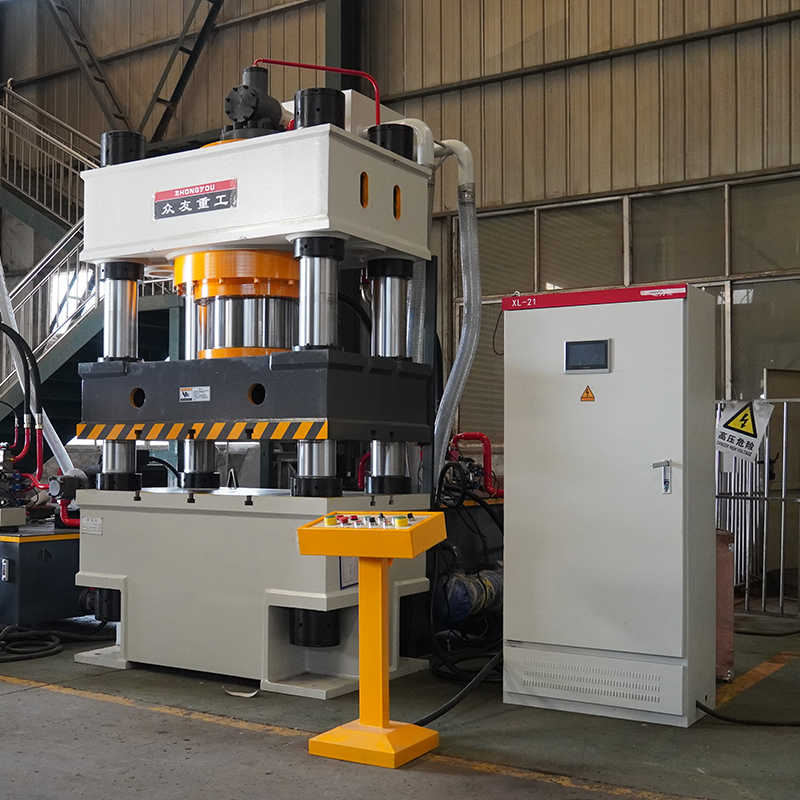

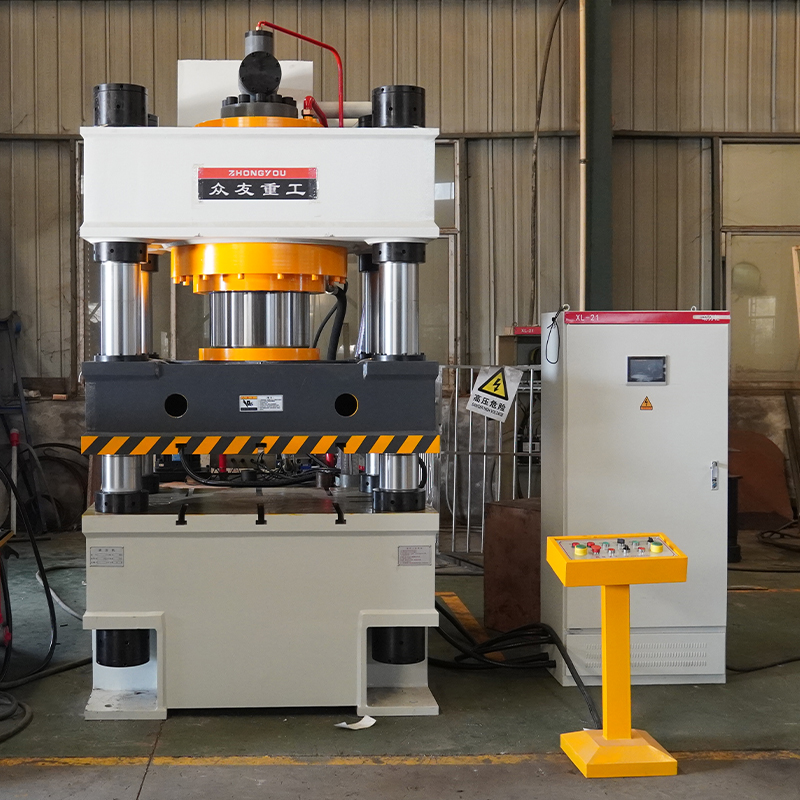

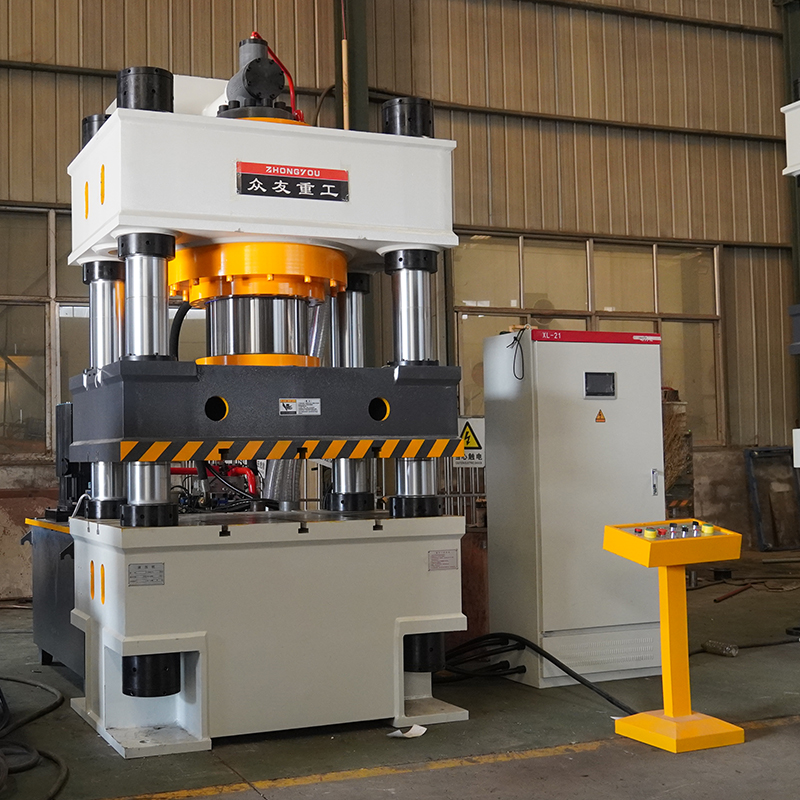

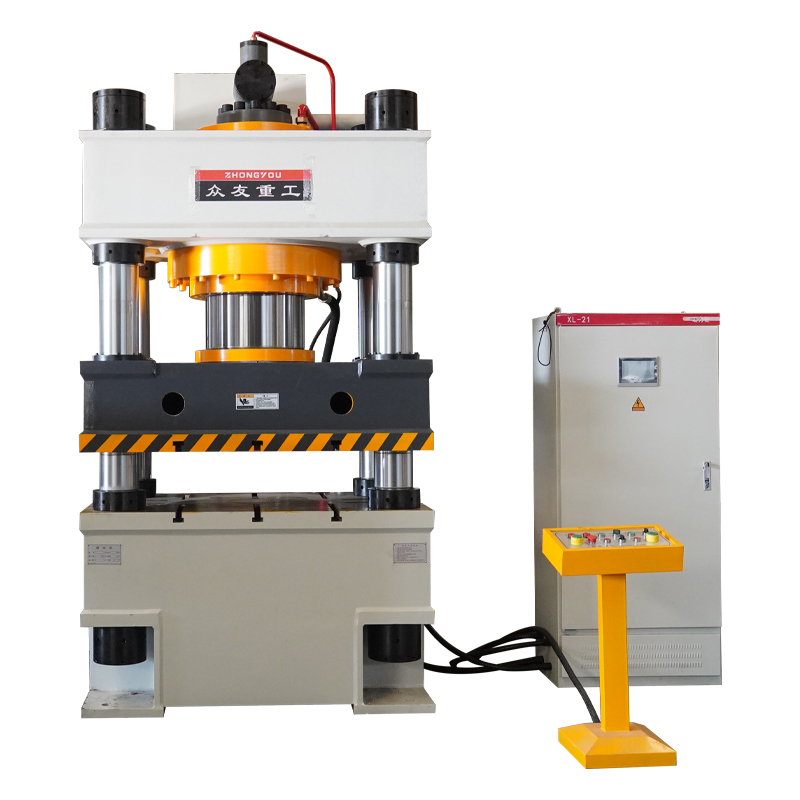

500-Ton Four-Column Hydraulic Press with Water Cooling is a hydraulic device equipped with a water cooling system to regulate hydraulic oil temperature. With a rated capacity of 500 tons and a four-column structure, it performs multiple functions including forming, stretching, press fitting, bending, flanging, and blanking.Equipment Advantages
High Efficiency & Energy Savings

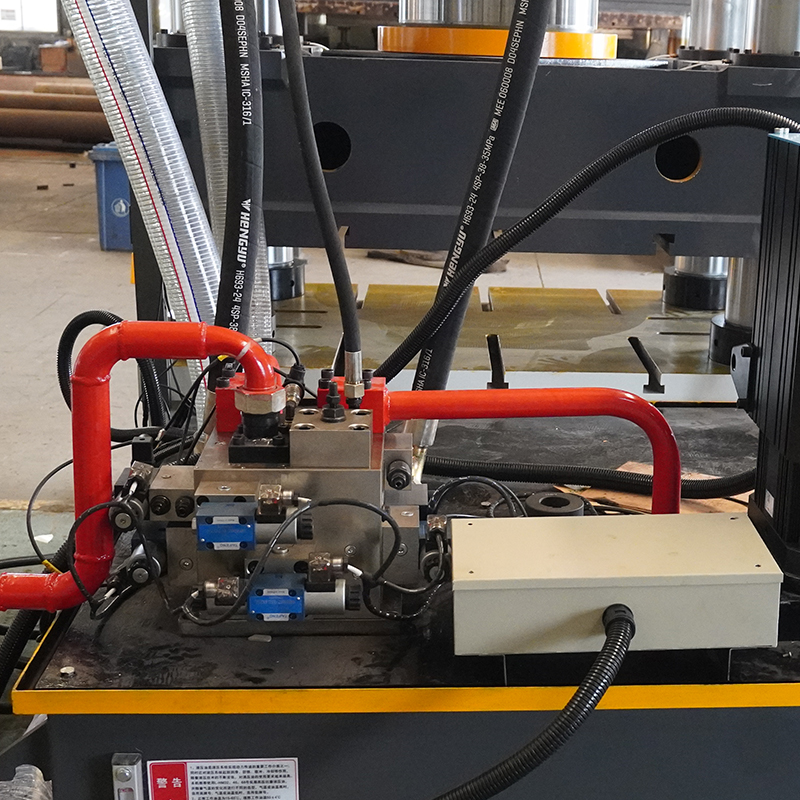

Features a cartridge valve integrated hydraulic system for reliable operation, extended lifespan, reduced hydraulic shock, and fewer connection points and leakage risks.
High Safety Performance
Equipped with an independent electrical control cabinet, emergency stop button, limit switches, anti-slip descent device, and safety valves to ensure operational safety.
Flexible Adjustability
Pressure, speed, and stroke can be adjusted according to process requirements, with support for pressure holding and delay functions.
Equipment Advantages
High Efficiency & Energy Saving
Features a cartridge valve integrated hydraulic system for reliable operation, extended service life, reduced hydraulic shock, and fewer connection points and leakage risks.
High Safety Performance
Equipped with an independent electrical control cabinet, emergency stop button, limit switches, anti-slip descent device, and safety valve to ensure operational safety.
Flexible Adjustability
Pressure, speed, and stroke can be customized to meet process requirements, with support for pressure-holding delay functions.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |

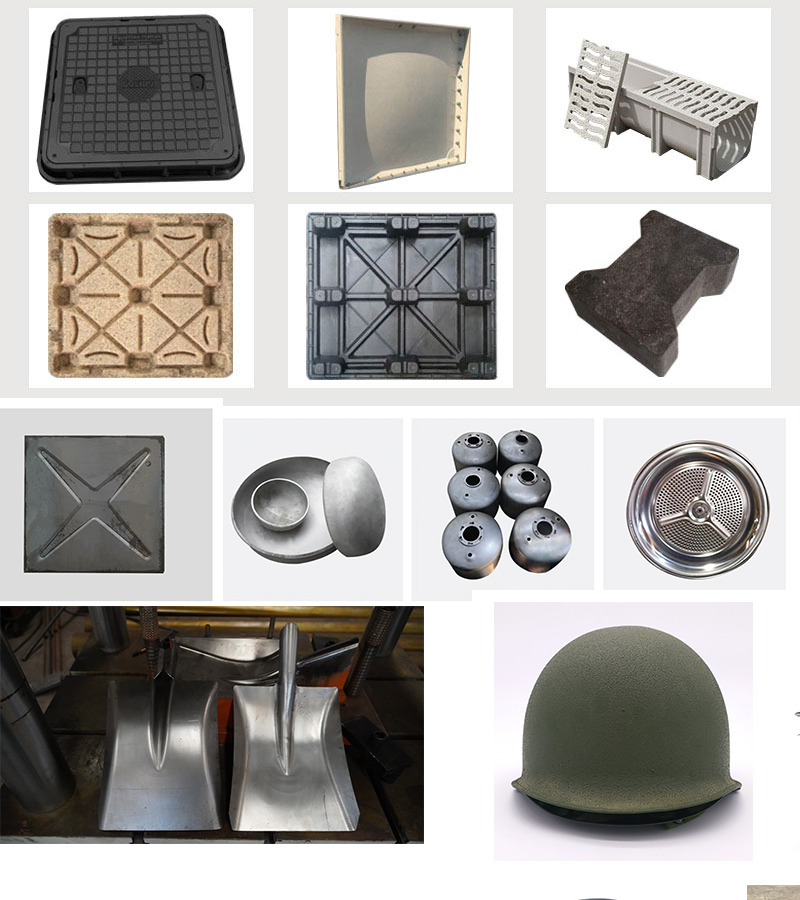

Pressing process
Customer Case
