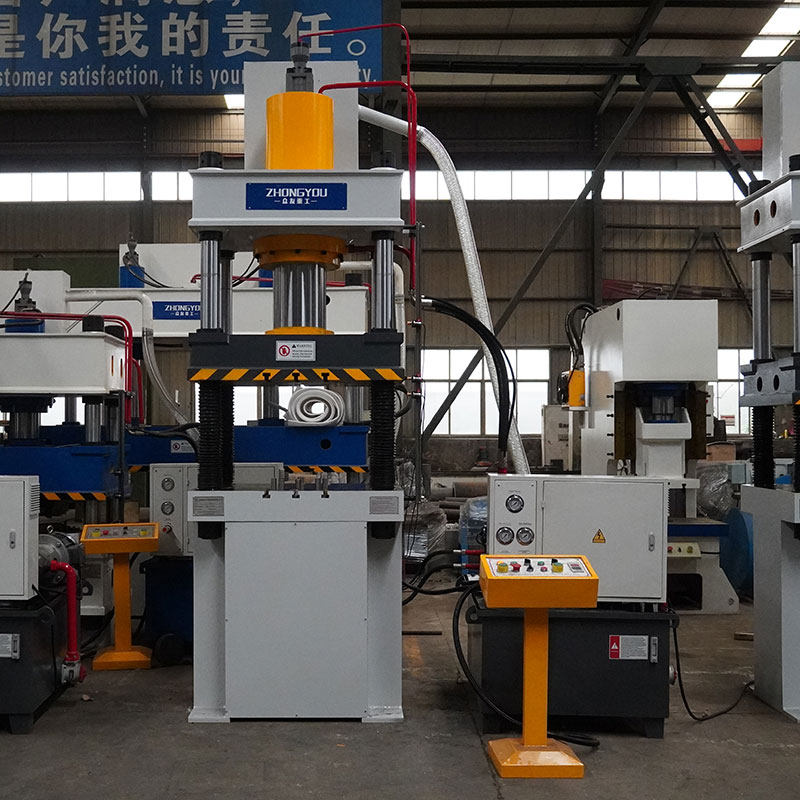

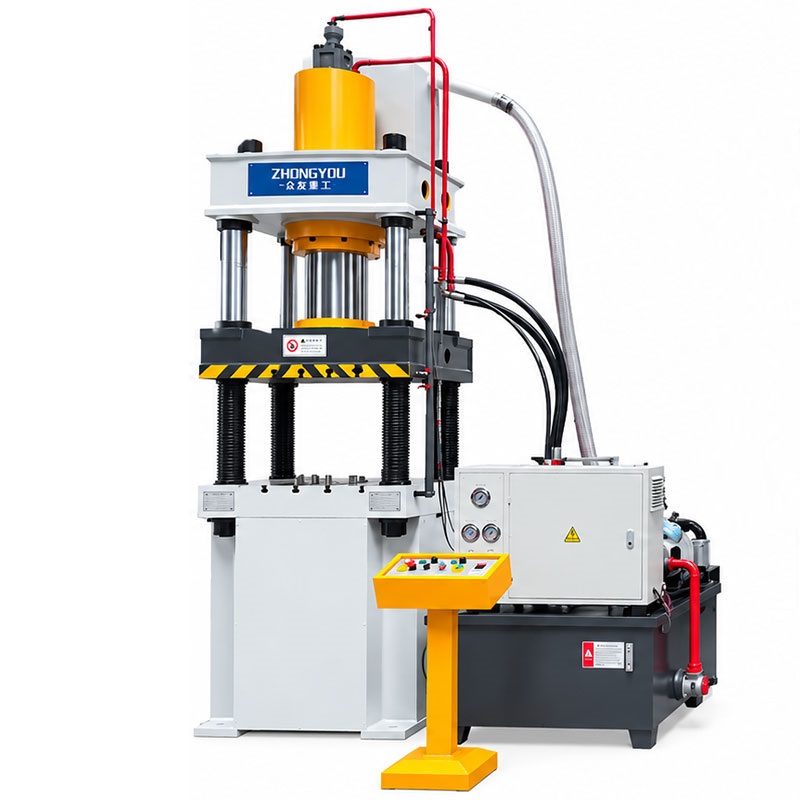

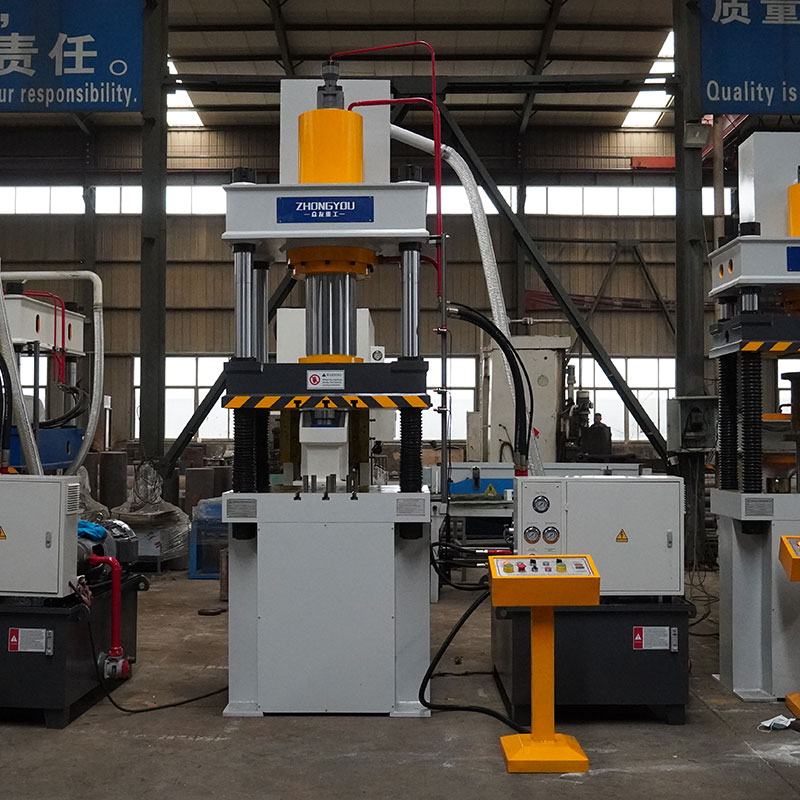

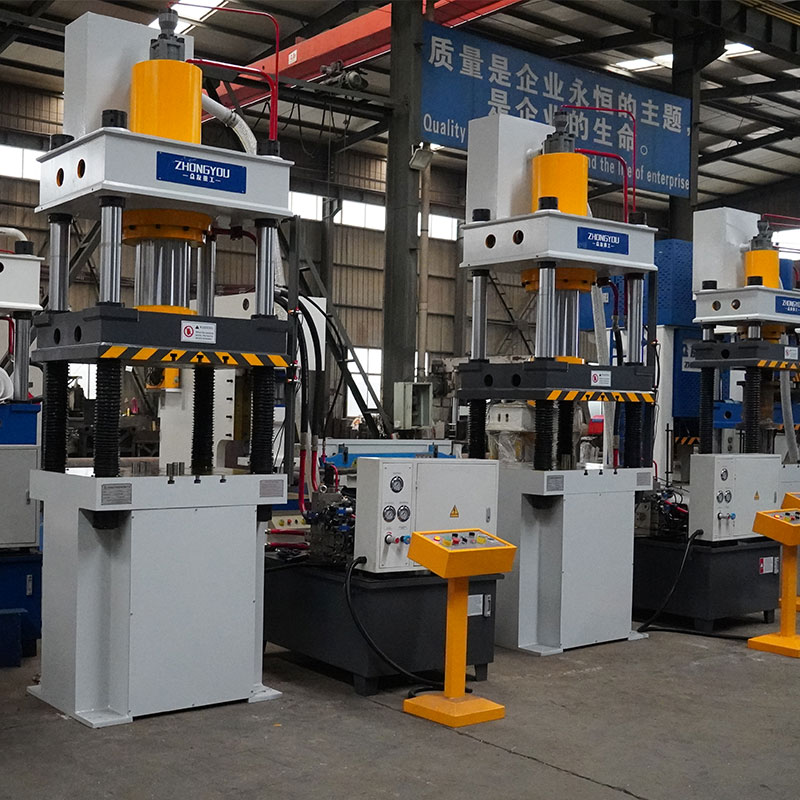

200 ton deep drawing hydraulic press metal stretching machine
The 200 Ton Deep Drawing Hydraulic Press is a hydraulic forming machine designed for deep drawing, stretching and forming of metal sheets and components. With a maximum nominal force of 200 tons, the
+86 13562463338
+86 13562463338
Video Display
Product Introduction
The 200 Ton Deep Drawing Hydraulic Press is a hydraulic forming machine designed for deep drawing, stretching and forming of metal sheets and components. With a maximum nominal force of 200 tons, the machine provides stable and powerful pressure for manufacturing a wide range of metal products with different shapes and dimensions.This hydraulic press is suitable for processing materials such as stainless steel, carbon steel, aluminum and other metal sheets. It can be used for deep drawing, pressing, bending, forming and other sheet metal operations. With properly designed molds and tooling, the machine can produce products with consistent dimensions and good surface quality.
The hydraulic system provides smooth and controlled movement during the forming process. Operators can adjust key parameters such as forming pressure, working speed, stroke and holding time according to different materials and production requirements. This makes the 200-ton press suitable for both prototype production and continuous industrial manufacturing.
The machine can be equipped with a hydraulic cushion or ejector system according to the specific deep drawing process. Different working table sizes, opening heights, slider strokes and control configurations can also be customized to match different molds and product dimensions.
The 200 Ton Deep Drawing Hydraulic Press is widely used in the production of stainless steel containers, kitchenware, metal covers, automotive components, electrical enclosures, cookware, hardware parts and other sheet metal products.
Shandong Zhongyou Heavy Industry Machinery Co., Ltd. provides customized hydraulic press solutions according to material, product shape, mold dimensions and production requirements.
Technical Parameters| YD27 Parameters | Unit | 100T | 200TA | 200TB | 315T | 500T | 630T | 800T | 1000T |
|---|---|---|---|---|---|---|---|---|---|
| Liquid Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider | mm | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| Open Height | mm | 900 | 900 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 |
| Effective Area of Workbench | mm | 750×700 | 800×800 | 1000×1000 | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 |
| Free Fall Speed | mm/s | 90 | 100 | 100 | 120 | 120 | 130 | 150 | 150 |
| Pressing Speed | mm/s | 17 | 14 | 14 | 11 | 18 | 18 | 18 | 18 |
| Return Speed | mm/s | 110 | 110 | 110 | 100 | 170 | 180 | 180 | 190 |
| Motor Power | kW | 7.5 | 7.5 | 7.5 | 22 | 37 | 44 | 60 | 74 |
| Hydraulic Pad Ejecting Force | T | 50 | 60 | 60 | 100 | 160 | 200 | 315 | 400 |
| Ejecting Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic Pad Area | mm | Φ500 | Φ550 | 750×600 | 750×750 | 1050×1050 | 1200×1200 | 1200×1200 | 1200×1200 |
