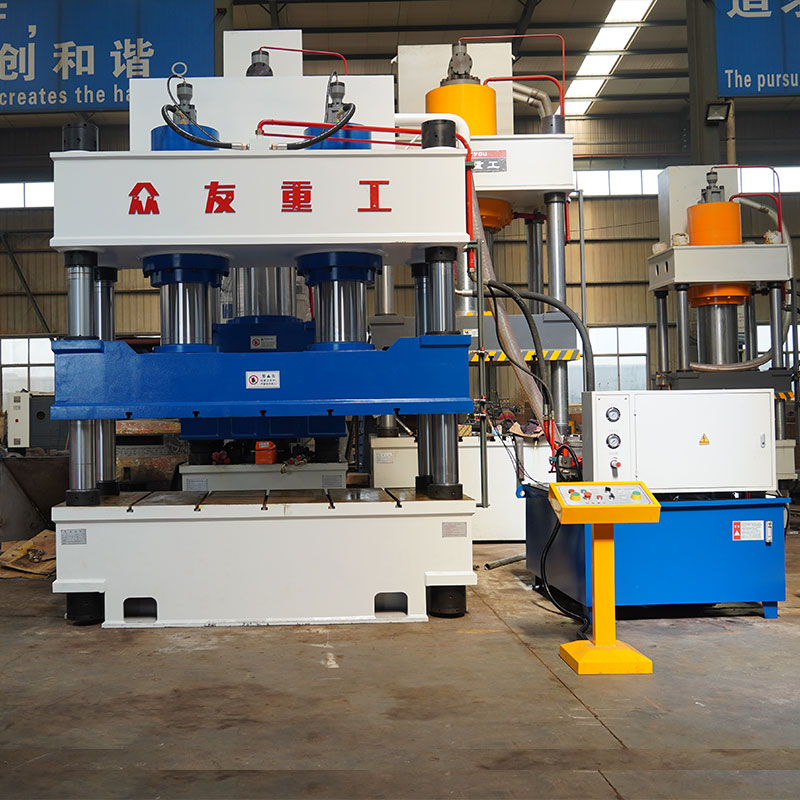

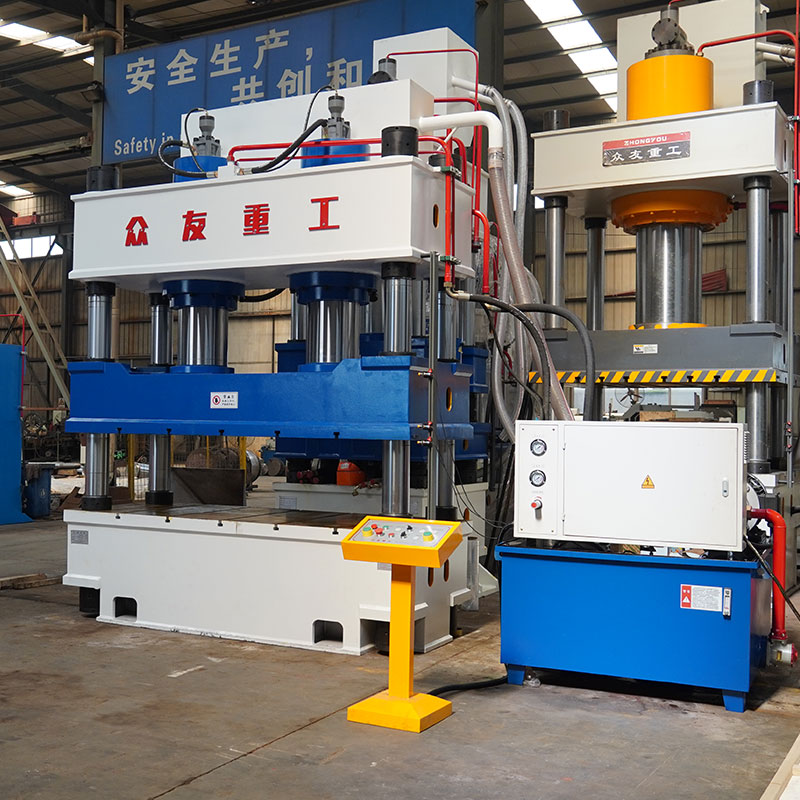

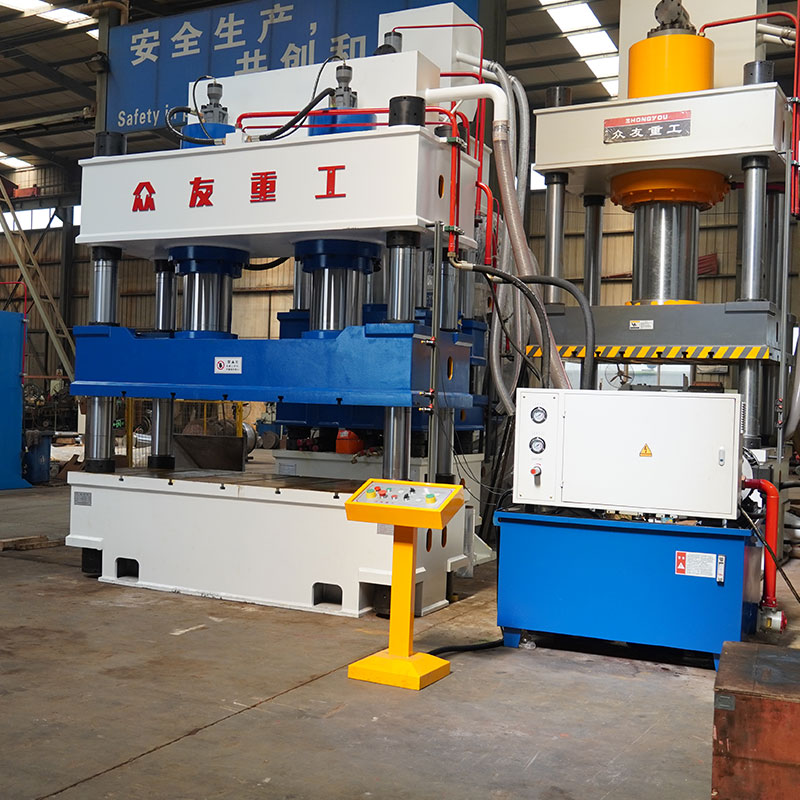

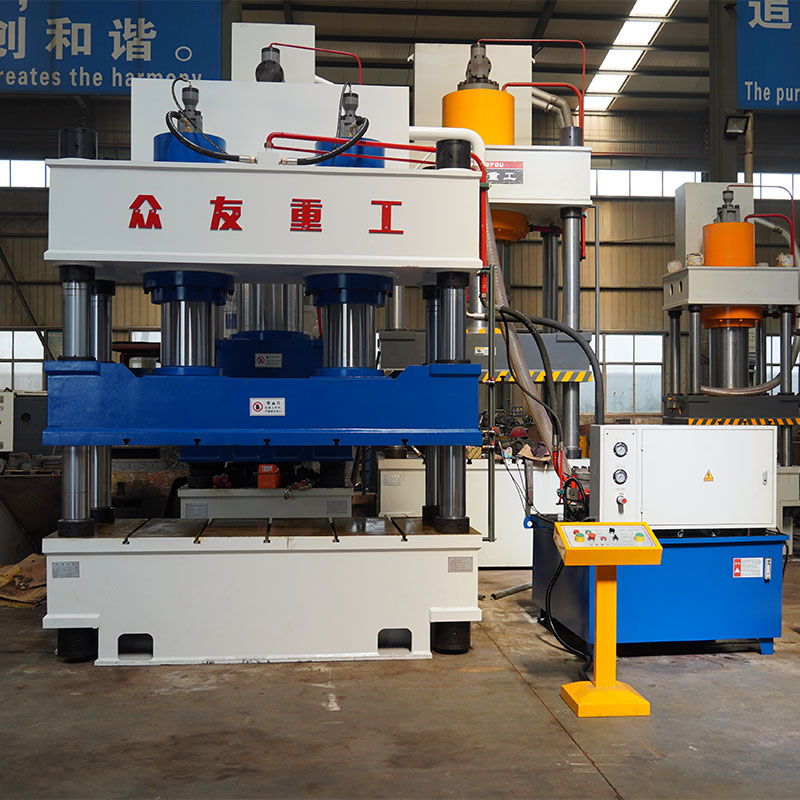

500 Ton Double Cylinder Large Worktable Hydraulic Press

500 Ton Double Cylinder Large Worktable Hydraulic Press

+86 13562463338

Wechat

+86 13562463338

Hydraulic press

Online consultation

Video Display

Product Introduction

This 500T hydraulic press is equipped with an intelligent hydraulic control system, which supports manual, semi-automatic and fully automatic working modes, realizing adjustable pressure, stroke and speed, with high processing accuracy and flexible operation. The hydraulic system adopts imported sealing components and low-noise hydraulic accessories, which effectively reduces oil leakage failure and equipment operation noise, and extends the service life of the whole machine. It is equipped with overload protection, emergency stop, pressure holding and delayed molding functions, which can effectively avoid equipment damage and workpiece scrapping caused by overload operation, ensuring production safety and product qualification rate. The equipment supports customized stroke, table size and mold parameters to meet the personalized processing needs of different industries.

This large-table double-cylinder hydraulic press is suitable for various heavy industrial processing scenarios, including automotive parts manufacturing (auto cover, chassis parts stamping and forming), hardware products processing, aerospace accessory molding, plastic and composite material pressing, hardware mold pressing, mechanical parts pressure assembly, sheet metal stretching and thick plate bending. It is widely used in machinery manufacturing, automobile industry, aerospace, electrical appliances, hardware processing, new energy materials and other fields, and is the preferred high-efficiency forming equipment for medium and large industrial processing enterprises.

All equipment is manufactured in strict accordance with international CE safety standards, with complete export certification documents, supporting global customs clearance. The whole machine adopts anti-rust and anti-corrosion spraying process, which is suitable for long-distance ocean transportation and different regional climatic environments. The core components are brand industrial accessories, with stable performance and low failure rate, reducing later maintenance costs for overseas customers. We provide full English operation manuals, video debugging tutorials and 24/7 overseas after-sales technical support, bringing customers a worry-free purchase and use experience.

Technical Parameters

Parameter	Unit	YQ32-63	YQ32-100A	YQ32-100B	YQ32-200A	YQ32-200B	YQ32-315A	YQ32-315B
Nominal Force	kN	630	1000	1000	2000	2000	3150	3150
Maximum System Working Pressure	MPa	25	25	25	25	25	25	25
Maximum Open Height of Slider	mm	700	800	900	1100	900	1250	1000
Maximum Stroke of Slider	mm	400	500	600	500	600	800	600
Effective Area of Workbench	mm	610×500	630×550	750×700	1000×1000	800×800	1260×1160	800×800
Slider Free Fall Speed	mm/s	100	100	100	100	100	100	100
Pressing Speed	mm/s	11-22	7-15	7-15	7-18	7-18	7-12	7-12
Return Speed	mm/s	80	90	90	90	90	100	90
Ejecting Force	kN	100	200	200	400	400	630	630
Maximum Ejecting Stroke	mm	160	200	200	200	200	300	300

Name	Unit	YQ32-400	YQ32-500	YQ32-630	YQ32-800	YQ32-1000	YQ32-1250	YQ32-1600
Nominal Force	kN	4000	5000	6300	8000	10000	12500	16000
Maximum System Working Pressure	MPa	25	25	25	25	25	25	25
Maximum Open Height of Slider	mm	1250	1500	1500	1500	1500	1500	1500
Maximum Stroke of Slider	mm	800	900	900	900	900	900	900
Effective Area of Workbench	mm	1250×1160	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Slider Free Fall Speed	mm/s	100	100	150	100	180	180	190
Pressing Speed	mm/s	5-11	10-18	9-18	7-18	10-18	6-15	6-14
Return Speed	mm/s	100	180	200	90	220	200	220
Ejecting Force	kN	630	1000	1000	400	1000	1000	1600
Maximum Ejecting Stroke	mm	300	300	300	200	300	300	300

Pressing process
