BMCSMC composite material resin manhole cover molding hydraulic machine
315 ton resin manhole cover hydraulic press is a kind of hydraulic molding equipment specially used for producing resin composite material manhole cover, its nominal pressure is 315 tons, mainly used
+86 13562463338
+86 13562463338
Video Display
Product Introduction

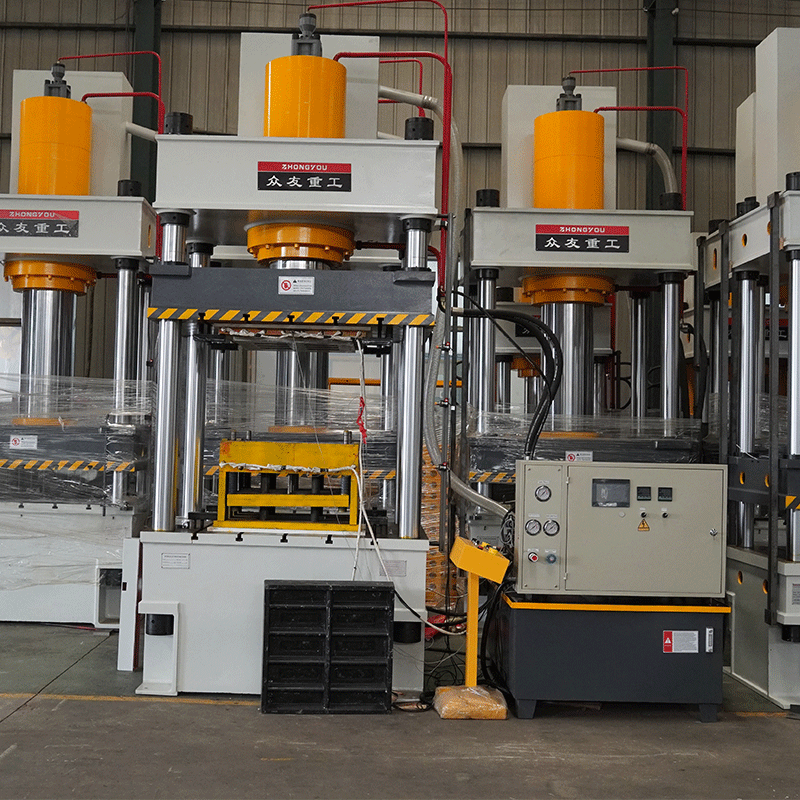

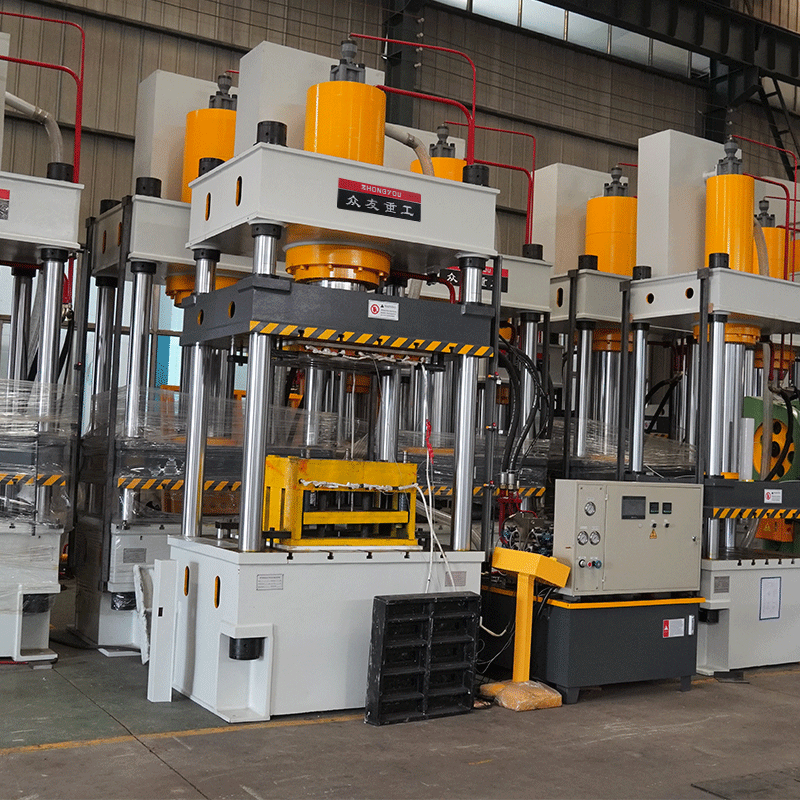

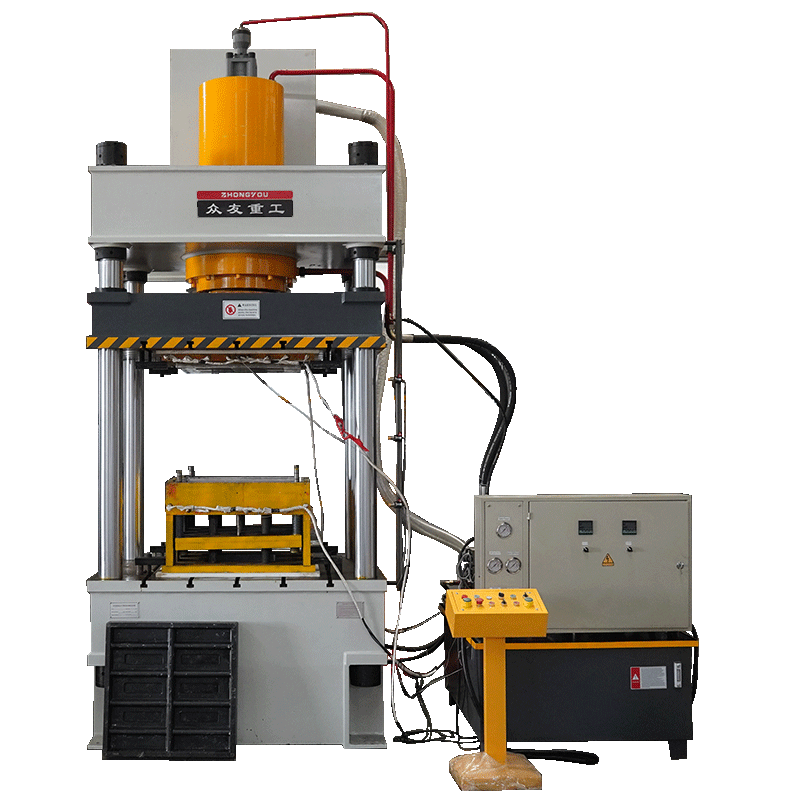

315 ton resin manhole cover hydraulic press is a kind of hydraulic molding equipment specially used for producing resin composite material manhole cover, its nominal pressure is 315 tons, mainly used for mixing resin, fiber (such as glass fiber, steel, etc.) and filler according to a certain ratio, and then molded by high pressure pressure pressing in the mold, to make the resin manhole cover that meets the requirements.
Its core functions include:

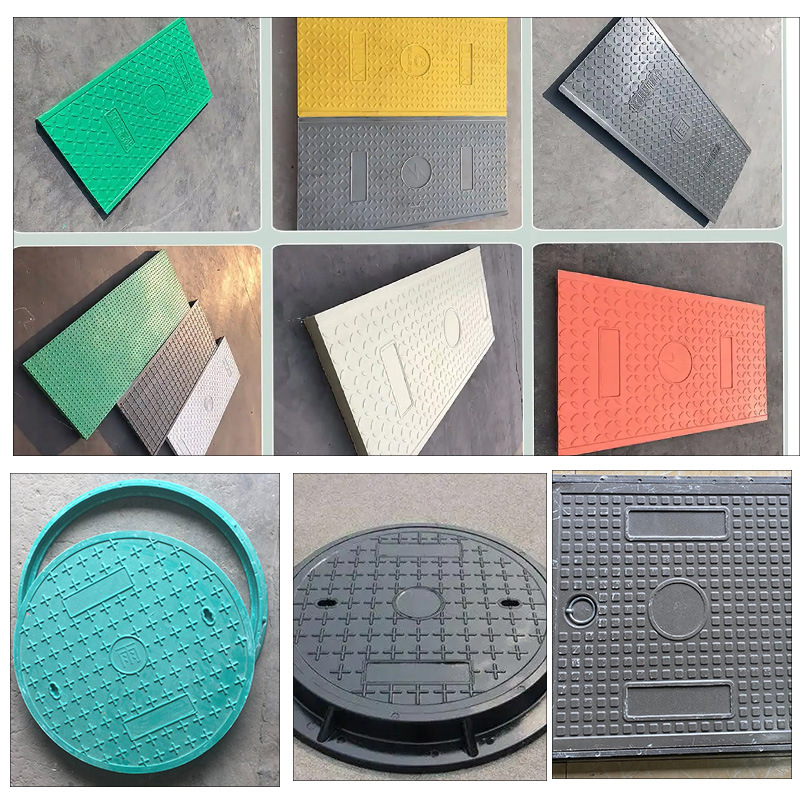

High-strength molding: the pressed manhole cover has the characteristics of lightweight and high-strength, anti-fatigue, corrosion-resistant, anti-theft, etc., and the comprehensive performance exceeds the traditional cast iron manhole cover.
Multi-process adaptation: support stamping, bending, flanging, stretching and other operations, can also be used for shaft parts pressing, profile calibration, plate bending and other scenarios.
Automatic control: Equipped with PLC or button centralized control system, it supports pointing and semi-automatic operation, and realizes two kinds of molding processes: fixed-pressure and fixed-range, and has the function of holding pressure and delaying time.
Workflow
Loading and closing mold: manually or automatically put the mixed resin material into the lower mold, the slider quickly descends to close to the mold (5-10mm away from the mold), switch to low speed pressing.
Pressing and molding: the main cylinder is pressurized, the slide continues to move downward until it reaches the set pressure (315 tons), holding pressure for 5-30 seconds (to ensure that the resin curing or cross-linking reaction is completed).
Open the mold to pick up the parts: the main cylinder reverses the oil supply, the slider quickly returns to the upper limit; the ejector device (hydraulic pusher) ejects the molded manhole cover from the lower mold, completing a single cycle.
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
