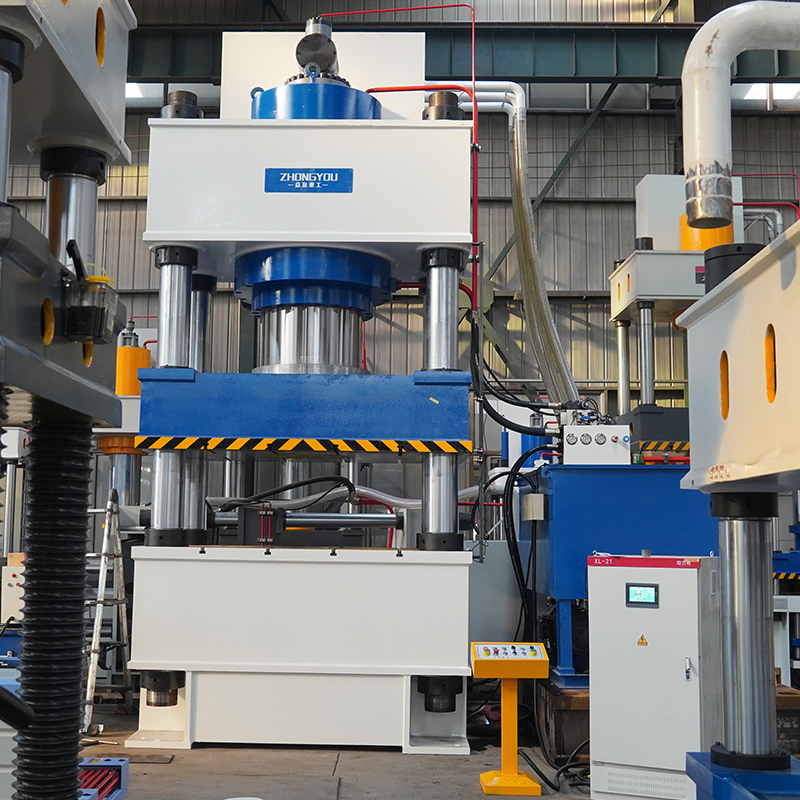

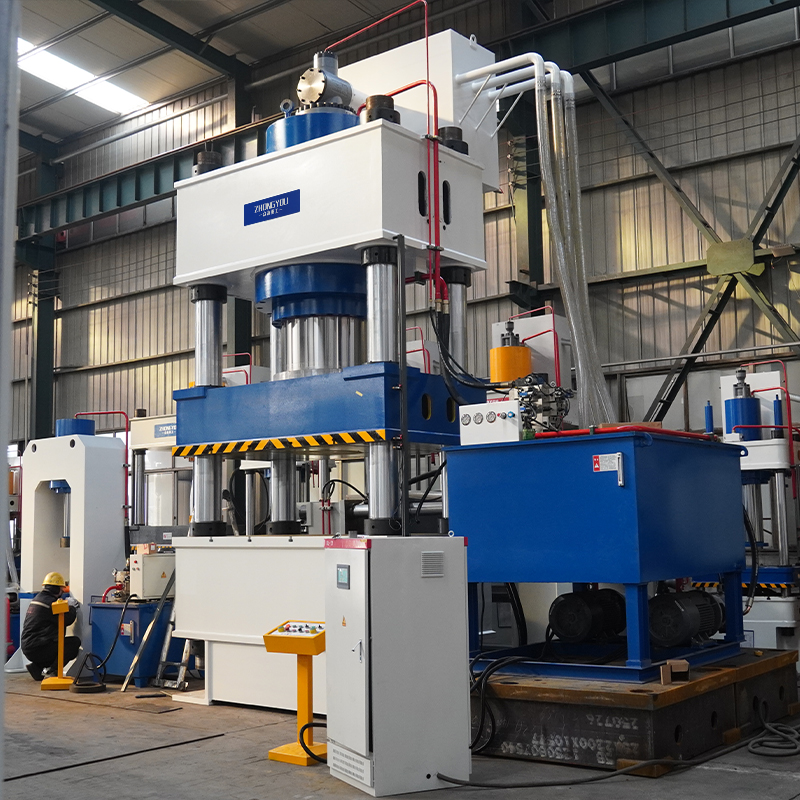

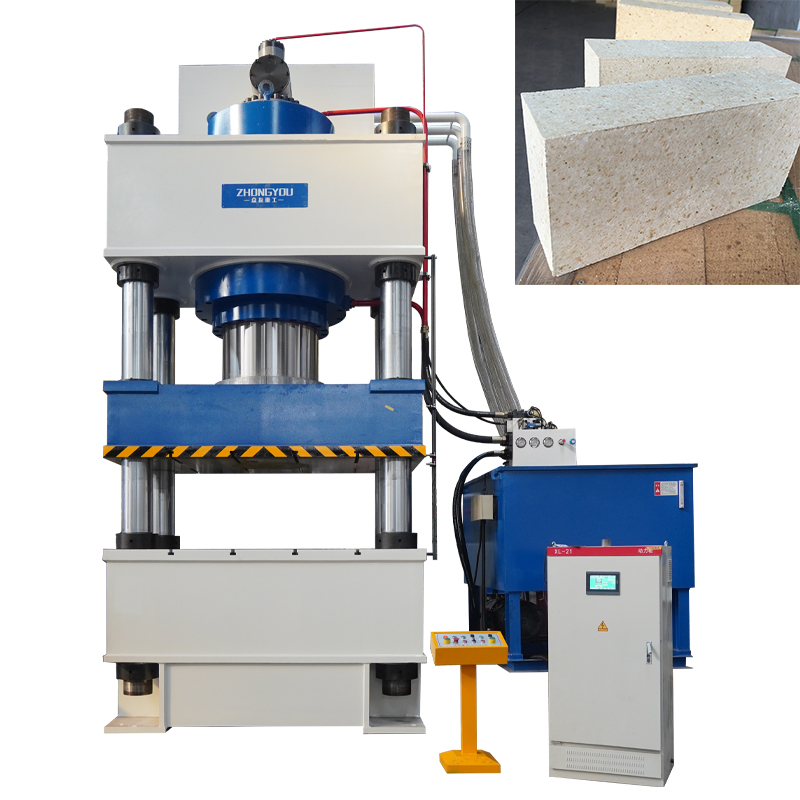

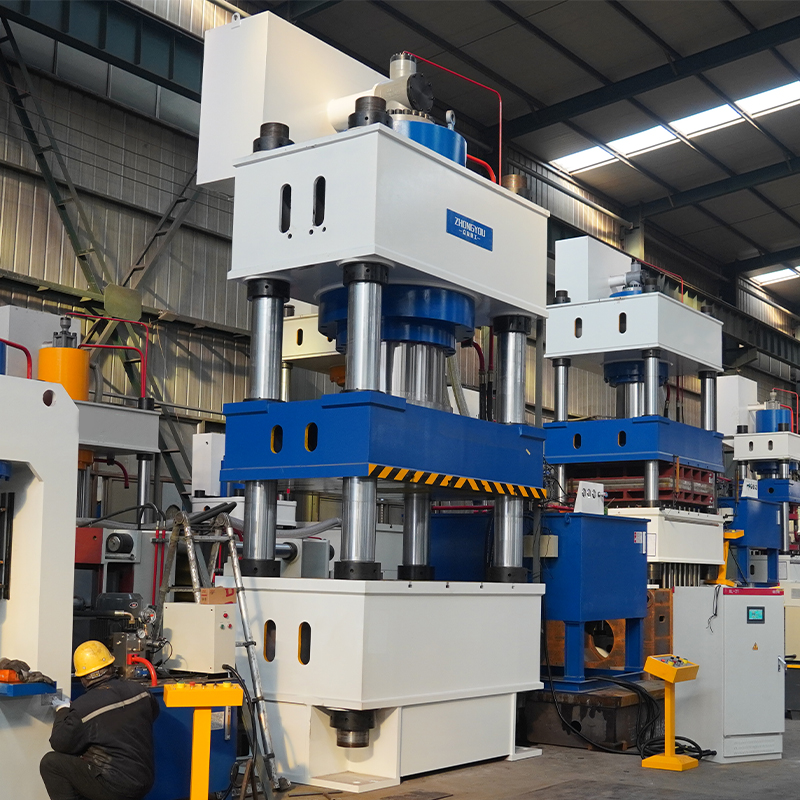

1500-ton Refractory Brick Forming Hydraulic Press

1500-ton Refractory Brick Forming Hydraulic Press is a highly specialized, heavy-duty industrial equipment typically categorized as a "refractory forming press" or "refractory brick press." It is not

+86 13562463338

Wechat

+86 13562463338

Hydraulic press 1500-ton Refractory Brick Forming Hydraulic Press

Online consultation

Video Display

Product Introduction

1500-ton Refractory Brick Forming Hydraulic Press is a highly specialized, heavy-duty industrial equipment typically categorized as a "refractory forming press" or "refractory brick press." It is not merely a "high-tonnage" machine but features specialized design for forming refractory materials such as magnesia bricks, bauxite bricks, silica bricks, and others.

Refractory Production

Standard and Special-Shaped Bricks: Capable of pressing standard bricks, common bricks, and specialized bricks to meet the demands of thermal equipment like blast furnaces, hot blast stoves, soaking hearths, and annealing furnaces.

Industrial Waste Utilization: Supports the production of building materials using industrial waste products like fly ash and slag as raw materials, aligning with environmental protection and energy-saving policies.

Composite Material Forming

SMC/BMC Molding: Suitable for large-scale SMC molding of automotive roof panels, engine hoods, battery compartment covers, and production of FRP products like railway car interior trim and electrical cabinet housings.

Carbon Fiber/Aramid Composites: Supports prepreg molding for aerospace windshield frames and ship structural bulkheads, achieving high-strength interfacial bonding.

Metal Processing

Deep Drawing and Stamping: Suitable for forming metal sheets in applications like head drawing, workpiece deep drawing, and automotive part drawing, as well as integrated forming of high-strength steel frames and punching composite processes.

Powder Metallurgy: Supports rapid forming of metal powders such as iron, copper, and stainless steel powders for products like crucibles, molds, and grinding wheels.

Technical Parameters

Parameter	Unit	YQ32-63	YQ32-100A	YQ32-100B	YQ32-200A	YQ32-200B	YQ32-315A	YQ32-315B
Nominal Force	kN	630	1000	1000	2000	2000	3150	3150
Maximum System Working Pressure	MPa	25	25	25	25	25	25	25
Maximum Open Height of Slider	mm	700	800	900	1100	900	1250	1000
Maximum Stroke of Slider	mm	400	500	600	500	600	800	600
Effective Area of Workbench	mm	610×500	630×550	750×700	1000×1000	800×800	1260×1160	800×800
Slider Free Fall Speed	mm/s	100	100	100	100	100	100	100
Pressing Speed	mm/s	11-22	7-15	7-15	7-18	7-18	7-12	7-12
Return Speed	mm/s	80	90	90	90	90	100	90
Ejecting Force	kN	100	200	200	400	400	630	630
Maximum Ejecting Stroke	mm	160	200	200	200	200	300	300

Name	Unit	YQ32-400	YQ32-500	YQ32-630	YQ32-800	YQ32-1000	YQ32-1250	YQ32-1600
Nominal Force	kN	4000	5000	6300	8000	10000	12500	16000
Maximum System Working Pressure	MPa	25	25	25	25	25	25	25
Maximum Open Height of Slider	mm	1250	1500	1500	1500	1500	1500	1500
Maximum Stroke of Slider	mm	800	900	900	900	900	900	900
Effective Area of Workbench	mm	1250×1160	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Slider Free Fall Speed	mm/s	100	100	150	100	180	180	190
Pressing Speed	mm/s	5-11	10-18	9-18	7-18	10-18	6-15	6-14
Return Speed	mm/s	100	180	200	90	220	200	220
Ejecting Force	kN	630	1000	1000	400	1000	1000	1600
Maximum Ejecting Stroke	mm	300	300	300	200	300	300	300

Pressing process

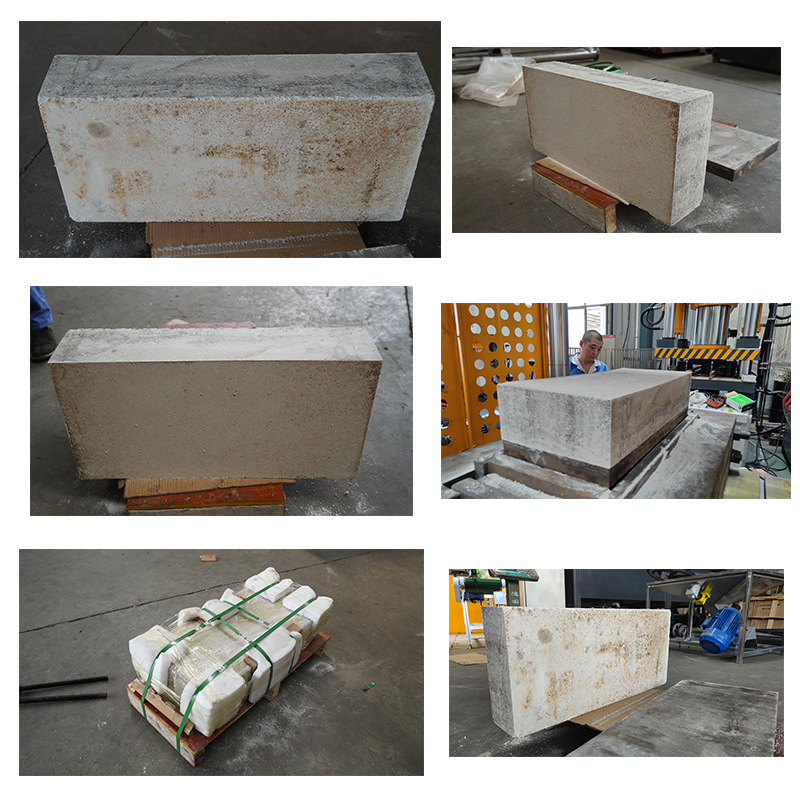

$1500-ton hydraulic press for pressing refractory bricks (2)$
