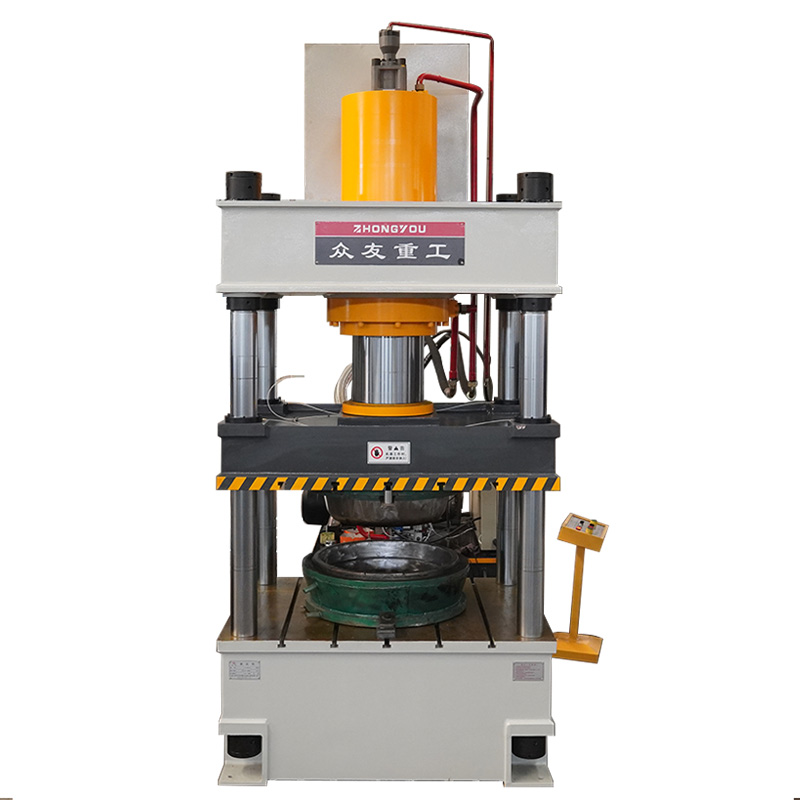

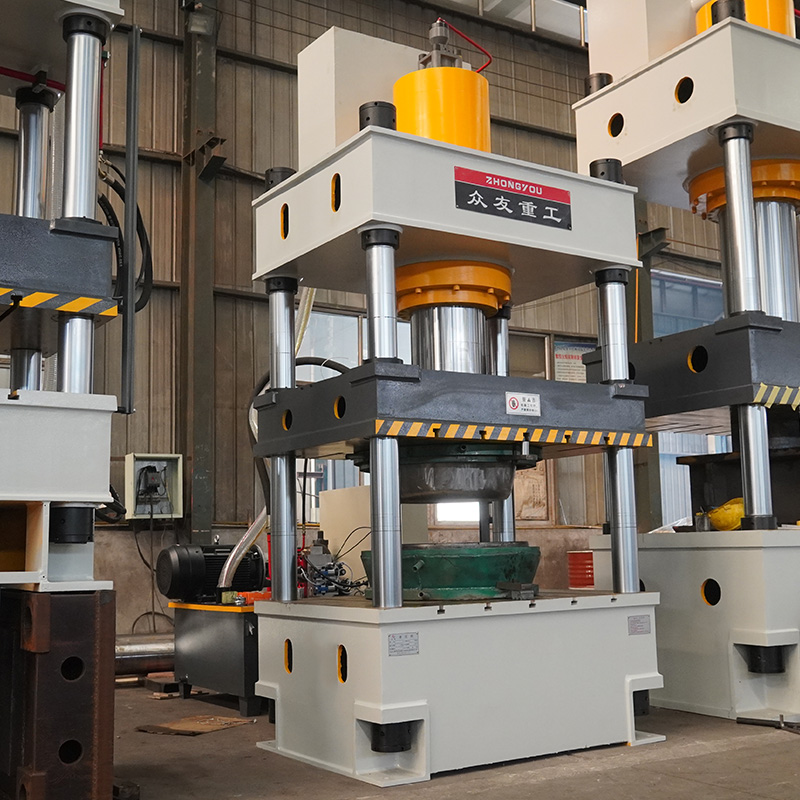

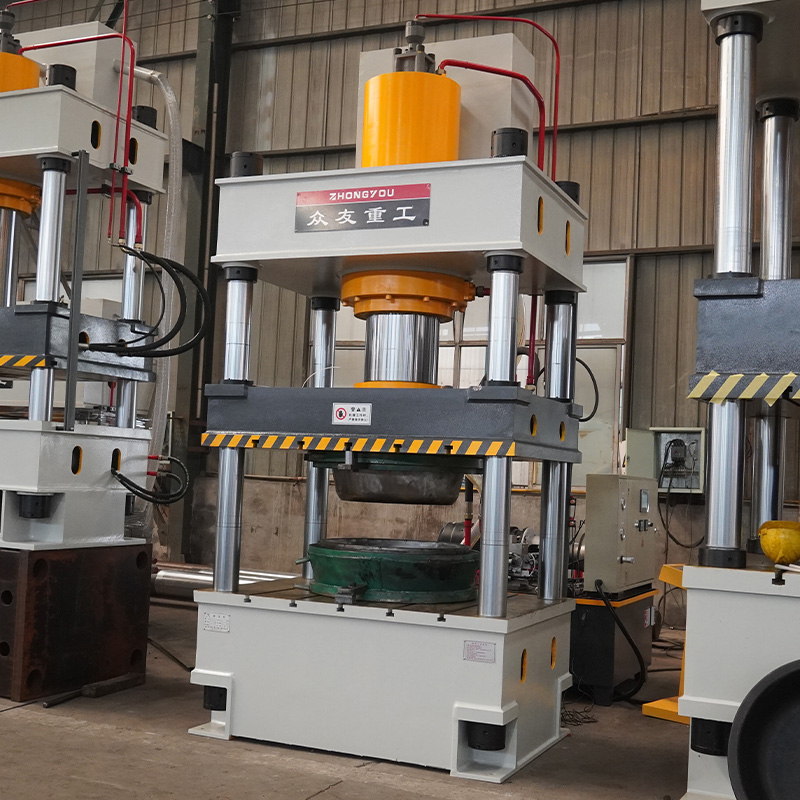

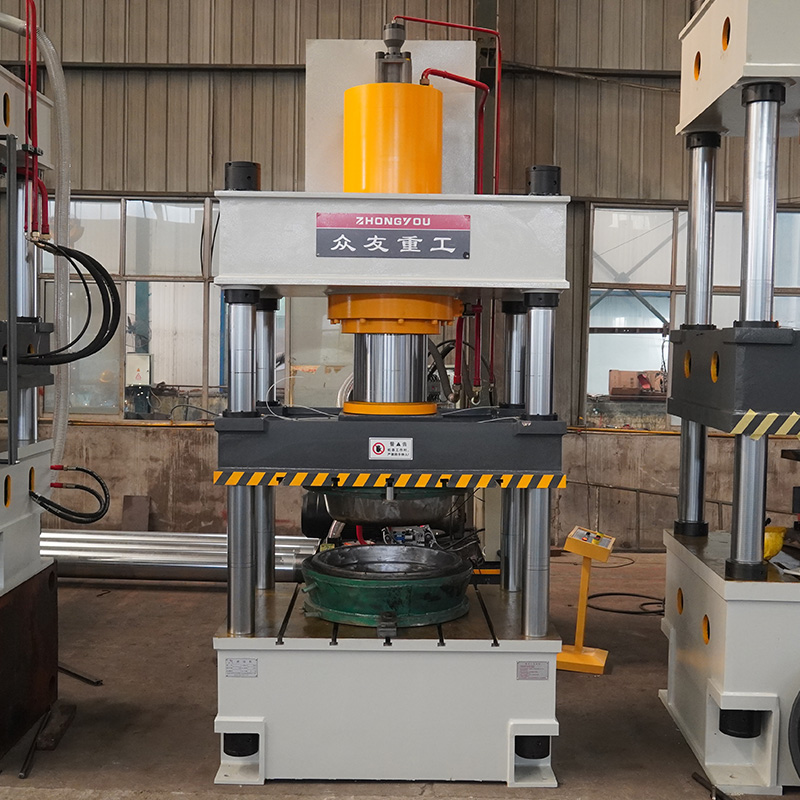

Hydraulic press for plastic basin molding 315-tonne four-column hydraulic press
Specifically designed for the hot-press moulding of large containers, horticultural gallon pots, aquaculture plastic trays, vegetable washing basins and large plastic waste bins made from PE, PP, SMC
+86 13562463338
+86 13562463338
Video Display
Product Introduction
Specifically designed for the hot-press moulding of large containers, horticultural gallon pots, aquaculture plastic trays, vegetable washing basins and large plastic waste bins made from PE, PP, SMC and recycled plastics. Equipped with a mould heating system, it produces complete plastic container bodies in a single hot-pressing operation, ensuring uniform wall thickness, no material shortages and a smooth surface, making it suitable for the large-scale mass production of plastic household goods.
Structure and Key Advantages
High structural rigidity
Featuring a three-beam, four-column structure welded from a single sheet of steel and subjected to stress-relief ageing treatment. Four precision chrome-plated columns, combined with wear-resistant guide sleeves, ensure load-free downward pressure, minimising the risk of uneven wall thickness, deformation or cracking when moulding large plastic basins.
Hot-press Moulding Support System
The worktable incorporates built-in electric or oil heating modules with adjustable temperatures ranging from 0 to 300°C, suitable for the softening and moulding of thermoplastics and composite materials. The moulding process features automatic degassing to eliminate air bubbles and delamination defects in the basin body.
Technical Parameters| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process
