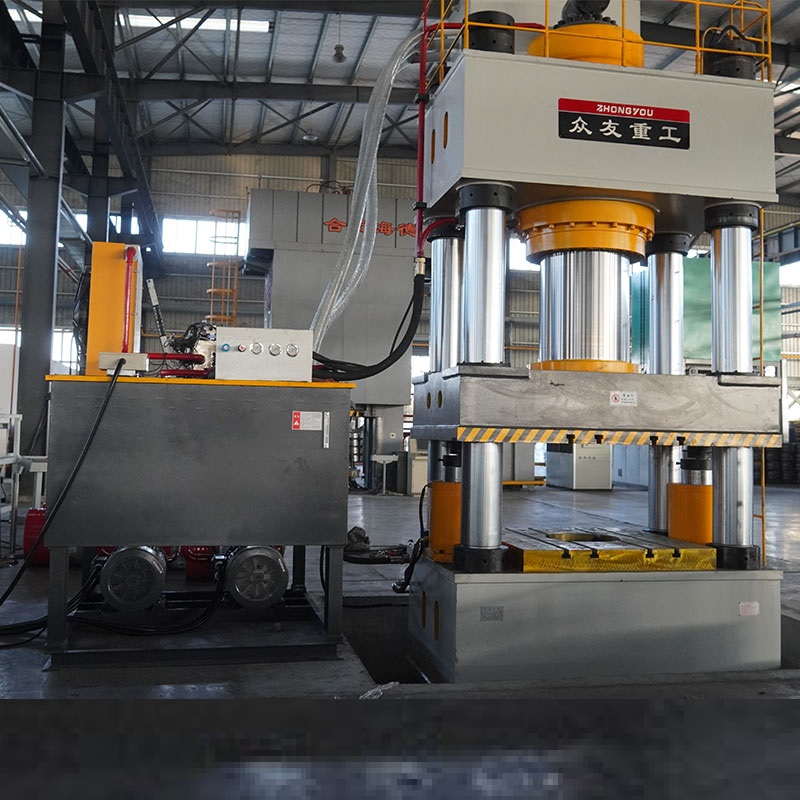

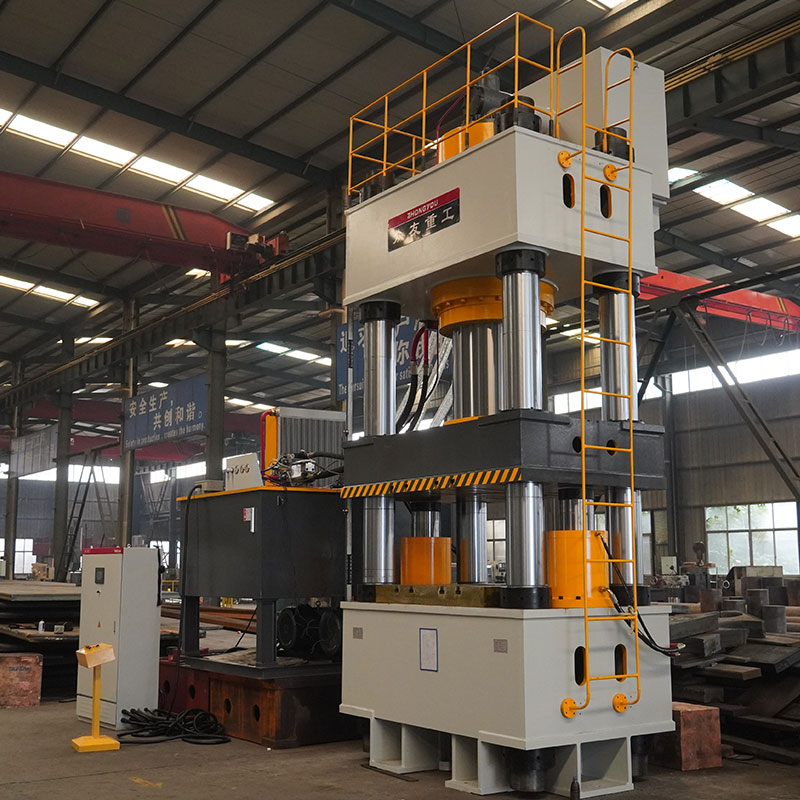

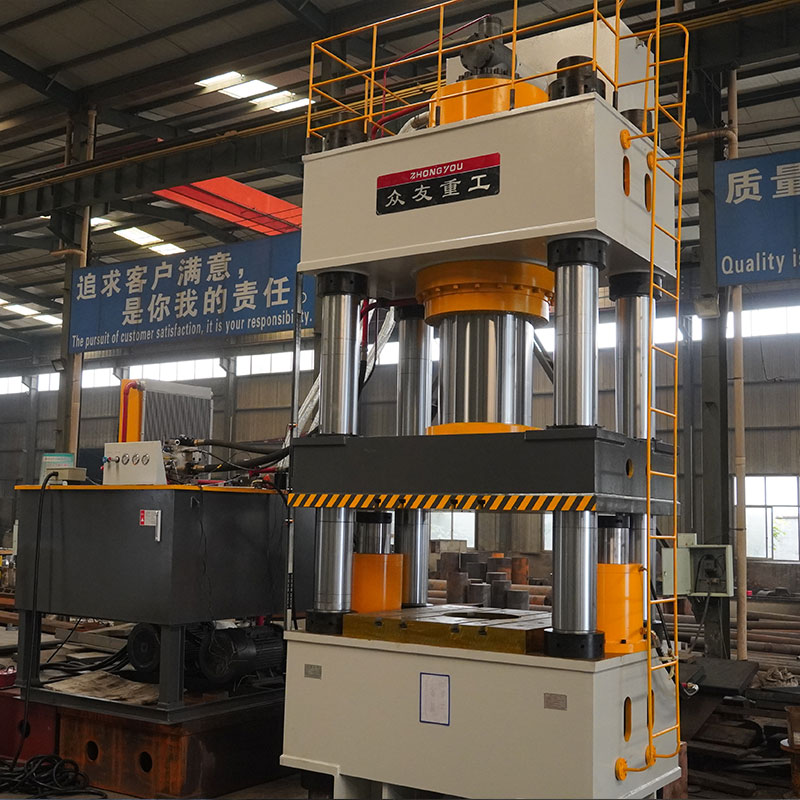

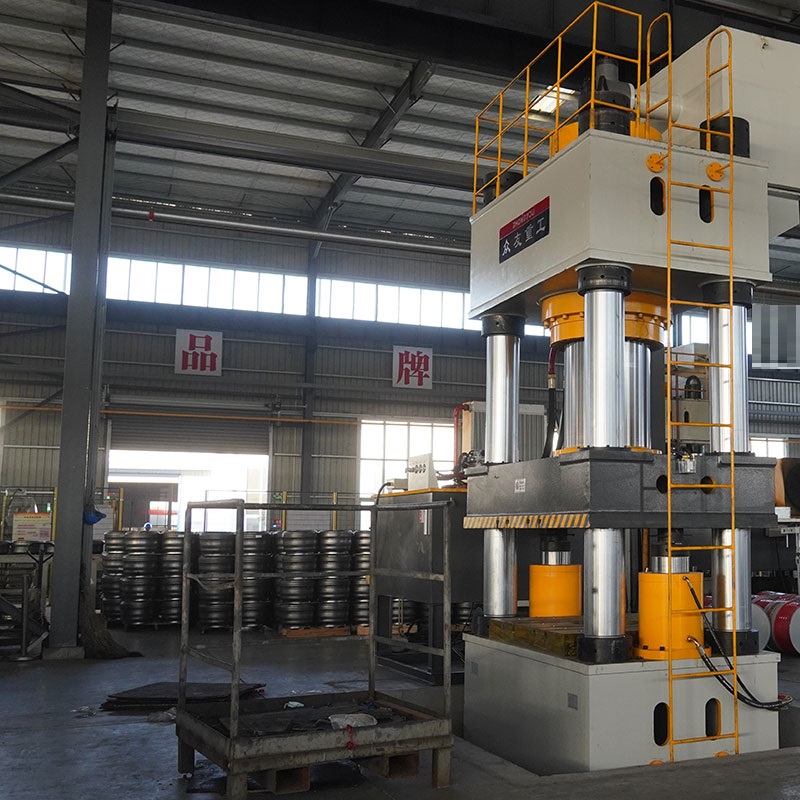

1000 Ton Heavy-Duty Hydraulic Press for Car Wheel Hub Forming & Stamping
The 1000 Ton Heavy-Duty Car Wheel Hub Hydraulic Press is a professional customized hydraulic forming equipment independently developed for the automotive wheel hub manufacturing industry. It is specia
+86 13562463338
+86 13562463338
Video Display
Product Introduction
The 1000 Ton Heavy-Duty Car Wheel Hub Hydraulic Press is a professional customized hydraulic forming equipment independently developed for the automotive wheel hub manufacturing industry. It is specially designed for integral stamping, forging, forming, trimming, and shaping of automobile aluminum alloy wheels, steel wheels, and commercial vehicle wheel hubs. Adopting a four-column three-beam integrated rigid structure, the machine features stable pressure output, high forming precision, and durable operation, fully meeting the mass production and high-standard processing requirements of passenger cars, trucks, and new energy vehicle wheel hubs.
Professionally applicable to one-time integral forming of automobile aluminum alloy wheel hubs, steel wheel hubs, and heavy-duty vehicle wheel hubs. It supports multiple processing procedures including wheel hub blank stamping, hot forging forming, cold shaping, edge trimming, hole flanging, and precision correction. The 1000-ton ultra-high pressure output perfectly adapts to the high-hardness forming demand of thick-walled wheel hubs for commercial vehicles and new energy heavy trucks, solving the problems of insufficient pressure and incomplete forming of small-tonnage hydraulic presses. It is compatible with mass production lines and can realize automated docking with feeding and discharging equipment.
Widely used in the manufacturing and processing of wheel hubs for passenger cars, sedans, SUVs, new energy electric vehicles, trucks, buses, and engineering vehicles. It is the core dedicated equipment for auto parts factories to produce high-precision aluminum alloy wheel hubs and heavy-duty steel wheel hubs, and is exported to Europe, America, Southeast Asia, the Middle East and other global markets, winning wide recognition from overseas automotive parts manufacturers.
Technical Parameters| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |

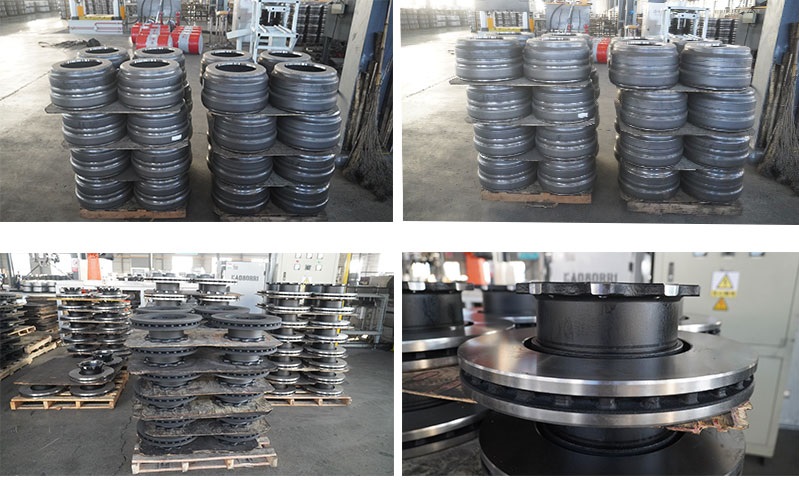

Pressing process
