SMC Yacht Parts Molding Hydraulic Press Machine | Composite Material Compression Molding Equipment
The SMC Yacht Parts Molding Hydraulic Press Machine is a high-performance composite material forming machine specially designed for manufacturing yacht components, marine parts, and other high-strengt
+86 13562463338
+86 13562463338
Video Display
Product Introduction

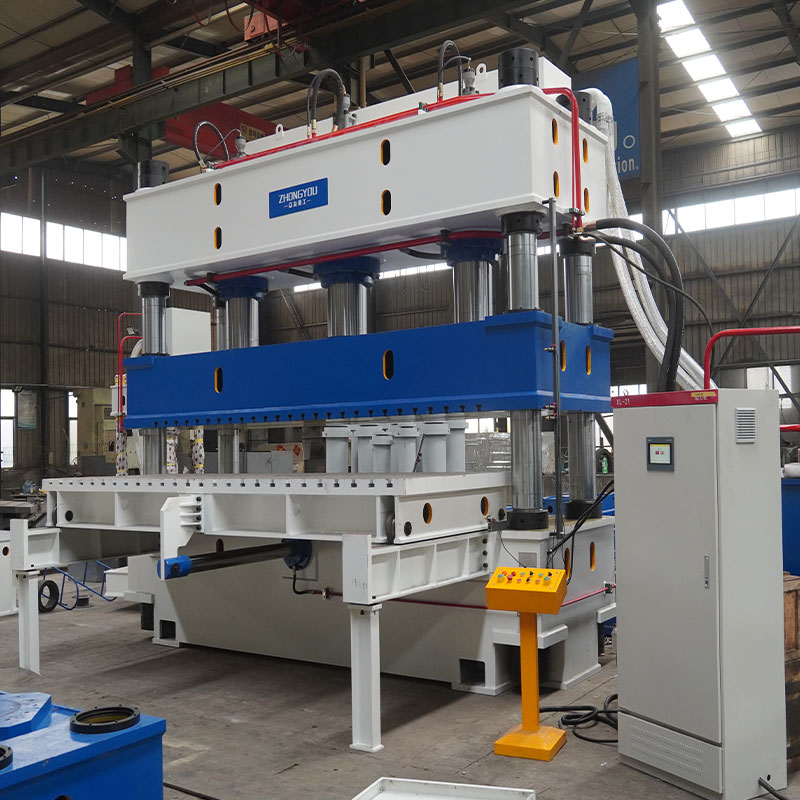

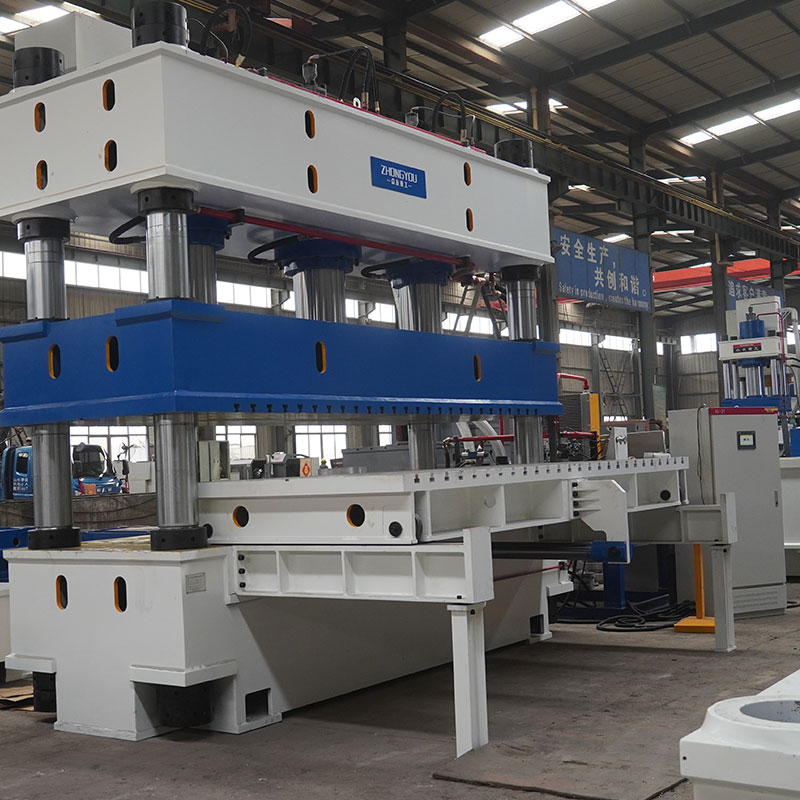

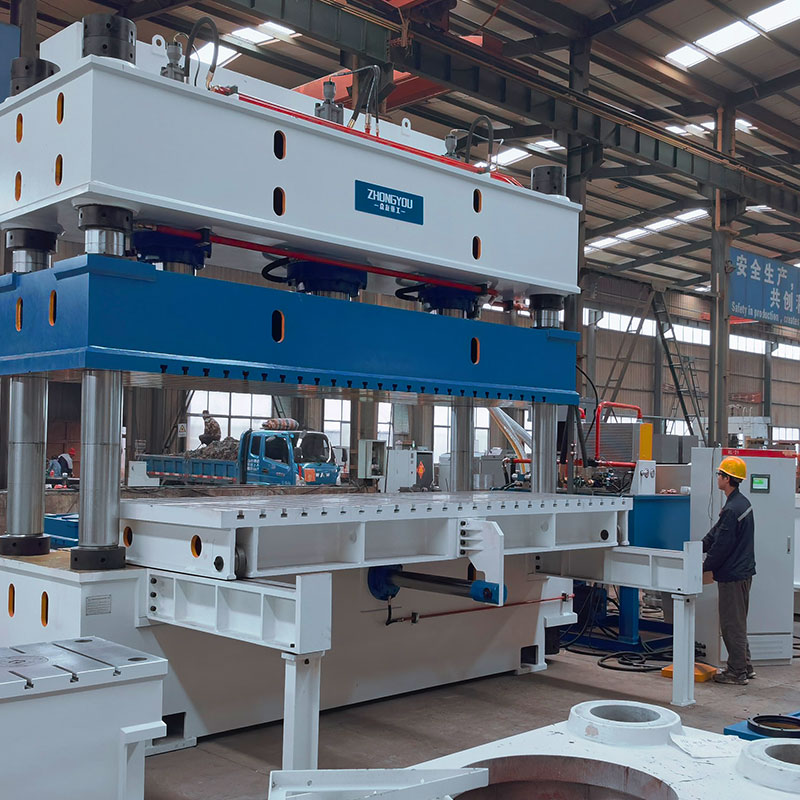

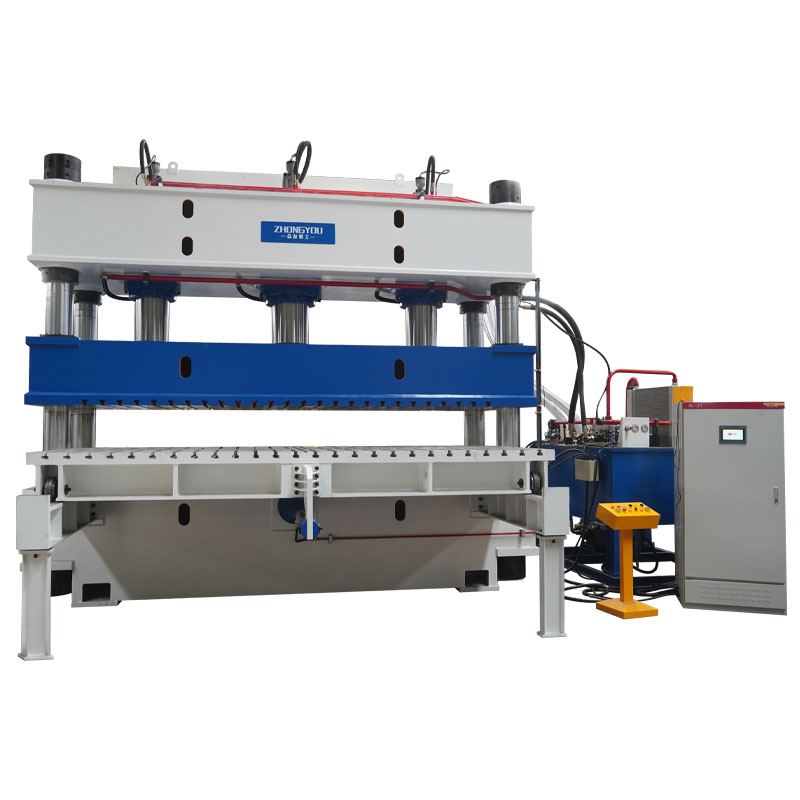

The SMC Yacht Parts Molding Hydraulic Press Machine is a high-performance composite material forming machine specially designed for manufacturing yacht components, marine parts, and other high-strength SMC products. It is widely used for compression molding of fiberglass reinforced composite materials, providing excellent forming quality, high production efficiency, and stable operation.
SMC (Sheet Molding Compound) materials are widely applied in the marine industry due to their advantages of lightweight, corrosion resistance, high strength, and excellent weather resistance. This hydraulic press machine uses advanced hydraulic technology and precise temperature control systems to ensure uniform pressure and stable heating during the molding process, producing yacht parts with accurate dimensions and smooth surface finishes.

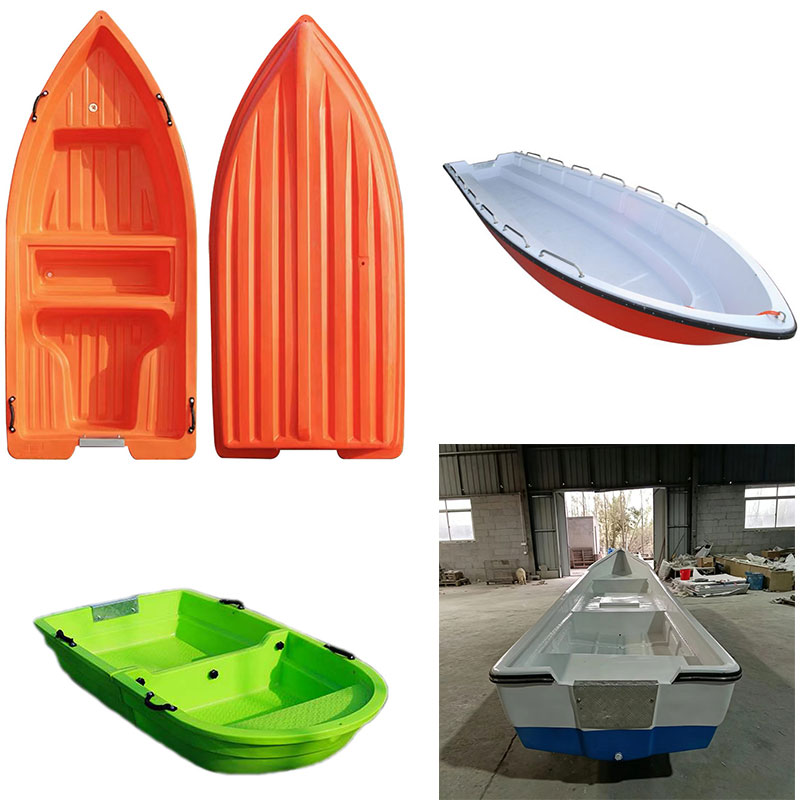

This SMC hydraulic press is suitable for producing various yacht and boat components, including yacht covers, hull accessories, deck panels, interior parts, seats, marine shells, and customized composite products. According to different production requirements, the equipment can be customized with different tonnage capacities, working table sizes, heating plates, automatic loading systems, and special molds.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process
Customer Case
