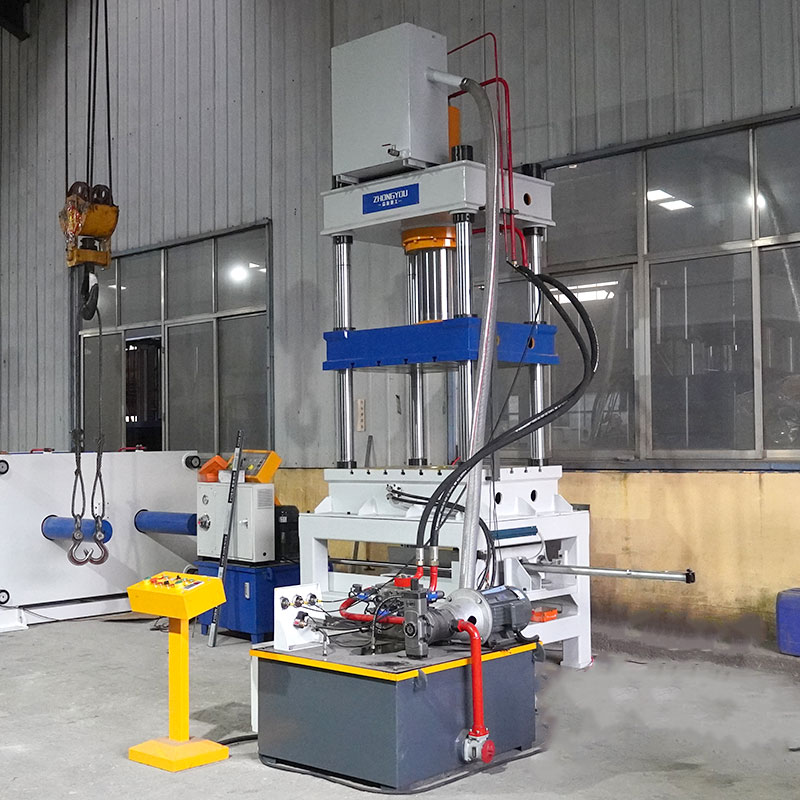

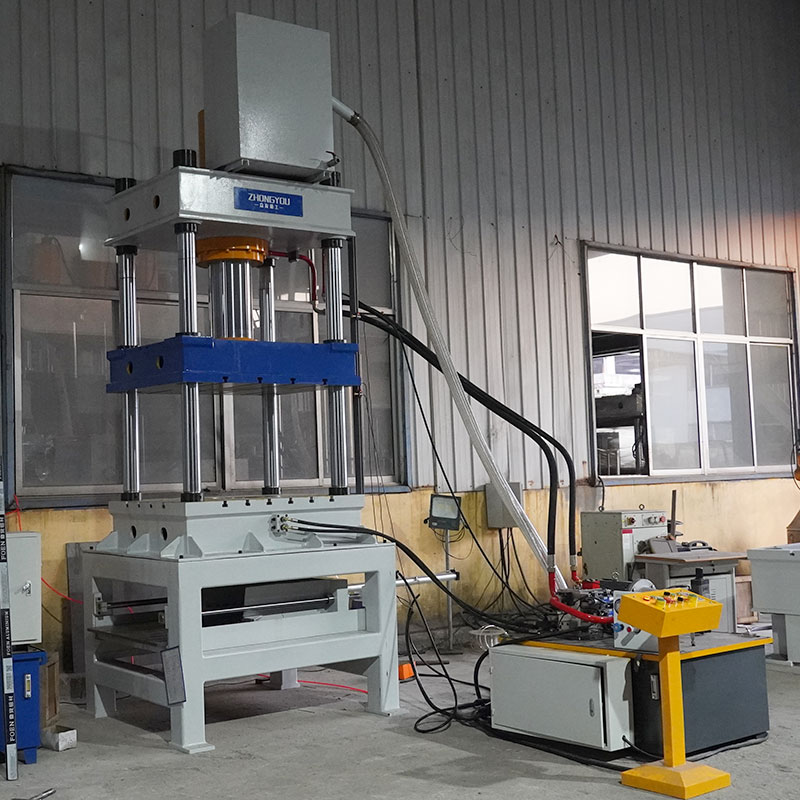

200 Ton Custom Four Column Hydraulic Press with Pneumatic Ejector Cylinder, Automatic Material Removal Forming Machine
The 200-ton customized four-column hydraulic press with pneumatic ejector cylinder is a high-precision and high-efficiency industrial four-column hydraulic equipment with personalized customization an
+86 13562463338
+86 13562463338
Video Display
Product Introduction
The 200-ton customized four-column hydraulic press with pneumatic ejector cylinder is a high-precision and high-efficiency industrial four-column hydraulic equipment with personalized customization and automatic material removal function
It thoroughly solves industrial pain points such as difficult demoulding of deep-drawn and special-shaped workpieces, low manual picking efficiency and easy workpiece scratching. The equipment supports personalized customization of frame size, worktable specification, stroke and pressure parameters to adapt to the production of different molds and non-standard workpieces. Equipped with a PLC intelligent control system, it supports manual, semi-automatic and fully automatic cyclic operation. The pressure, stroke, pressure holding time and material pushing speed can be precisely adjusted. It features convenient operation and high automation, which greatly improves production line efficiency and reduces labor costs, serving as the preferred core equipment for automated precision forming production lines.
The 200-ton customized four-column hydraulic press with pneumatic ejector cylinder is widely used in various precision forming processes requiring automatic demoulding and material unloading, suitable for stamping, deep drawing, press fitting, shaping, pressing and punching of metal and non-metal materials. It is mainly applied in industries such as auto parts, new energy accessories, hardware products, kitchen and bathroom hardware, sheet metal processing, powder metallurgy, plastic composite materials and mold pressure testing. It is especially suitable for the automatic mass production of various deep-drawn shells, cylindrical parts, special-shaped stamping parts and precision press-fitted parts, perfectly solving the production problems of difficult demoulding, low manual picking efficiency and easy deformation of deep-drawn workpieces, serving as the core supporting equipment for small and medium-sized automatic forming production lines.
Technical Parameters| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process
Customer Case
