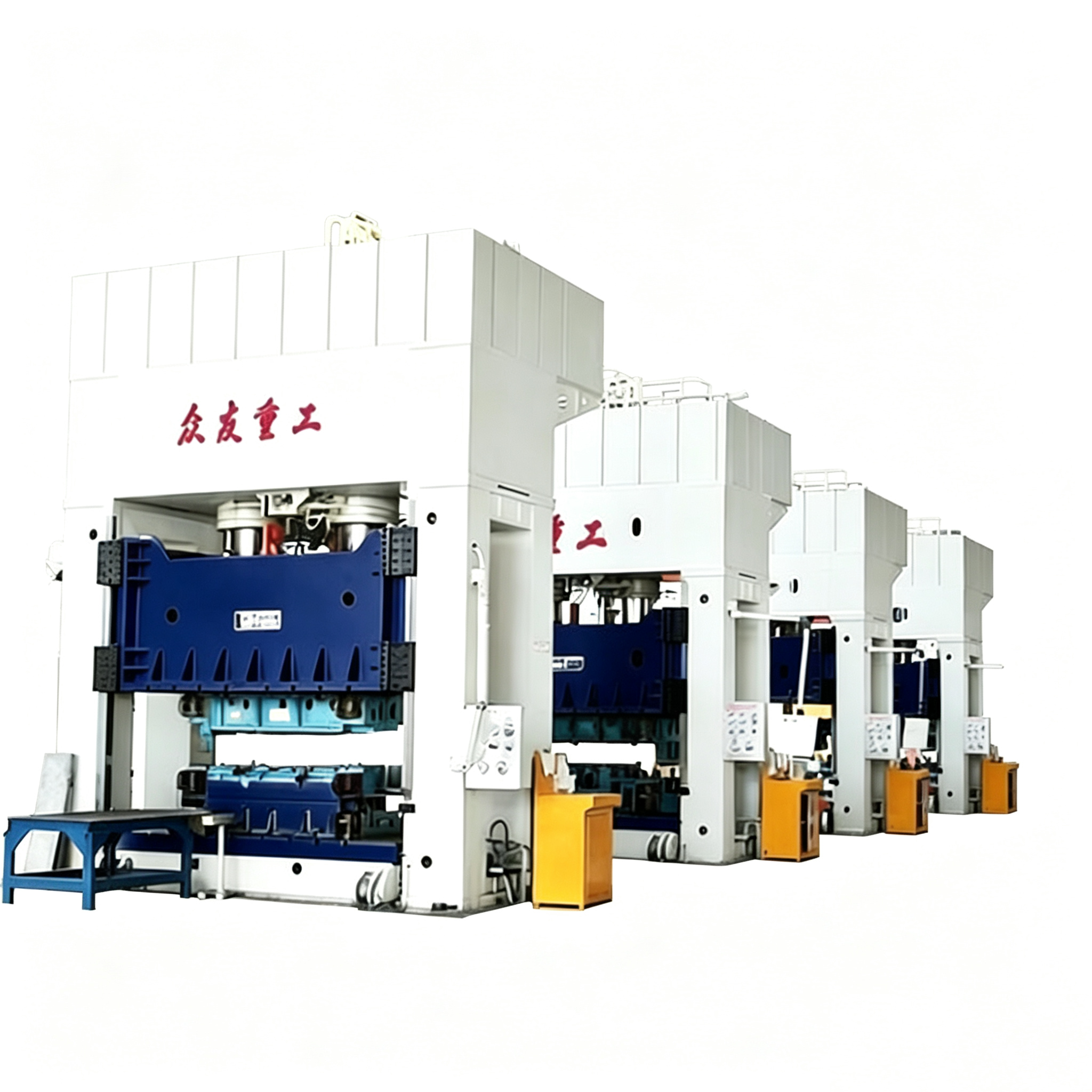

2000 Ton Frame Hydraulic Press For Metal Stamping Forming
The 2000-ton frame-type hydraulic press is a heavy-duty closed-frame hydraulic forming machine designed for large-scale, high-precision industrial molding processes. Different from traditional four-co
+86 13562463338
+86 13562463338
Video Display
Product Introduction

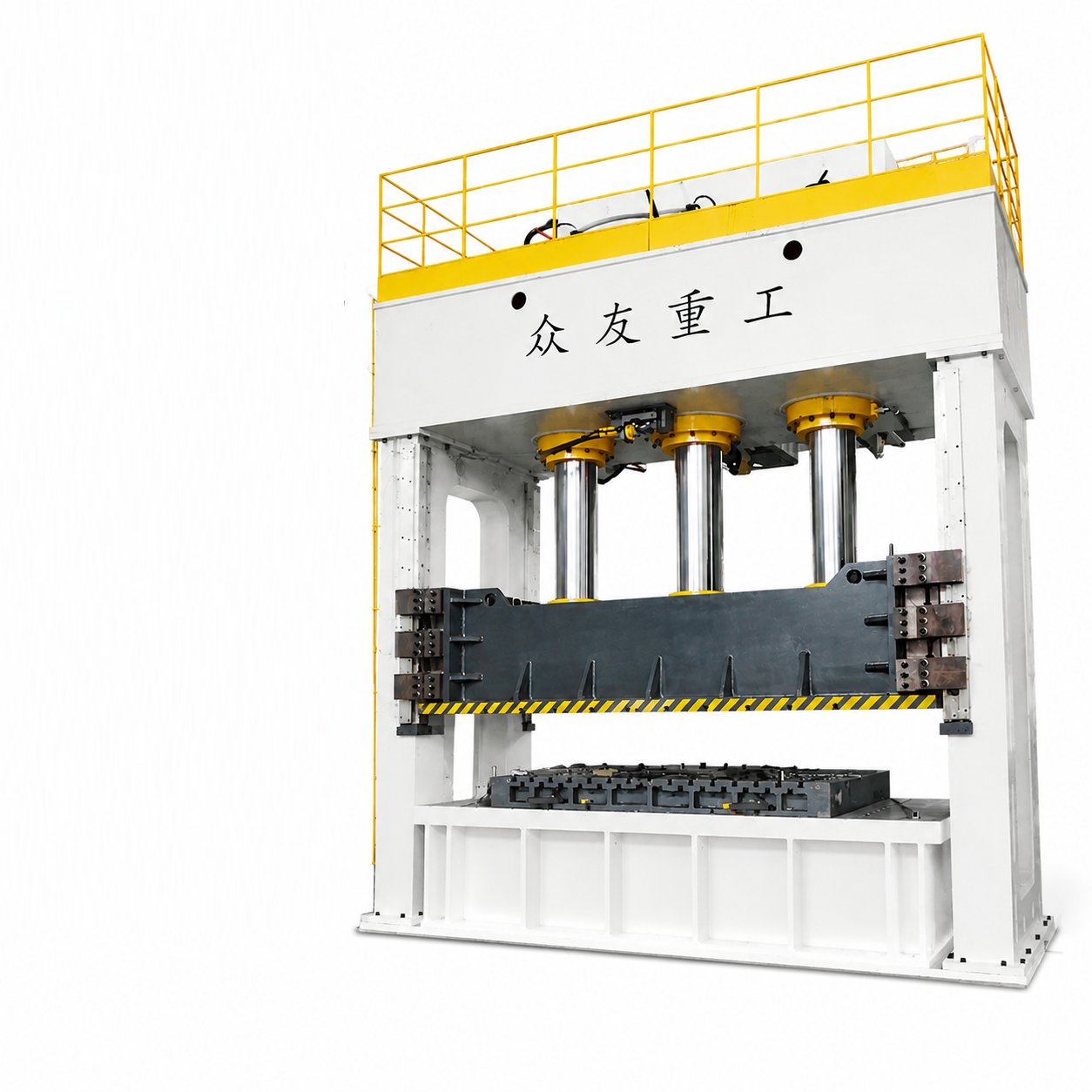

The 2000-ton frame-type hydraulic press is a heavy-duty closed-frame hydraulic forming machine designed for large-scale, high-precision industrial molding processes. Different from traditional four-column hydraulic presses, it adopts an integral welded closed frame structure, which features ultra-high overall rigidity, small deformation, and extremely high working stability under long-term heavy-load conditions.
This hydraulic press is widely used for metal plate stamping, stretching, bending, trimming, as well as compression molding of composite materials, SMC, BMC, plastic rubber materials, and large non-metallic products. The whole machine is equipped with an intelligent PLC control system, realizing automatic fast descending, buffer pressing, constant pressure holding, pressure relief and automatic return stroke. The pressure and stroke can be precisely adjusted according to different molds and workpiece requirements.
Adopting a high-stability hydraulic system with imported sealing components, the equipment runs smoothly with low noise, stable pressure output and low failure rate. The closed frame design effectively eliminates lateral force during pressing, ensures high product flatness and consistent dimensional accuracy, and greatly improves product qualification rate and production efficiency. It is ideal equipment for automotive parts, hardware products, new material factories and large processing enterprises.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process

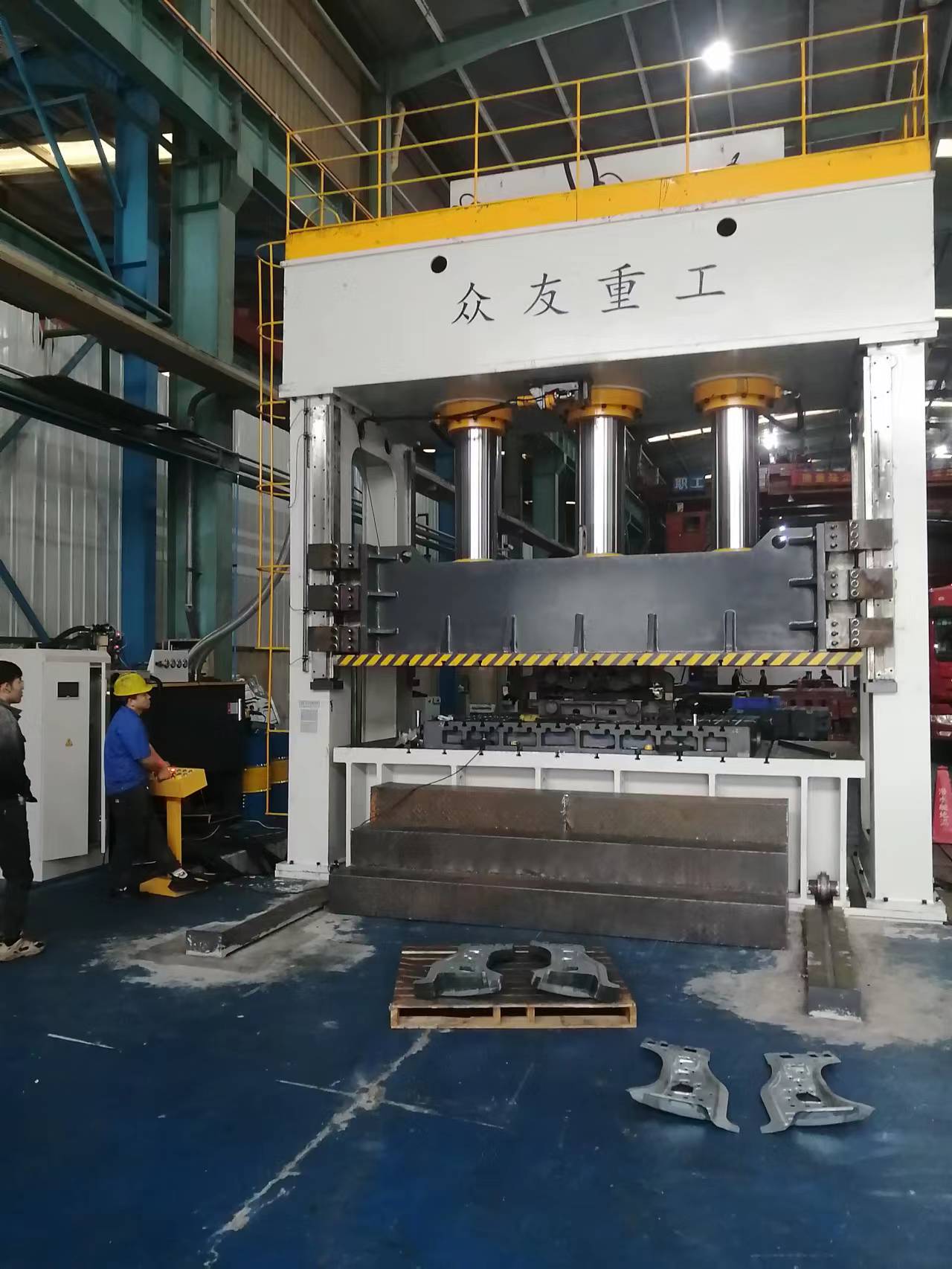

Customer Case
