315 Ton Salt Brick Press Production Line for Livestock Salt Lick Blocks
The 315 Ton Salt Brick Press Production Line is a high-performance hydraulic forming system specially designed for producing livestock salt lick blocks and mineral salt bricks. It is widely used in th
+86 13562463338
+86 13562463338
Video Display
Product Introduction
The 315 Ton Salt Brick Press Production Line is a high-performance hydraulic forming system specially designed for producing livestock salt lick blocks and mineral salt bricks. It is widely used in the production of salt blocks for cattle, sheep, horses, and other livestock.The production line uses a 315-ton hydraulic press to provide strong and stable forming pressure. It can efficiently compress salt, mineral mixtures, trace elements, and other raw materials into dense and durable blocks with uniform dimensions and consistent quality.
The complete production line can be configured with raw material mixing, conveying, feeding, hydraulic pressing, automatic demolding, and finished-product handling systems. According to different production requirements, the equipment can also be customized with different molds and automatic control systems to produce various sizes and shapes of salt bricks.
The hydraulic press adopts a heavy-duty frame and reliable hydraulic system, providing stable pressure during continuous production. The PLC control system and touch-screen interface make operation simple and allow users to adjust pressing pressure, forming time, and other parameters according to different materials and product specifications.
The 315 Ton Salt Brick Press Production Line is an ideal solution for manufacturers looking for efficient, stable, and automated livestock salt block production equipment. It can help improve production efficiency, reduce manual labor, and maintain consistent product quality.
Technical Parameters
| Model | Tonnage | Weight of Molding Salt Brick | Mold | Configuration |
|---|---|---|---|---|
| YZ79-315T | 315 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-400T | 400 tons | 2KG-5KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-500T | 500 tons | 5KG-10KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-630T | 630 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-800T | 800 tons | 10KG-15KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1000T | 1000 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1200T | 1200 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
| YZ79-1500T | 1500 tons | 10KG-20KG | One-out-one or one-out-two optional | Standard configuration, servo configuration optional |
Pressing process

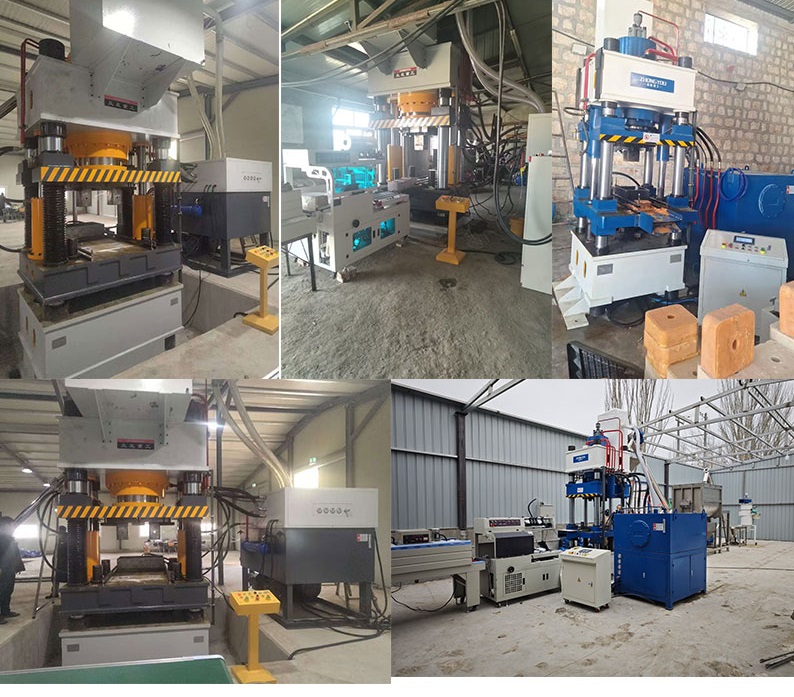

Customer Case
