Product Introduction

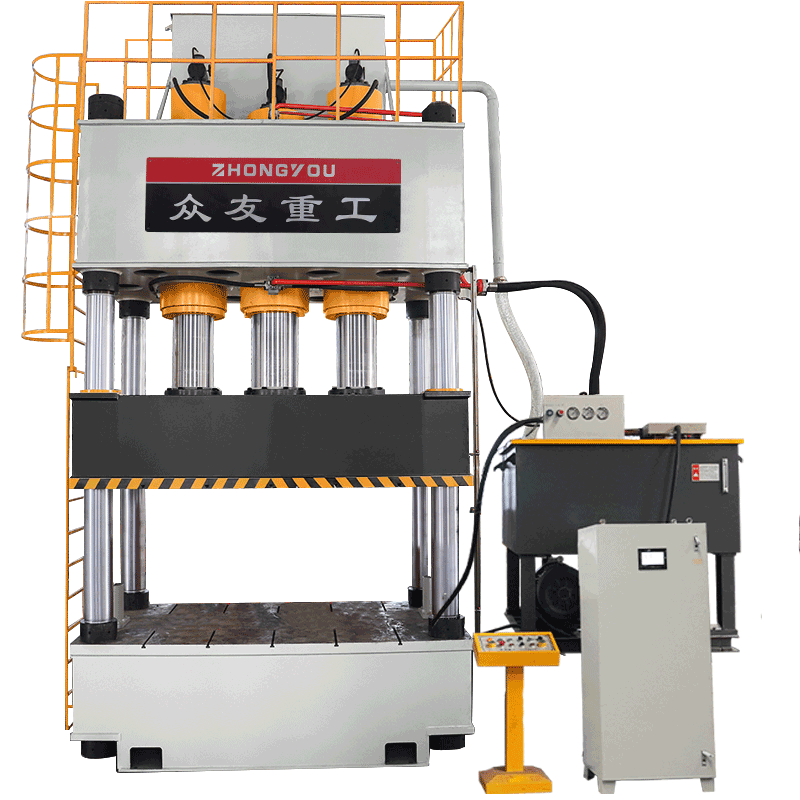

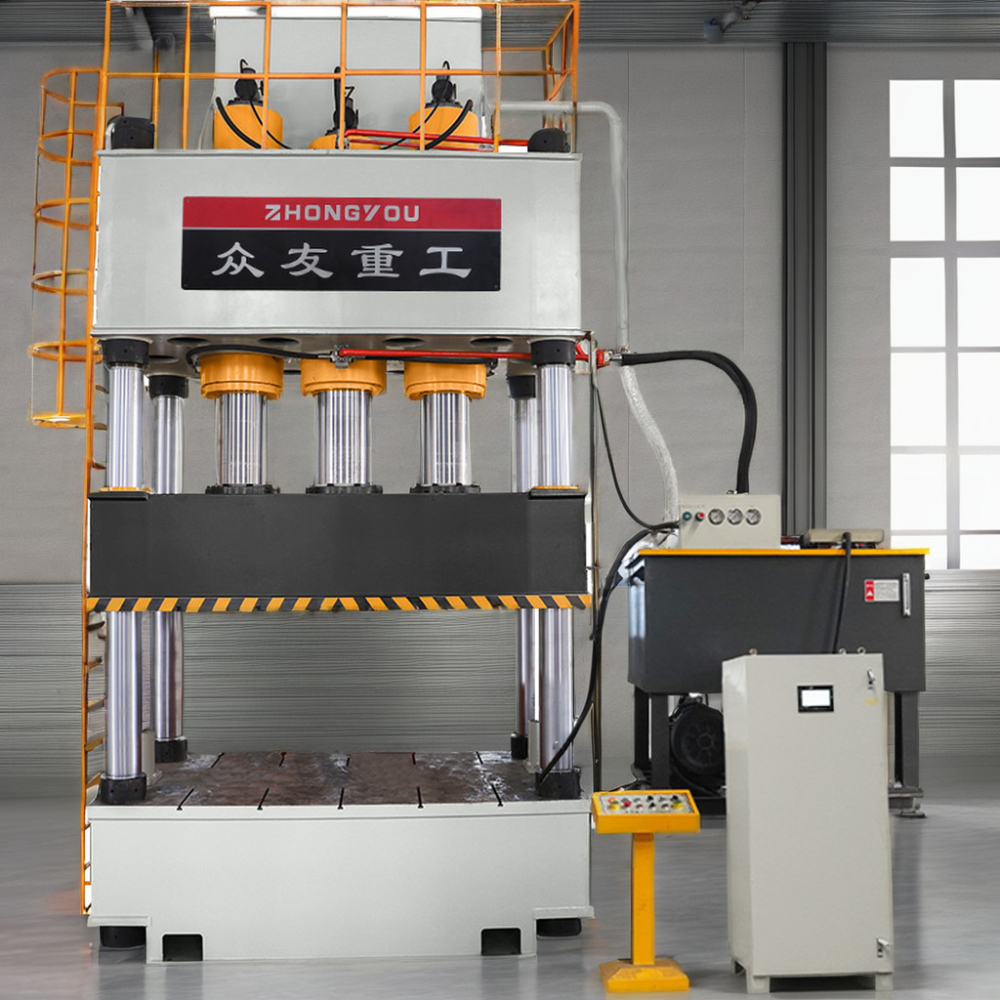

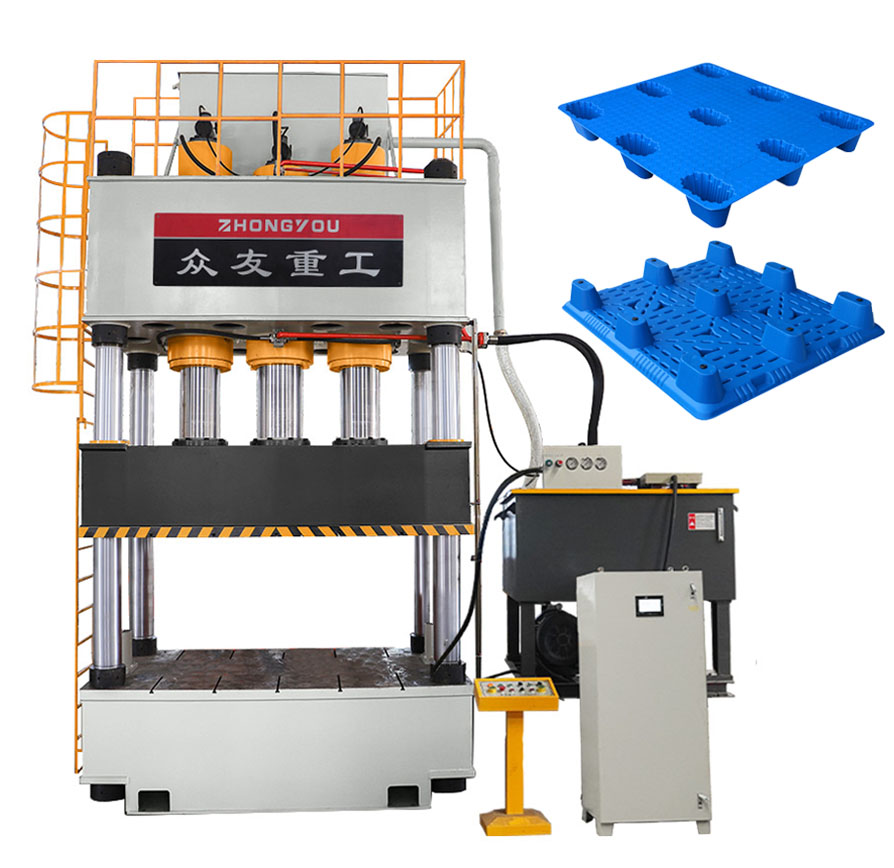

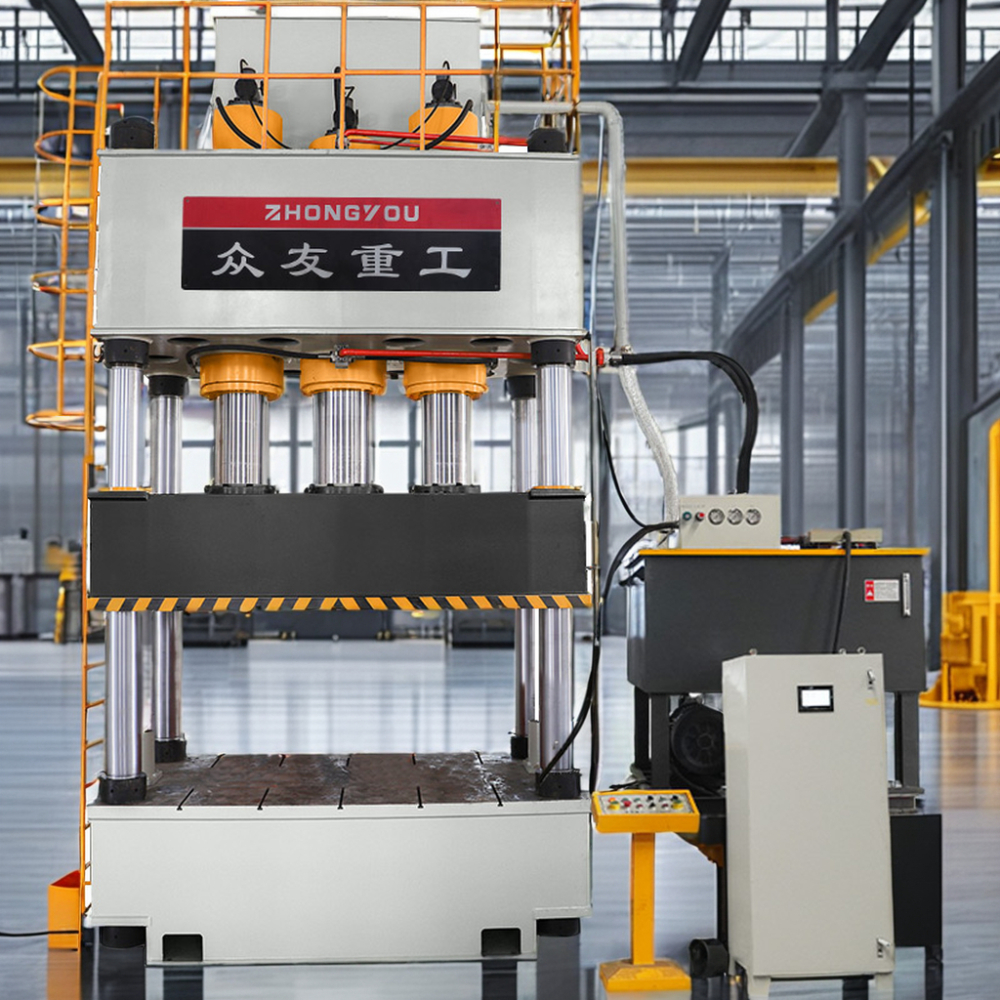

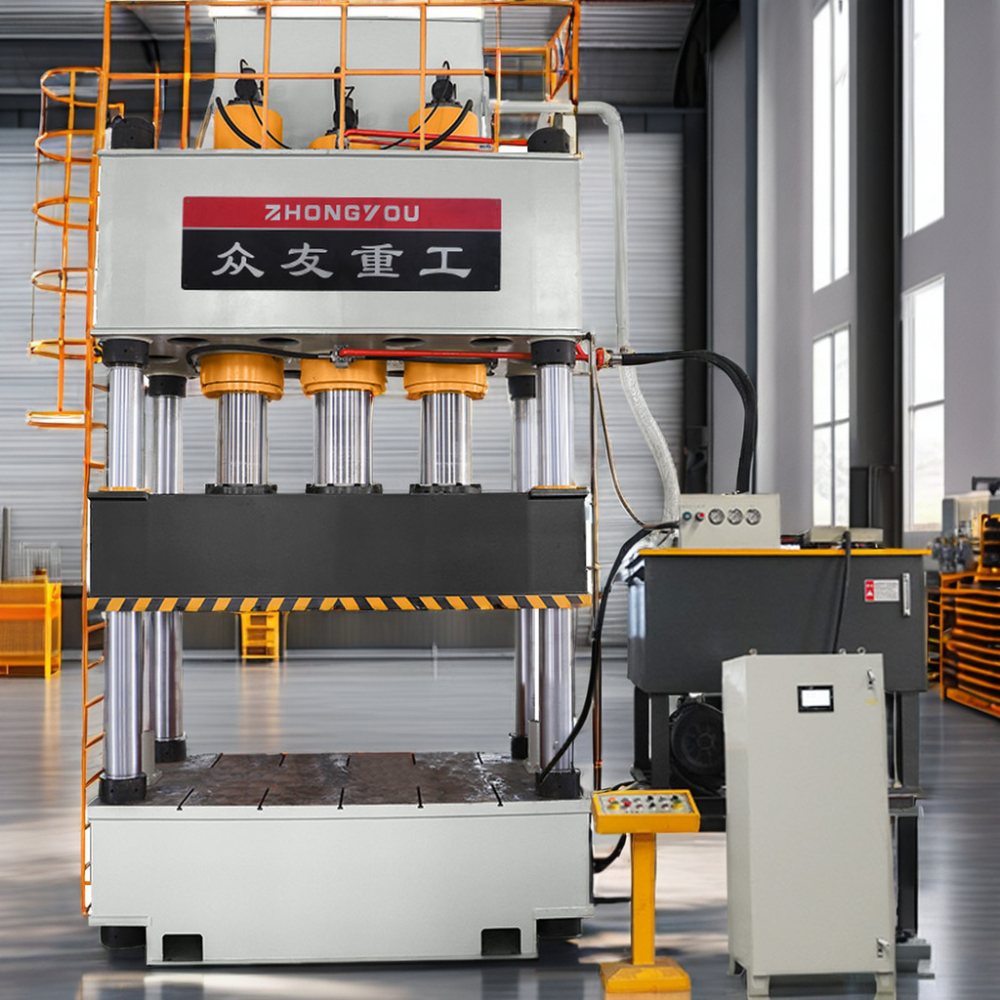

Nine feet plastic pallet hydraulic press is special for molding nine feet plastic pallet hydraulic equipment, through high temperature and high pressure will be recycled waste plastic, PP, PE, PVC and other raw materials pressed into the pallet structure with nine supporting feet. This equipment belongs to the plastic hot molding equipment, can be matched with different molds to produce Chuan plastic pallets, flat plastic pallets, etc., suitable for logistics, warehousing and other fields.

Nine-corner pallet needs to be realized by hot press molding (or "molding+hot press" composite process) due to its complex structure (multi-ribbed position, shaped surface):

Sufficient melting: the plastic raw material needs to be completely melted at high temperature to avoid the lack of local strength caused by unmelted particles;

Flow filling: the molten material needs to fill the deep tendons of the mold (e.g. inside the support feet) quickly to avoid lack of material or shrinkage marks;

Uniform pressure retention: continuous pressure is applied during the pressure retention phase to compensate for material shrinkage during cooling and to prevent product deformation;

Rapid cooling: shorten the molding cycle (usually 30~60 seconds for a single piece) to improve production efficiency.

Technical Parameters

Parameter	Unit	YQ32-63	YQ32-100A	YQ32-100B	YQ32-200A	YQ32-200B	YQ32-315A	YQ32-315B
Nominal Force	kN	630	1000	1000	2000	2000	3150	3150
Maximum System Working Pressure	MPa	25	25	25	25	25	25	25
Maximum Open Height of Slider	mm	700	800	900	1100	900	1250	1000
Maximum Stroke of Slider	mm	400	500	600	500	600	800	600
Effective Area of Workbench	mm	610×500	630×550	750×700	1000×1000	800×800	1260×1160	800×800
Slider Free Fall Speed	mm/s	100	100	100	100	100	100	100
Pressing Speed	mm/s	11-22	7-15	7-15	7-18	7-18	7-12	7-12
Return Speed	mm/s	80	90	90	90	90	100	90
Ejecting Force	kN	100	200	200	400	400	630	630
Maximum Ejecting Stroke	mm	160	200	200	200	200	300	300

Name	Unit	YQ32-400	YQ32-500	YQ32-630	YQ32-800	YQ32-1000	YQ32-1250	YQ32-1600
Nominal Force	kN	4000	5000	6300	8000	10000	12500	16000
Maximum System Working Pressure	MPa	25	25	25	25	25	25	25
Maximum Open Height of Slider	mm	1250	1500	1500	1500	1500	1500	1500
Maximum Stroke of Slider	mm	800	900	900	900	900	900	900
Effective Area of Workbench	mm	1250×1160	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Slider Free Fall Speed	mm/s	100	100	150	100	180	180	190
Pressing Speed	mm/s	5-11	10-18	9-18	7-18	10-18	6-15	6-14
Return Speed	mm/s	100	180	200	90	220	200	220
Ejecting Force	kN	630	1000	1000	400	1000	1000	1600
Maximum Ejecting Stroke	mm	300	300	300	200	300	300	300

Pressing process

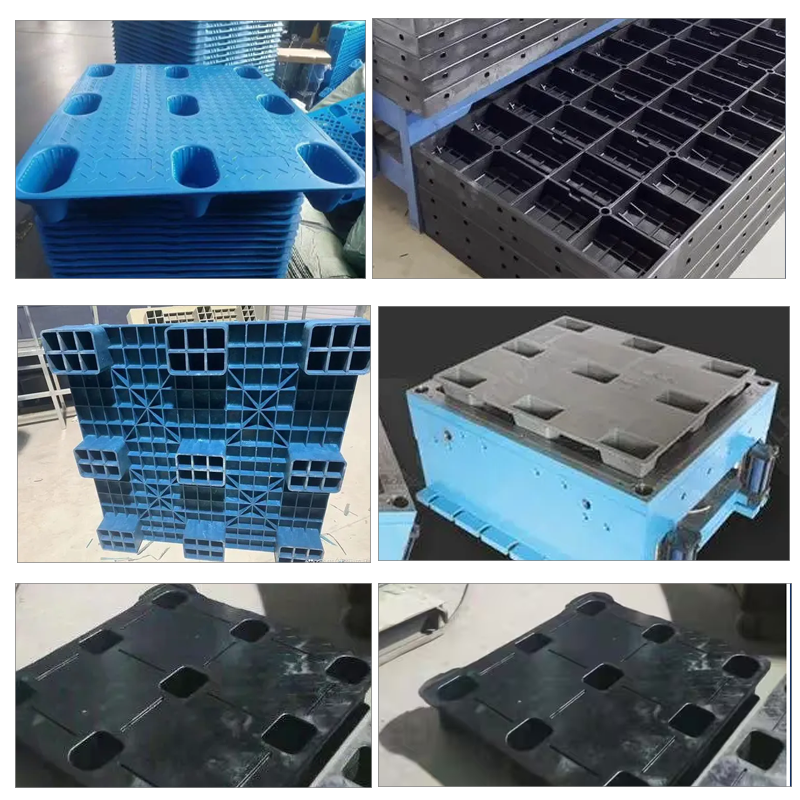

Nine Angle Plastic Pallet Hydraulic Press (5)

Customer Case
