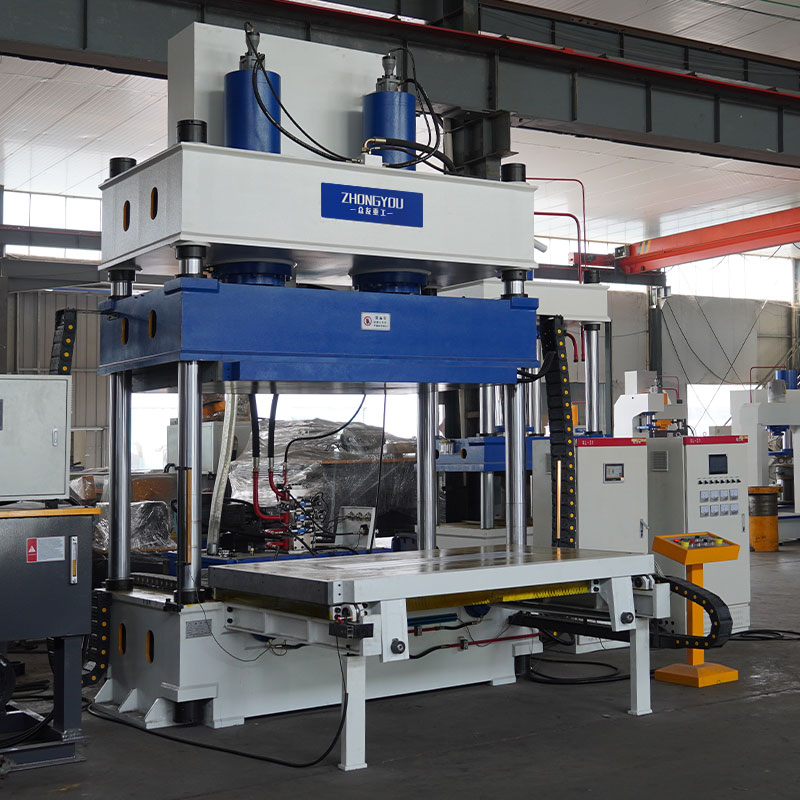

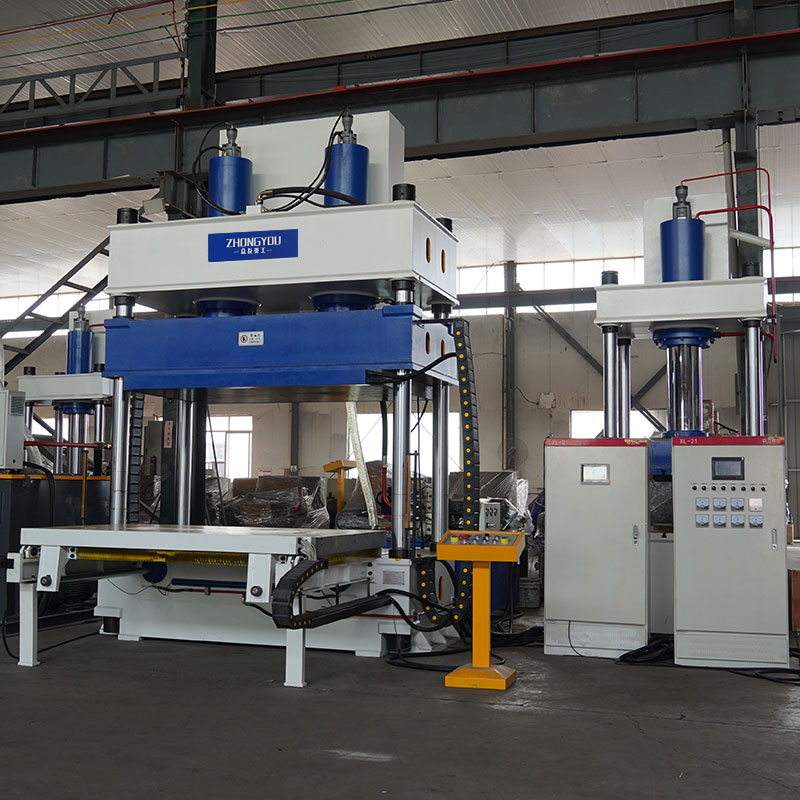

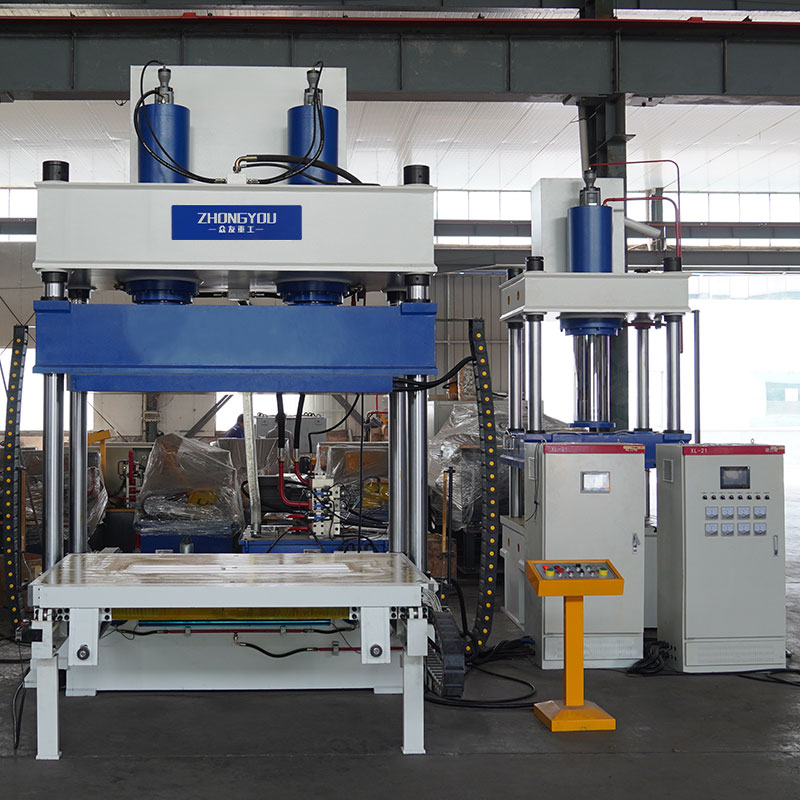

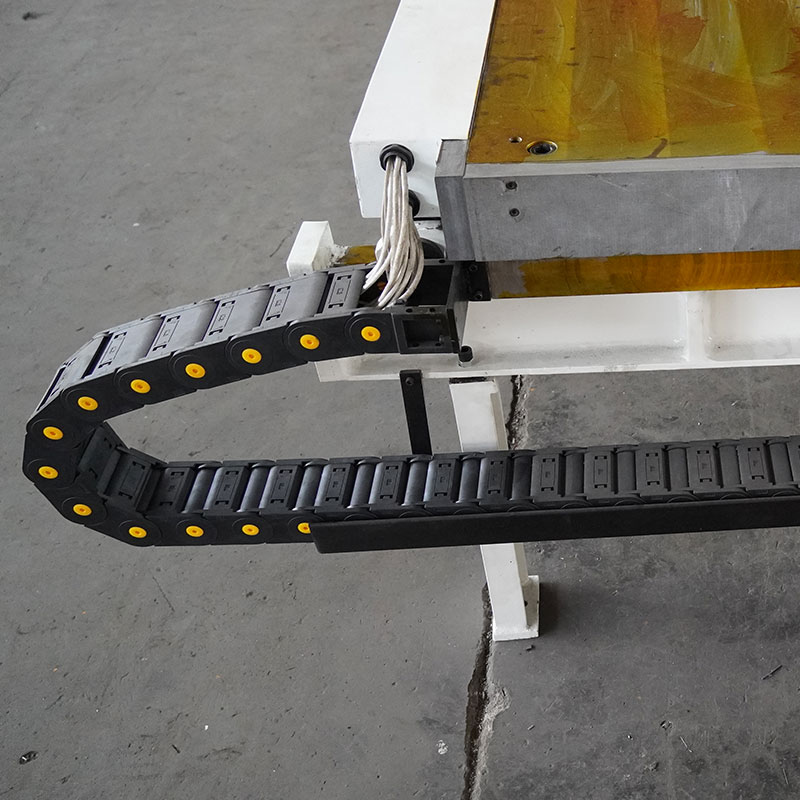

Carbon Fiber Composite Hot Press
Shandong Zhongyou Heavy Industry has developed a 315-ton double-cylinder hydraulic press dedicated to high-temperature and high-pressure molding equipment for carbon fiber composites, which realizes t
+86 13562463338
+86 13562463338
Video Display
Product Introduction

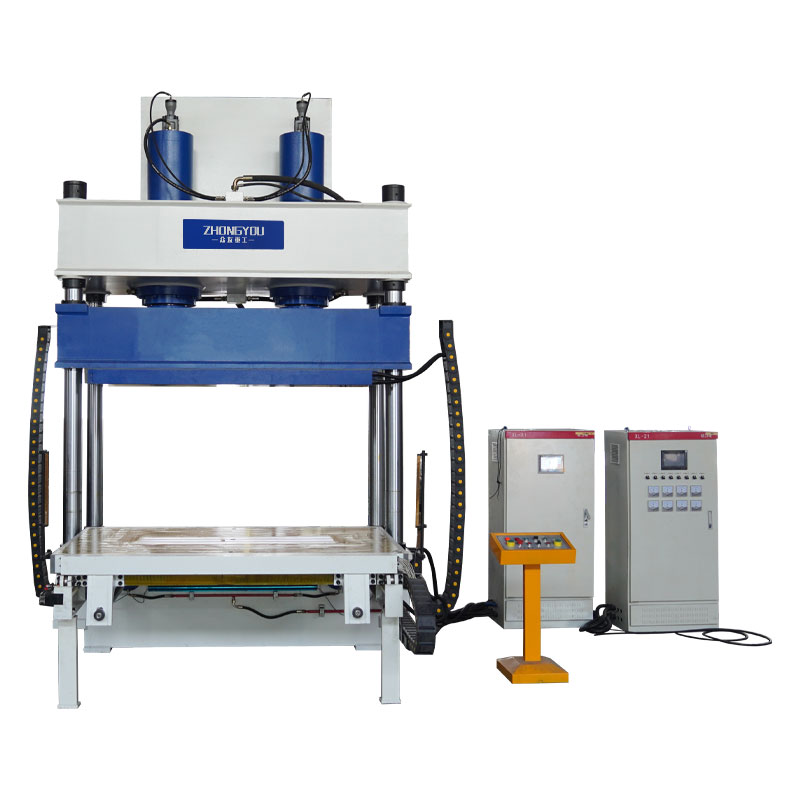

Shandong Zhongyou Heavy Industry has developed a 315-ton double-cylinder hydraulic press dedicated to high-temperature and high-pressure molding equipment for carbon fiber composites, which realizes the close combination of carbon fiber and resin matrix through the molding process, and possesses the characteristics of high-strength and lightweight, and is widely used in high-end manufacturing fields.
Application Areas and Cases
Aerospace: manufacturing aircraft fuselage, satellite structure parts, rocket engine parts, using carbon fiber high strength, low density characteristics to reduce weight and improve fuel efficiency.
Automotive manufacturing: for the lightweight production of body covering parts, chassis parts, interior parts (such as steering wheel, instrument panel), such as 200 tons of carbon fiber steering wheel hot press molding machine.
Consumer electronics: cell phone back covers, VR/AR device housings, laptop decorative panels to meet the demand for 3D surface molding and high-precision appearance.
Sports equipment: golf clubs, bicycle frames, skis, fishing rods, etc., to achieve high strength and light weight through carbon fiber reinforcement.
Other fields: medical devices (e.g. artificial bones), building reinforcement materials, wind power blades, hydrogen fuel cell components, etc.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process

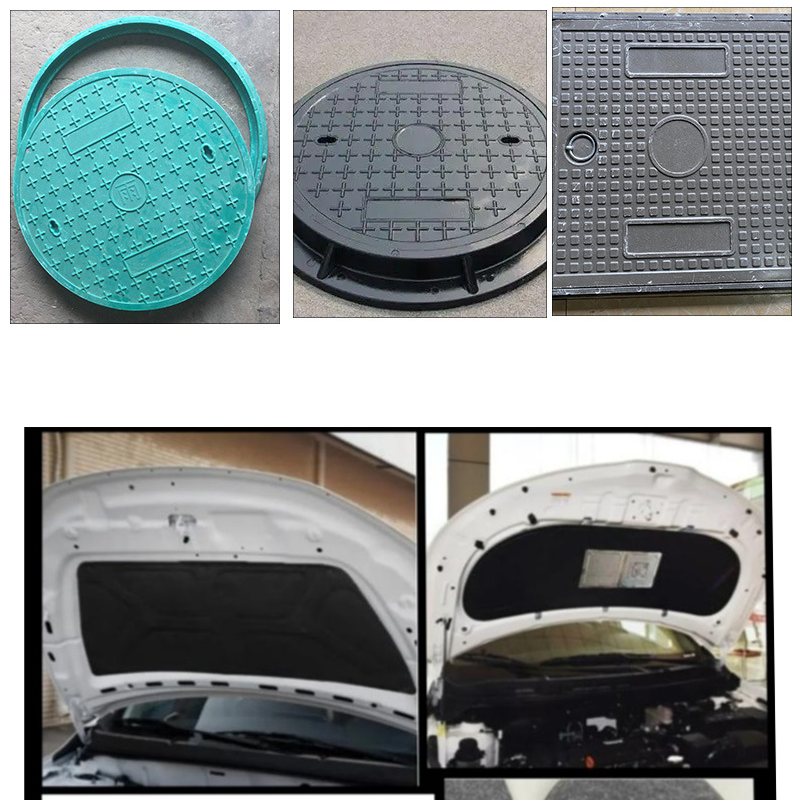

Customer Case
