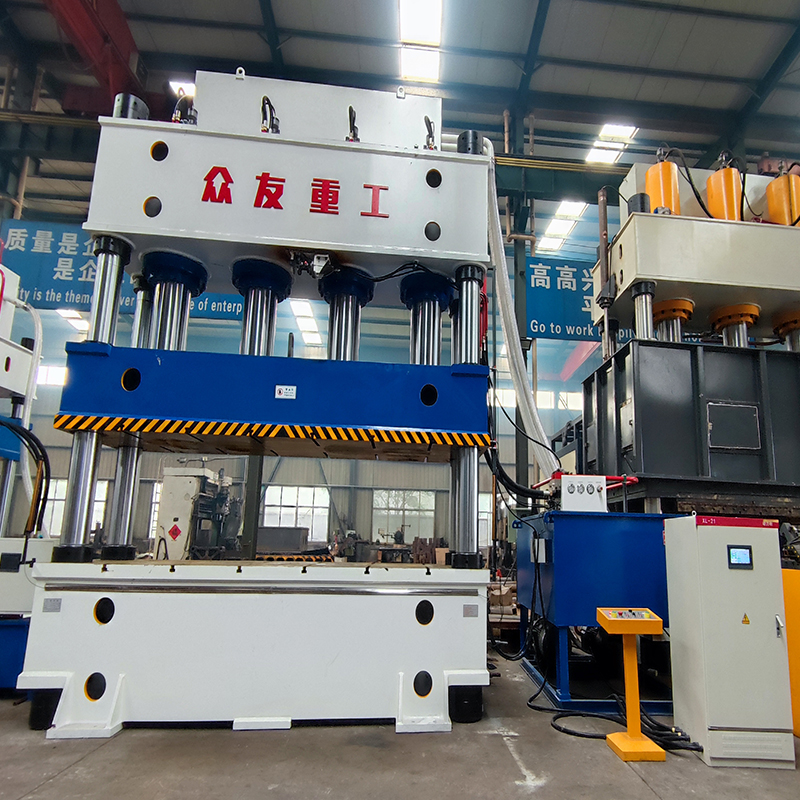

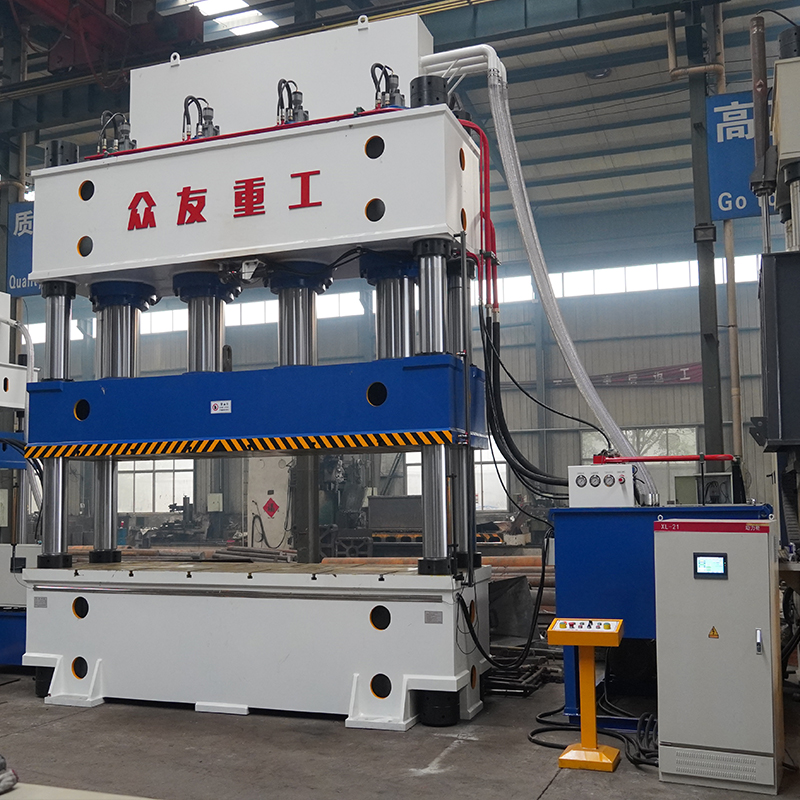

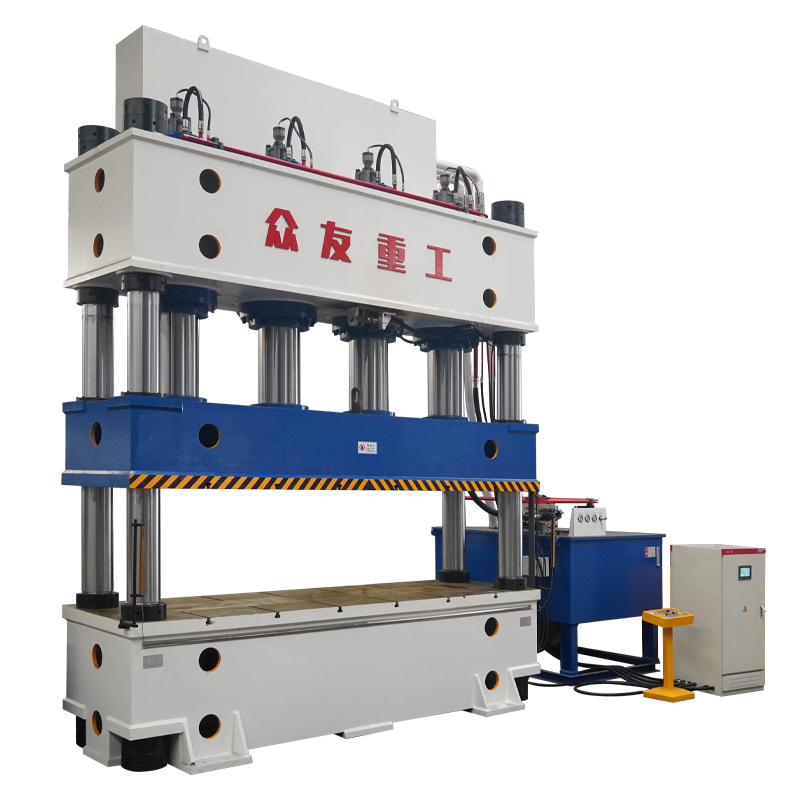

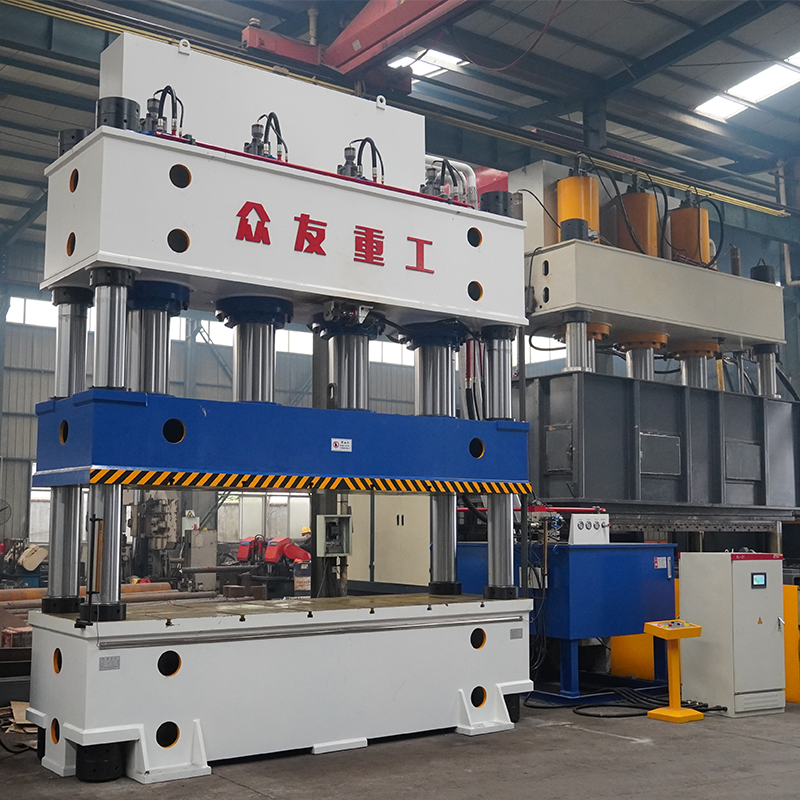

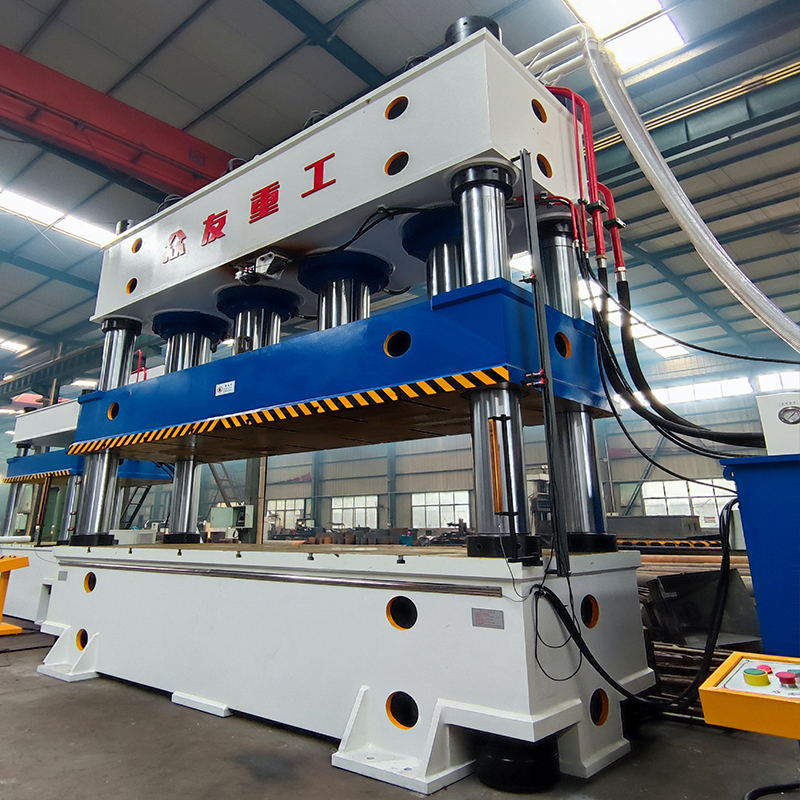

SMC Air Conditioner Outdoor Unit Housing Hot Press Forming Hydraulic Press
This is a hot-press forming machine specifically designed for manufacturing fiberglass-reinforced plastic (FRP) products. Its operating principle involves placing FRP molding compounds (typically shee
+86 13562463338
+86 13562463338
Video Display
Product Introduction

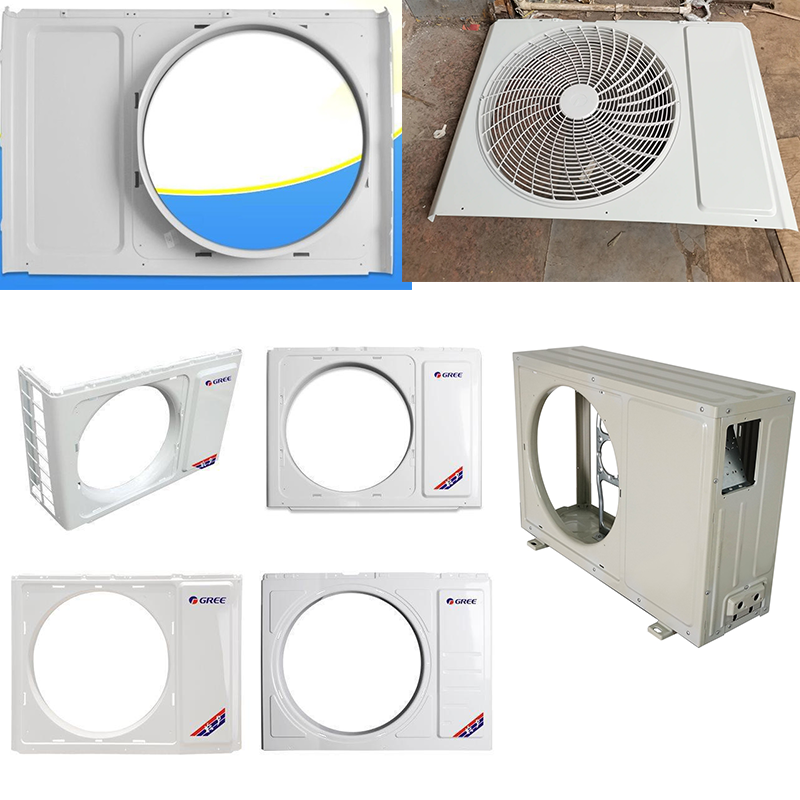

This is a hot-press forming machine specifically designed for manufacturing fiberglass-reinforced plastic (FRP) products. Its operating principle involves placing FRP molding compounds (typically sheet molding compound SMC or bulk molding compound BMC) into a high-temperature mold. Under the powerful pressure and heat supplied by a hydraulic press, the material cures and forms over a set period, ultimately producing structurally robust, surface-smooth air conditioner outdoor casings.
High Strength, Lightweight: Fiberglass offers high strength while being lighter than metal housings, facilitating installation and transportation.
Superior Corrosion Resistance: Ideal for harsh environments like humidity and salt spray, it resists rusting like iron casings and boasts extended longevity.
Exceptional Design Flexibility: Complex structures and curved surfaces can be formed in a single process, enabling aesthetically pleasing appearances and unique design possibilities.
Excellent Insulation Properties: As an electrical insulator, fiberglass offers superior safety.
High Mass Production Efficiency: Once molds and parameters are established, compression molding cycles are short, making it highly suitable for large-scale production.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process
