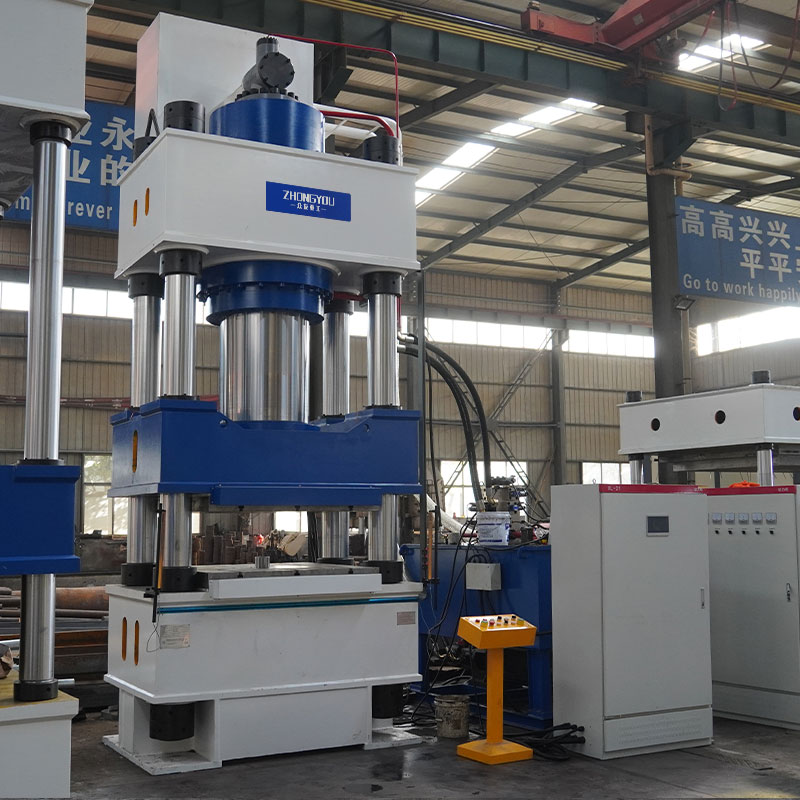

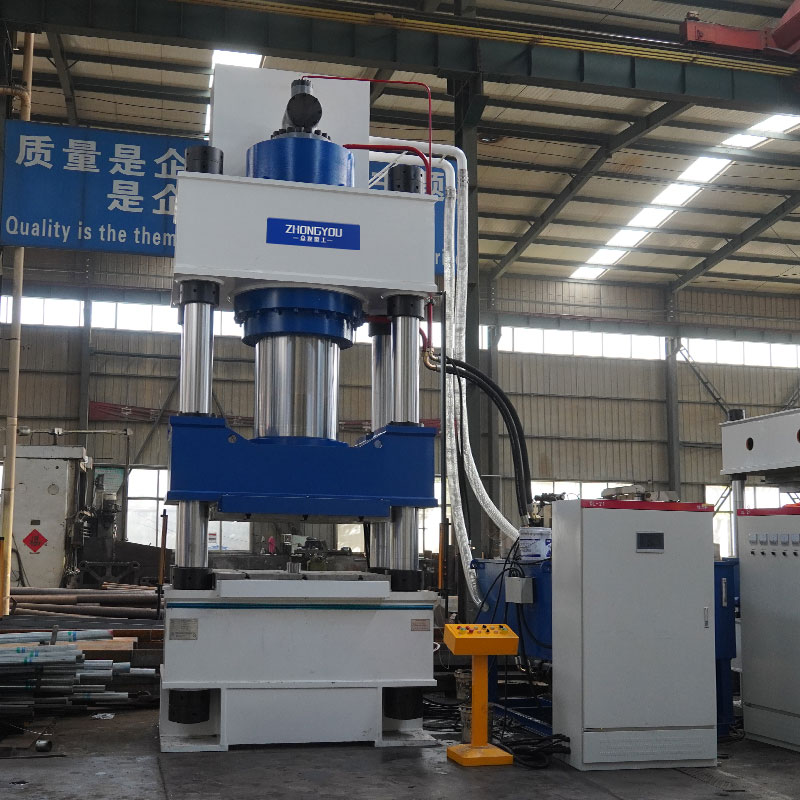

800-Ton FRP Water Tank Hydraulic Press
The 800-ton FRP water tank hydraulic press is specifically designed for the compression molding of fiberglass reinforced plastic water tanks. Featuring a three-beam four-column or frame structure, it
+86 13562463338
+86 13562463338
Video Display
Product Introduction
The 800-ton FRP water tank hydraulic press is specifically designed for the compression molding of fiberglass reinforced plastic water tanks. Featuring a three-beam four-column or frame structure, it achieves single-press molding of SMC fiberglass water tank panels under high temperature and pressure. This equipment offers high precision, efficiency, stability, and operational flexibility, making it widely used in the production of composite products such as fiberglass water tanks, septic tanks, and drainage channels.
Key Features:
High Precision: Exceptional parallelism between the ram and work surface ensures dimensional accuracy and repeatability in molded tank panels.
High Efficiency: Rapid ram movement and automated venting functionality minimize pressurization time while maximizing productivity.
High Stability: Computer-optimized design with all-steel plate construction, undergoes furnace tempering or vibration aging treatment for excellent precision retention.
Flexible Operation: Adjustable ram working pressure, rapid no-load descent, and slow working feed stroke ranges accommodate process requirements. Supports both fixed-stroke and fixed-pressure forming techniques with functions like pressure-holding delay.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |

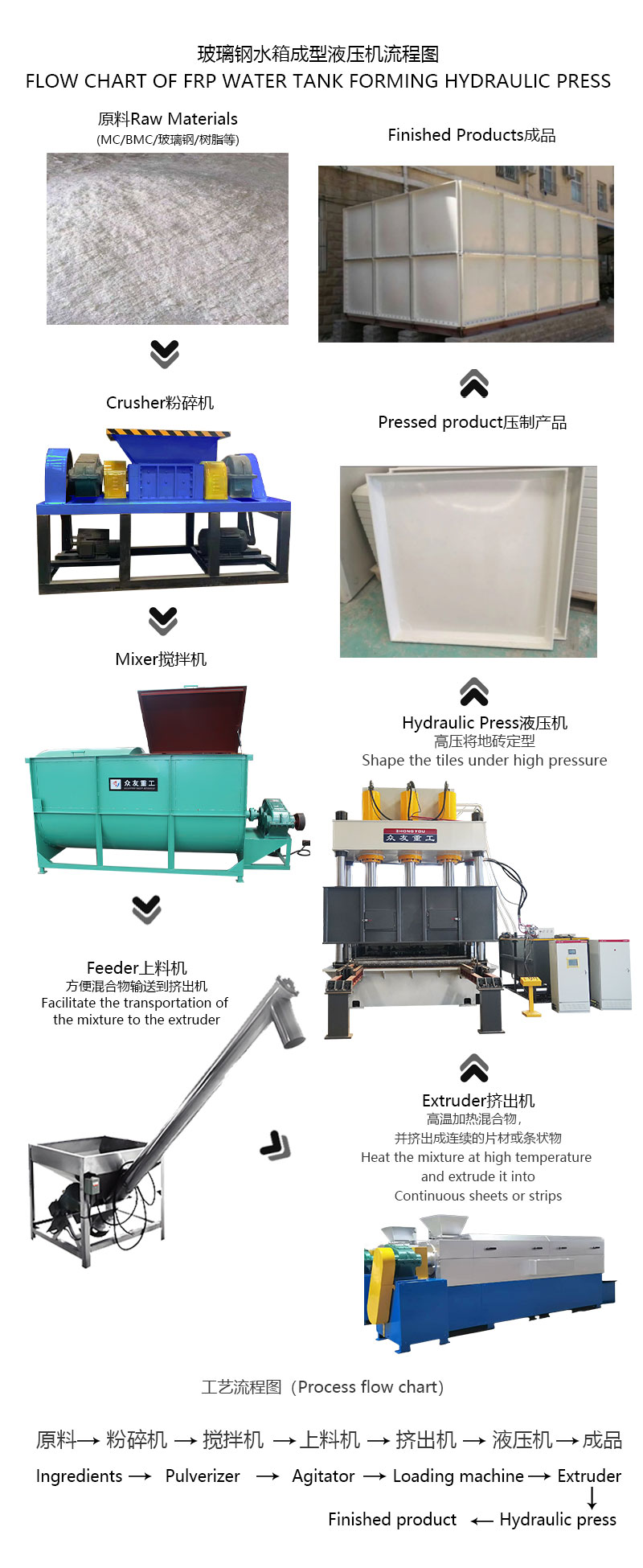

Pressing process

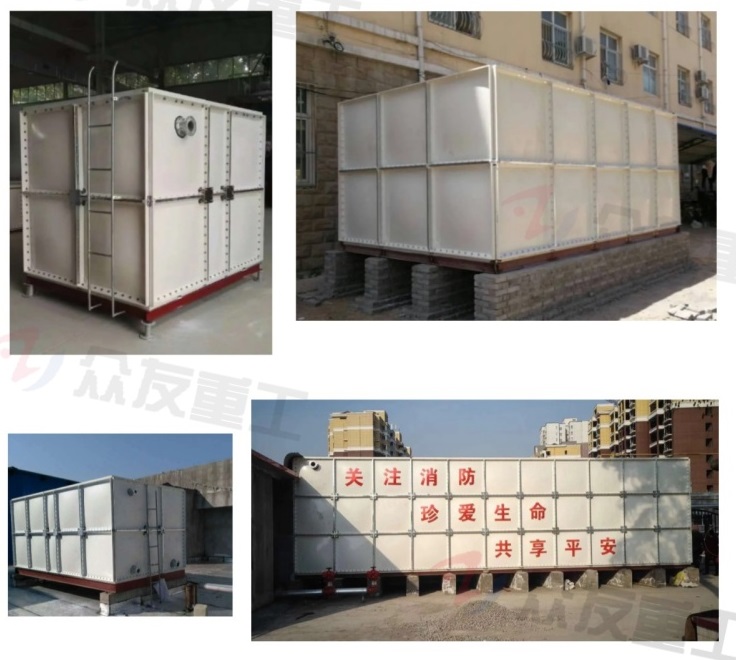

Customer Case
