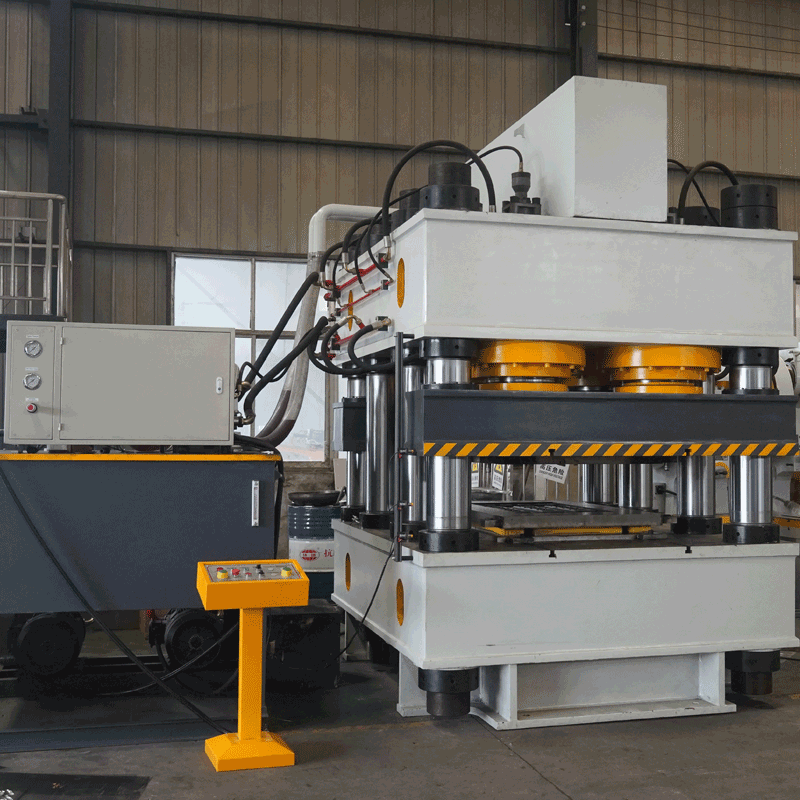

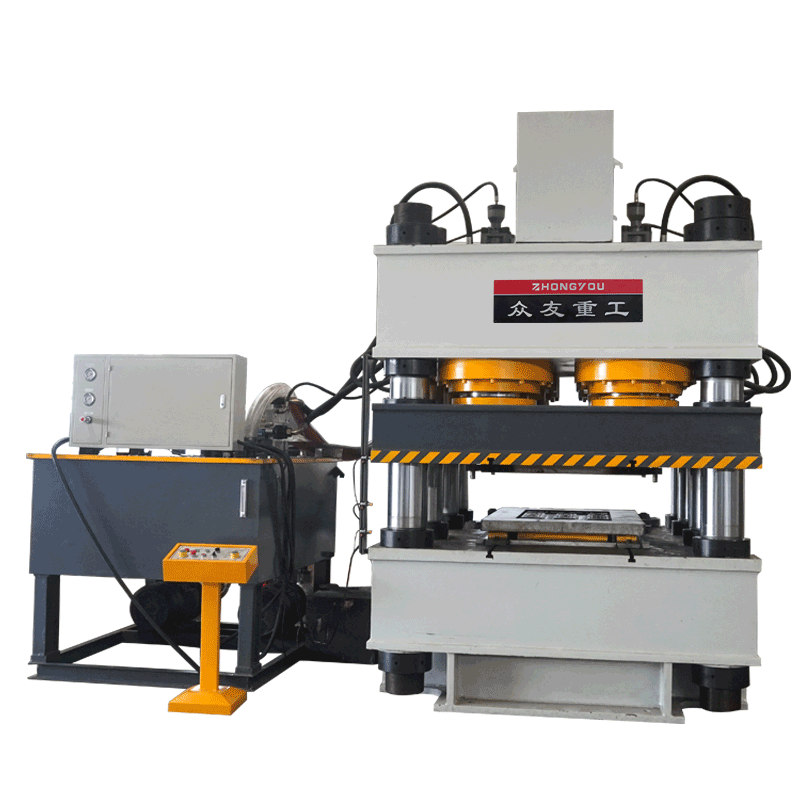

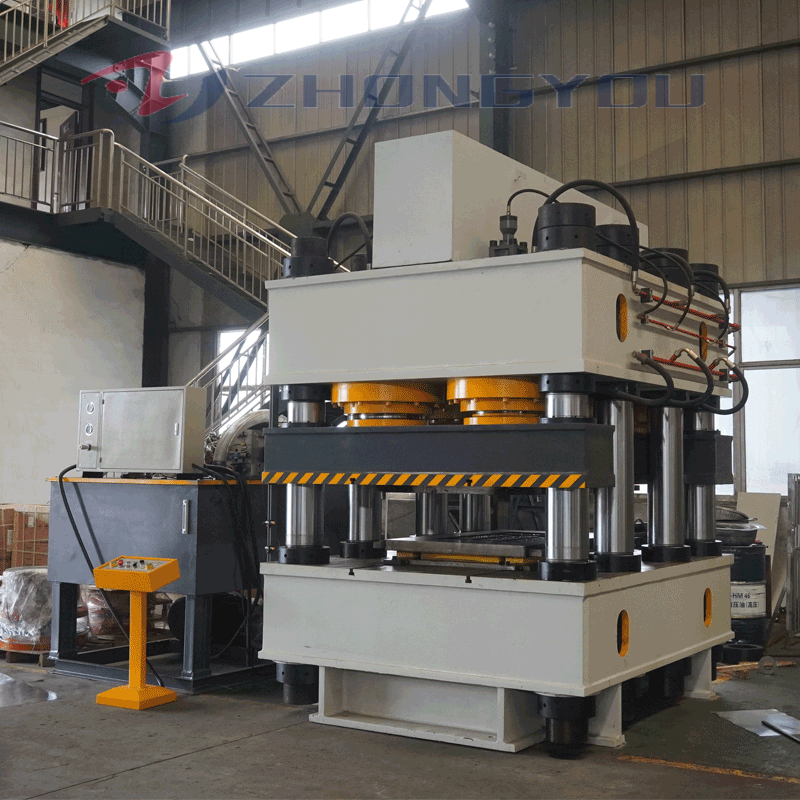

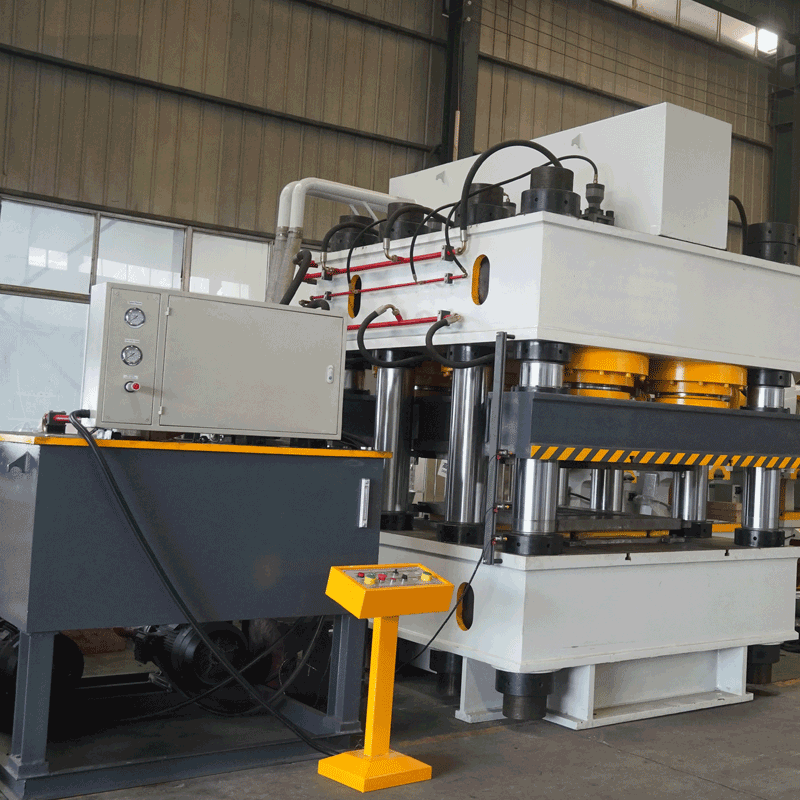

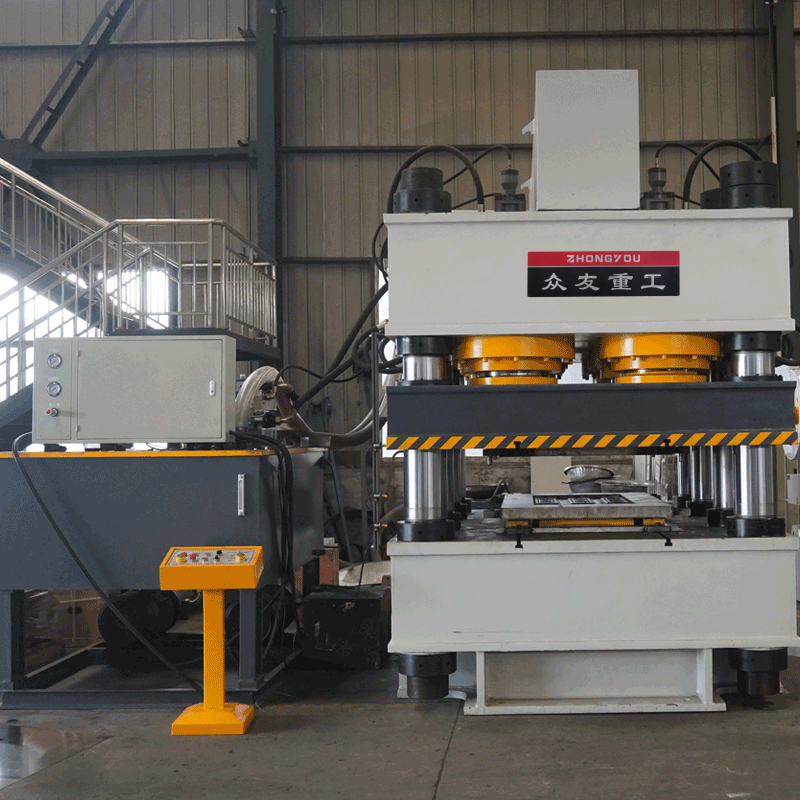

Door embossing hydraulic press is a special hydraulic press for security door, steel door, indoor door pattern embossing.
Equipment features
High efficiency and energy saving: it is fast, safe and reliable, energy saving, etc. It can improve the production efficiency and reduce the production cost.

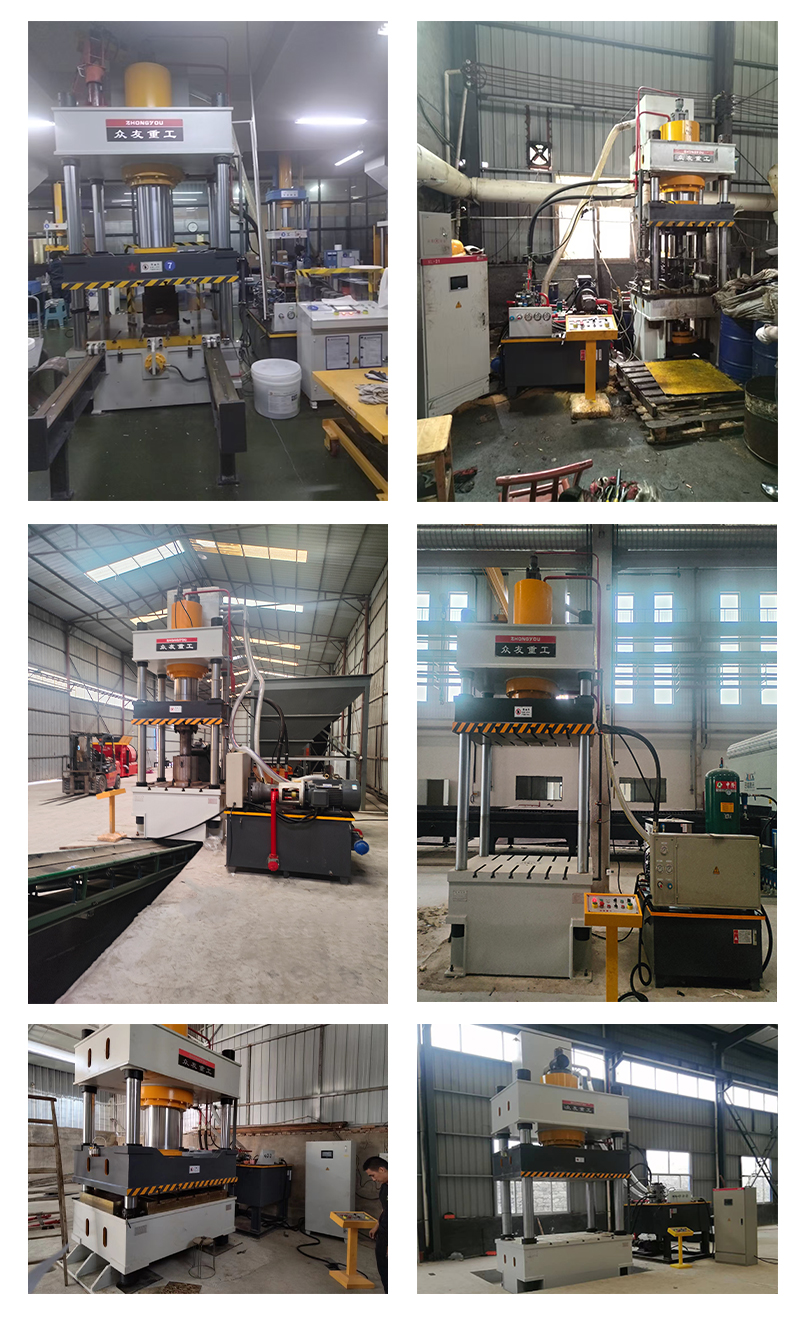

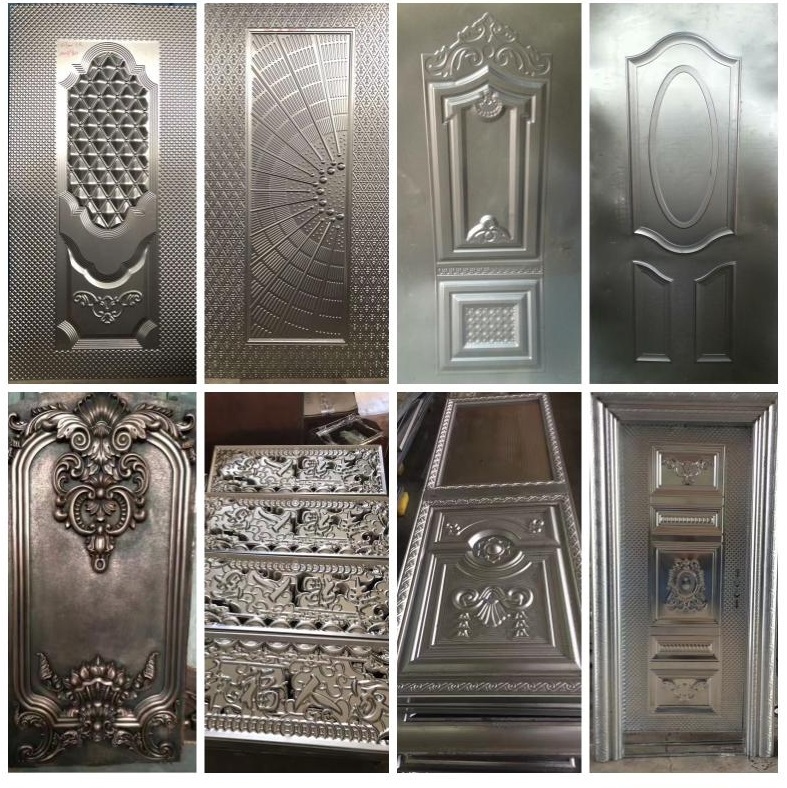

Beautiful products: the pressed door panel has clear pattern, strong three-dimensional sense and flat door panel, which can satisfy the demand of different customers for the appearance of the door panel.
Flexible operation: the working pressure, pressing speed and stroke can be adjusted within the specified parameters according to the needs of the process, with independent power mechanism and electrical system, centralised control by push button, it can realise three kinds of operation modes: manual, semi-automatic and automatic, and it can also realise two kinds of pressing modes: fixed-pressure and fixed-range.
Principle of operation
Door embossing hydraulic press uses liquid to transfer pressure, following Pascal's law.The specific process is: take the liquid (such as special hydraulic oil or water) as the working medium, through the hydraulic pump as the power source, rely on the force of the pump so that the liquid through the hydraulic pipeline into the cylinder/piston, and then the cylinder/piston seals play a sealing role, so that the liquid can not leak.Finally, the liquid is circulated in the liquid tank through the check valve, so that the cylinder/piston circulates to do work, thus completing a certain mechanical action and realising the embossing processing of the door surface.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
