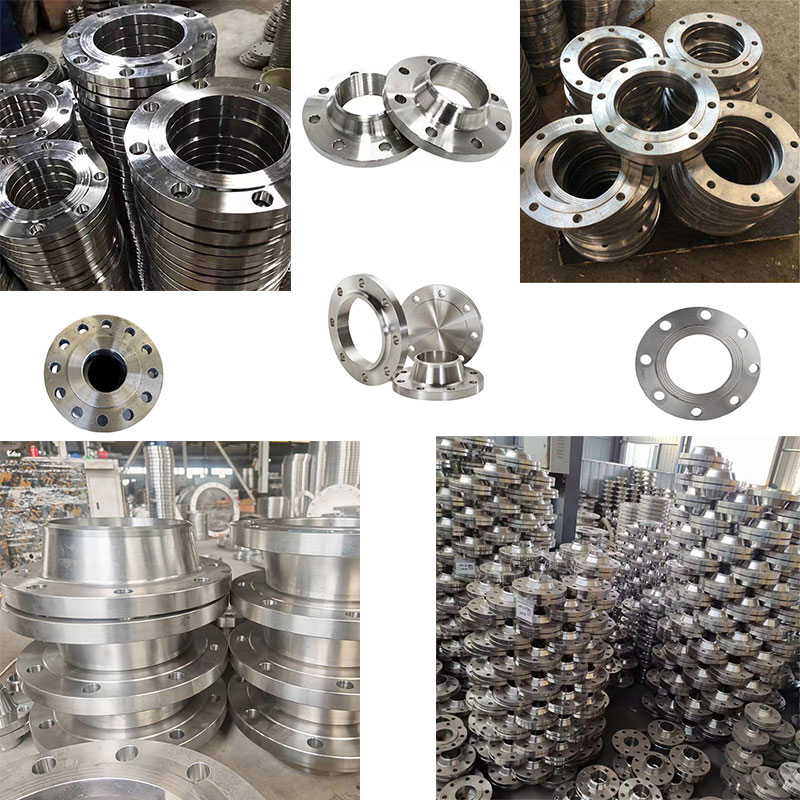

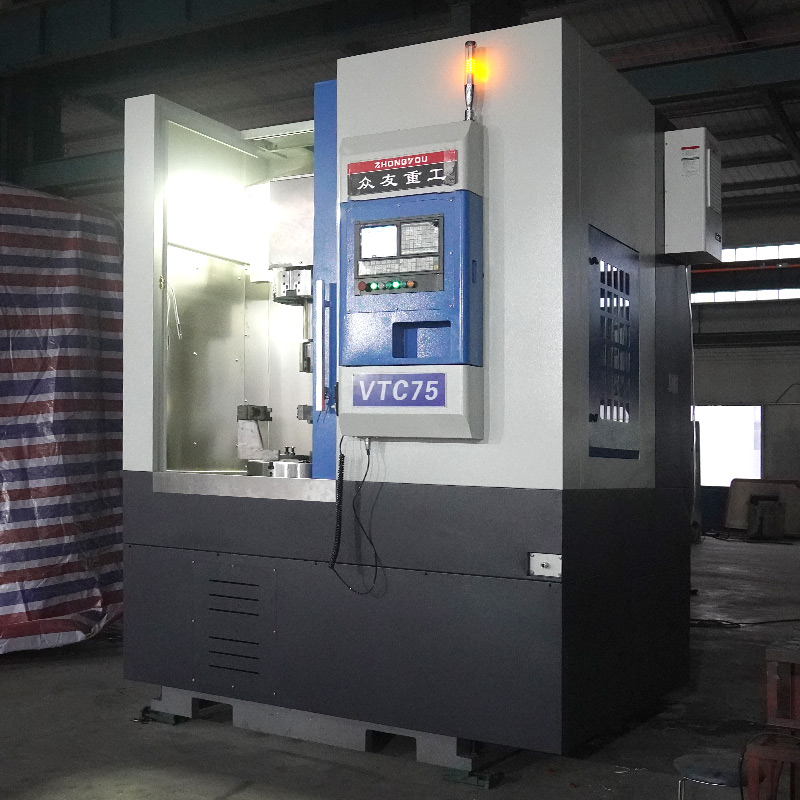

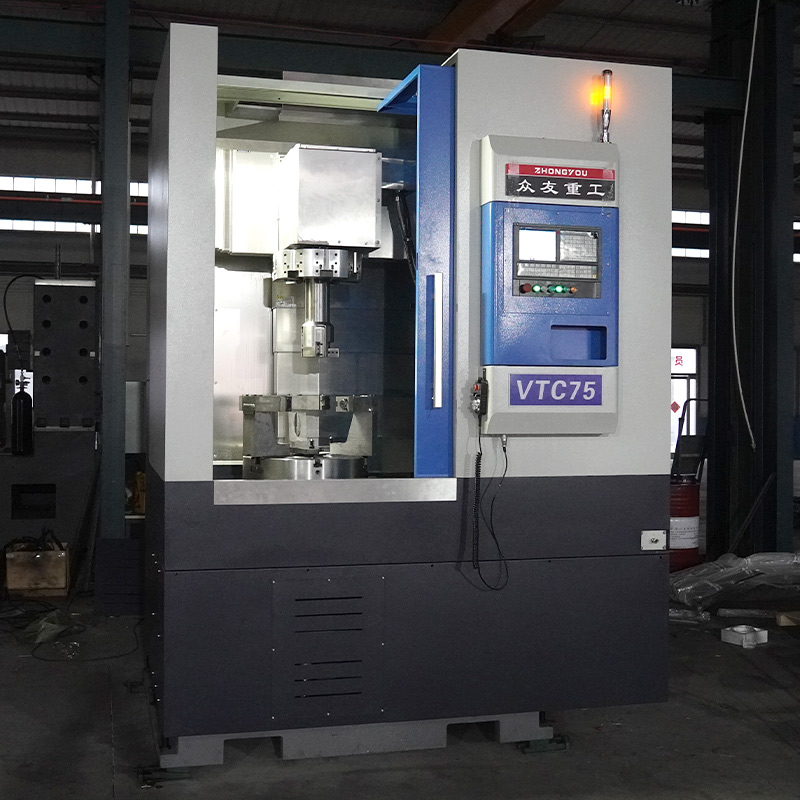

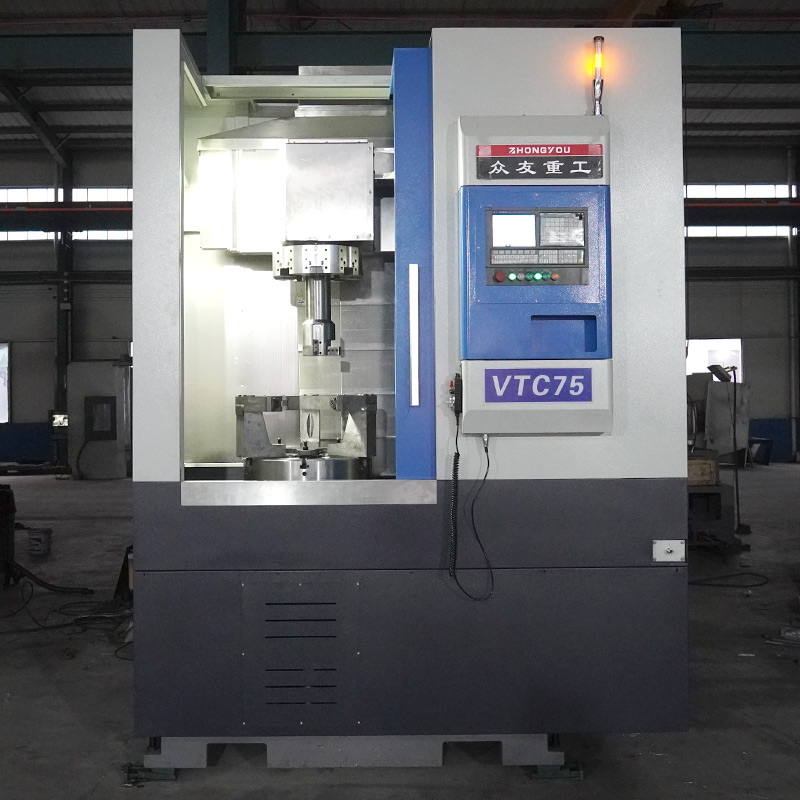

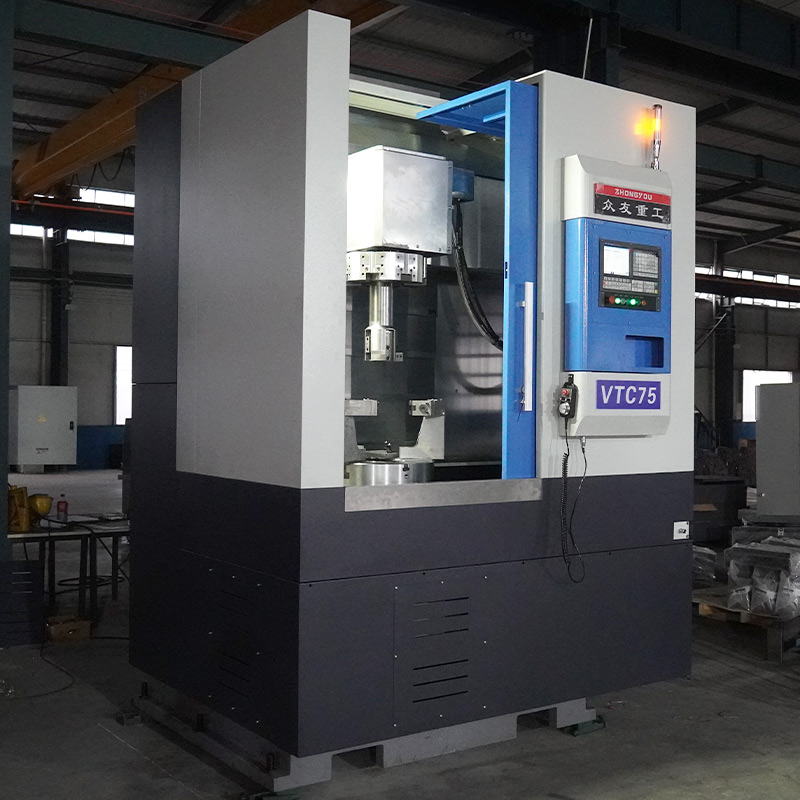

vertical turning lathe for sale Stainless Steel Flanges

Video Display

Product Introduction

Automation and Efficiency

Control System: Integrated PLC control, supporting adjustment of pressure, speed, and stroke parameters.

Production Efficiency: Over 60% increase compared to traditional machines, with single-cycle times reduced to 14–20 seconds.

Energy-Efficient Design: Variable-displacement pump control system reduces energy consumption by 30%.

Typical Applications

Wind Power Industry: Machining large rotary parts such as gearbox housings and hubs.

Automotive Manufacturing: Machining high-density components such as pressed hubs, brake drums, and flywheel housings.

Machining: Suitable for rough and finish machining of disc-shaped, sleeve-shaped, and short-shaft parts.

Technical Parameters

主要技术参数		Specifications	单位	VTC45	VTC65	VTC75	VTC80	VTC1000	VTC1250	VTC1400	VTC1600
加工 范围	最大回转直径	Maximm tuning diaretr	mm	500	650	750	900	1000	1250	1400	1600
	最大车削直径	Mxirum tuning diaretr	mm	450	600	700	800	850	1000	1200	1400
卡盘	三爪液压卡盘直径	Three jiaw hydraulic chuck diamena	M	12	21	24	24	24	32	手动四爪卡1250	手动四爪卡盘1400
刀塔	刀塔形式	Turet frm		卧式8工位	卧式8工位/立式4工位/立式6工位（选配）	卧式8工位/立式4工位/立式6工位（选配）	卧式8工位/立式4工位/立式6工位（选配）	卧式8工位/立式4工位/立式6工位（选配）	卧式8工位/立式4工位/立式6工位（选配）	卧式8工位/立式4工位/立式6工位（选配）	卧式8工位/立式4工位/立式6工位（选配）
行程	X轴行程	Tool towe X axis travel	mm	400	430	720	700	700	-50-650	-50-750	-50-850
	Z轴行程	Tunet Z-axs ravel	mm	500	550	750	700	700	800	800	800
	刀塔下端面距卡盘上端面距离	Distence between owe eng face of turet andLpo cnd face duck		170-560	0-550	850	0-800	0-800	150-950	150-950	150-950
线规 丝杠	X/Z线规	x/Z wre gauge		45滚柱	45/55滚柱	45/55滚柱	45/55滚柱	45/55滚柱	55/55滚柱	55/65滚柱	65滚柱
	X/Z丝杠直径	X/Z srew daneta	mm	φ40	φ40/φ50	φ40	φ40/φ50	φ40/φ50	φ50/φ50	φ50	①63
外形 尺寸	长×宽×高	Lergh ×wich ×heif	m	2.3×2.2×3.2	2.35*2.26*3.2	2.7×2.1×3.4	2.5×2.25×3.15	2.6×2.35×3.15	2.7×2.85×3.25	2.8×2.95×3.25	3.0×3.0×3.25
				18.8万	24.5	25.8	26.8	28	36.6	47.6	57.8

Pressing process

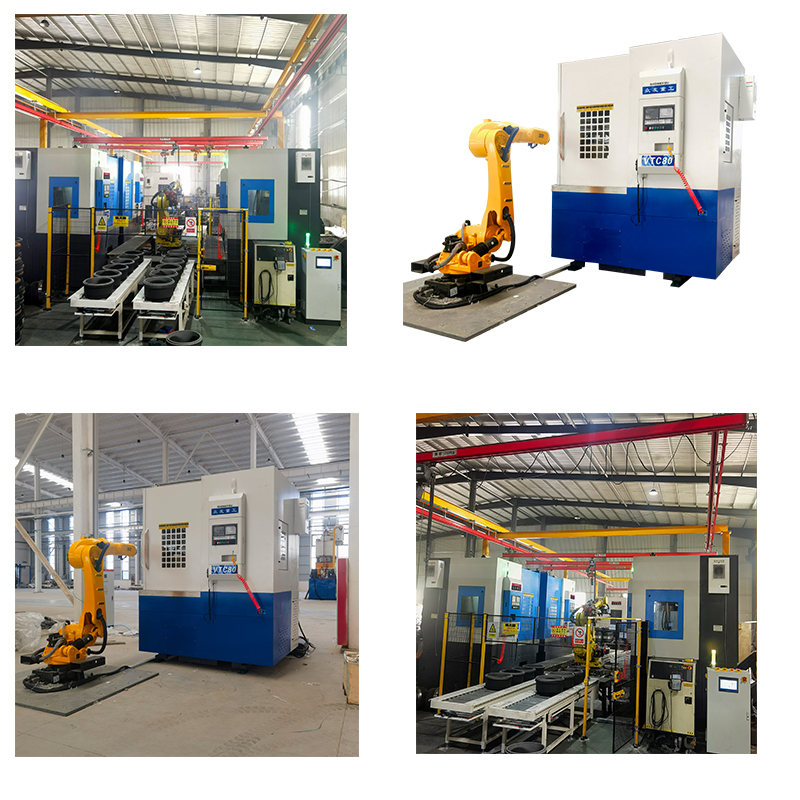

Customer Case
