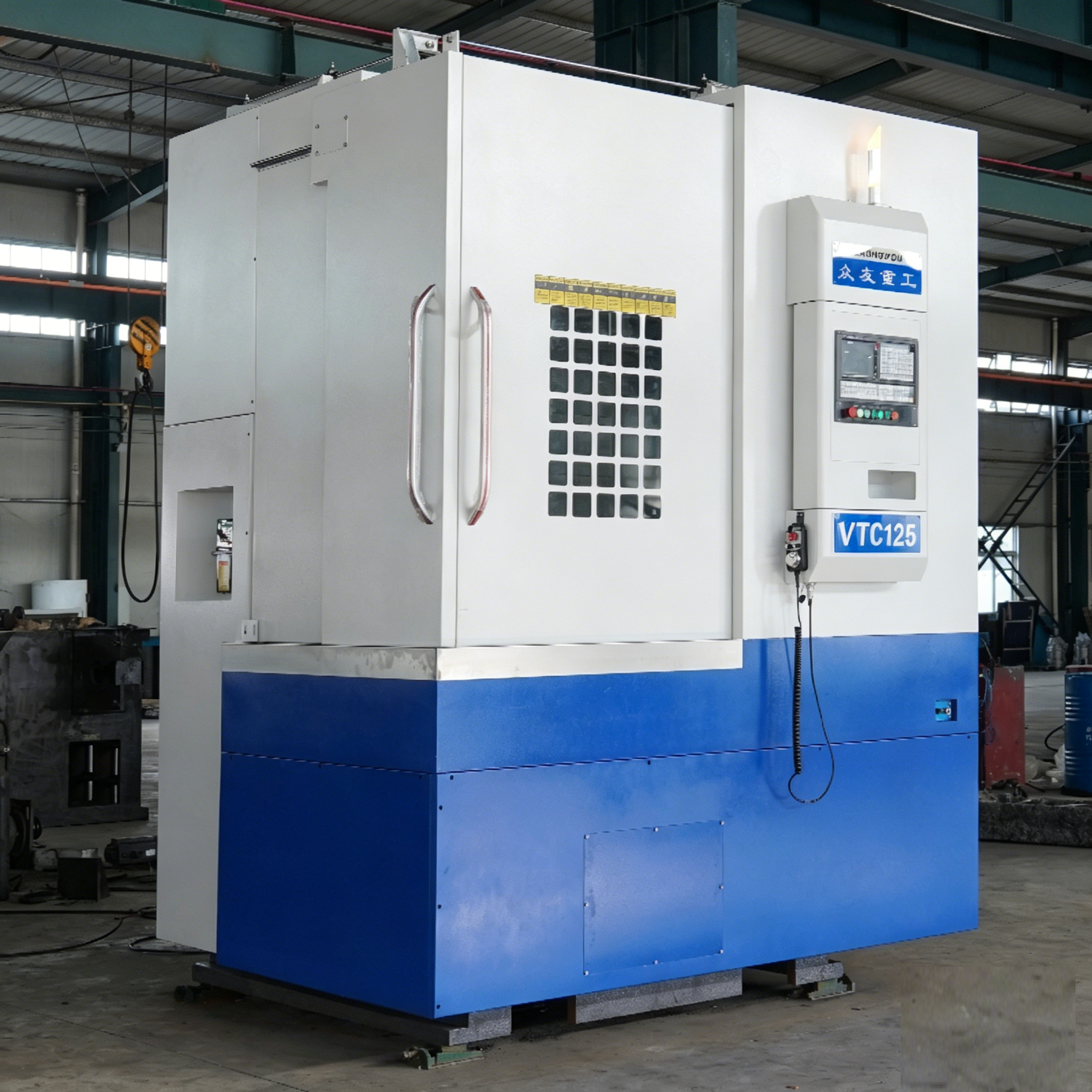

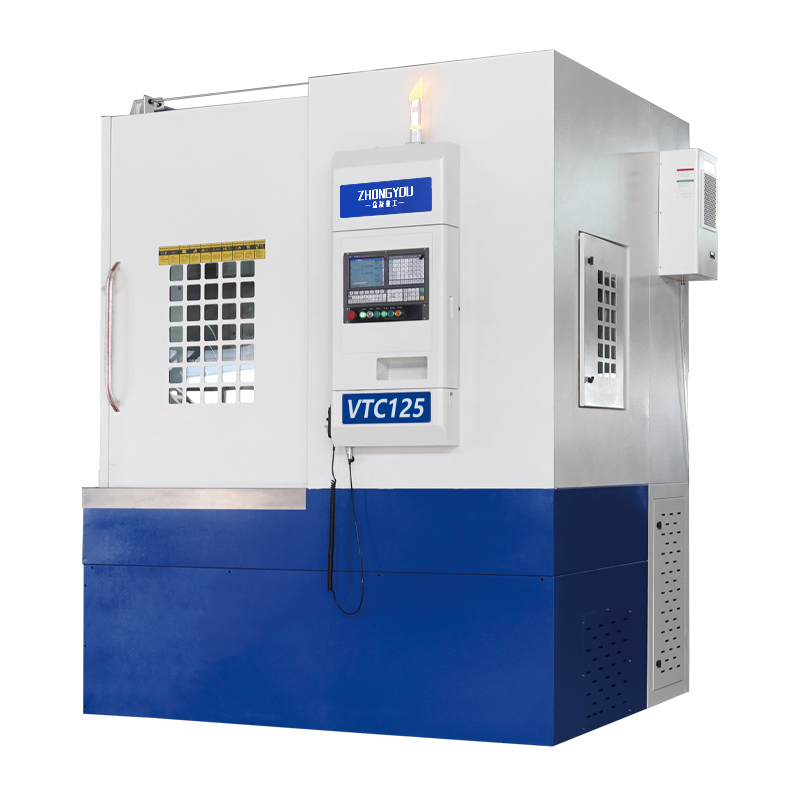

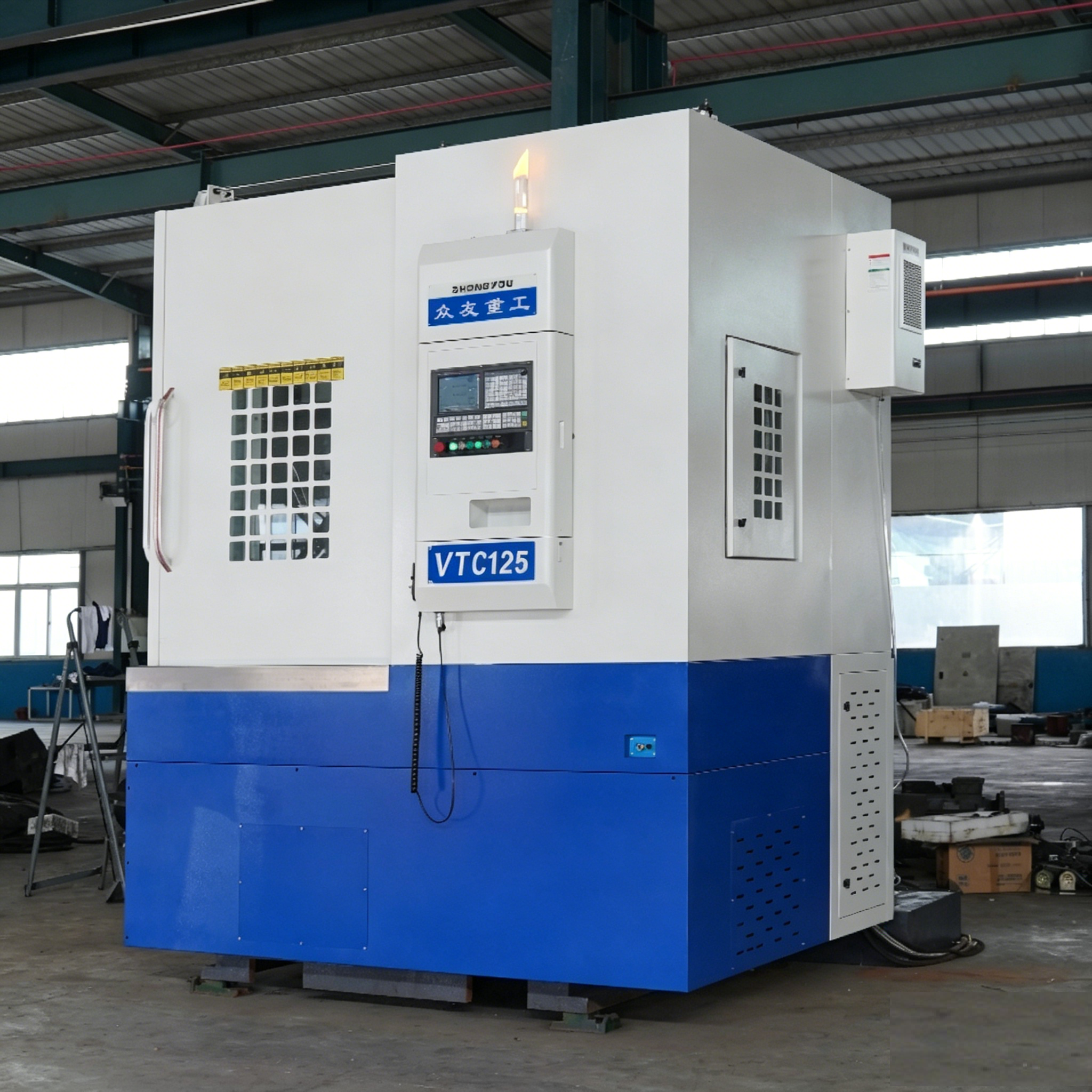

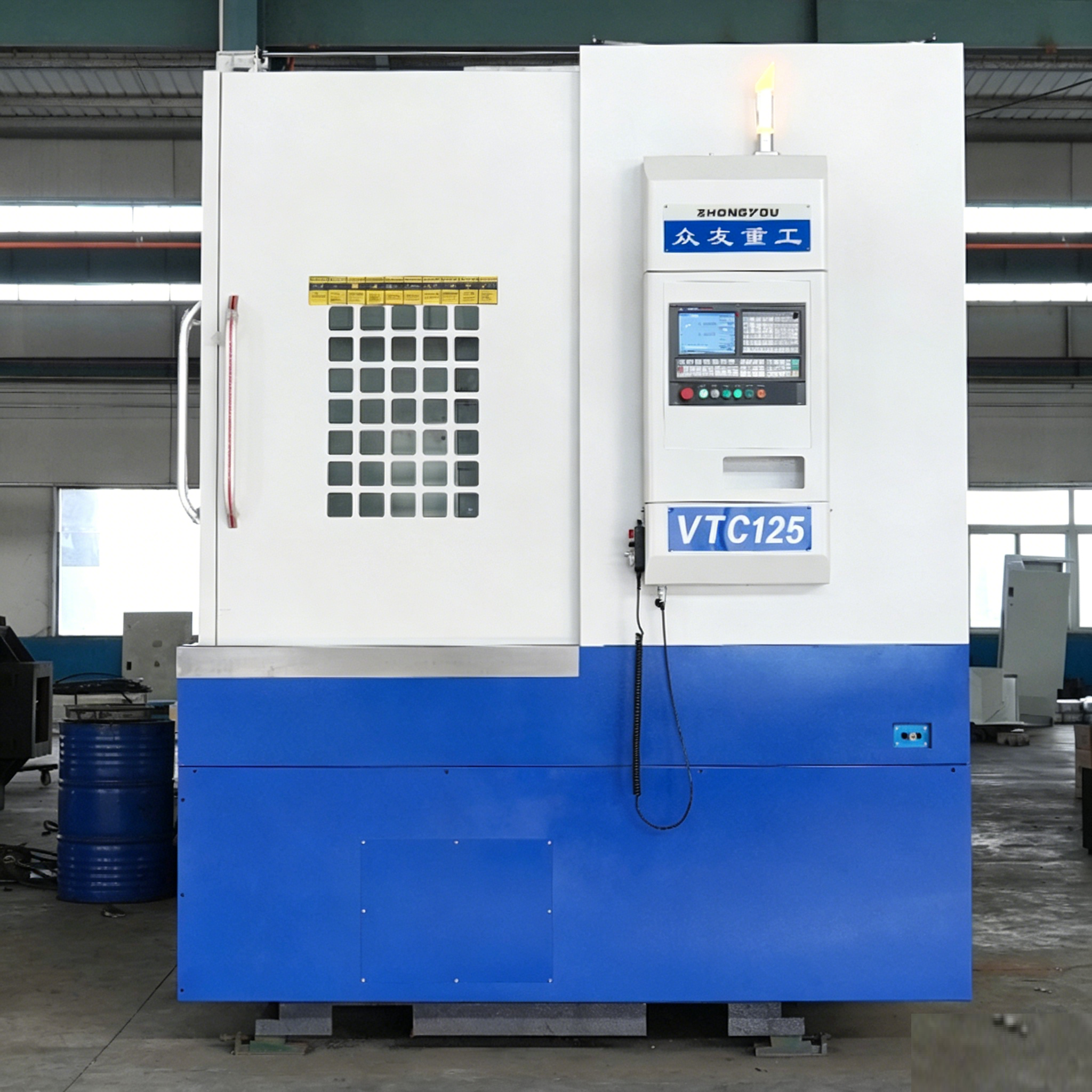

VTC125 CNC Vertical Lathe Forklift Wheel Hubs
The VTC125 (commonly referred to as the VTC1250) is a CNC vertical lathe with a maximum turning diameter of 1,250 mm. It is designed for the efficient and precise turning of heavy-duty discs, rings, a
+86 13562463338
+86 13562463338
Video Display
Product Introduction
The VTC125 (commonly referred to as the VTC1250) is a CNC vertical lathe with a maximum turning diameter of 1,250 mm. It is designed for the efficient and precise turning of heavy-duty discs, rings, and short shafts, and can be equipped with a C-axis and a power turret to enable turning and milling operations.
The machining capabilities of the VTC125 cover the majority of medium-sized heavy-duty components and are widely used in:
Wind/hydroelectric power industries: flanges, hubs, end caps, hydro turbine blade roots, etc.
Construction machinery: large gear rings, brake drums, hydraulic cylinder bodies, inner and outer rings of slewing bearings.
Mining/oilfield machinery: large bearing housings, drilling connectors, valve bodies.
Automotive manufacturing: Heavy-duty truck brake discs, hubs, and clutch housings
Technical Parameters
| 主要技术参数 | Specifications | 单位 | VTC45 | VTC65 | VTC75 | VTC80 | VTC1000 | VTC1250 | VTC1400 | VTC1600 | |
| 加工 范围 | 最大回转直径 | Maximm tuning diaretr | mm | 500 | 650 | 750 | 900 | 1000 | 1250 | 1400 | 1600 |
| 最大车削直径 | Mxirum tuning diaretr | mm | 450 | 600 | 700 | 800 |  850 | 1000 | 1200 | 1400 | |
| 卡盘 | 三爪液压卡盘直径 | Three jiaw hydraulic chuck diamena | M | 12 | 21 | 24 | 24 | 24 | 32 | 手动四爪卡1250 | 手动四爪卡盘1400 |
| 刀塔 | 刀塔形式 | Turet frm | 卧式8工位 | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | 卧式8工位/立式4工位/立式6工位（选配） | |
| 行程 | X轴行程 | Tool towe X axis travel | mm | 400 | 430 | 720 | 700 | 700 | -50-650 | -50-750 | -50-850 |
| Z轴行程 | Tunet Z-axs ravel | mm | 500 | 550 | 750 | 700 | 700 | 800 | 800 | 800 | |
| 刀塔下端面距卡盘上端面距离 | Distence between owe eng face of turet andLpo cnd face duck | 170-560 | 0-550 | 850 | 0-800 | 0-800 | 150-950 | 150-950 | 150-950 | ||
| 线规 丝杠 | X/Z线规 | x/Z wre gauge | 45滚柱 | 45/55滚柱 | 45/55滚柱 | 45/55滚柱 | 45/55滚柱 | 55/55滚柱 | 55/65滚柱 | 65滚柱 | |
| X/Z丝杠直径 | X/Z srew daneta | mm | φ40 | φ40/φ50 | φ40 | φ40/φ50 | φ40/φ50 | φ50/φ50 | φ50 | ①63 | |
| 外形 尺寸 | 长×宽×高 | Lergh ×wich ×heif | m | 2.3×2.2×3.2 | 2.35*2.26*3.2 | 2.7×2.1×3.4 | 2.5×2.25×3.15 | 2.6×2.35×3.15 | 2.7×2.85×3.25 | 2.8×2.95×3.25 | 3.0×3.0×3.25 |
| 18.8万 | 24.5 | 25.8 | 26.8 | 28 | 36.6 | 47.6 | 57.8 | ||||
