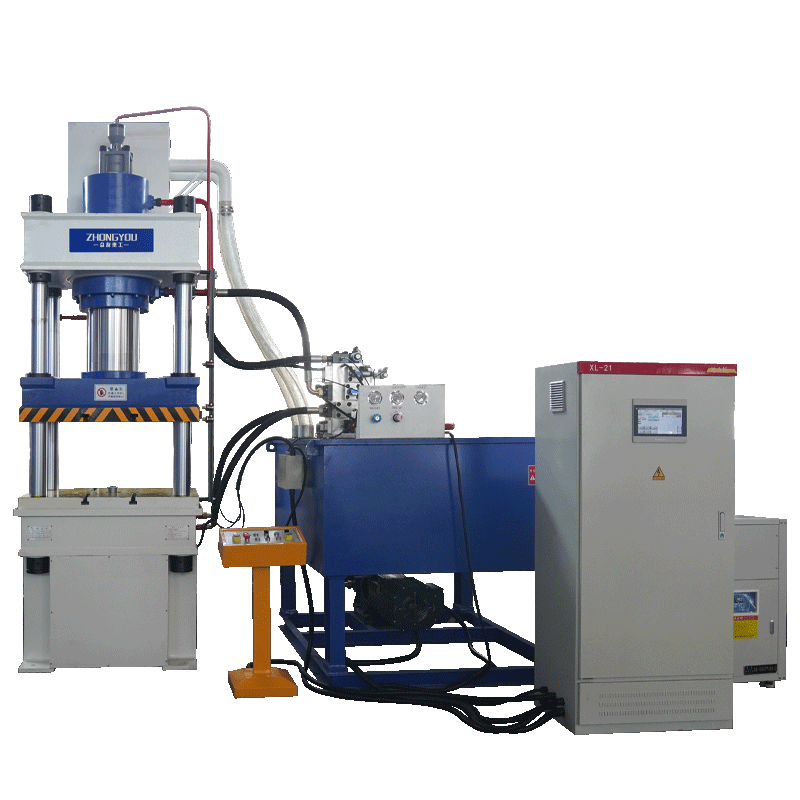

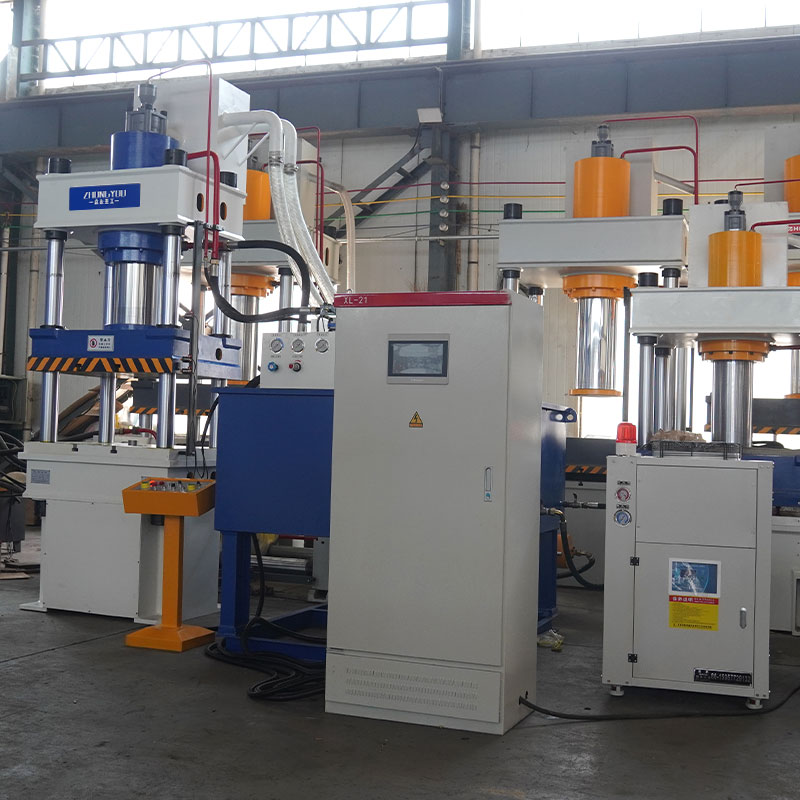

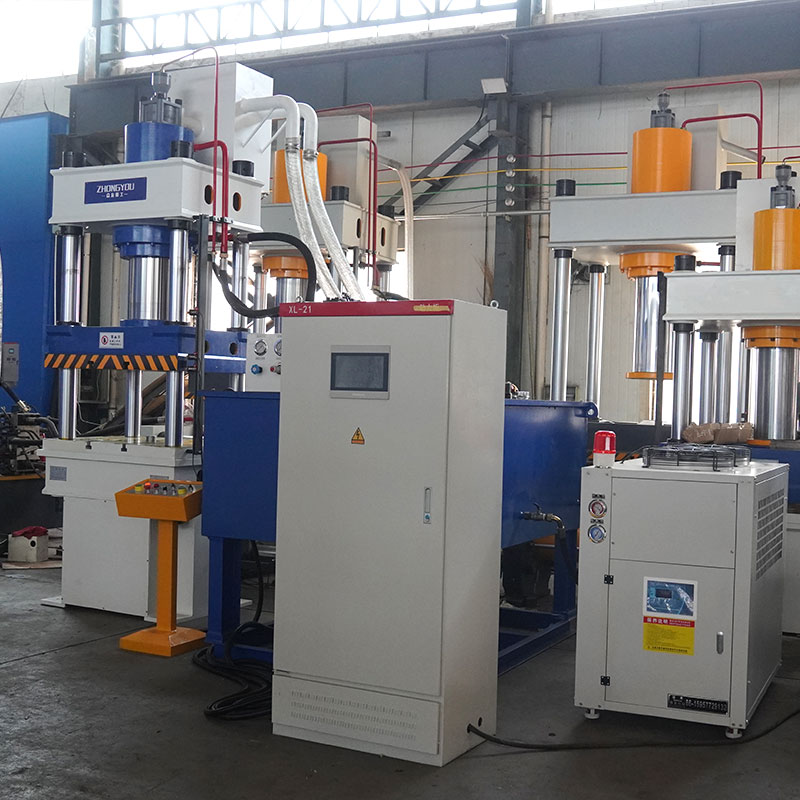

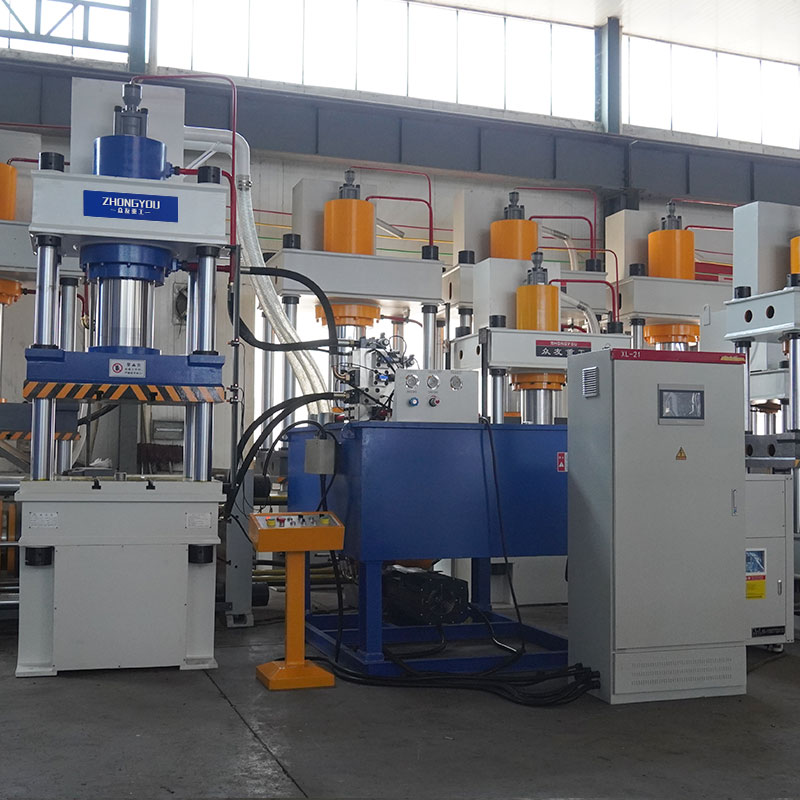

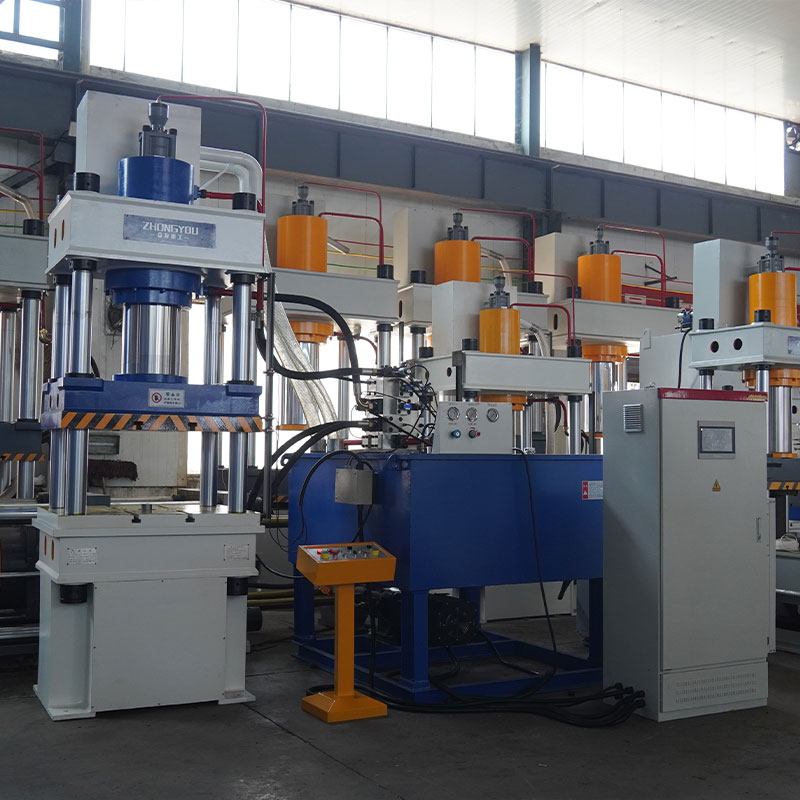

Servo system of 250 tons three-beam four-column hydraulic pressure machine
250 tons" refers to the nominal pressure of the hydraulic press, "fast servo" emphasizes its use ofServo motor drive + electro-hydraulic servo control technology, different from the traditional hydrau
+86 13562463338
+86 13562463338
Video Display
Product Introduction
250 tons" refers to the nominal pressure of the hydraulic press, "fast servo" emphasizes its use ofServo motor drive + electro-hydraulic servo control technology, different from the traditional hydraulic press "valve-controlled hydraulic" or "pump-controlled hydraulic" system.Its core objective is to realize the closed-loop control of pressure, speed and position through the precise regulation of servo motors, and at the same time to improve the frequency of action (rapidity) and energy utilization.
Automobile manufacturing industry
Engine component press-fitting: precision press-fitting of cylinder head, cylinder liner, oil seal and other components, with pressure control accuracy of ±1%, to avoid oil leakage caused by seal damage.
Transmission system assembly: press-fitting of gear box components and transmission shaft components, flexibly controlling the press-fitting speed through servo motors, adapting to the deformation characteristics of different materials.
Cell phone shell molding: with the mold heating system (temperature control accuracy ± 2 ℃), to achieve the PC / ABS plastic shell hot press molding, product surface finish up to Ra0.8.
Press-fitting of circuit board components: through the force-displacement curve monitoring, to ensure that the plug-in press-fitting force is stabilized within the range of 50-200N, to avoid false welding or component damage.
New energy field
Lithium battery stack press-fitting: adopting multi-stage pressure control (pre-pressure, main pressure, holding pressure), the pressure uniformity is up to ±2%, to ensure the stability of the internal structure of the stack, and prolong the service life.
Hydrogen fuel cell bipolar plate molding: through servo motor low-speed and high-torque output, it realizes precision stamping of titanium alloy bipolar plate with thickness tolerance ±0.02mm.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |

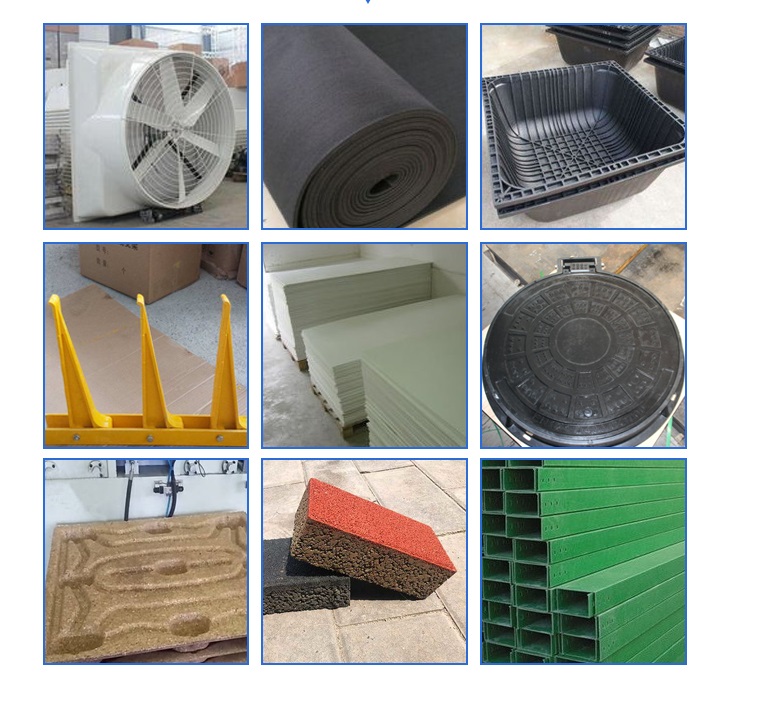

Pressing process

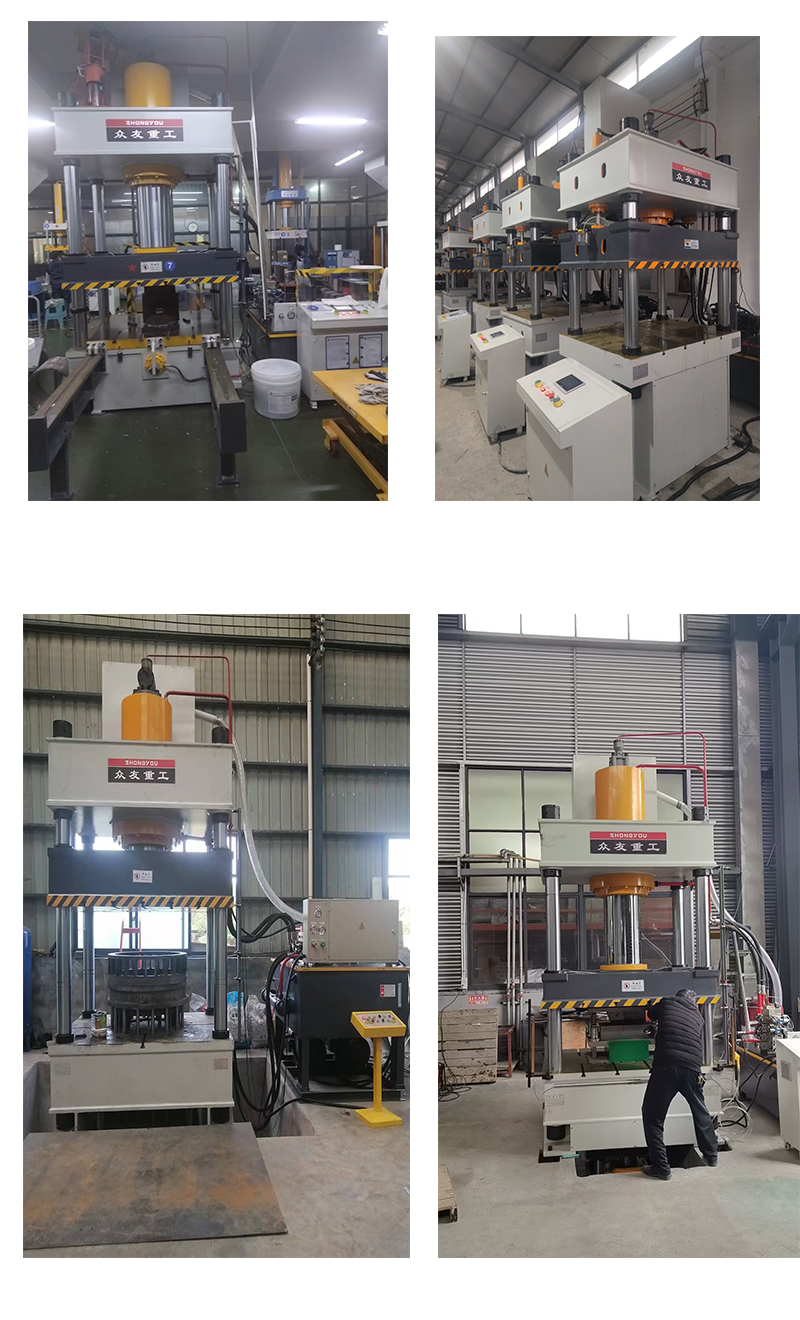

Customer Case
