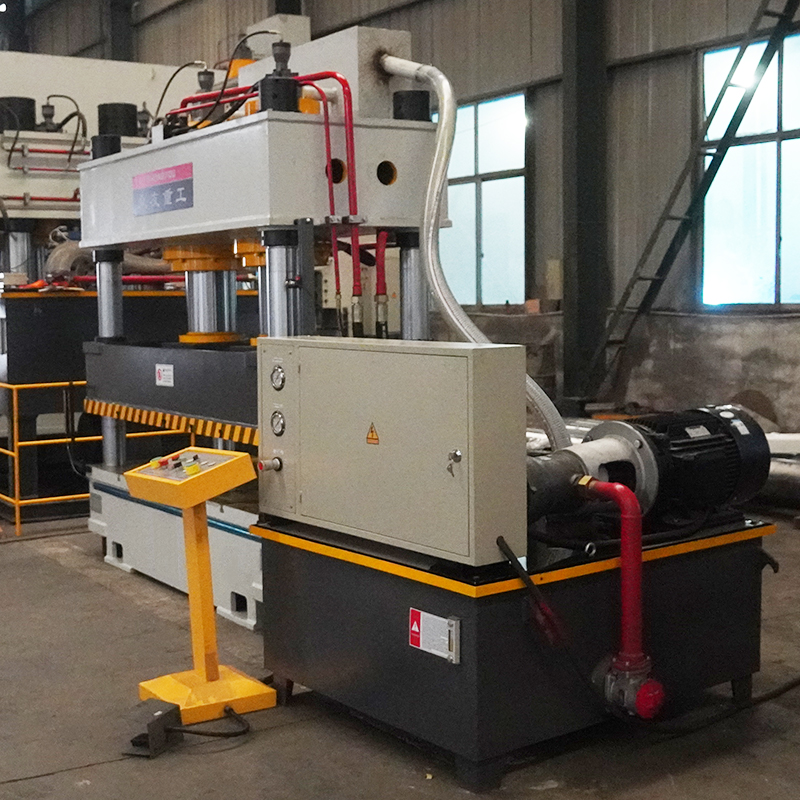

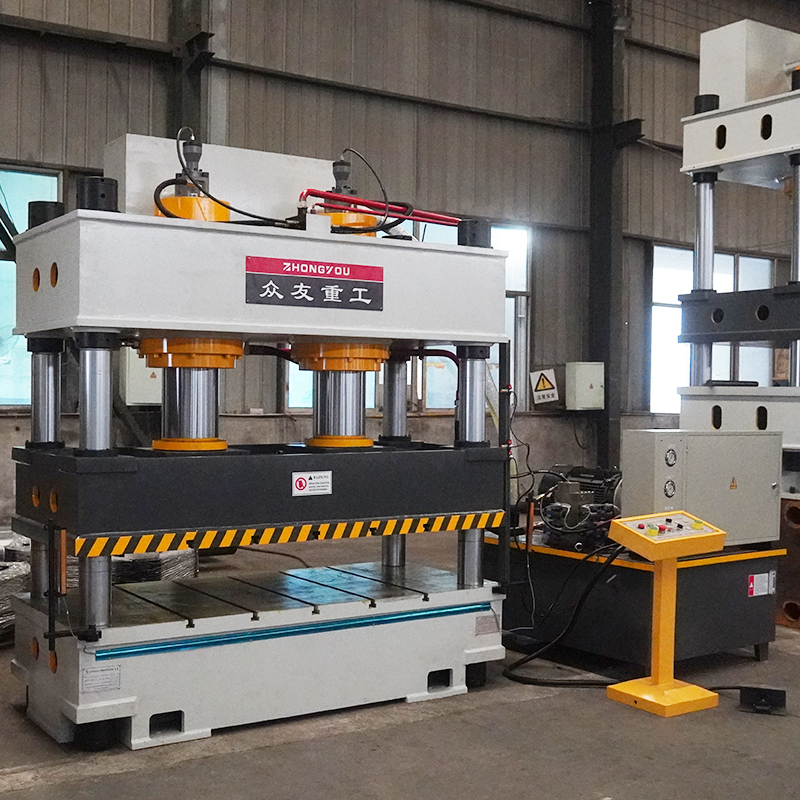

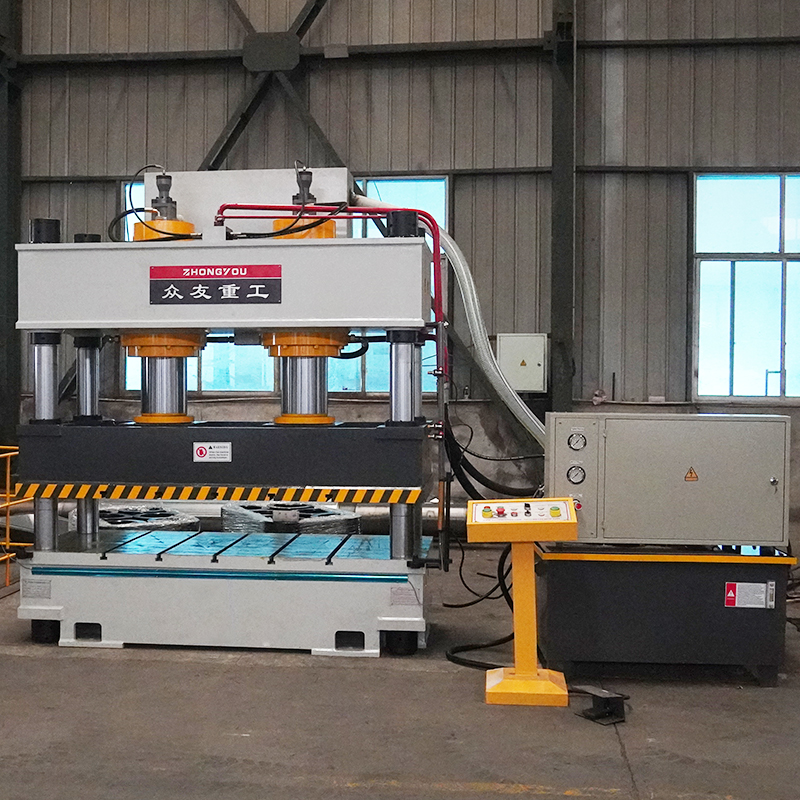

Color Stone Metal Tile Press Four-Column Hydraulic Press Production Line
The metal stone-effect tile hydraulic press serves as the core equipment in stone-effect metal tile production lines. Powered by a hydraulic system, it processes base materials such as aluminum-zinc c
+86 13562463338
+86 13562463338
Video Display
Product Introduction
The metal stone-effect tile hydraulic press serves as the core equipment in stone-effect metal tile production lines. Powered by a hydraulic system, it processes base materials such as aluminum-zinc coated steel sheets into stone-effect metal tiles with specific shapes and properties through high-pressure compression.

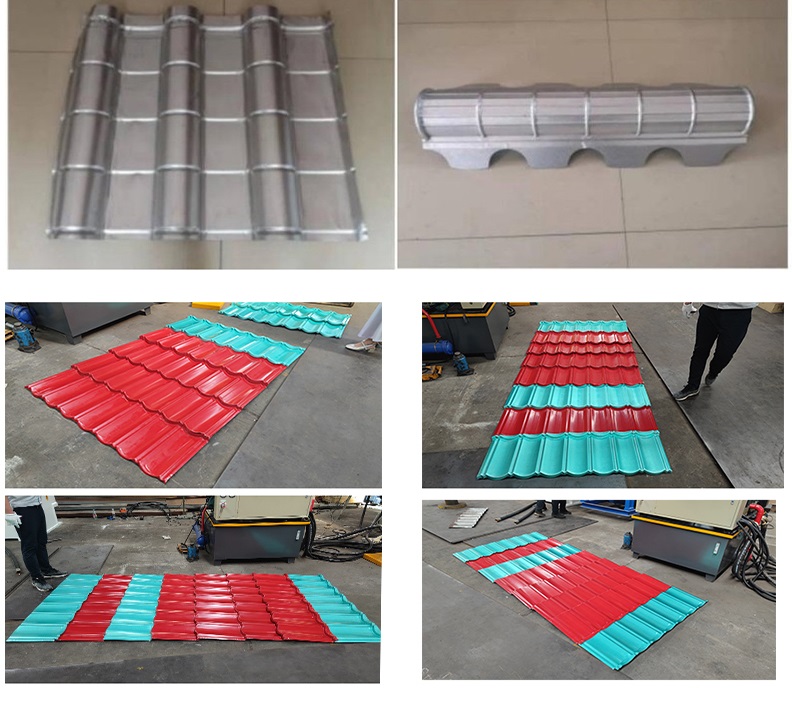

Roofing Material Production: Stone-effect metal tiles are widely used in roofing projects for villas, commercial buildings, and industrial facilities due to their aesthetic appeal, lightweight nature, durability, and environmental friendliness.
Sheet Metal Processing Industry: Suitable for deep drawing and forming of metals like aluminum, copper, stainless steel, and thin iron sheets, meeting demands in aerospace, aviation, motorcycle manufacturing, and related sectors.
Metal Stone-Effect Tile Hydraulic Presses typically operate within automated production lines:
Feeding: Robotic arms or feeding devices precisely position pre-cut sintered flat sheets into molds on the press workbench.
Forming: The ram rapidly descends, then transitions to slow high-pressure compression upon contacting the sheet, forcing it into the lower die cavity to form three-dimensional tiles.
Holding Pressure: A brief pressure hold ensures the tile shape is stabilized.
Ejection: The ram retracts while the lower die's ejector mechanism (or robotic arm) lifts/removes the formed tiles.
Discharge: The robotic arm removes the formed tiles for stacking or placement onto a conveyor line.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |

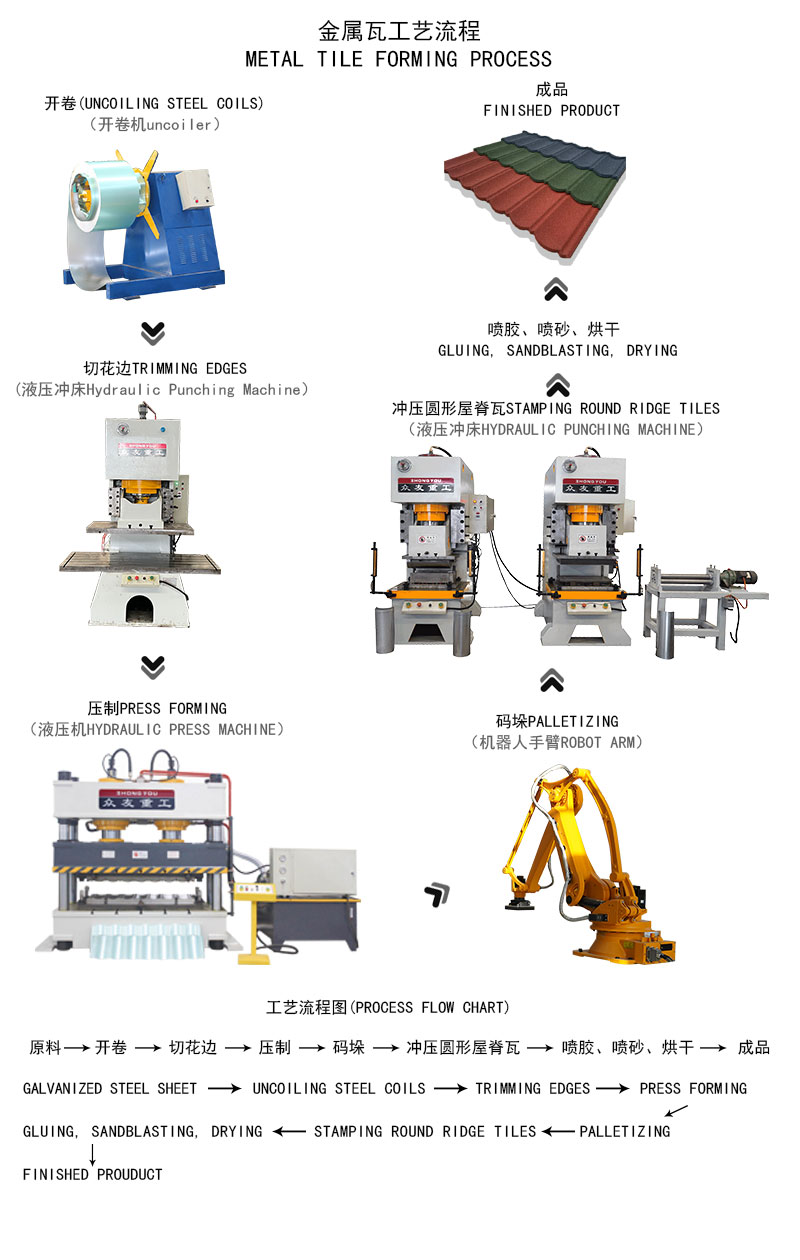

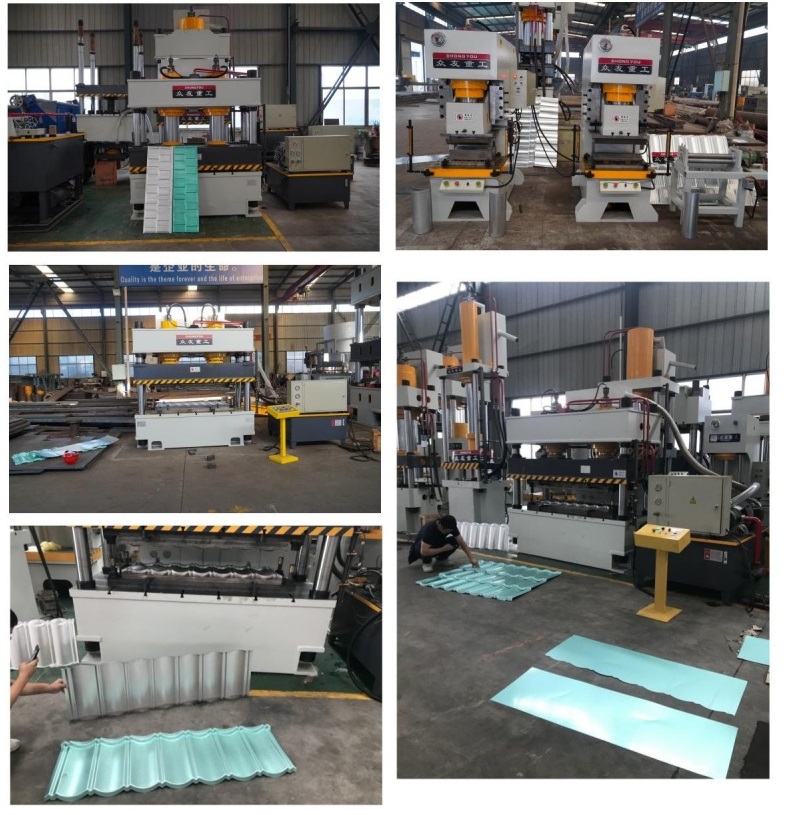

Pressing process
