1000-ton four-column hydraulic press
Shandong Zhongyou Heavy Industry custom-built a 1000-ton four-column hydraulic press for its client, enabling processes such as pressing, forming, and blanking of workpieces. Its core advantages lie i
+86 13562463338
+86 13562463338
Video Display
Product Introduction
Shandong Zhongyou Heavy Industry custom-built a 1000-ton four-column hydraulic press for its client, enabling processes such as pressing, forming, and blanking of workpieces. Its core advantages lie in structural stability, uniform pressure distribution, and broad applicability, meeting the high-precision machining demands of large-scale components.

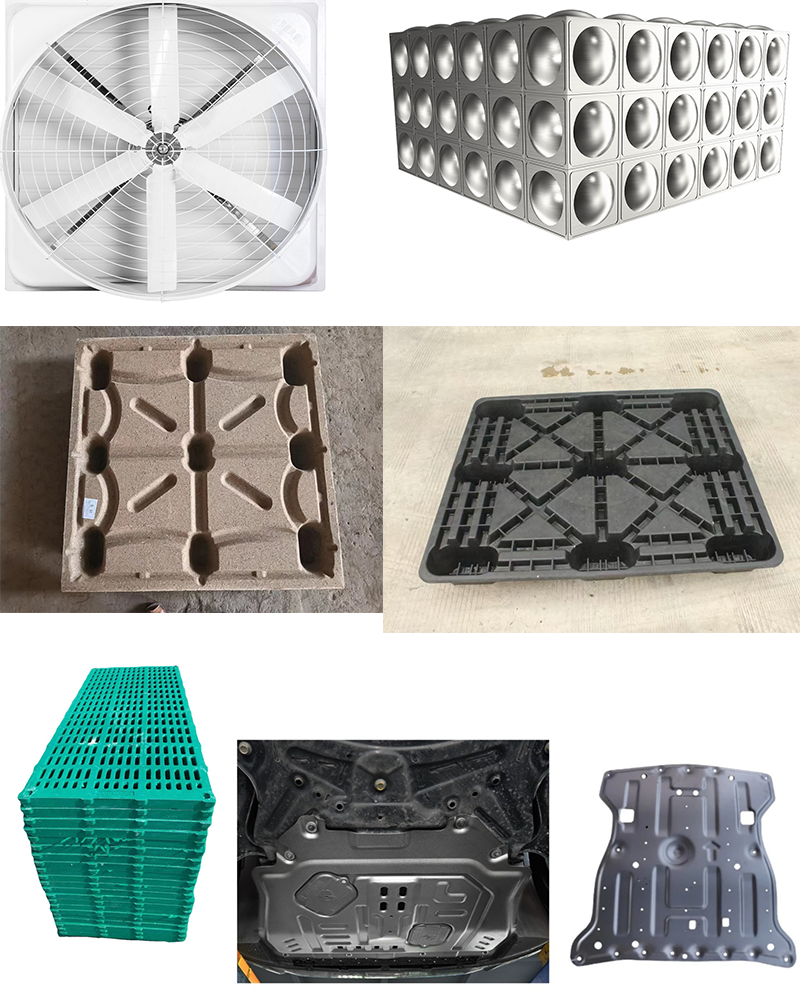

Metal Processing Industry: Sheet Metal Press Forming: Automotive body panels, anchor rod trays, flanged head drawing, etc.
Bending and Stamping: Bending, punching, shearing, and other processes for metal components.
Hot Forging: Forging of automotive and construction machinery parts.
Plastics Processing: Hot Press Molding: Molded forming of plastic pallets, plastic tiles, and similar products.
Composite Molding: Production of SMC, BMC resin products, fiberglass septic tanks, sinks, etc.
Rubber Processing Industry Vulcanization and Pressing: Molding of rubber seals, rubber hoses, and similar products.
Other Fields Pressure Testing: Performance testing of metals, plastics, rubber, and other materials.
Powder Product Pressing: Compaction molding of metal powders, ceramic powders, cemented carbides, and similar materials.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process
