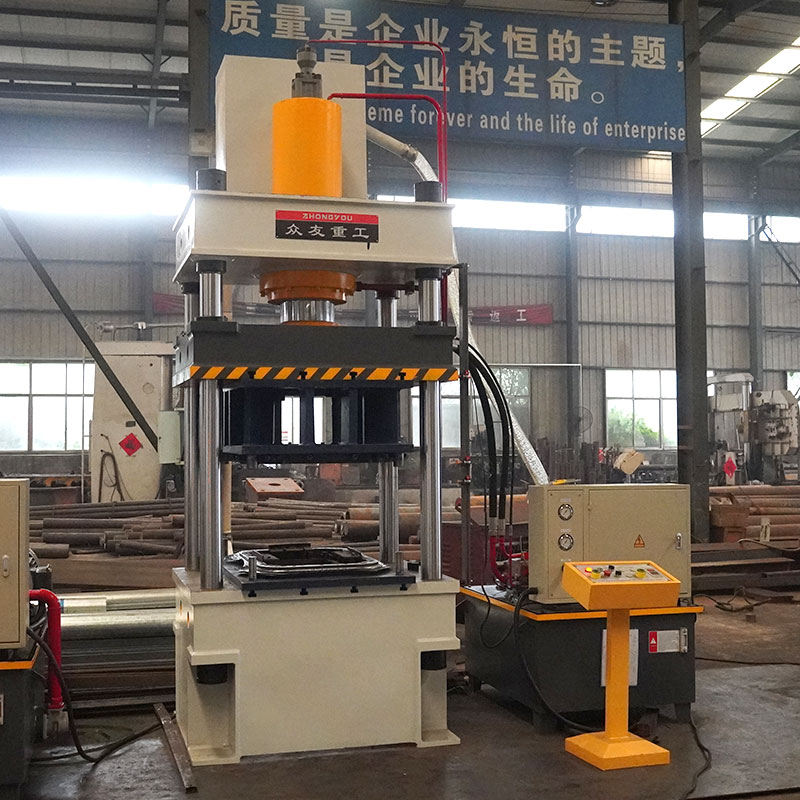

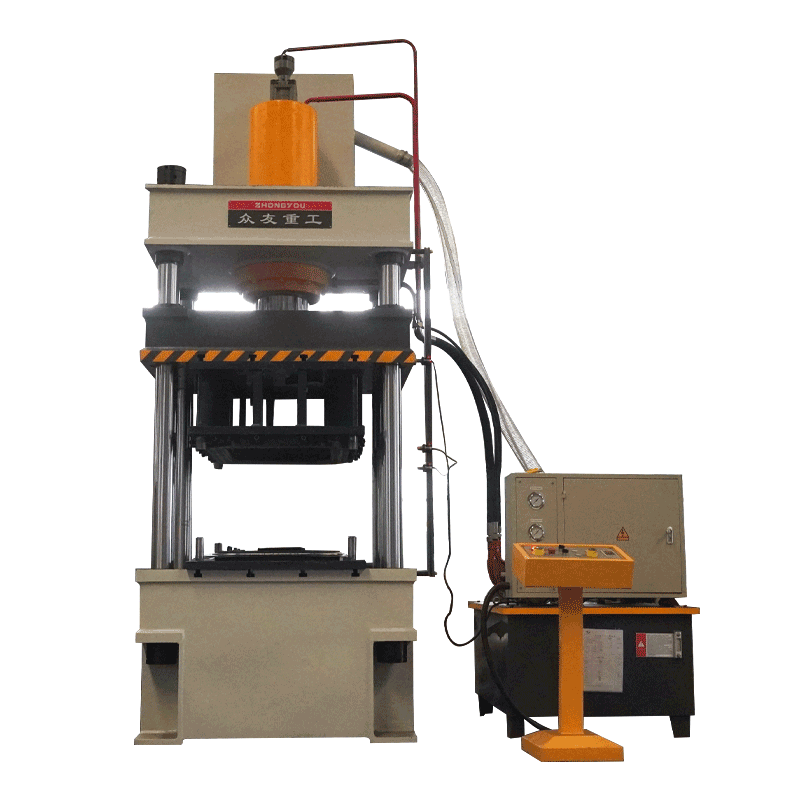

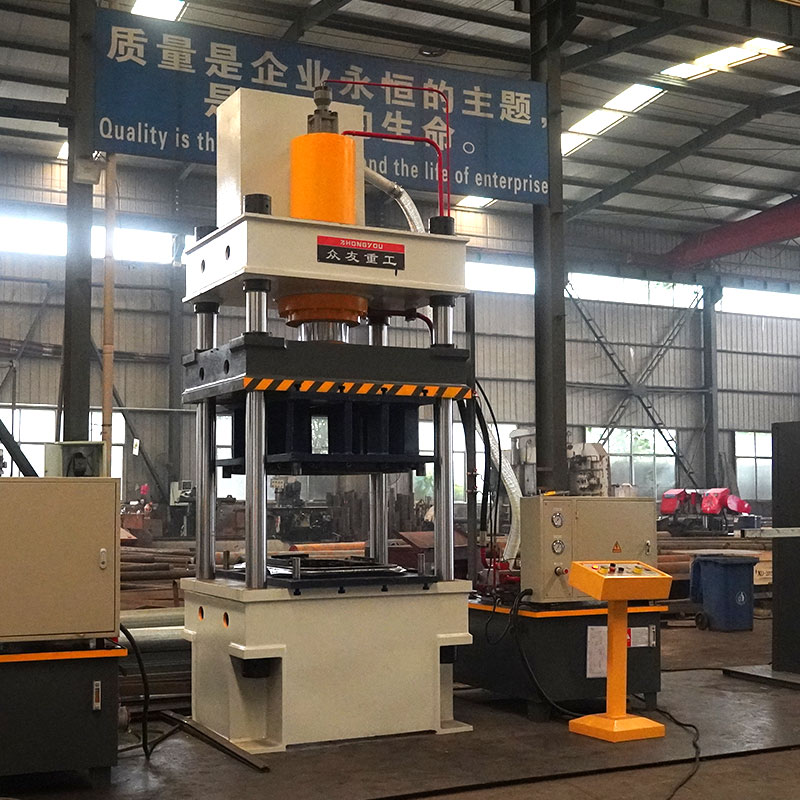

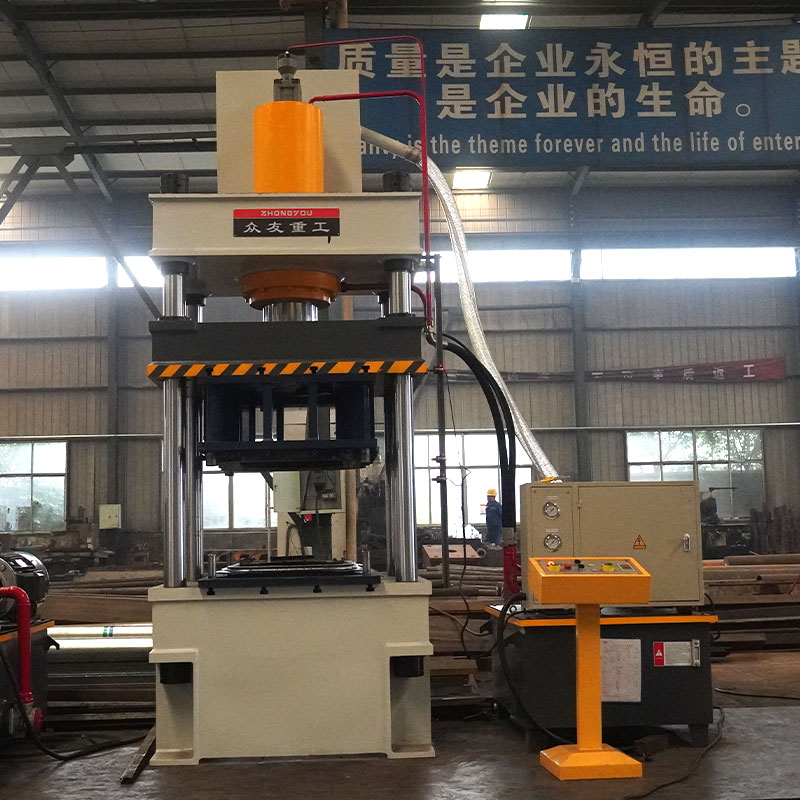

Three-beam and four-column hydraulic presses Hydraulic presses for the production of gray hopper trolleys and handcarts
Gray Bucket Truck Hydraulic Press is widely used in the production of gray bucket trucks, metal processing, automobile manufacturing, aerospace and other fields.In the production of hand trucks for co
+86 13562463338
+86 13562463338
Video Display
Product Introduction
Gray Bucket Truck Hydraulic Press is widely used in the production of gray bucket trucks, metal processing, automobile manufacturing, aerospace and other fields.In the production of hand trucks for construction sites, the hydraulic press for ashtray trucks can realize the mechanical automation of the production of ashtray truck buckets, which greatly improves the quantity and quality of production.At the same time, the equipment can also be used for the production of other metal products, such as automobile parts, home appliance shells and so on.
Body structure: Gray bucket truck hydraulic press mostly adopts three-beam and four-column structure or four-column guided structure.Three-beam four-column structure consists of upper crossbeam, lower crossbeam and four columns, which has the advantages of simple structure, good rigidity and strong lateral force resistance.The four-column guided structure ensures the smoothness and precision of the slider movement through four guiding columns.
Hydraulic system: The hydraulic system adopts cartridge valve integrated system, which has the advantages of reliable action, long service life and small hydraulic shock.At the same time, the hydraulic system is also equipped with oil temperature and oil level display, air filtering and other devices to ensure the normal operation of the oil circuit.
Electrical system: the electrical system adopts PLC automatic control or button centralized control, with point action and semi-automatic function.The stroke, pressure and speed of each running part can be self-adjustable within a certain range to meet the needs of metal products molded parts.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |

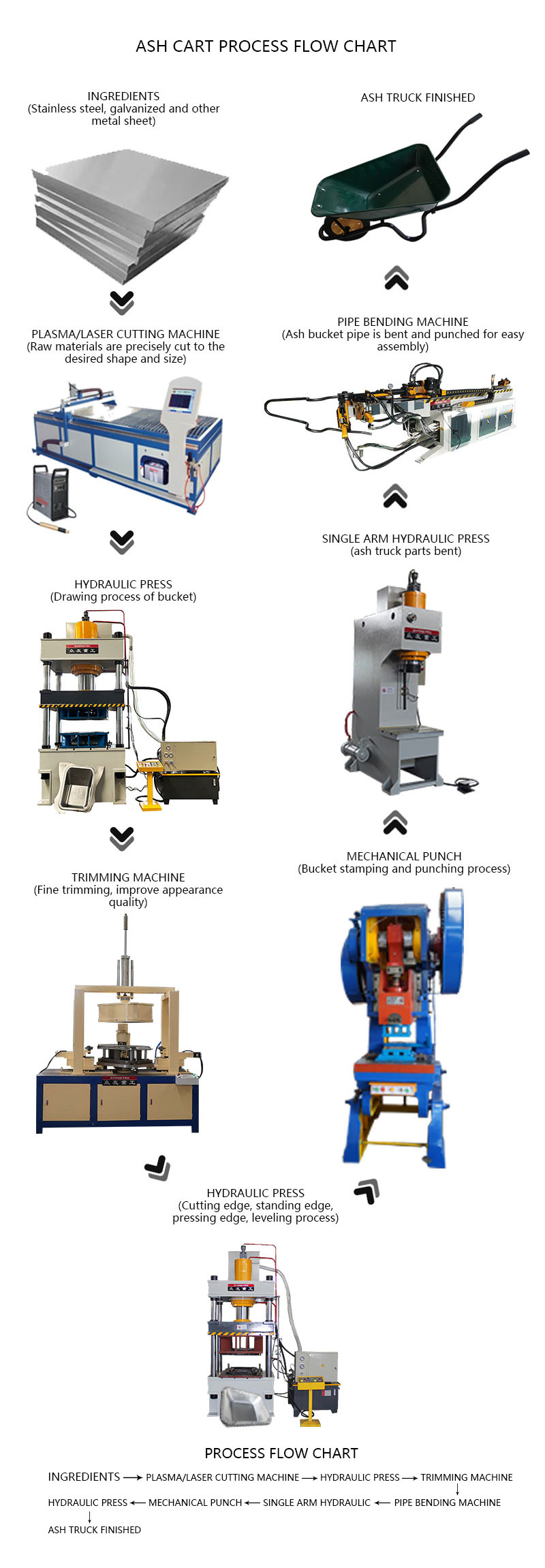

Pressing process

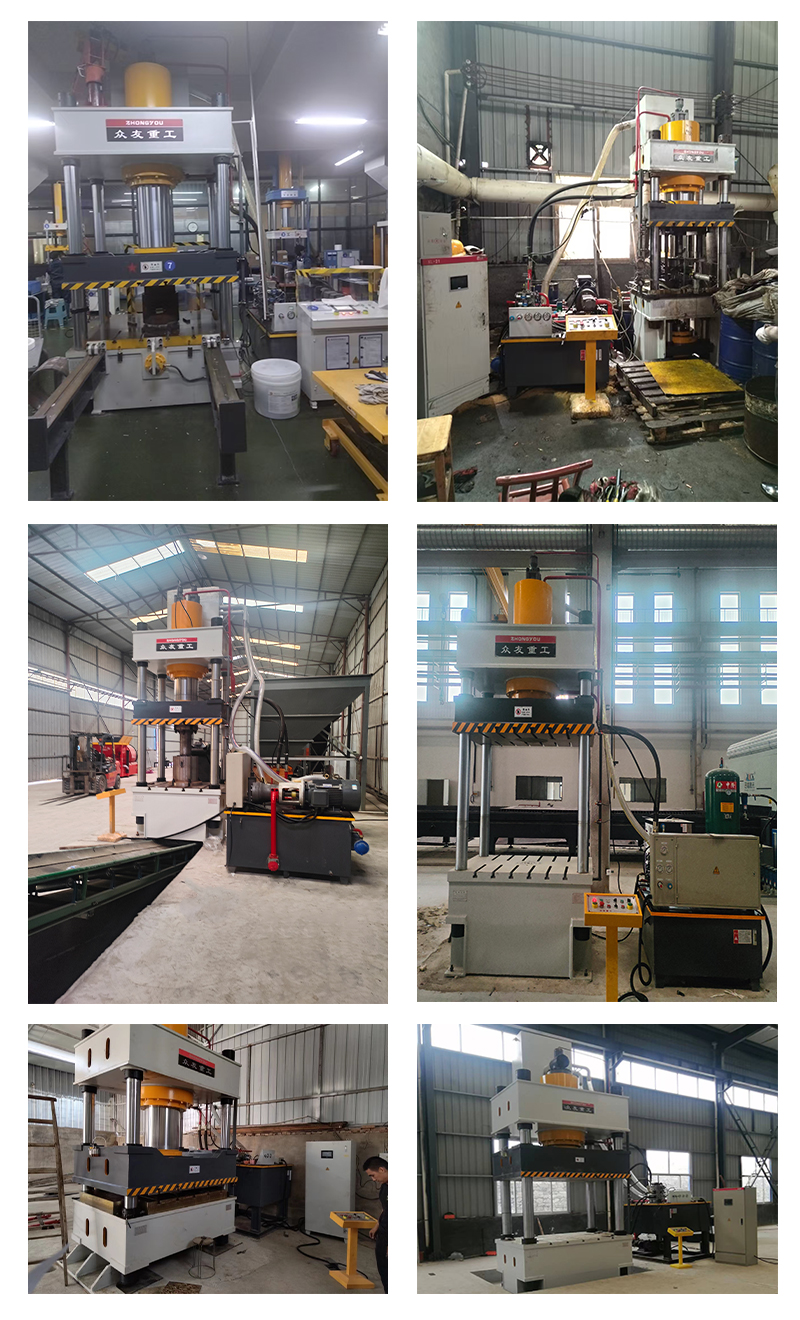

Customer Case
