400-tons Fiberglass Gas Meter Box Compression Molding Hydraulic Press
The SMC Fiberglass Gas Meter Hydraulic Press is a specialized machine designed for molding fiberglass gas meter boxes. Utilizing SMC (Sheet Molding Compound) molding technology, it forms glass fiber-r
+86 13562463338
+86 13562463338
Video Display
Product Introduction

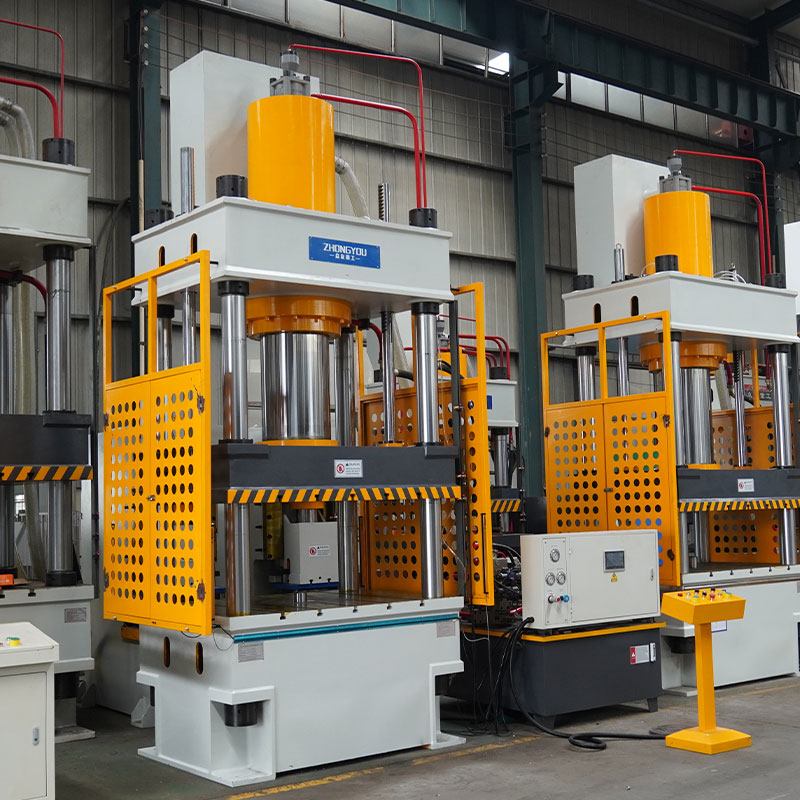

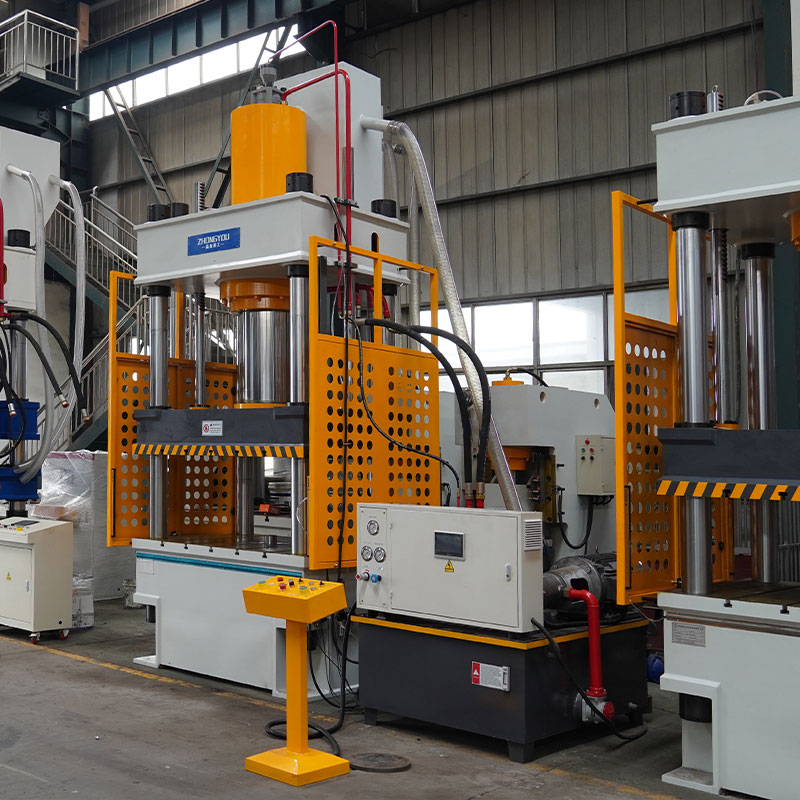

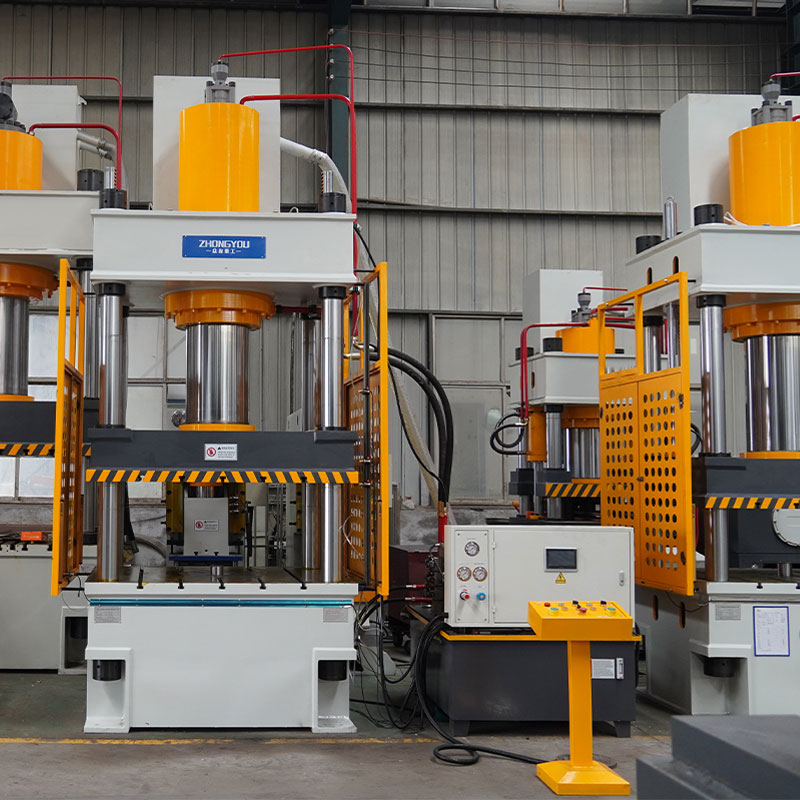

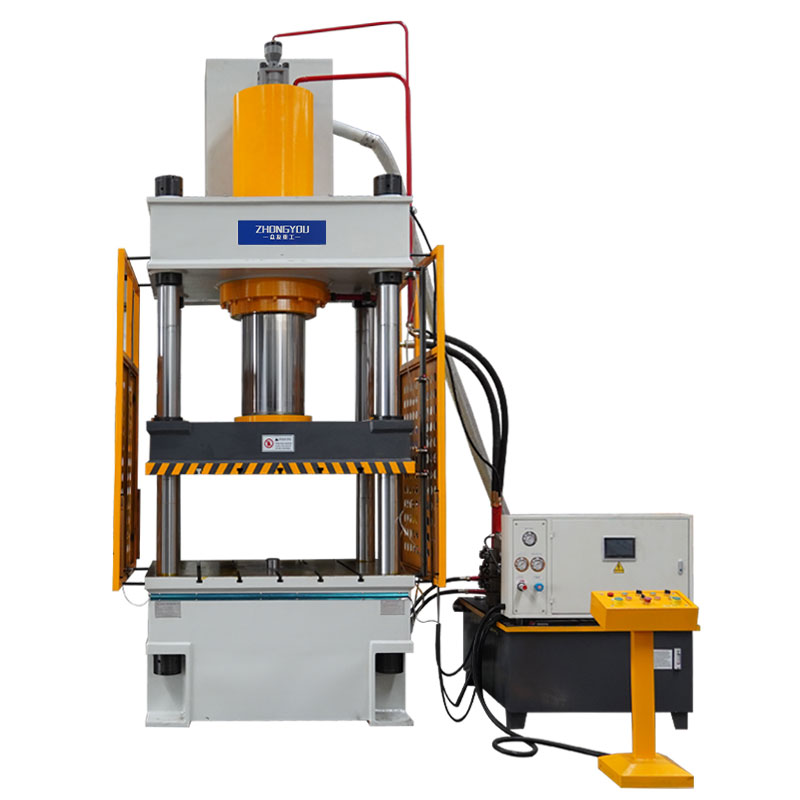

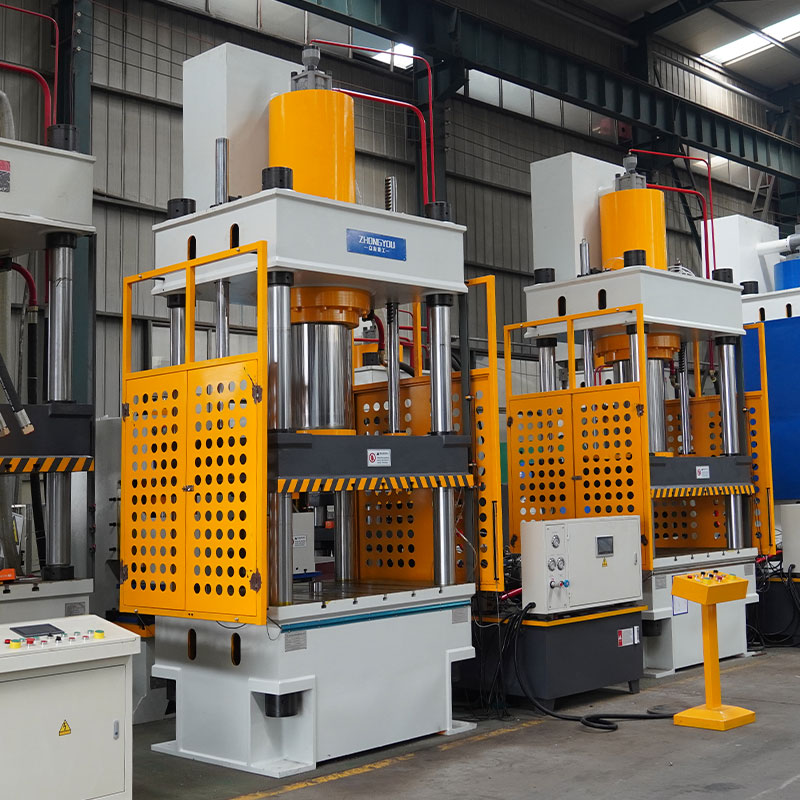

The SMC Fiberglass Gas Meter Hydraulic Press is a specialized machine designed for molding fiberglass gas meter boxes. Utilizing SMC (Sheet Molding Compound) molding technology, it forms glass fiber-reinforced unsaturated polyester resin under high temperature and pressure to produce gas meter boxes featuring high rigidity, lightweight construction, corrosion resistance, electrical insulation, and flame retardancy.
Application Scenarios

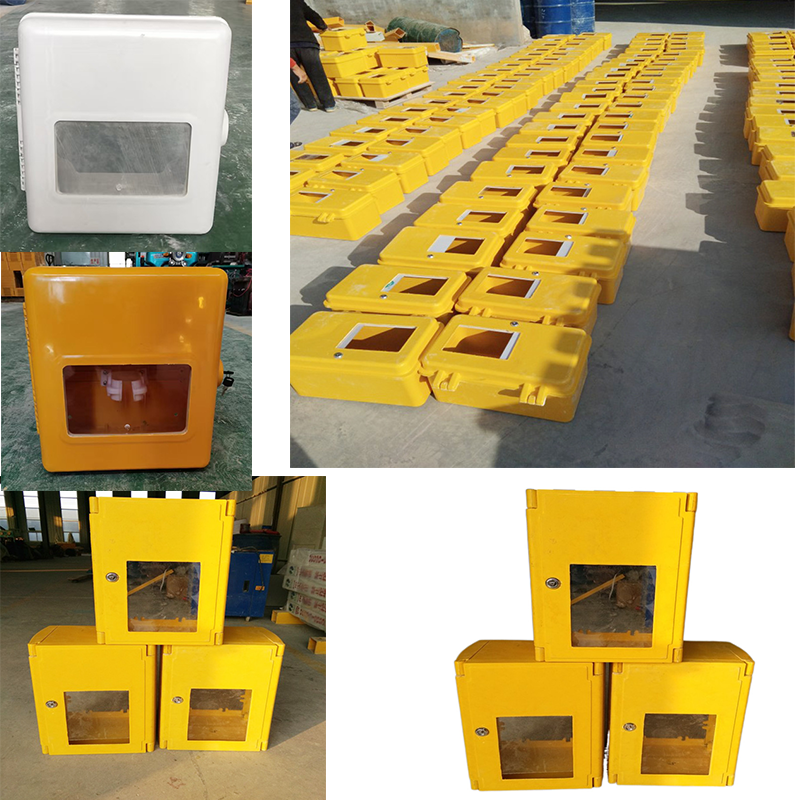

Gas Meter Box Production: Molding SMC fiberglass gas meter boxes to replace traditional metal boxes, addressing issues of corrosion susceptibility and electrical conductivity.
Electrical Industry: Manufacture of low-voltage distribution boxes, pump control panels, communication equipment cabinets, etc.
Automotive Industry: Molding of automotive bumpers, engine guards, and other components.
Rail Transit: Processing of structural parts such as subway doors and car body frames.
New Energy Sector: Production of battery enclosures, energy storage cabinets, and related components.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process
