315 Ton Carbon Fiber Hot Press Machine for UAV Fuselage Integrated Forming

Video Display

Product Introduction

Shandong Zhongyou Heavy Industry has custom-built a 315 hot press for an overseas client; this hydraulic press is used to manufacture drone components.

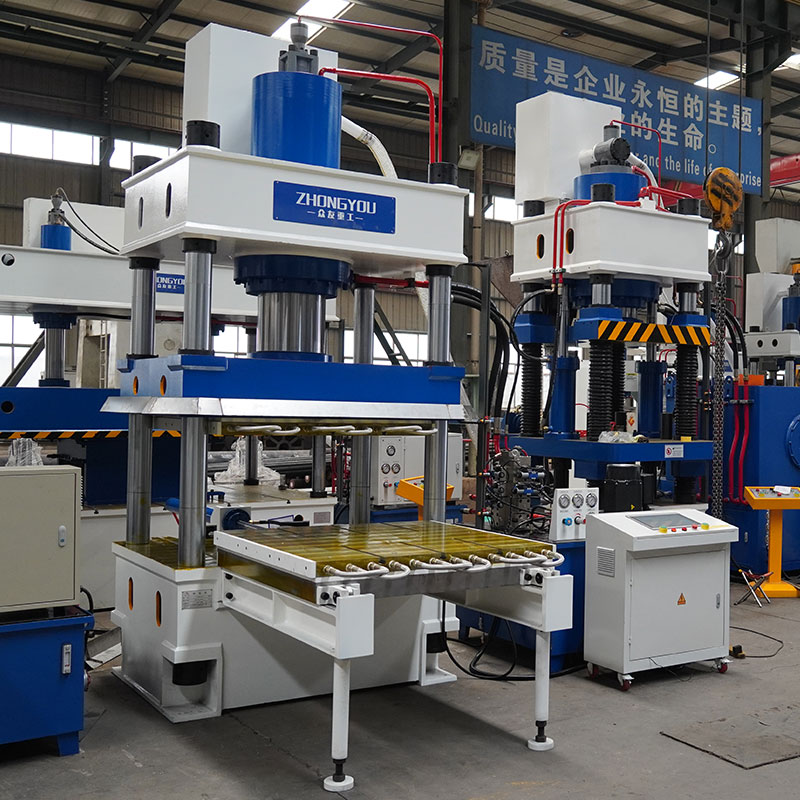

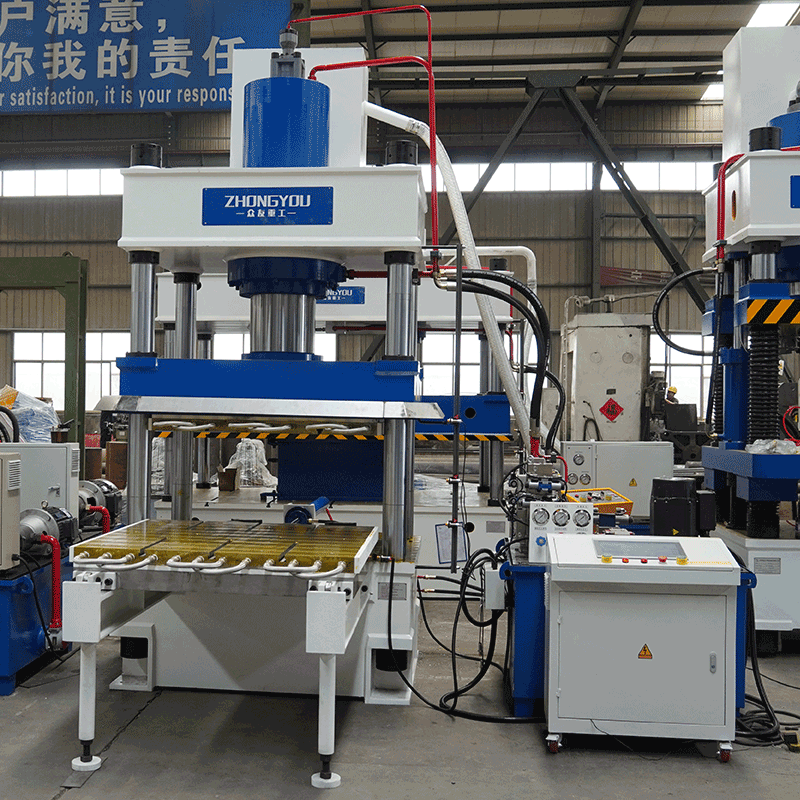

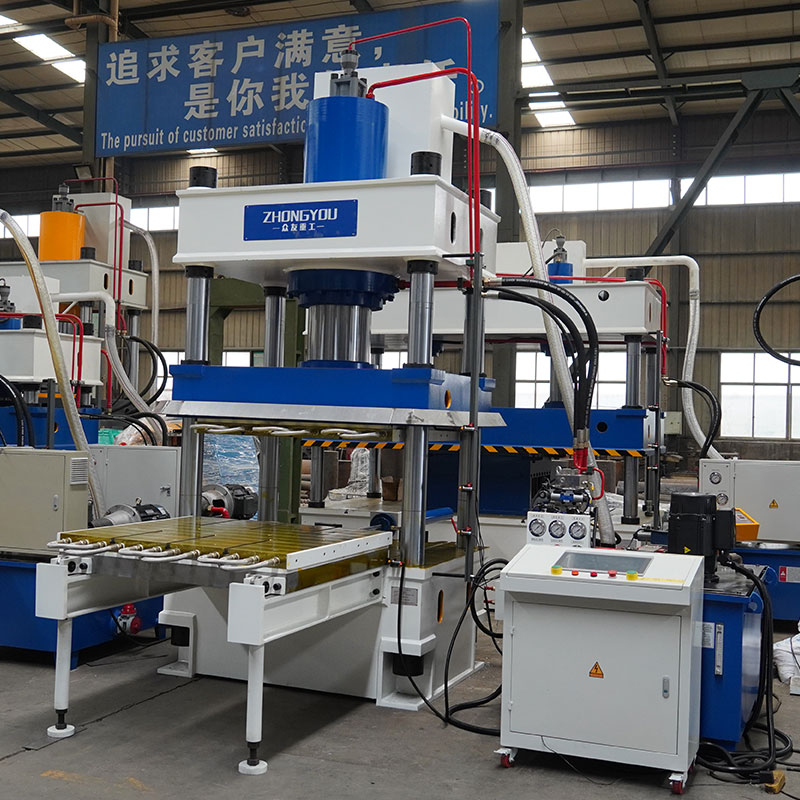

The 315-ton carbon fiber hot press machine is a professional customized composite molding equipment specially developed for the integrated forming of UAV fuselage, wing frame and structural accessories. It adopts a stable three-beam four-column hydraulic structure and servo precision pressure control system, which can provide continuous and stable high-pressure output, perfectly matching the high-standard molding process of carbon fiber prepreg for UAV parts.

Equipped with an independent multi-zone constant temperature heating system, the machine realizes uniform and accurate temperature control in the molding area. It supports segmented heating, pressure maintaining and cooling processes, effectively solving common problems such as internal bubbles, uneven curing and structural deformation of carbon fiber fuselage during molding. The equipment supports one-piece integral molding of complex UAV fuselage structures, replacing traditional multi-part splicing processes. The formed products feature ultra-light weight, high strength and strong toughness, which can reduce the overall weight of UAV by 30%-50% while ensuring structural rigidity, greatly improving flight endurance and load capacity.

In terms of performance configuration, this hot press machine has adjustable multi-stage pressure and stroke parameters, which can be flexibly adapted to the molding production of different specifications of civil and industrial UAV structural parts. The whole machine undergoes strict stress relief treatment, with stable operation, low failure rate and 24-hour continuous industrial production capacity. It is the core precision equipment for mass production of high-quality lightweight UAV carbon fiber components.

Pressing process

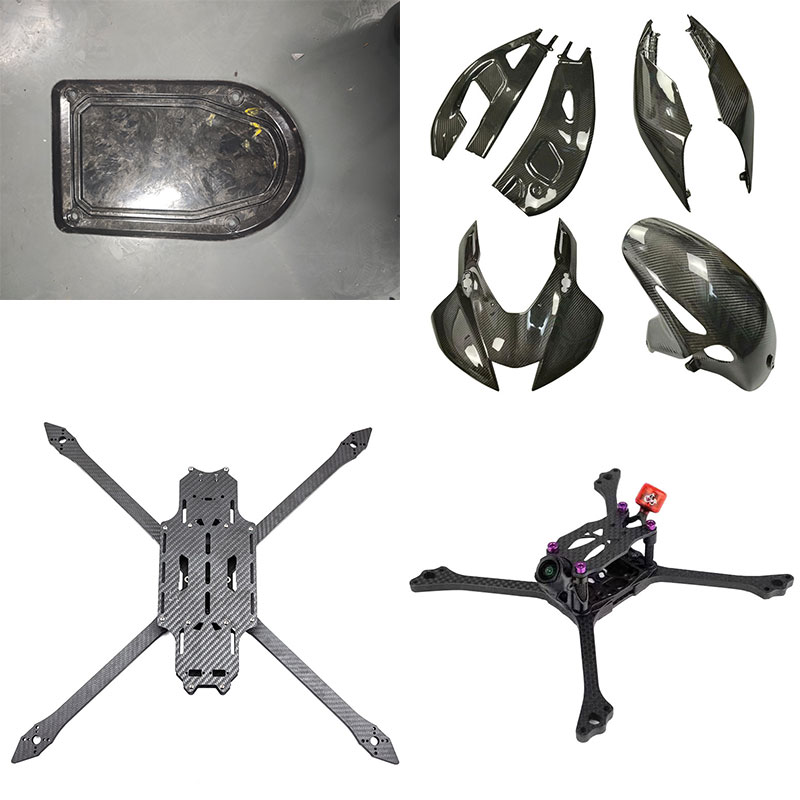

Customer Case
