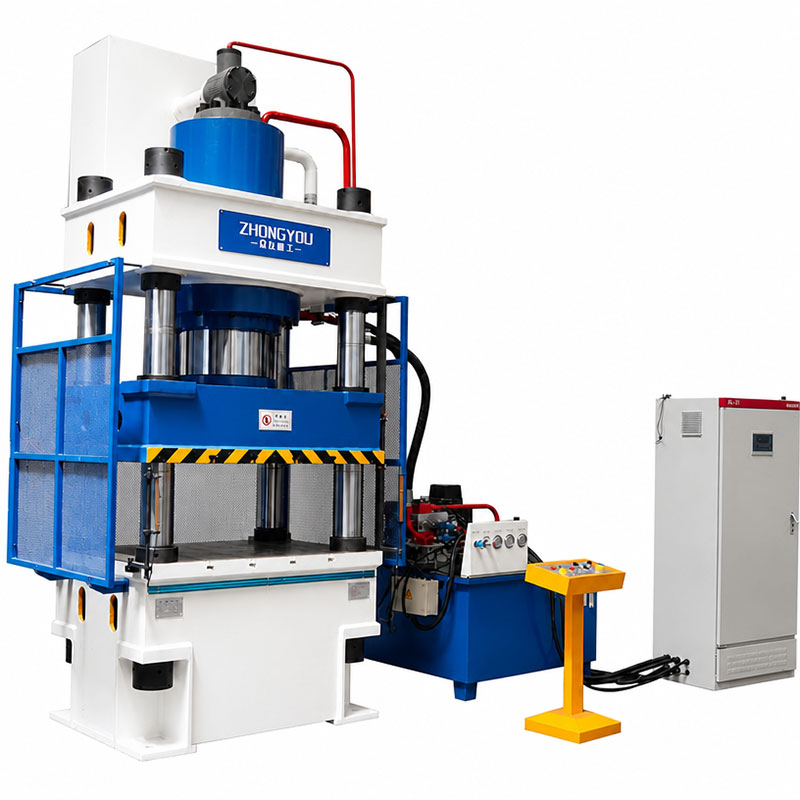

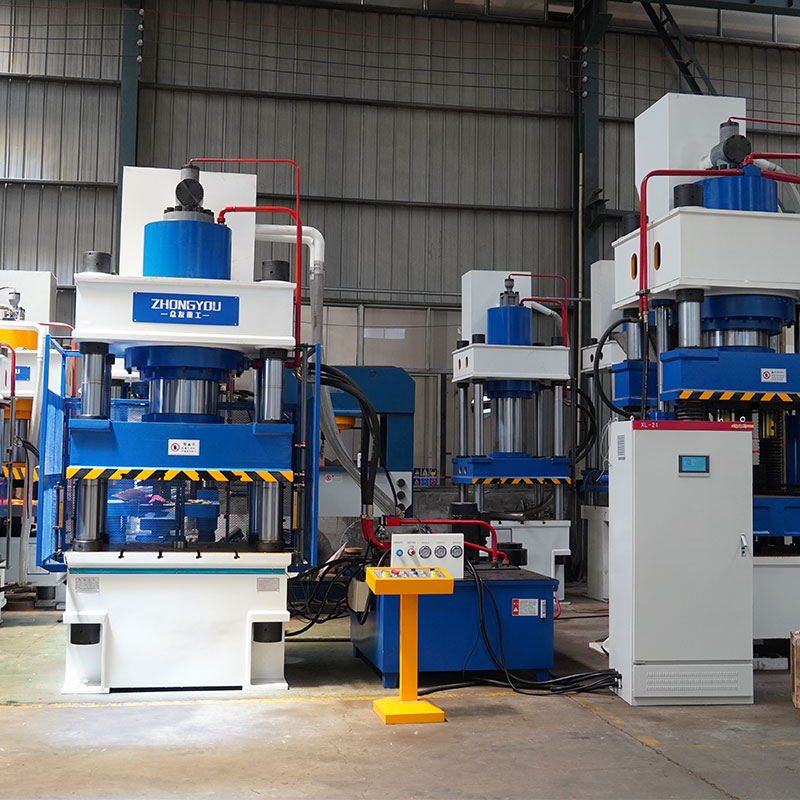

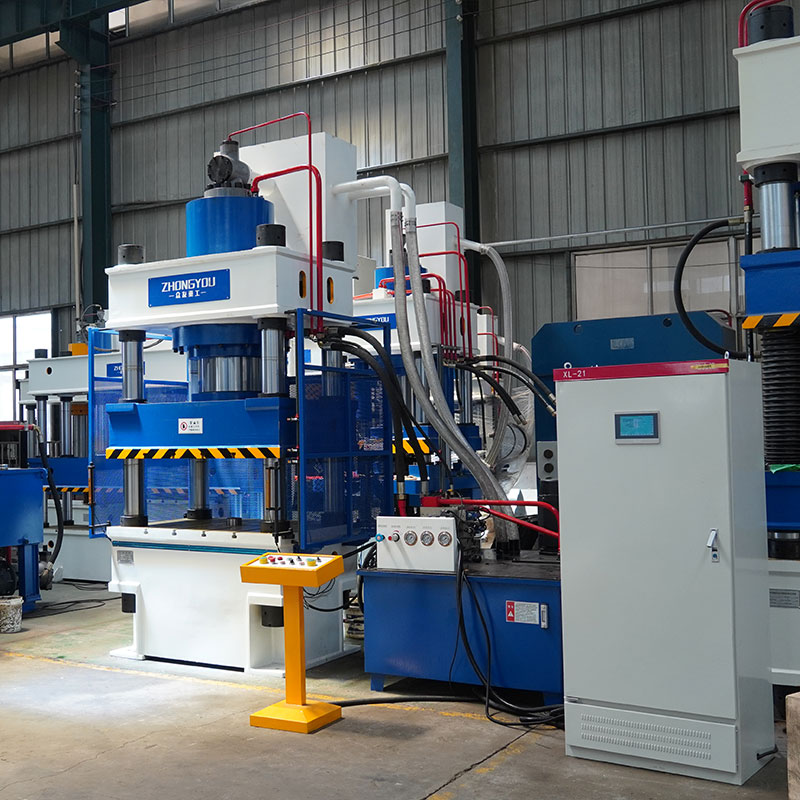

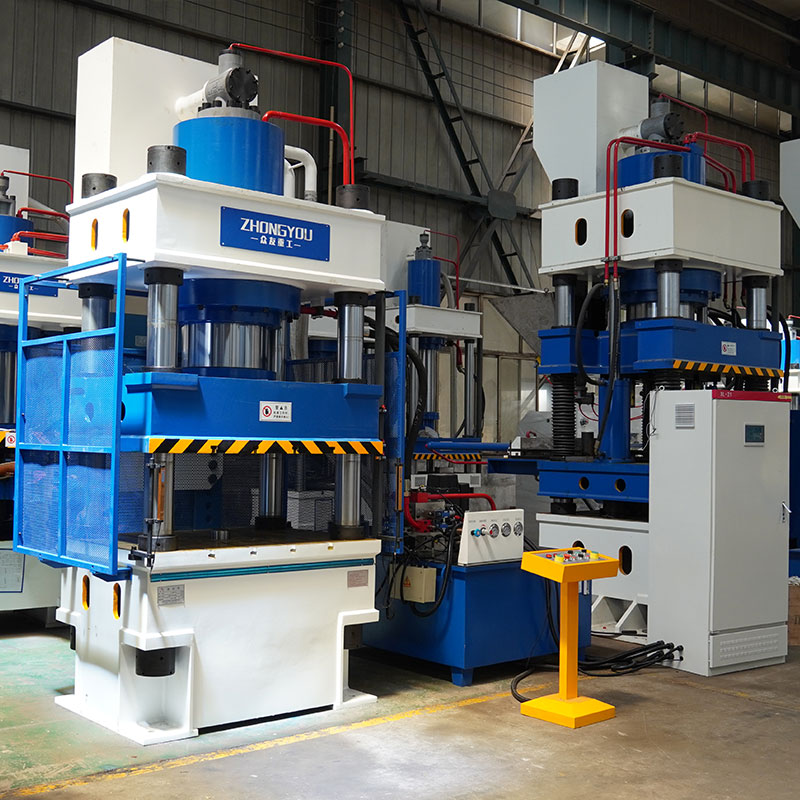

500 Ton Four Column Hydraulic Press 3-Beam 4-Column Metal Forming Hydraulic Press, High Precision Forging Equipment
The 500-ton four-column hydraulic press (standard model YQ32-500T) is a mainstream large and medium-sized 3-beam 4-column hydraulic forming equipment in the industrial manufacturing industry. With a h
+86 13562463338
+86 13562463338
Video Display
Product Introduction
The 500-ton four-column hydraulic press (standard model YQ32-500T) is a mainstream large and medium-sized 3-beam 4-column hydraulic forming equipment in the industrial manufacturing industry. With a high-strength frame structure, stable hydraulic transmission system and intelligent control system, it has the core advantages of high pressure, strong rigidity, high precision, stable operation and wide adaptability. It is a special core equipment for metal forging, material forming, block stamping and correction & shaping processes.
The 500-ton four-column hydraulic press covers a full range of industrial application scenarios. It is widely used in the stretching, stamping, bending, straightening and pressing processes of stainless steel, aluminum alloy and hardware accessories. It can also be used for hot pressing and molding of fiberglass, carbon fiber and plastic composite materials, as well as block molding of cattle and sheep salt bricks, mineral powder and feed powder. In addition, it meets the heavy-duty processing needs of large workpiece correction, mold pressing and hardware forging, serving multiple manufacturing fields such as automobile parts, new energy, building materials, animal husbandry and aviation parts.
All equipment undergoes strict pressure testing, precision inspection and no-load & load trial operation before delivery. The whole machine has low operating noise, strong stability and long service life. It supports non-standard customization of size, pressure and stroke with perfect warranty service, making it the preferred heavy-duty hydraulic equipment for standardized production and large-scale processing in small and medium-sized factories.
Technical Parameters| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process
Customer Case
