500 Ton Metal Deep Drawing Hydraulic Press Machine
The 500 Ton Metal Deep Drawing Hydraulic Press Machine is a heavy-duty hydraulic forming machine specially designed for deep drawing, stretching, stamping, and forming various metal materials. With a
+86 13562463338
+86 13562463338
Video Display
Product Introduction
The 500 Ton Metal Deep Drawing Hydraulic Press Machine is a heavy-duty hydraulic forming machine specially designed for deep drawing, stretching, stamping, and forming various metal materials. With a maximum pressing capacity of 500 tons, the machine is suitable for manufacturing large and complex metal components with high forming requirements.

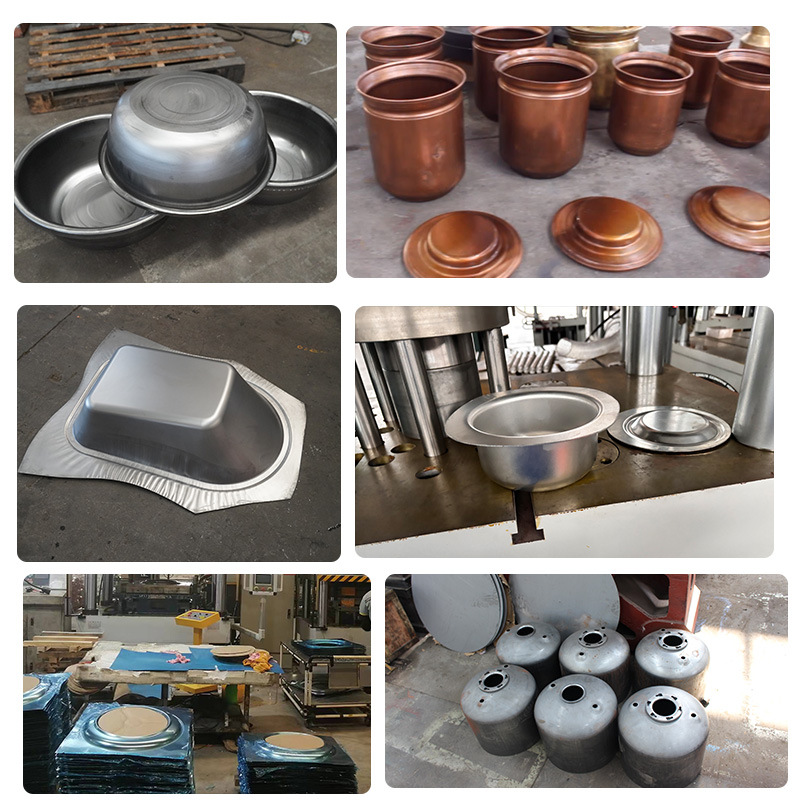

The hydraulic press is widely used for processing stainless steel, carbon steel, aluminum, copper, and other sheet metals. It can be used to produce tanks, containers, cookware, automotive components, metal covers, industrial parts, and other deep-drawn products.
The machine adopts a high-strength welded frame and advanced hydraulic system, providing excellent rigidity and stable pressing force during operation. The hydraulic system ensures smooth movement of the slider and precise pressure control, helping reduce material deformation and improve the dimensional accuracy and surface quality of finished products.
The 500-ton hydraulic press can be equipped with PLC control, touch-screen operation, adjustable pressure and stroke settings, hydraulic cushion, ejector system, and customized molds according to different production requirements. It can also be integrated with automatic feeding and unloading systems for higher production efficiency.
With its strong pressing capacity, reliable structure, and flexible configuration, the 500 Ton Metal Deep Drawing Hydraulic Press Machine is an ideal solution for manufacturers requiring efficient and precise metal forming equipment.
Technical Parameters
| YD27 Parameters | Unit | 100T | 200TA | 200TB | 315T | 500T | 630T | 800T | 1000T |
|---|---|---|---|---|---|---|---|---|---|
| Liquid Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider | mm | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| Open Height | mm | 900 | 900 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 |
| Effective Area of Workbench | mm | 750×700 | 800×800 | 1000×1000 | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 |
| Free Fall Speed | mm/s | 90 | 100 | 100 | 120 | 120 | 130 | 150 | 150 |
| Pressing Speed | mm/s | 17 | 14 | 14 | 11 | 18 | 18 | 18 | 18 |
| Return Speed | mm/s | 110 | 110 | 110 | 100 | 170 | 180 | 180 | 190 |
| Motor Power | kW | 7.5 | 7.5 | 7.5 | 22 | 37 | 44 | 60 | 74 |
| Hydraulic Pad Ejecting Force | T | 50 | 60 | 60 | 100 | 160 | 200 | 315 | 400 |
| Ejecting Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic Pad Area | mm | Φ500 | Φ550 | 750×600 | 750×750 | 1050×1050 | 1200×1200 | 1200×1200 | 1200×1200 |
