CNC vertical lathe (CNC vertical lathe) is a kind of machine tool whose spindle is perpendicular to the horizontal plane and the table rotates horizontally, and its round platform can carry large work
+86 13562463338
+86 13562463338
Video Display
Product Introduction

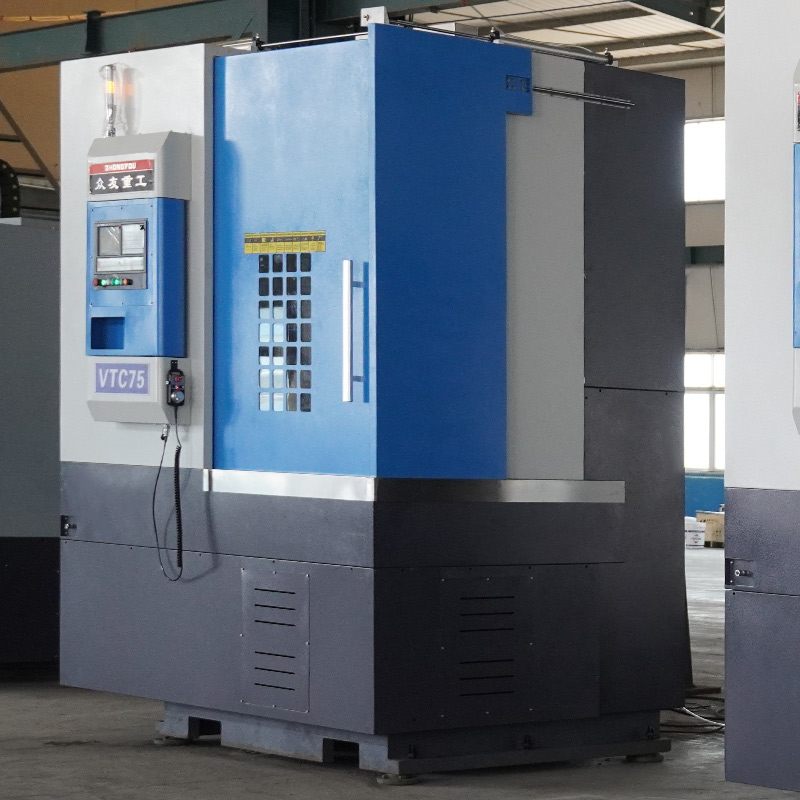

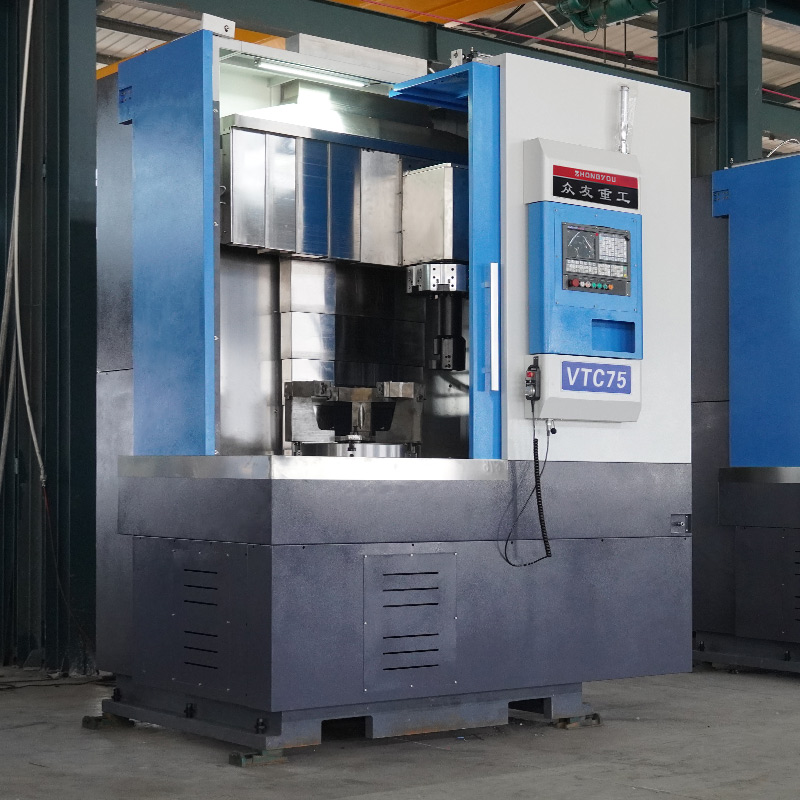

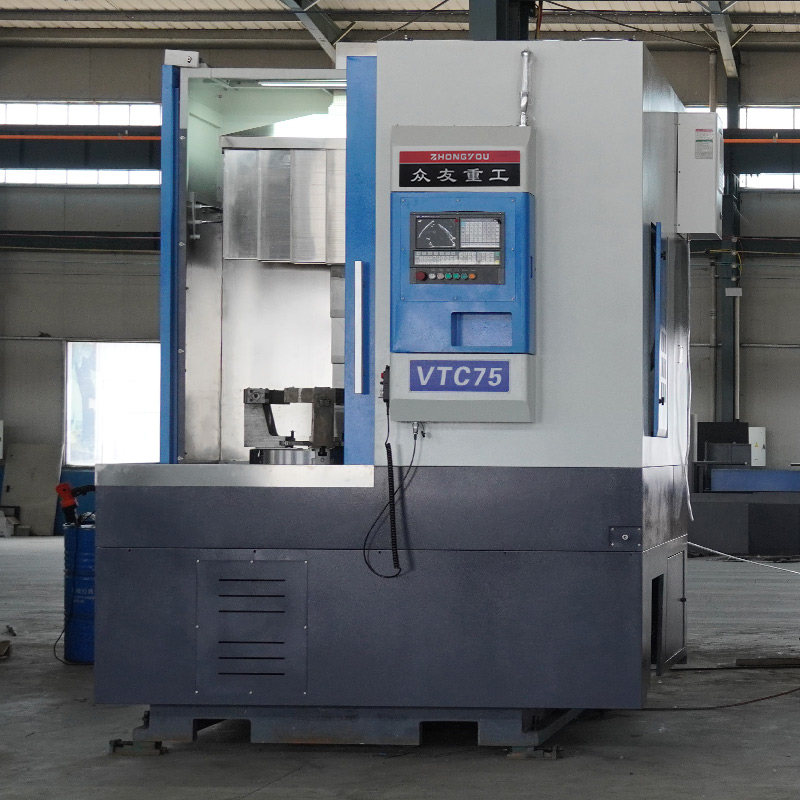

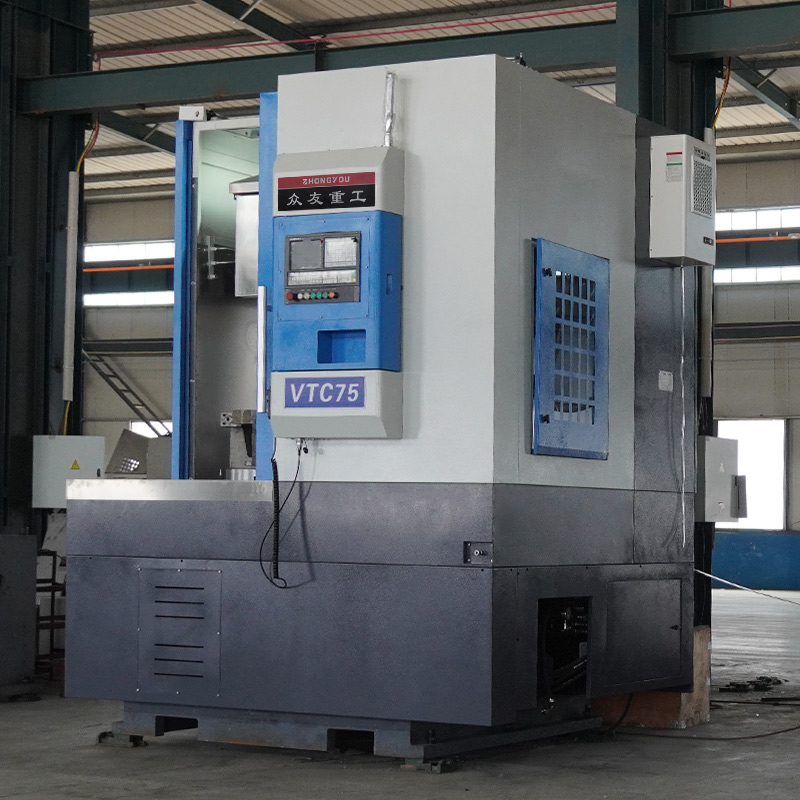

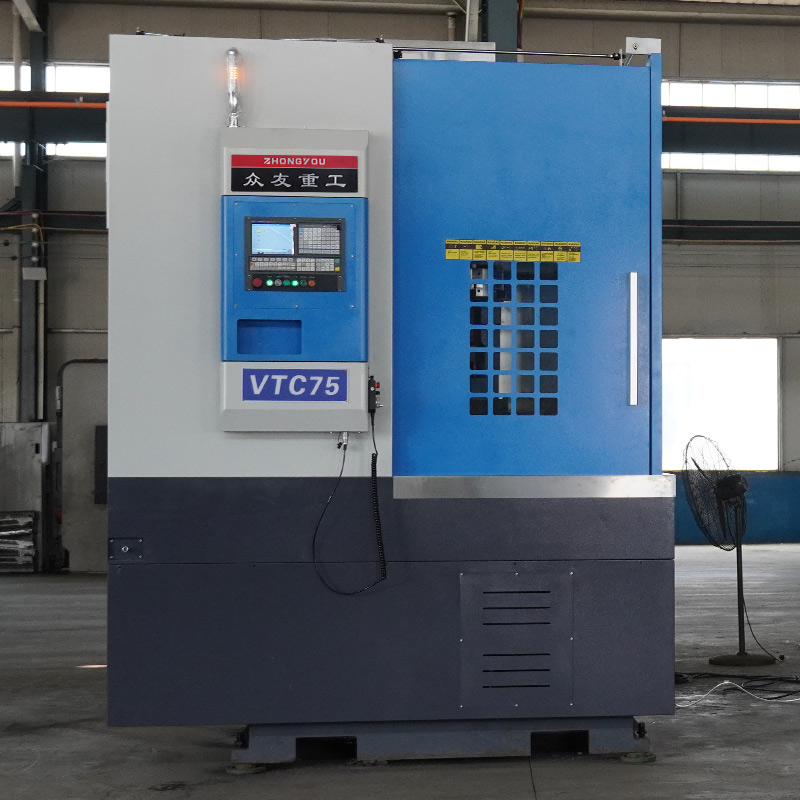

CNC vertical lathe (CNC vertical lathe) is a kind of machine tool whose spindle is perpendicular
to the horizontal plane and the table rotates horizontally, and its round platform can carry large
workpiece rotation, and the tool cuts along the horizontal and vertical direction. This vertical
structure solves the problem of difficult clamping of heavy workpieces on horizontal lathes and
deformation caused by self-weight, which is especially suitable for machining discs and shells with
large radial dimensions and small axial dimensions (e.g. flanges, wheel hubs, brake discs).
Machining center is the manufacturing industry's "universal machine tool", mainly used for:
Mold manufacturing: processing plastic molds, die-casting mold cavities, cores (need five-axis linkage
processing complex surfaces).
Aerospace: processing aluminum alloy / titanium alloy parts (such as aircraft frame beams, landing
gear), the need for high rigidity and five-axis linkage.
Automotive industry: machining engine block/cylinder head, gearbox housing (multi-hole system,
plane milling).
Precision machinery: machining robot joints, high-precision transmission parts (sub-micron
accuracy required).
Technical Parameters
| Specification Item | Unit | VT45 | VT65 | VT75 | VTS525 | VTS527 |
|---|---|---|---|---|---|---|
| Maximum Swing Diameter | mm | ∮560 | ∮650 | ∮750 | ∮750 | ∮750 |
| Maximum Cutting Diameter | mm | ∮450 | ∮600 | ∮700 | ∮550 | ∮700 |
| Spindle End Face Type | - | Straight | Straight | Straight | Straight | Straight |
| Spindle Speed | rpm | 3000 | 100-1000 | 50-1500 | 50-1000 | 500-1000 |
| Chuck Diameter | mm | 500 | 500 | 630 | 500 | 630 |
| Tool Capacity | pc | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station |
| External Tool Shank | mm | 32 | 32 | 32 | 32 | 32 |
| Internal Tool Shank | mm | ∮40 | ∮40 | - | ∮50 | ∮50 |
| X-axis Travel | mm | 400 | 450 | 700 | 280 | 450 |
| Z-axis Travel | mm | 500 | 600 | 700 | 500 | 700 |
| Hydraulic Tank Capacity | L | 50 | 50 | 50 | 50 | 50 |
| Hydraulic Motor | kW | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Coolant Tank Capacity | L | 180 | 200 | 200 | 200 | 200 |
| Coolant Pump | W | 250 | 450 | 450 | 450 | 450 |
| Coolant Power | kW | 250 | 450 | 450 | 450 | 450 |
| X-axis Servo Motor | Nm | 12 | 18 | 18 | 15 | 15 |
| Z-axis Servo Motor | N·m | 22 | 30 | 18 | 15 | 15 |
| Spindle Servo Motor | kW | 11/15 | 18.5 | 22 | 18.5 | 22 |
| Repeatability | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Positioning Accuracy | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
| Dimensions (L×W×H) | mm | 1700×1880×2500 | 2000×1950×3000 | 2450×1900×3200 | 3000×2400×2700 | 3200×2400×3200 |
| Weight (with accessories) | kg | 5500 | 8000 | 9500 | 7000 | 9000 |
| Power Supply | - | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% |
| Leakage/Power Failure Protection | - | Yes | Yes | Yes | Yes | Yes |
| Three-color Light Indicator | - | Yes | Yes | Yes | Yes | Yes |
| Long-term Stable Operating Conditions | - | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% |
| Noise Compliance with National Standards | - | Yes | Yes | Yes | Yes | Yes |
☆ The equipment features full enclosure protection with reliable safety devices, complying with GB15760-1995 "Safety Protection Technical Conditions for Metal Cutting Machine Tools".^[1]^ ☆ Equipped with various hydraulic, pneumatic, and water pipeline indicators, marking the working ranges of all instruments and the grades of media used.^[2]^ ☆ Hydraulic chuck diameter and tool post stations can be selected according to processing requirements.^[3]^ | ||||||
