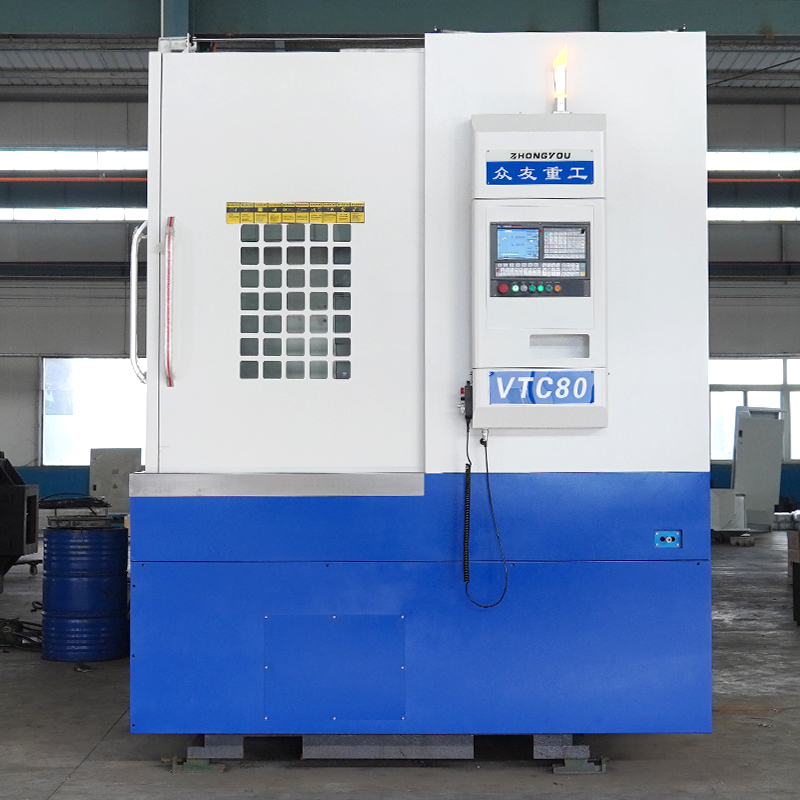

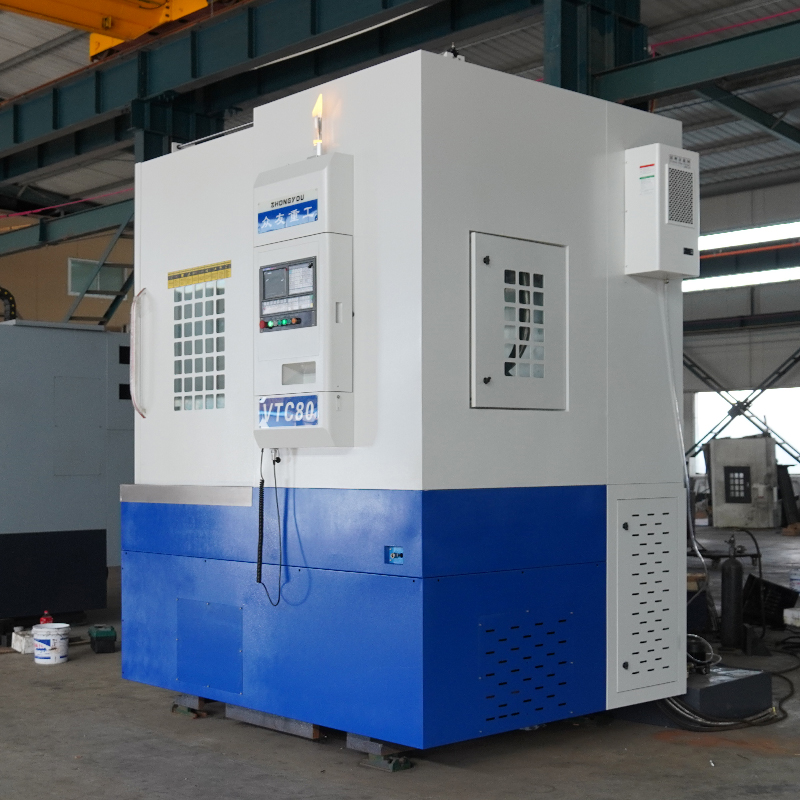

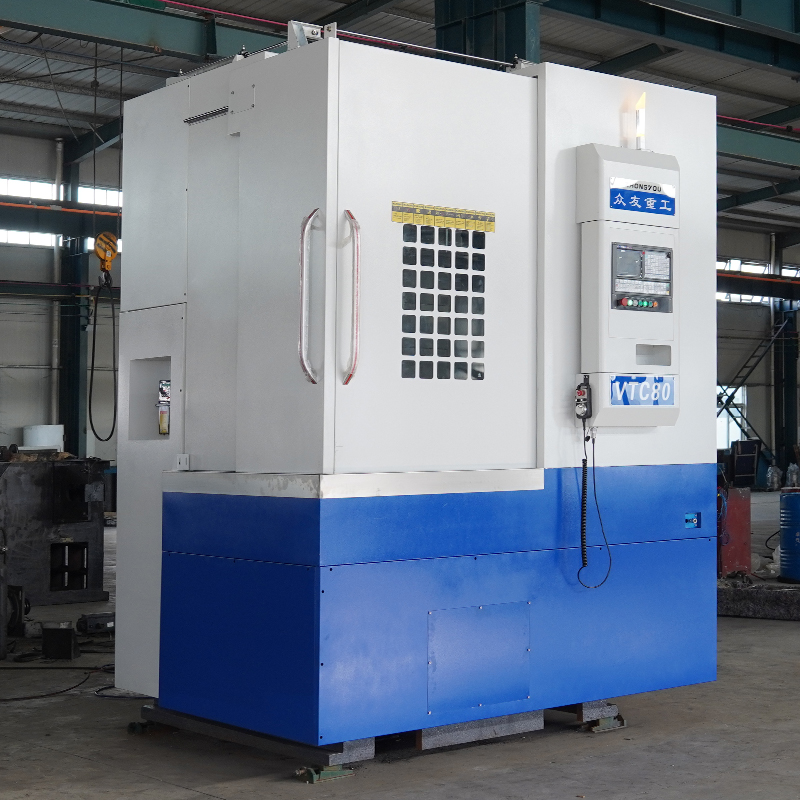

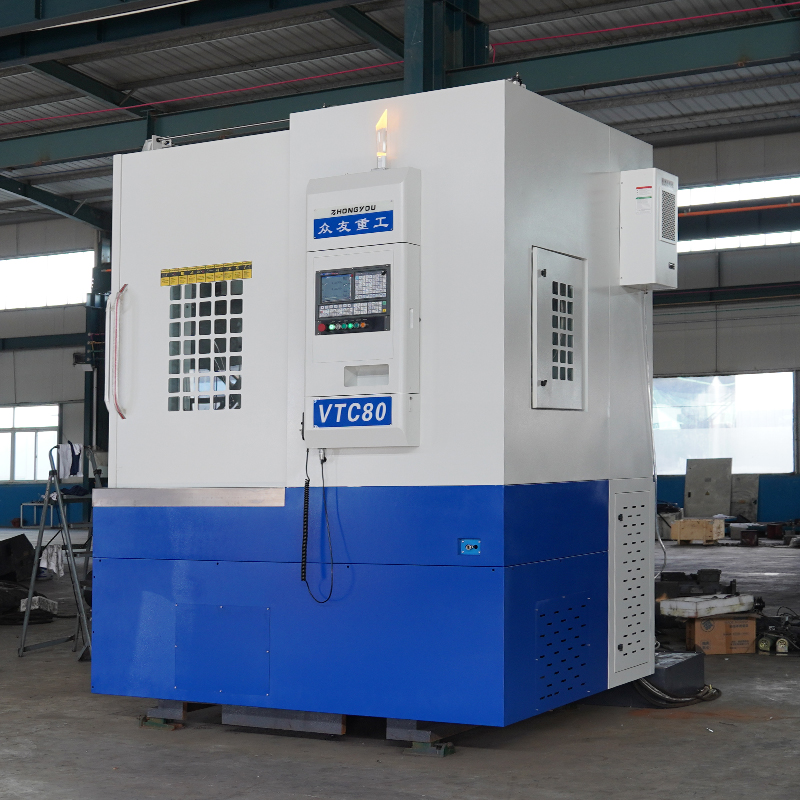

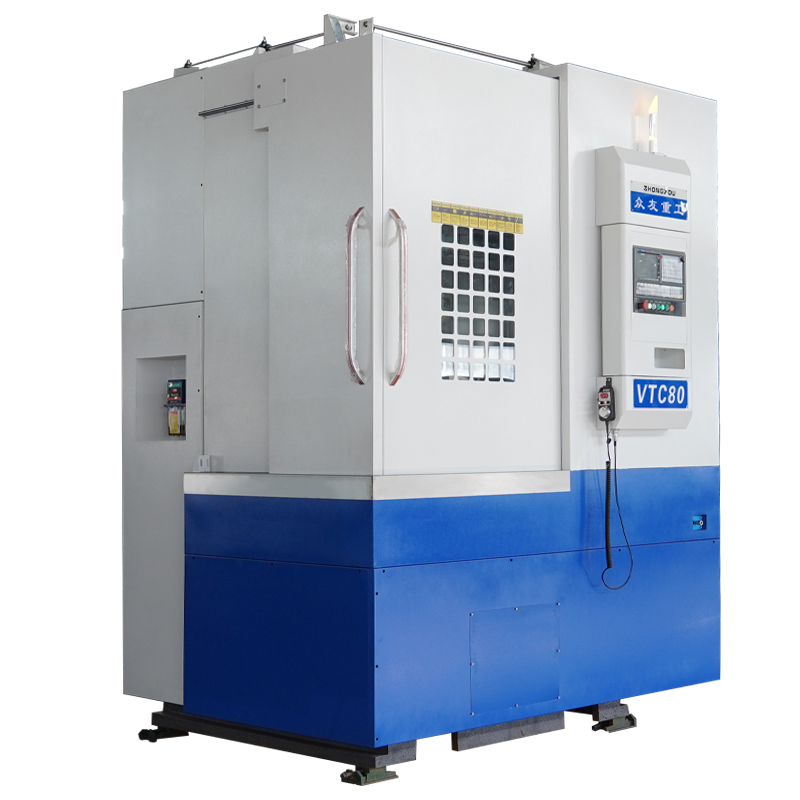

VTC80 CNC vertical lathe
80 CNC vertical lathe" is a common model of small and medium-sized CNC vertical lathe, where "80" usually refers to the maximum rotary diameter of the machine tool is 800mm. It is a kind of high-preci
+86 13562463338
+86 13562463338
Video Display
Product Introduction
80 CNC vertical lathe" is a common model of small and medium-sized CNC vertical lathe, where "80" usually refers to the maximum rotary diameter of the machine tool is 800mm. It is a kind of high-precision and high-efficiency automatic machining equipment, which is mainly used for the precision machining of internal and external cylindrical surfaces, conical surfaces, end surfaces, threads, grooves and complex contours of discs, rings and short shafts, and is widely used in machinery manufacturing, automobiles, molds and dies. Widely used in machinery manufacturing, automobile, mold, energy and other industries.
With the feature of "vertical machining" (vertical clamping of workpiece), 80 CNC vertical lathe has the advantages of strong rigidity, convenient chip removal, good operation vision, etc. It is mainly applicable to the following scenarios:

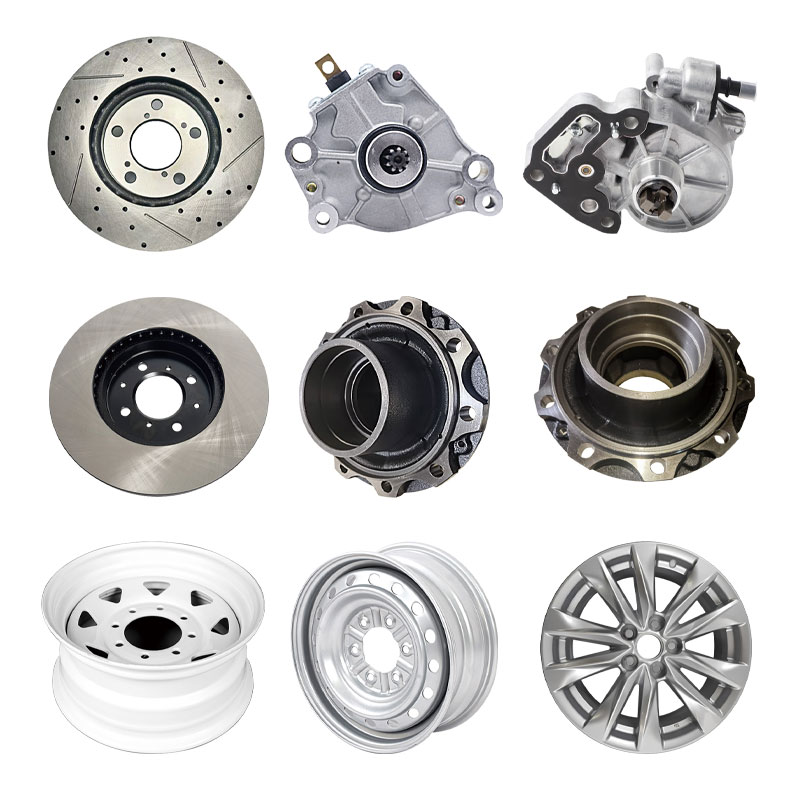

Typical parts
Disk parts: brake discs, clutch plates, flanges, gear blanks, bearing housings, flange covers, etc;
Ring-type parts: bearing rings, sealing rings, flange gaskets, ring-type structural parts;
Short shaft-type parts: stepped shafts, short shafts with steps (length generally not exceeding 1.5 times the diameter).
Technical Parameters
| Specification Item | Unit | VT45 | VT65 | VT75 | VTS525 | VTS527 |
|---|---|---|---|---|---|---|
| Maximum Swing Diameter | mm | ∮560 | ∮650 | ∮750 | ∮750 | ∮750 |
| Maximum Cutting Diameter | mm | ∮450 | ∮600 | ∮700 | ∮550 | ∮700 |
| Spindle End Face Type | - | Straight | Straight | Straight | Straight | Straight |
| Spindle Speed | rpm | 3000 | 100-1000 | 50-1500 | 50-1000 | 500-1000 |
| Chuck Diameter | mm | 500 | 500 | 630 | 500 | 630 |
| Tool Capacity | pc | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station | Horizontal 8-station |
| External Tool Shank | mm | 32 | 32 | 32 | 32 | 32 |
| Internal Tool Shank | mm | ∮40 | ∮40 | - | ∮50 | ∮50 |
| X-axis Travel | mm | 400 | 450 | 700 | 280 | 450 |
| Z-axis Travel | mm | 500 | 600 | 700 | 500 | 700 |
| Hydraulic Tank Capacity | L | 50 | 50 | 50 | 50 | 50 |
| Hydraulic Motor | kW | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Coolant Tank Capacity | L | 180 | 200 | 200 | 200 | 200 |
| Coolant Pump | W | 250 | 450 | 450 | 450 | 450 |
| Coolant Power | kW | 250 | 450 | 450 | 450 | 450 |
| X-axis Servo Motor | Nm | 12 | 18 | 18 | 15 | 15 |
| Z-axis Servo Motor | N·m | 22 | 30 | 18 | 15 | 15 |
| Spindle Servo Motor | kW | 11/15 | 18.5 | 22 | 18.5 | 22 |
| Repeatability | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Positioning Accuracy | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
| Dimensions (L×W×H) | mm | 1700×1880×2500 | 2000×1950×3000 | 2450×1900×3200 | 3000×2400×2700 | 3200×2400×3200 |
| Weight (with accessories) | kg | 5500 | 8000 | 9500 | 7000 | 9000 |
| Power Supply | - | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% | Three-phase AC 380V 50Hz±5% |
| Leakage/Power Failure Protection | - | Yes | Yes | Yes | Yes | Yes |
| Three-color Light Indicator | - | Yes | Yes | Yes | Yes | Yes |
| Long-term Stable Operating Conditions | - | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% | Ambient temperature 5～38°, humidity <85% |
| Noise Compliance with National Standards | - | Yes | Yes | Yes | Yes | Yes |
☆ The equipment features full enclosure protection with reliable safety devices, complying with GB15760-1995 "Safety Protection Technical Conditions for Metal Cutting Machine Tools".^[1]^ ☆ Equipped with various hydraulic, pneumatic, and water pipeline indicators, marking the working ranges of all instruments and the grades of media used.^[2]^ ☆ Hydraulic chuck diameter and tool post stations can be selected according to processing requirements.^[3]^ | ||||||
Pressing process

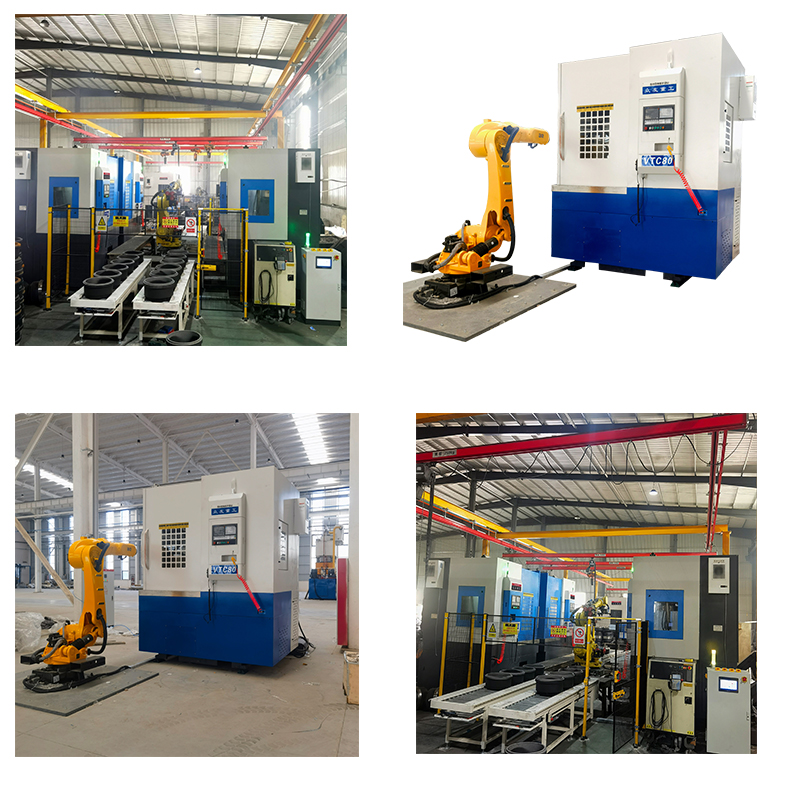

Customer Case
