1200T glass fiber reinforced plastic cable bridge molding hydraulic machine

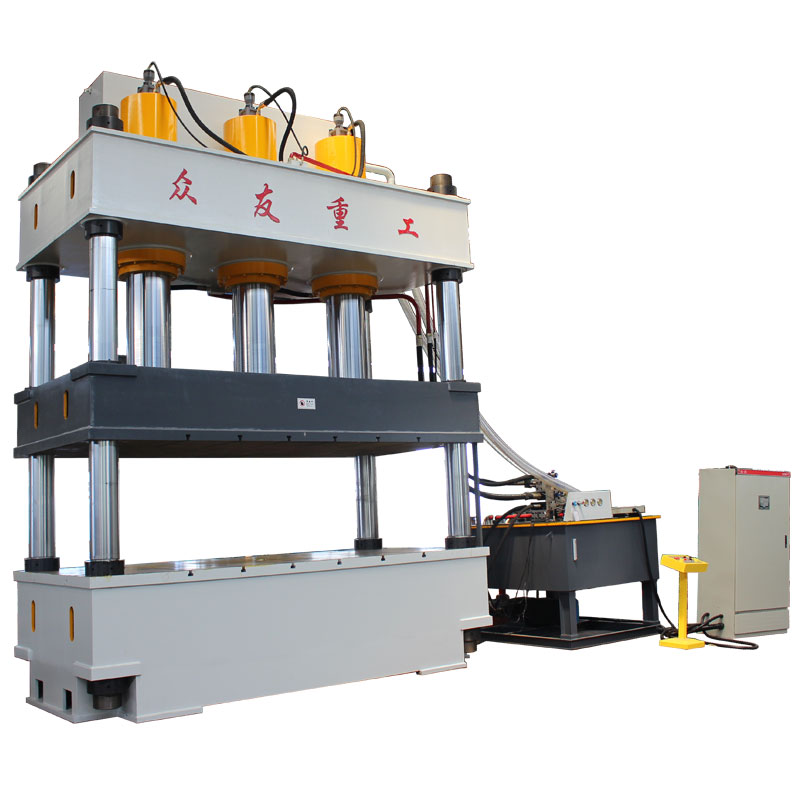

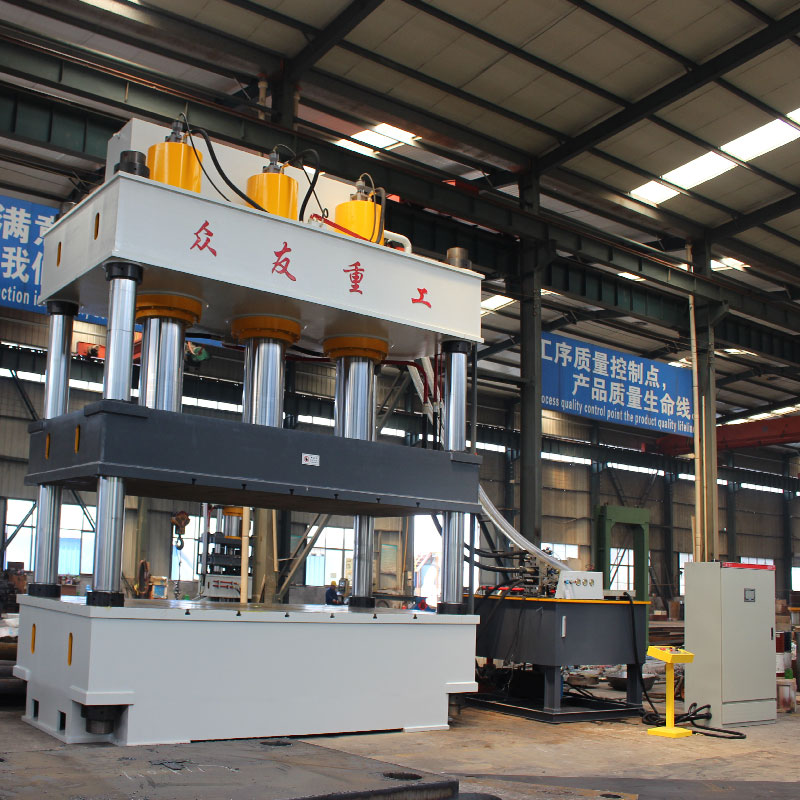

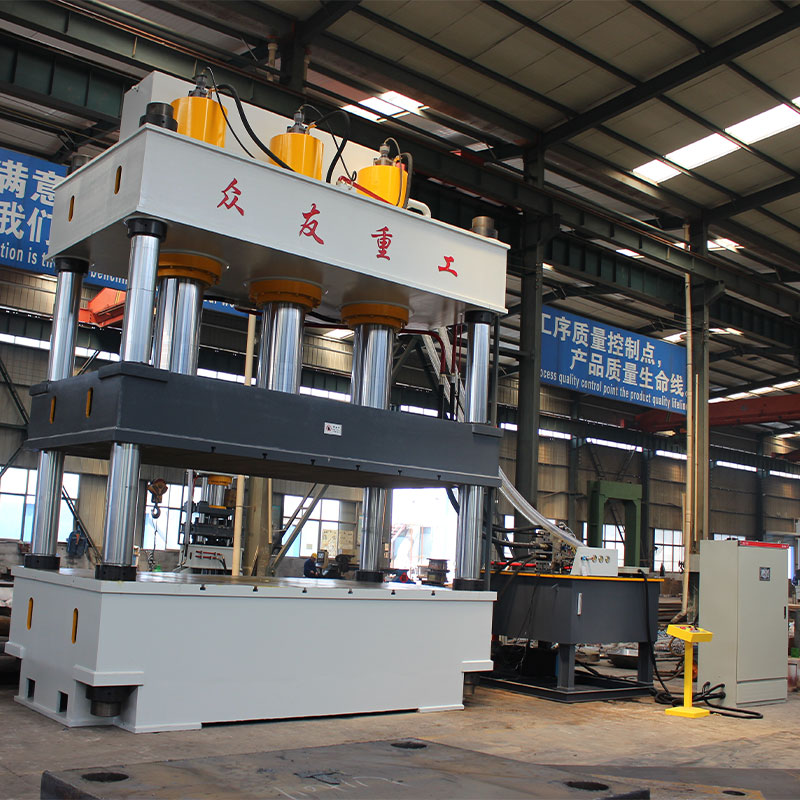

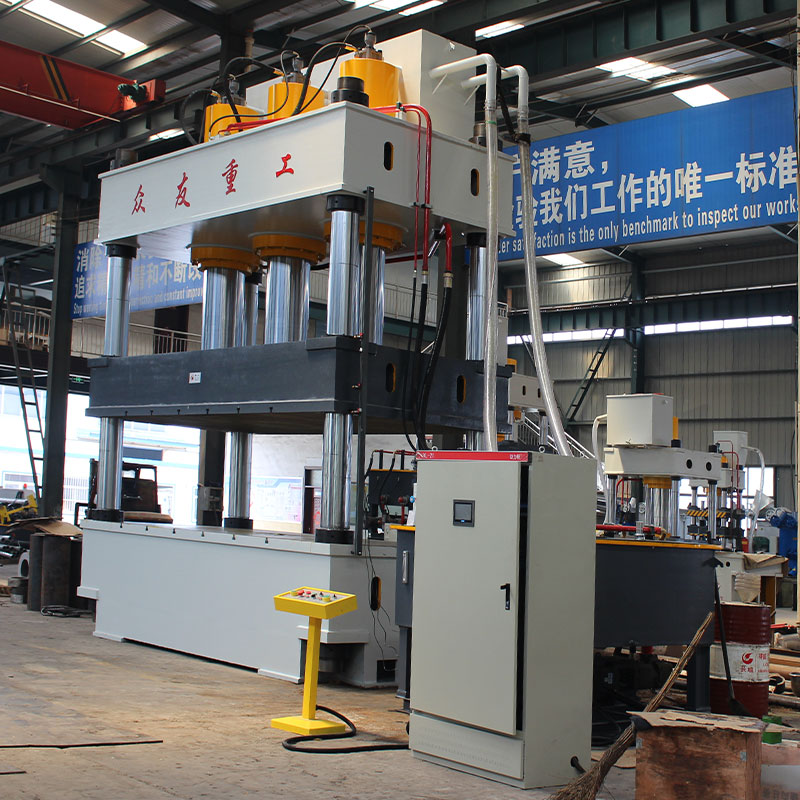

Shandong Zhongyou Heavy Industry customized a 1200-ton hydraulic press for Qingdao customer for the production of FRP bridge equipment, made by composite molding process, with corrosion-resistant, lig
+86 13562463338
+86 13562463338
Video Display
Product Introduction

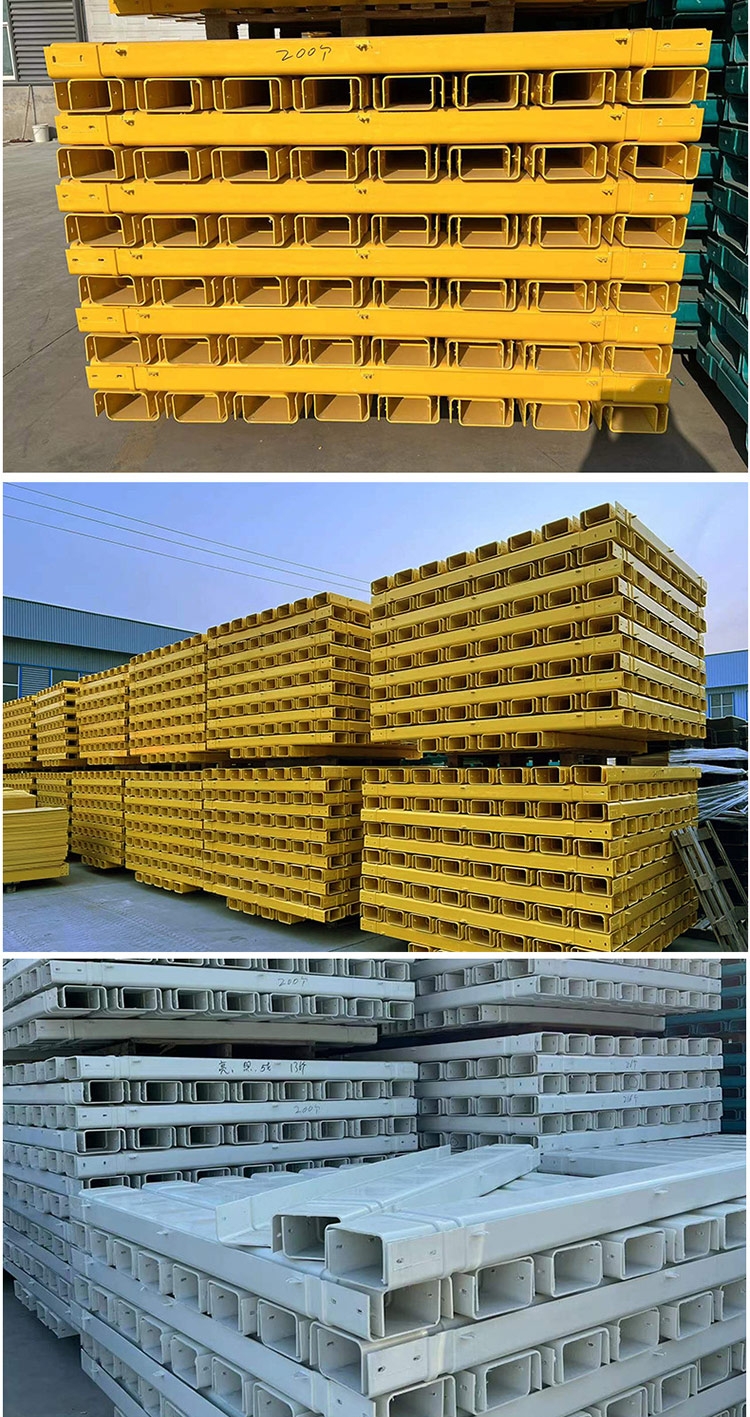

Shandong Zhongyou Heavy Industry customized a 1200-ton hydraulic press for Qingdao customer for the production of FRP bridge equipment, made by composite molding process, with corrosion-resistant, lightweight and high-strength, insulation and fire prevention, aging resistance and other characteristics, widely used in the chemical industry, electric power, marine, transportation, and other special environments in the laying of cables.
Application Scenarios
Chemical industry
Cable laying in chemical plants, petroleum refineries, pharmaceutical plants, etc. Resist acid and alkali corrosion and reduce maintenance costs.
Marine and Coastal Engineering
Offshore oil platforms, port terminals, desalination plants and other high humidity and high salt environment, salt spray corrosion resistance, prolong service life.
Power and new energy industry
Substation, power transmission and distribution projects, photovoltaic power stations, wind power stations and other places, the use of insulation to ensure the safety of high-voltage lines, especially suitable for new energy projects.
Transportation Engineering
Highways, railroads, subways, airports and other places of long-distance wiring, reduce the structural load, adapt to complex terrain.
Metallurgy and high temperature environment
Iron and steel factories, glass factories, cement factories and other high-temperature workplaces, heat-resistant, not easy to deform.
Hospitals, laboratories and food industry
Hospitals, laboratories, food processing plants and other clean environments, smooth surface is not easy to accumulate dust, in line with health standards.
Outdoor and underground engineering
Tunnel, underground comprehensive pipeline corridor, municipal engineering and other places, strong weather resistance, adapt to harsh climate conditions.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process
Customer Case
