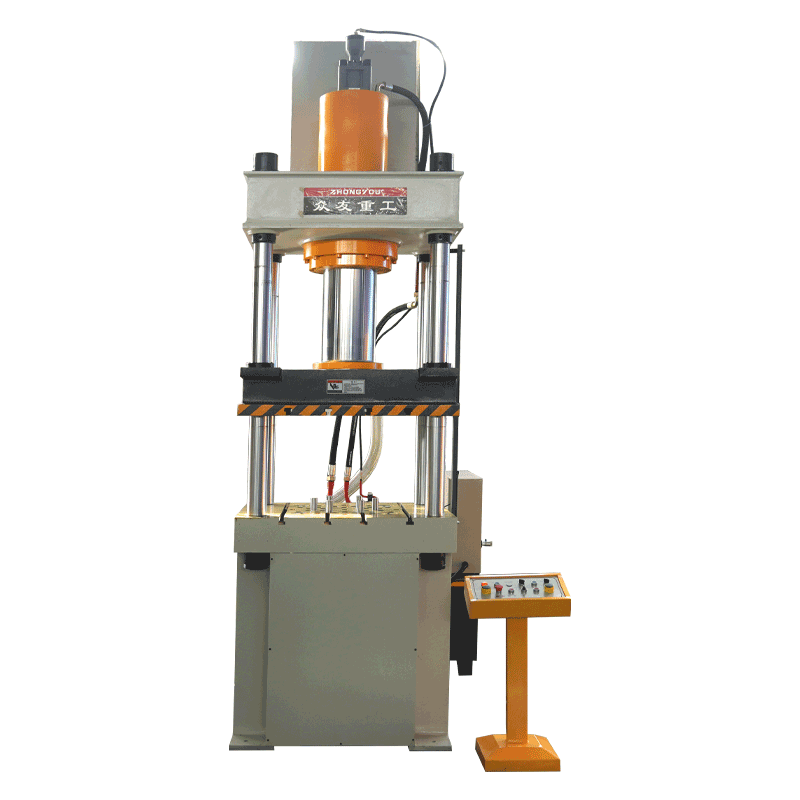

200T deep drawing press machine For molding filter housing
A 200-ton hydraulic press is a piece of equipment widely used in the stretching, forming, and modification of metal materials.The 200-ton stretching hydraulic press typically features a three-beam, fo
+86 13562463338
+86 13562463338
Video Display
Product Introduction
A 200-ton hydraulic press is a piece of equipment widely used in the stretching, forming, and modification of metal materials.

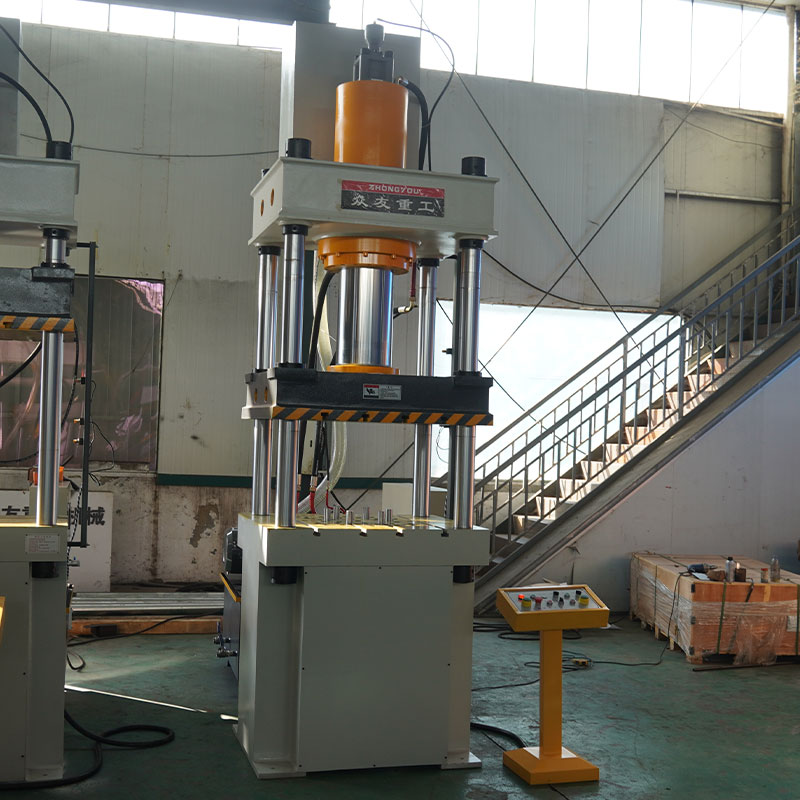

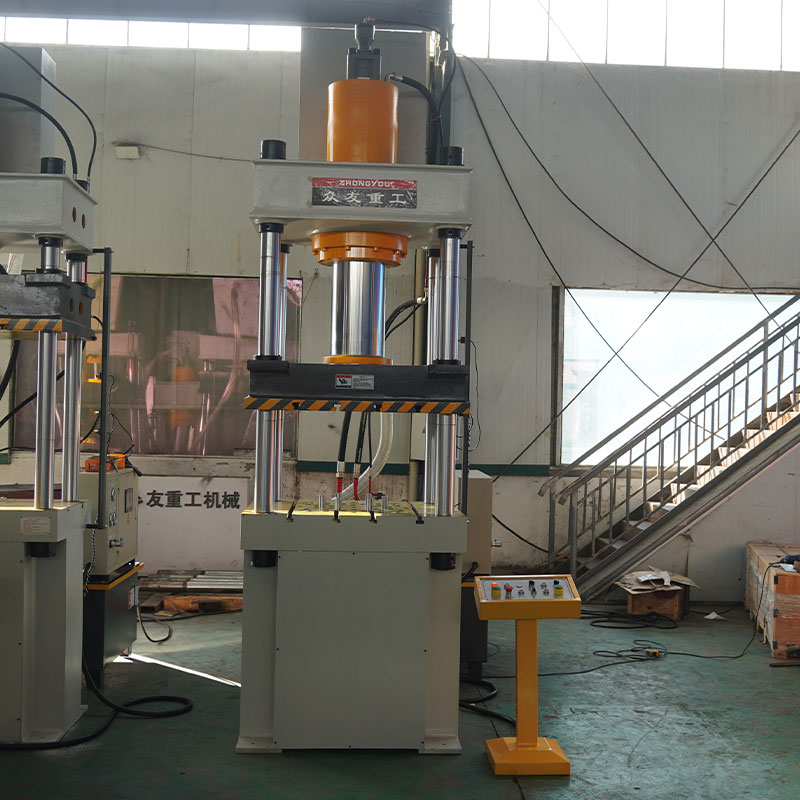

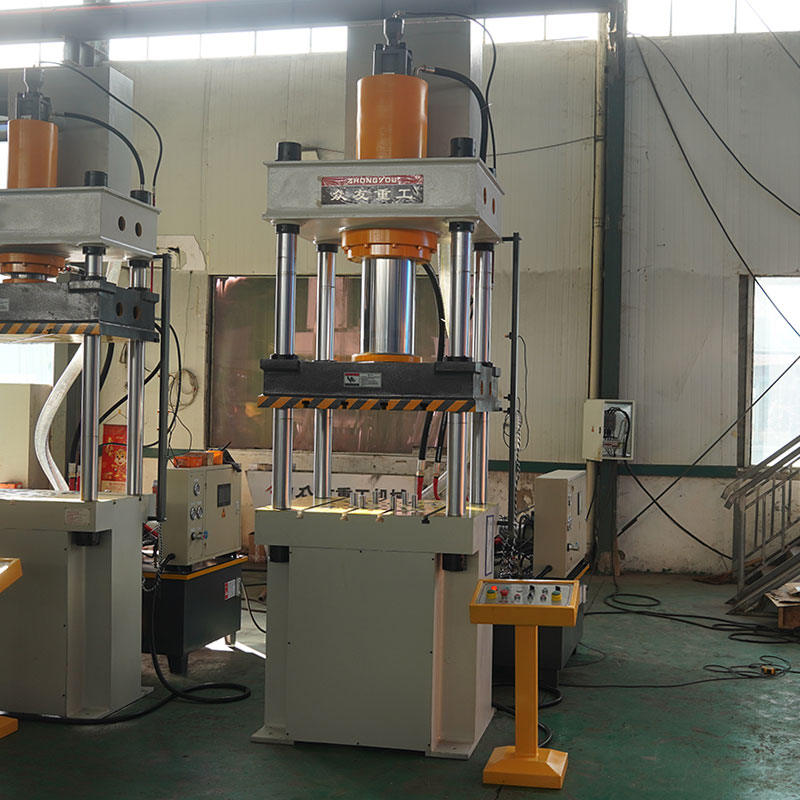

The 200-ton stretching hydraulic press typically features a three-beam, four-column structure, which offers advantages such as high rigidity, overall strength, and easy die installation and removal. The machine body consists of components including the upper crossbeam, ram, worktable, and columns. These components are all fabricated from high-quality steel plates and welded together, then undergo high-temperature annealing to eliminate internal stresses, ensuring the equipment’s stability and durability.
Hydraulic System: The machine utilizes a cartridge valve integrated system, which reduces leakage points, ensures reliable operation, and extends service life. The hydraulic system provides stable pressure output to meet the demands of various drawing processes.
Control System: Equipped with a PLC control system, it supports both constant-pressure and constant-stroke operations and features a pressure-holding delay function. Multiple operating modes are available, including adjustment, manual, semi-automatic, and fully automatic, allowing users to select the mode that best suits their production needs.
Technical Parameters
| YD27 Parameters | Unit | 100T | 200TA | 200TB | 315T | 500T | 630T | 800T | 1000T |
|---|---|---|---|---|---|---|---|---|---|
| Liquid Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider | mm | 600 | 600 | 700 | 800 | 900 | 900 | 900 | 900 |
| Open Height | mm | 900 | 900 | 1200 | 1250 | 1500 | 1500 | 1500 | 1500 |
| Effective Area of Workbench | mm | 750×700 | 800×800 | 1000×1000 | 1260×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 |
| Free Fall Speed | mm/s | 90 | 100 | 100 | 120 | 120 | 130 | 150 | 150 |
| Pressing Speed | mm/s | 17 | 14 | 14 | 11 | 18 | 18 | 18 | 18 |
| Return Speed | mm/s | 110 | 110 | 110 | 100 | 170 | 180 | 180 | 190 |
| Motor Power | kW | 7.5 | 7.5 | 7.5 | 22 | 37 | 44 | 60 | 74 |
| Hydraulic Pad Ejecting Force | T | 50 | 60 | 60 | 100 | 160 | 200 | 315 | 400 |
| Ejecting Stroke | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Hydraulic Pad Area | mm | Φ500 | Φ550 | 750×600 | 750×750 | 1050×1050 | 1200×1200 | 1200×1200 | 1200×1200 |
Pressing process
