200-ton servo-hydraulic press Composite Molding

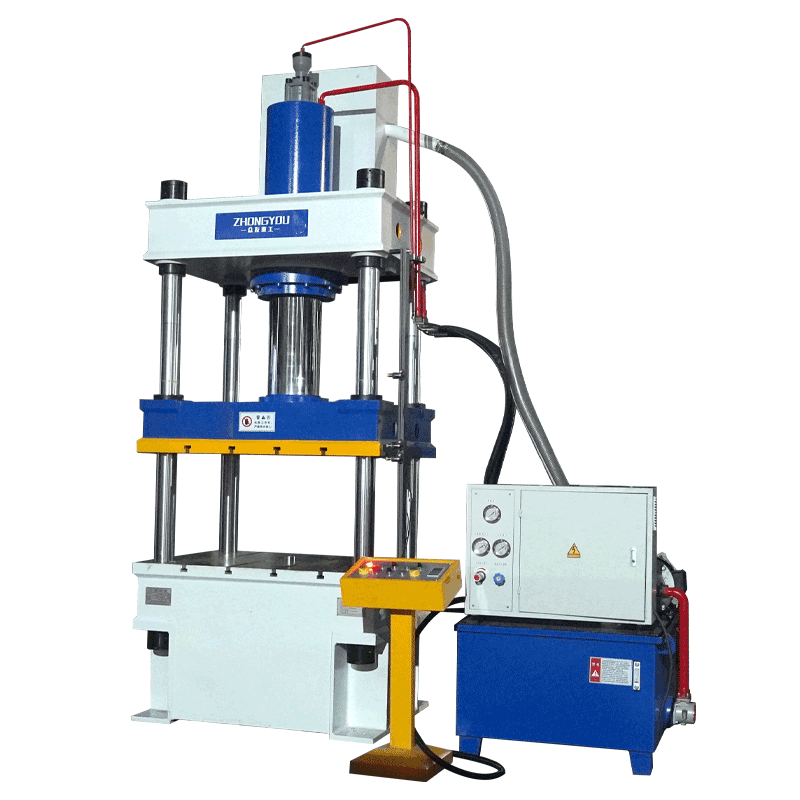

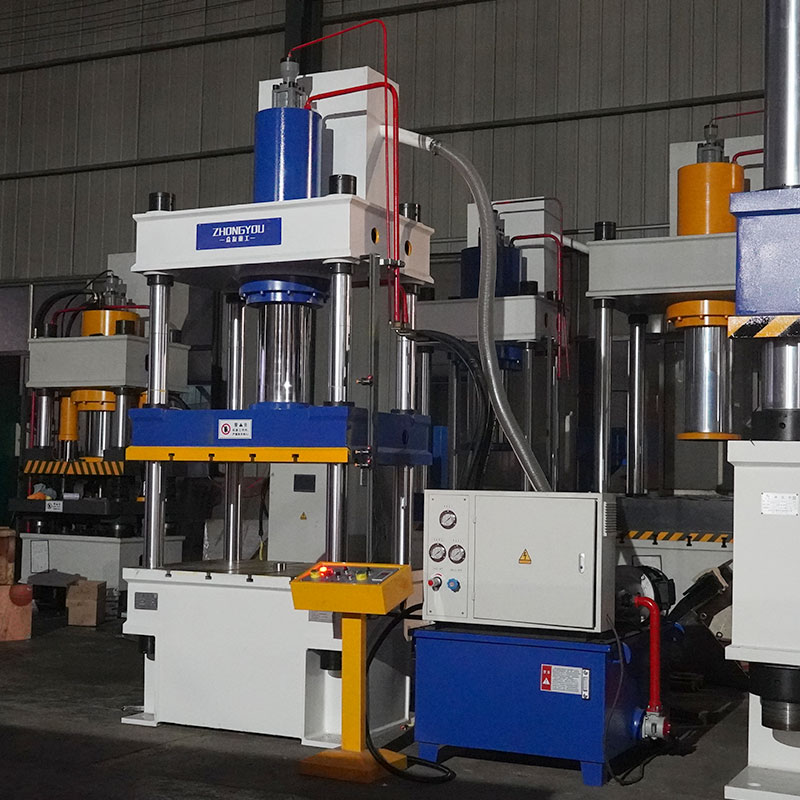

The 200-ton three-beam, four-column hydraulic press features an upper crossbeam, a movable crossbeam, and a lower crossbeam connected by four columns, forming a closed, rigid frame with excellent resi
+86 13562463338
+86 13562463338
Video Display
Product Introduction
The 200-ton three-beam, four-column hydraulic press features an upper crossbeam, a movable crossbeam, and a lower crossbeam connected by four columns, forming a closed, rigid frame with excellent resistance to deformation, making it ideal for high-precision machining.High Precision and Stability: Infrared safety light curtains protect operators, while the equipment achieves a repeatability of ±0.03 mm and a pressure deviation of ±1%, meeting the demands of precision machining.

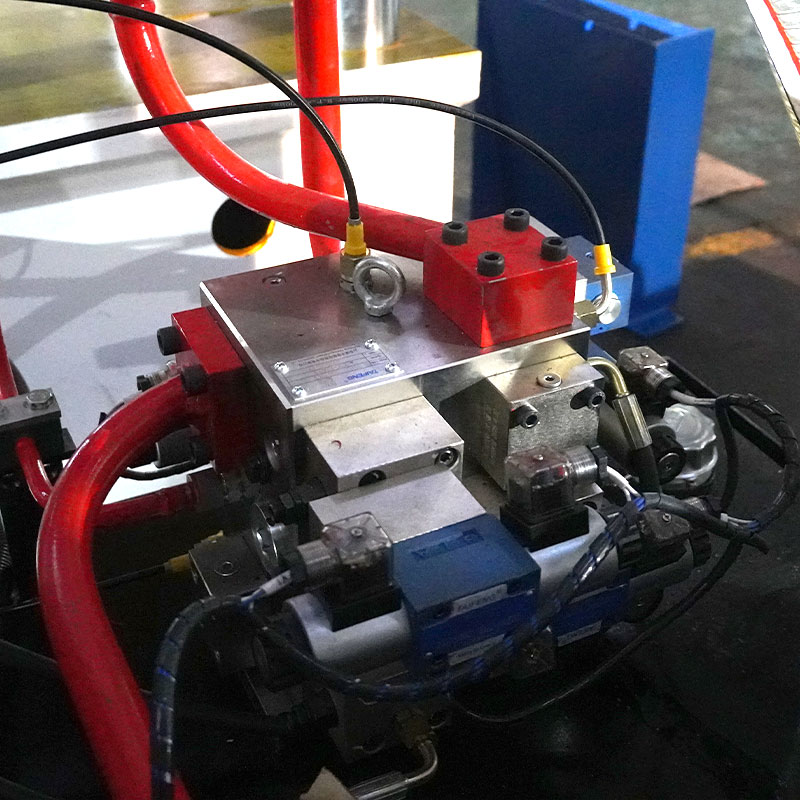

High Efficiency and Energy Savings: The hydraulic system generates only 10%–30% of the heat produced by traditional equipment. The reduced oil tank volume and extended oil change intervals lower operating costs.
Automation and Flexibility: Supports three operating modes—adjustment, manual, and semi-automatic. PLC control enables constant-pressure and constant-stroke forming, with adjustable pressure-holding delay functions.
Metal Processing: Sheet metal drawing, stamping and bending, flanging, cold extrusion, straightening, and press fitting, suitable for forming parts such as automotive components and appliance housings.
Non-Metal Forming: Pressing of plastic products, rubber products, powder metallurgy (e.g., carbon powder and resin powder compacts), and composite materials (e.g., FRP compression molding).
Special Processes: Metal deep-drawing hydraulic press mode, supporting deep-drawing processes such as one-step forming of stainless steel sinks.
Technical Parameters| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process
