Shandong Zhongyou Heavy Industry has custom-manufactured a hydraulic forming press for a Libyan client, designed primarily for the integrated blanking, stretching, bending, and forming of kitchen and

+86 13562463338

Wechat

+86 13562463338

Hydraulic Press Machine Press Machine

Online consultation

Video Display

Product Introduction

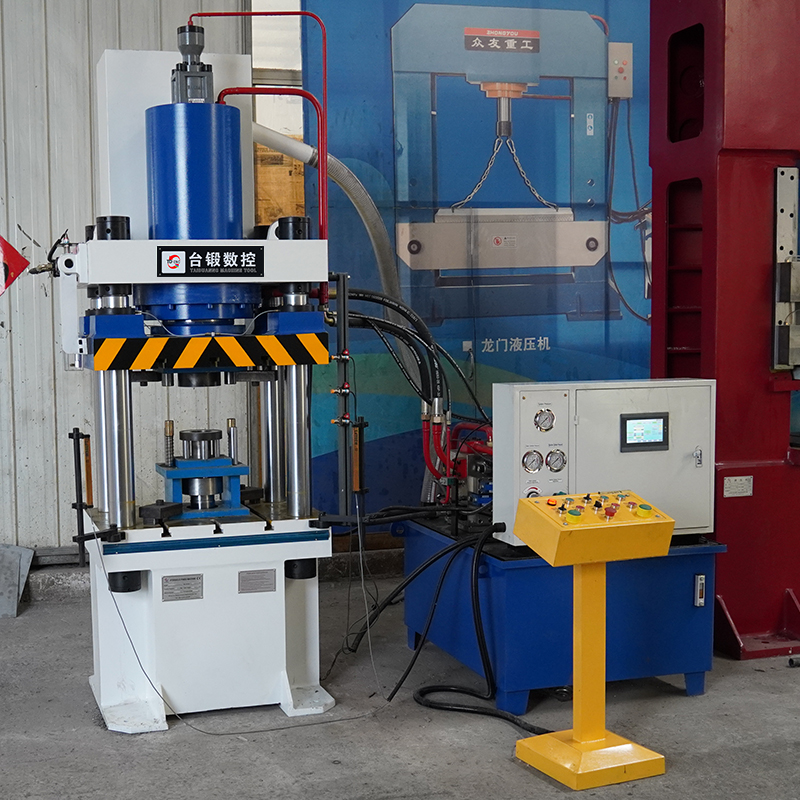

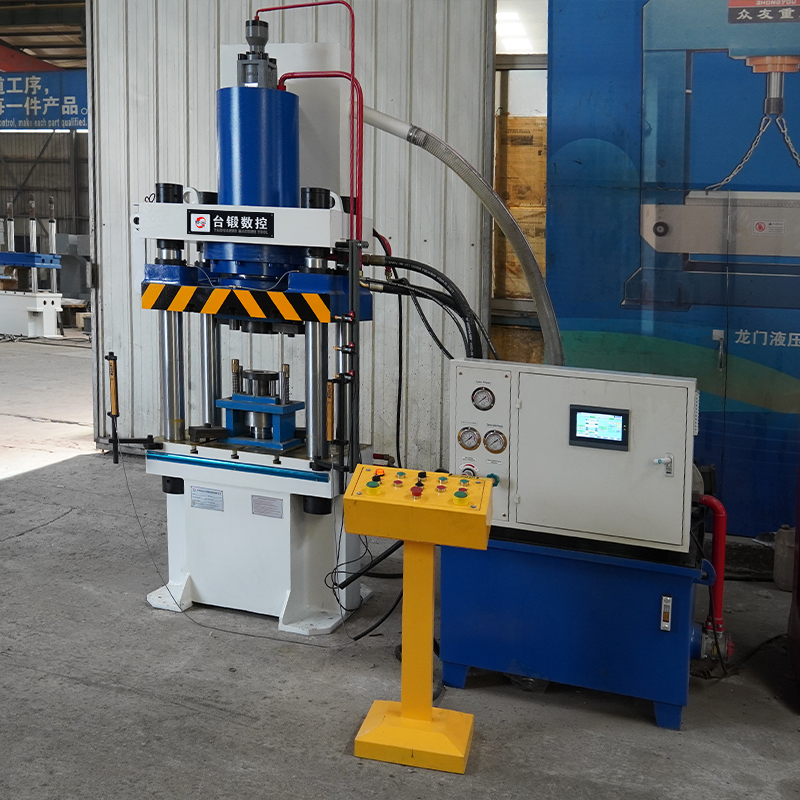

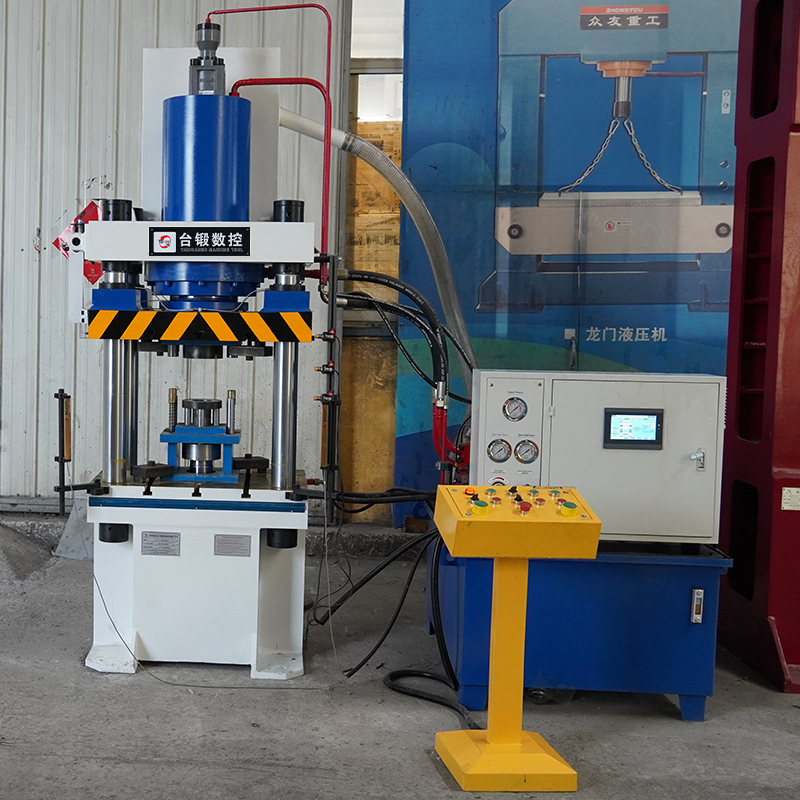

Shandong Zhongyou Heavy Industry has custom-manufactured a hydraulic forming press

for a Libyan client, designed primarily for the integrated blanking, stretching, bending,

and forming of kitchen and bathroom drain covers, drain grates, and filter screen

components made from materials such as stainless steel, cold-rolled steel sheets, and

brass. The machine features high rigidity and stable pressure, making it ideal for mass

production of drain accessories in bathroom hardware factories. By changing the dies,

it can also process products such as kitchen sink accessories, hardware gaskets, and

valve components.

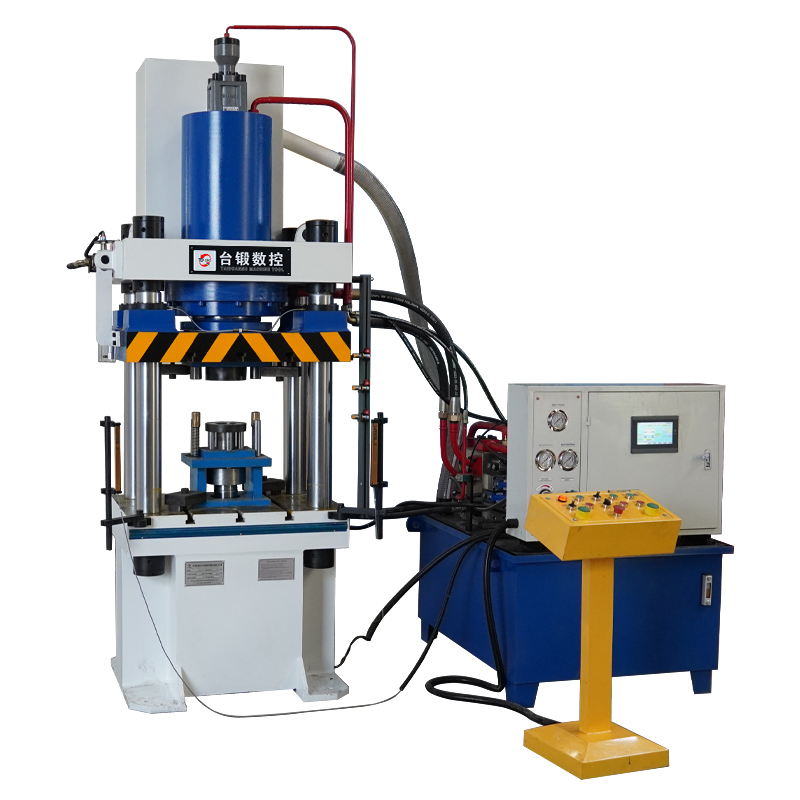

Three-beam, four-column frame: Constructed from thick steel plate welded together

and subjected to stress-relief aging treatment. Four chrome-plated guide columns

ensure resistance to off-center loads and prevent deformation during prolonged

stamping operations.

Hydraulic System: Integrated valve block hydraulic circuit with separate fast and

slow-speed motion segments. Independent control of rapid advance, working advance,

pressure hold, and return strokes. Standard air-cooled heat dissipation ensures reliable

sealing and minimizes oil leakage.

Electrical Control System: PLC + push-button control with manual and semi-automatic

modes. Adjustable pressure, stroke, and pressure hold time. Equipped with overload

protection and emergency stop.

Specialized Drain Cover Dies: Comes with a set of multi-size stamping dies for drain

covers, capable of processing round, square, and irregularly shaped drain covers.

Equipment Advantages: High forming efficiency—drain covers are formed in a single

stamping operation, eliminating the need for secondary bending and grinding. Each

piece is formed in seconds, making it suitable for mass production on assembly lines.

Excellent finished product quality: Uniform and stable pressure ensures drain covers

are free of wrinkles and cracks, with consistent dimensions and a high yield rate.

High Versatility: By changing dies, the machine can process drain covers, drain grates,

metal stampings, and small kitchen hardware components

Technical Parameters

Parameter	Unit	YQ32-63	YQ32-100A	YQ32-100B	YQ32-200A	YQ32-200B	YQ32-315A	YQ32-315B
Nominal Force	kN	630	1000	1000	2000	2000	3150	3150
Maximum System Working Pressure	MPa	25	25	25	25	25	25	25
Maximum Open Height of Slider	mm	700	800	900	1100	900	1250	1000
Maximum Stroke of Slider	mm	400	500	600	500	600	800	600
Effective Area of Workbench	mm	610×500	630×550	750×700	1000×1000	800×800	1260×1160	800×800
Slider Free Fall Speed	mm/s	100	100	100	100	100	100	100
Pressing Speed	mm/s	11-22	7-15	7-15	7-18	7-18	7-12	7-12
Return Speed	mm/s	80	90	90	90	90	100	90
Ejecting Force	kN	100	200	200	400	400	630	630
Maximum Ejecting Stroke	mm	160	200	200	200	200	300	300

Name	Unit	YQ32-400	YQ32-500	YQ32-630	YQ32-800	YQ32-1000	YQ32-1250	YQ32-1600
Nominal Force	kN	4000	5000	6300	8000	10000	12500	16000
Maximum System Working Pressure	MPa	25	25	25	25	25	25	25
Maximum Open Height of Slider	mm	1250	1500	1500	1500	1500	1500	1500
Maximum Stroke of Slider	mm	800	900	900	900	900	900	900
Effective Area of Workbench	mm	1250×1160	1400×1400	1500×1500	1600×1600	1600×1600	1600×1600	1600×1600
Slider Free Fall Speed	mm/s	100	100	150	100	180	180	190
Pressing Speed	mm/s	5-11	10-18	9-18	7-18	10-18	6-15	6-14
Return Speed	mm/s	100	180	200	90	220	200	220
Ejecting Force	kN	630	1000	1000	400	1000	1000	1600
Maximum Ejecting Stroke	mm	300	300	300	200	300	300	300

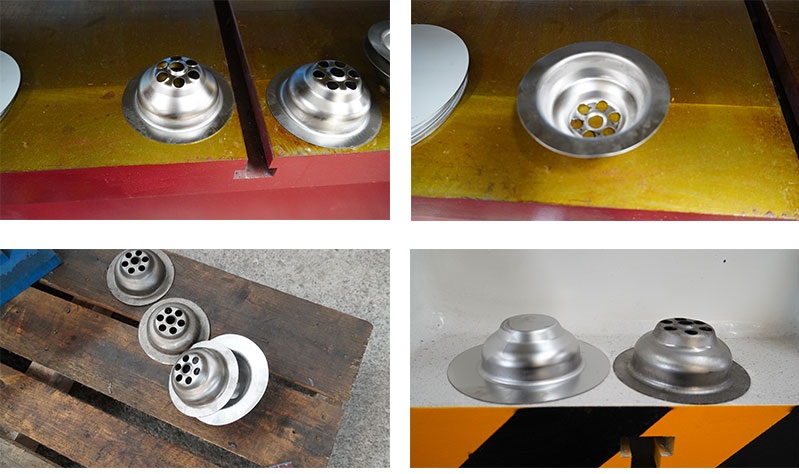

Pressing process
