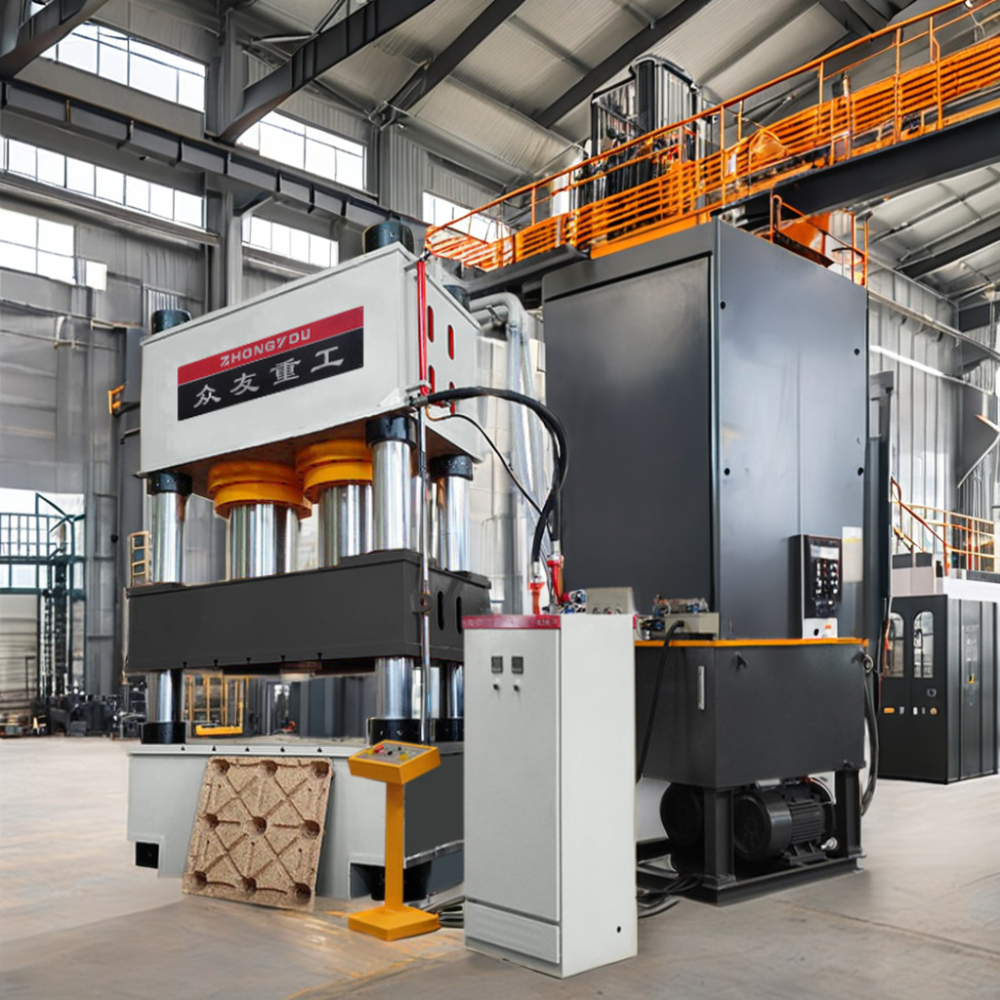

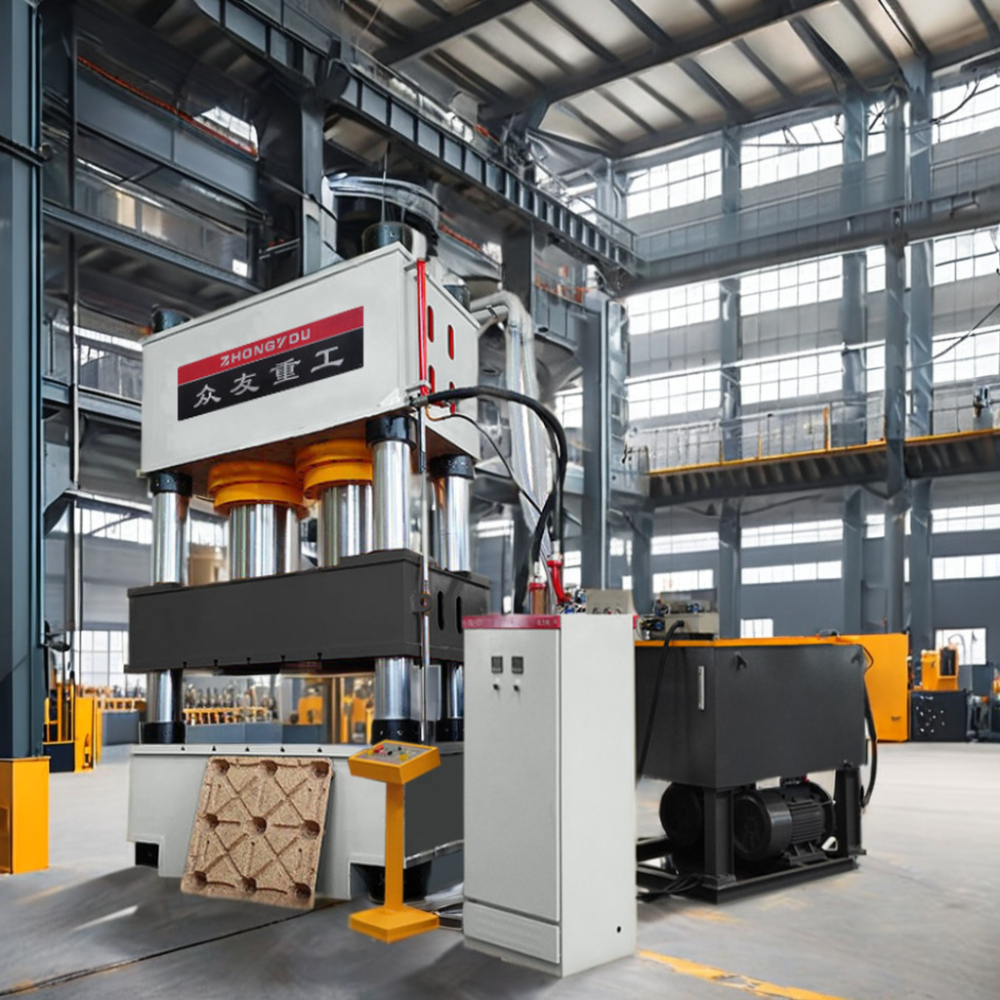

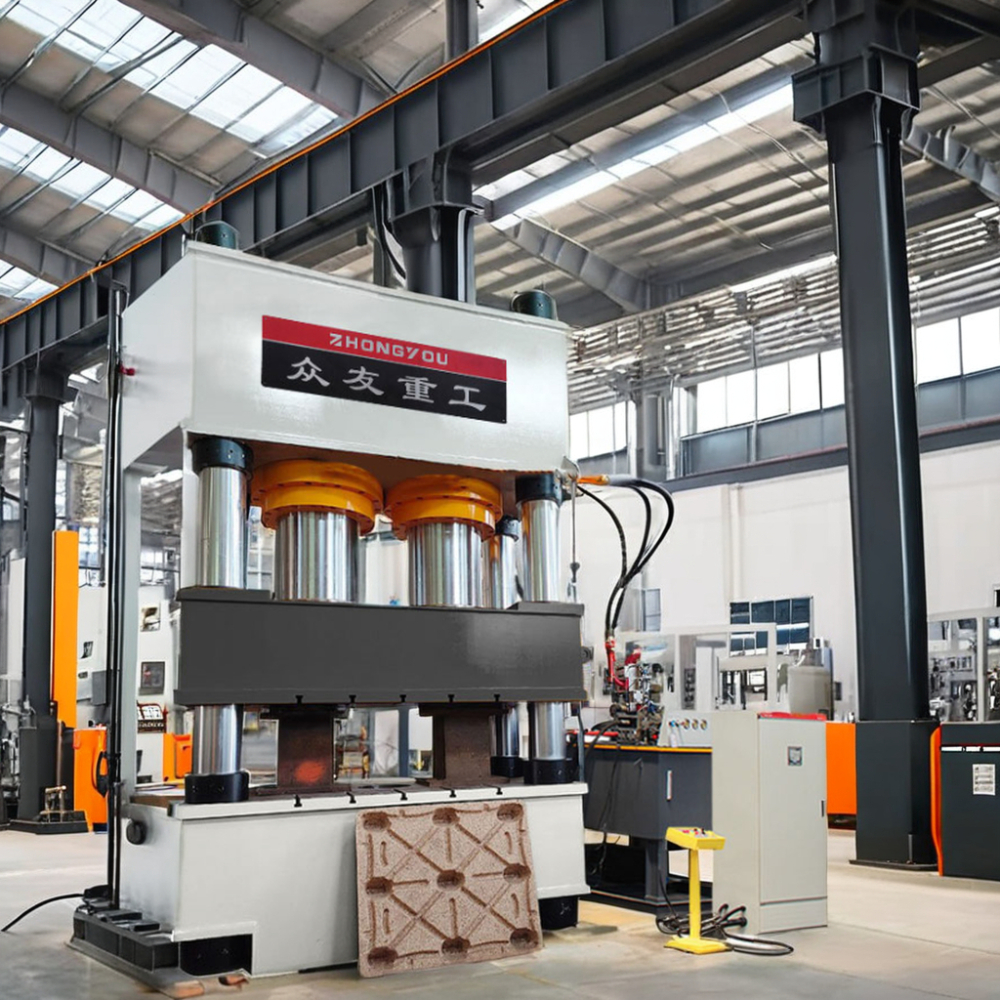

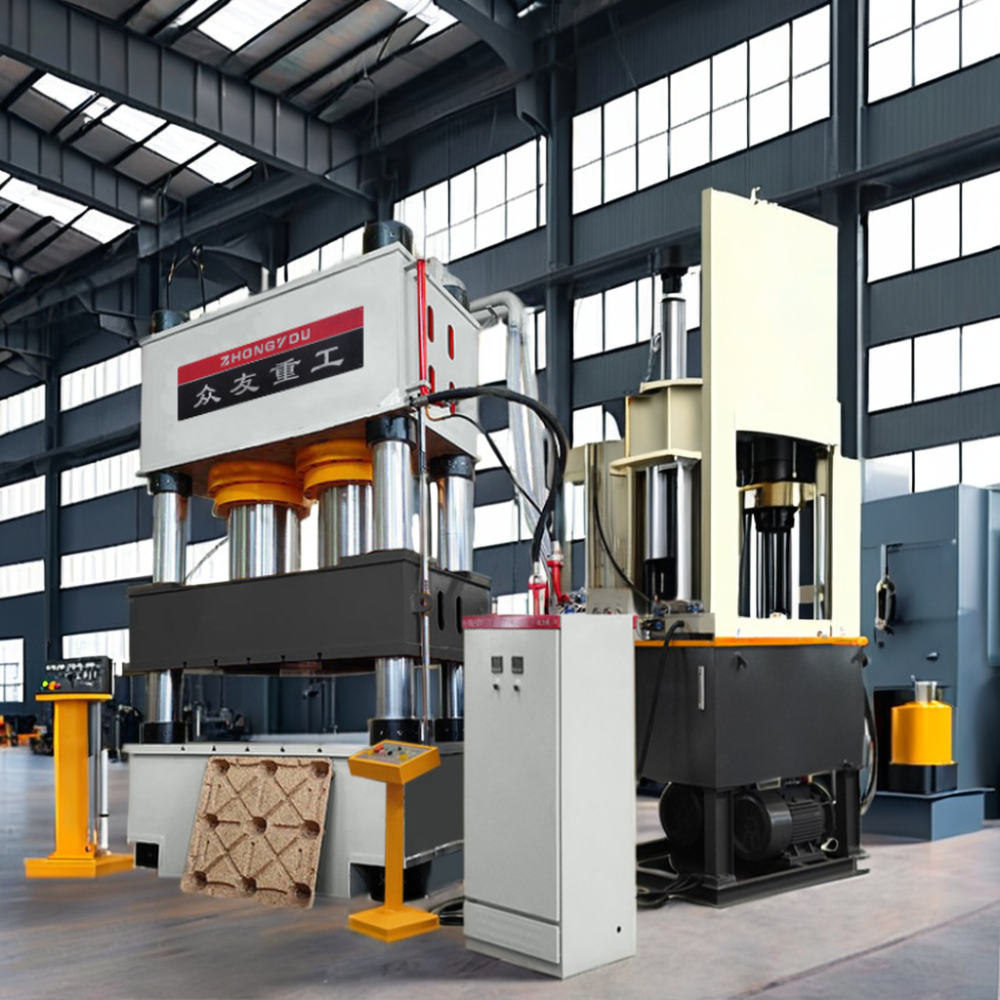

Wood chip pallet hydraulic press Coconut shell pallet
allet hydraulic press is a special equipment designed for pressing and molding wood chips/fibers, the core function is to press the loose wood chips (adhesive may be added) into a regular shape, a cer
+86 13562463338
+86 13562463338
Video Display
Product Introduction
allet hydraulic press is a special equipment designed for pressing and molding wood chips/fibers, the core function is to press the loose wood chips (adhesive may be added) into a regular shape, a certain density and strength of the pallet by hydraulic pressure, widely used in the fields of logistics and warehousing, furniture manufacturing, building materials packaging and so on.It is widely used in logistics and warehousing, furniture manufacturing, building materials packaging and other fields.It can produce plant fiber pallet, bamboo pallet, straw pallet, coconut fiber pallet and so on.

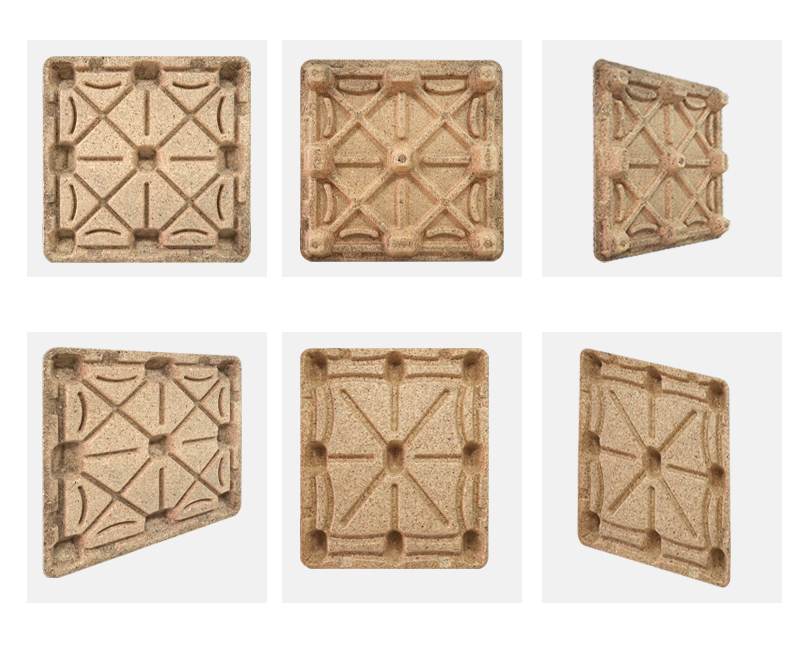

1.Logistics storage pallet
Products: standard pallet, grid pallet (breathable), paper pallet (environmentally friendly, disposable);
2. Industrial packaging pallets
Products: packing box pallets (for mechanical parts, electronic components transportation), heavy duty pallets;
3. agriculture and food pallets
Products: agricultural packaging pallets (e.g., vegetables, fruits transportation), food-grade pallets (need food-grade adhesive, such as starch-based adhesive);
4. Environmentally friendly recycled pallets
Products: Recycled wood chip pallets (utilizing waste wood chips), biodegradable pallets (adding bio-based adhesives);
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process

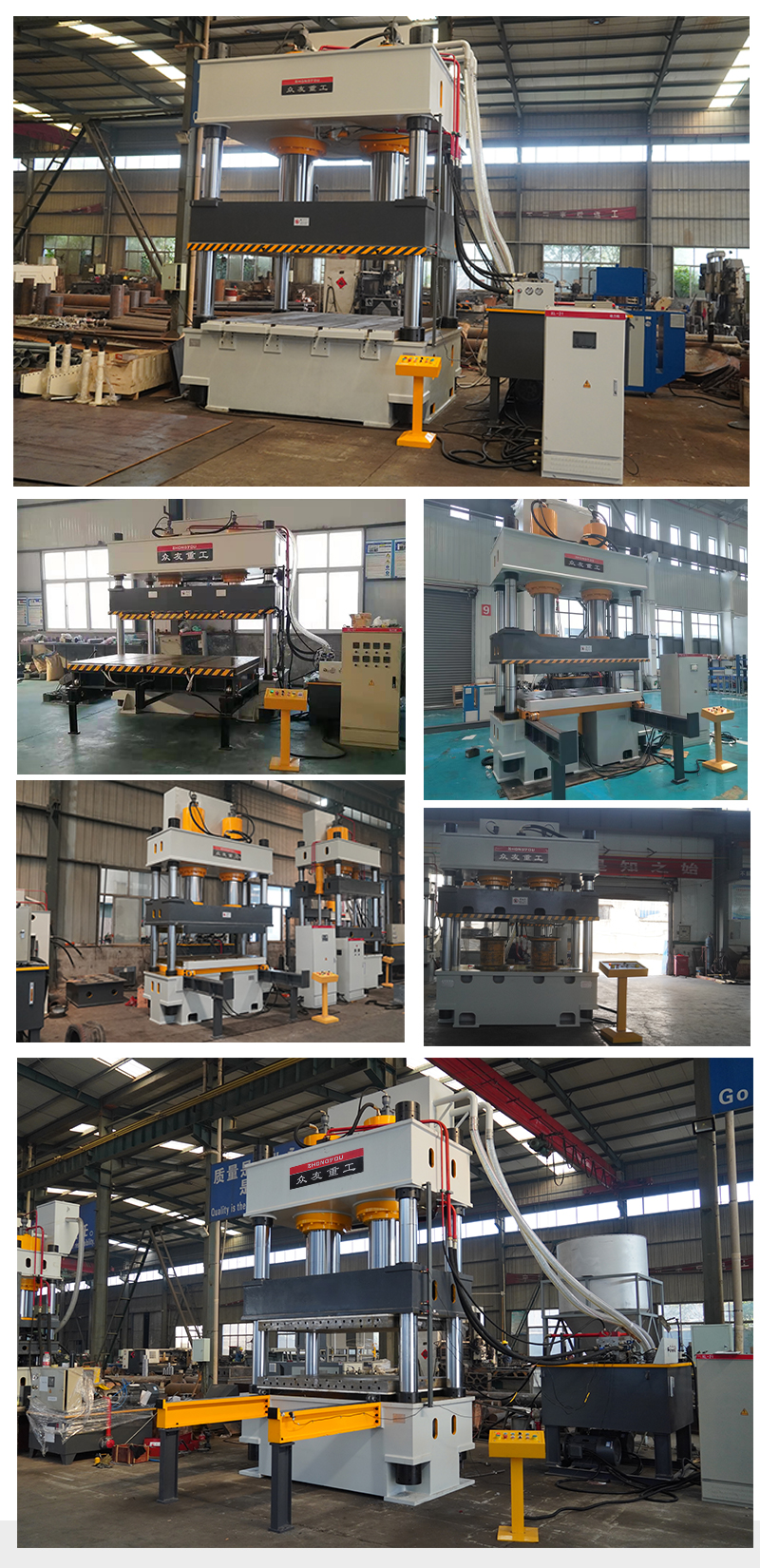

Customer Case
