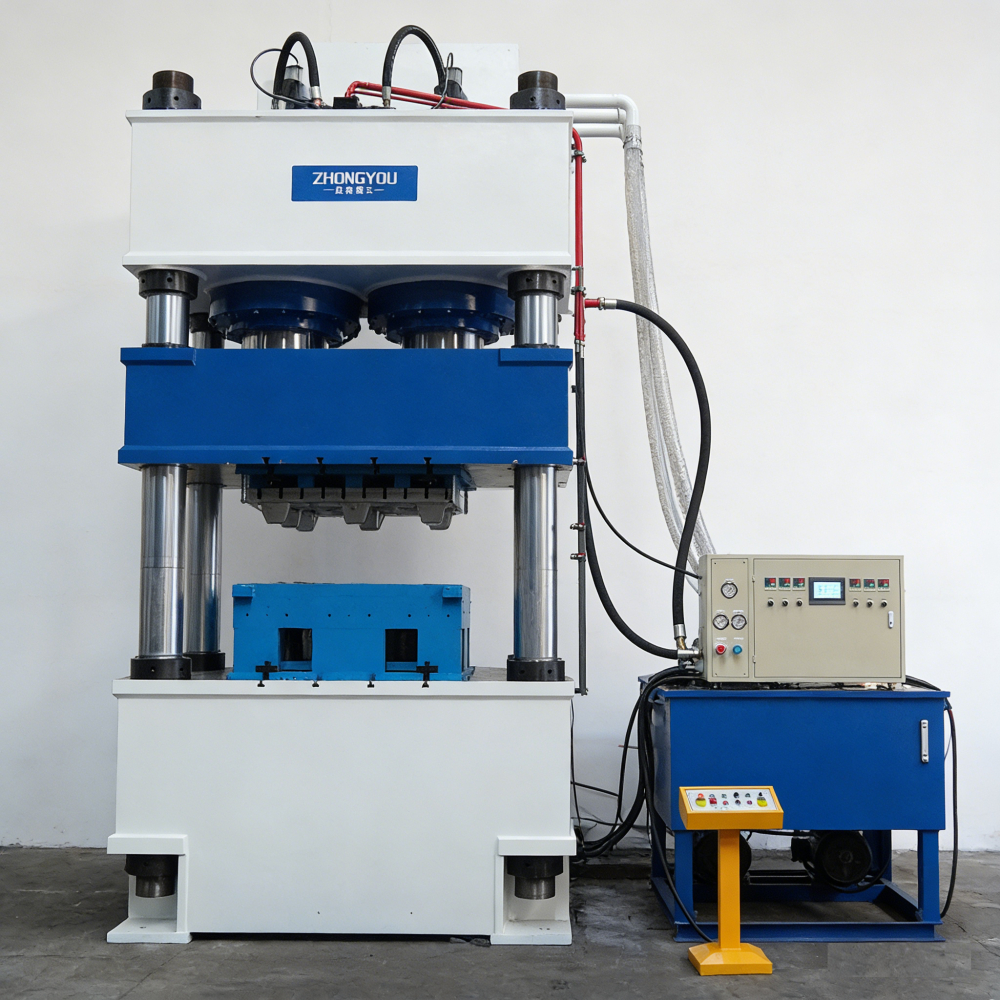

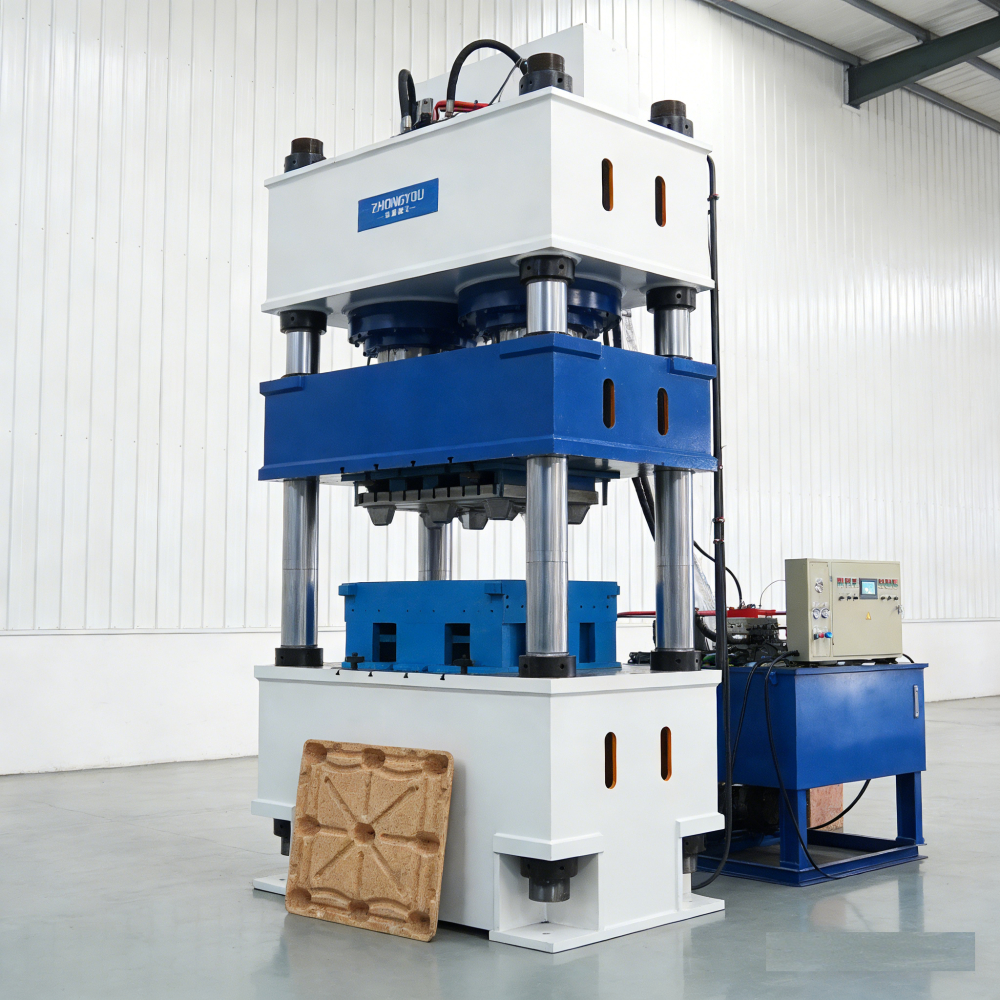

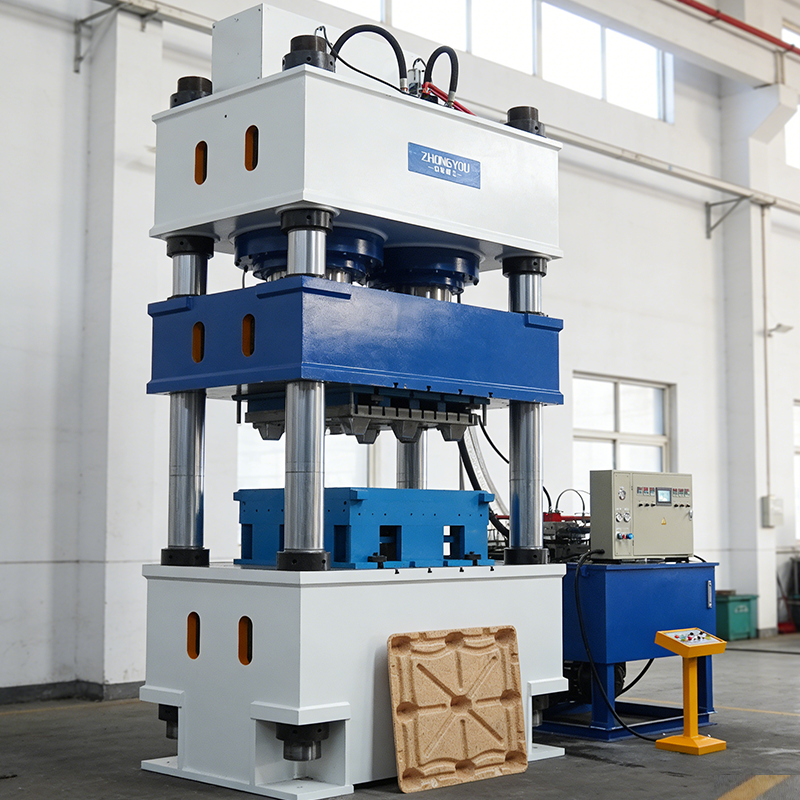

hot pressing sawdust wood chips pallet machine
Shandong Zhongyou Heavy Industry has customized a hydraulic press for hot-pressing sawdust pallets for a client in Southeast Asia. This equipment is specifically designed to mold raw materials such as
+86 13562463338
+86 13562463338
Video Display
Product Introduction
Shandong Zhongyou Heavy Industry has customized a hydraulic press for hot-pressing sawdust pallets for a client in Southeast Asia. This equipment is specifically designed to mold raw materials such as sawdust, wood chips, and plant fibers into pallets in a single step using a hot-pressing process, producing eco-friendly, high-strength wood chip pallets.High-Efficiency Production: Featuring an advanced hydraulic system and mold design, it enables rapid and efficient production of wood chip pallet products.
Eco-Friendly Materials: Utilizing renewable raw materials such as sawdust, wood chips, and plant fibers, the resulting pallets are environmentally friendly and align with modern sustainability principles. Additionally, the equipment can recycle various materials, including waste wooden pallets, scrap wood, timber, kraft paper, straw, bamboo, and even plastic, thereby reducing raw material costs.
High Strength and Stability: Formed under high temperature and pressure, the pallets feature high strength, high load-bearing capacity, resistance to deformation, and damage prevention. Furthermore, the equipment incorporates fatigue-resistant and load-distribution designs to ensure long-term stable operation.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process
