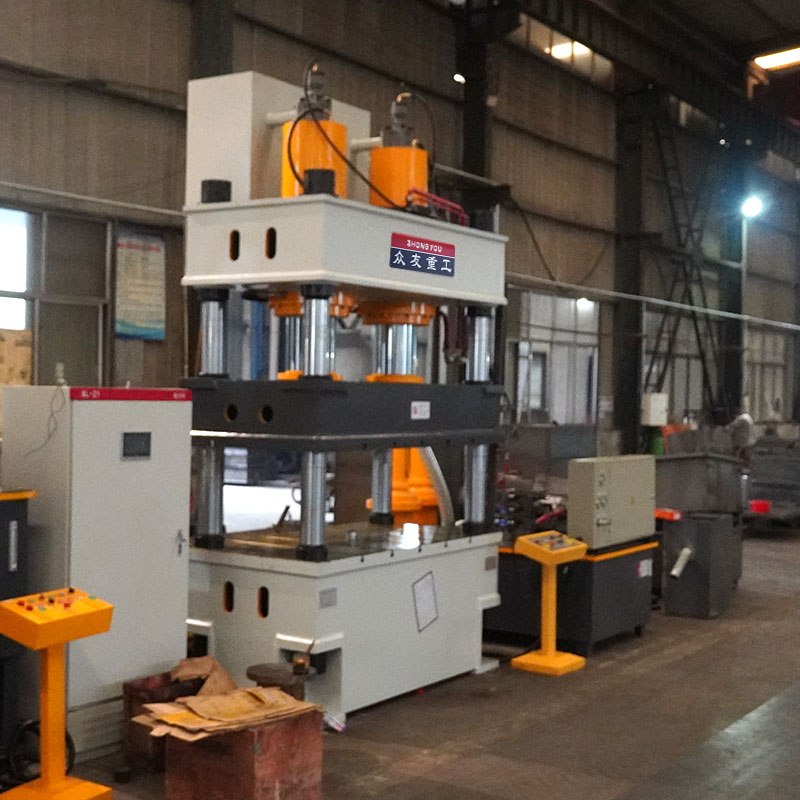

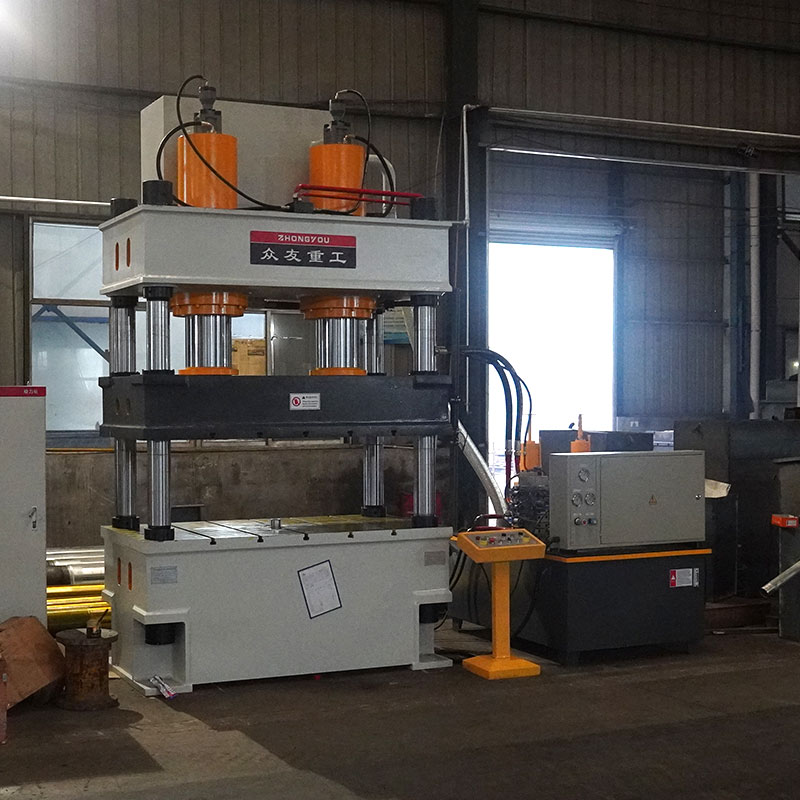

400-Ton Rubber Drainage Mat Forming Hydraulic Press
Shandong Zhongyou Heavy Industry has customized a 400-ton double-cylinder hydraulic press for an African client. This machine is designed to produce rubber horse pads by forcing rubber material into m
+86 13562463338
+86 13562463338
Video Display
Product Introduction
Shandong Zhongyou Heavy Industry has customized a 400-ton double-cylinder hydraulic press for an African client. This machine is designed to produce rubber horse pads by forcing rubber material into molds under high pressure, ensuring the final products meet design specifications. It is suitable for mass production.

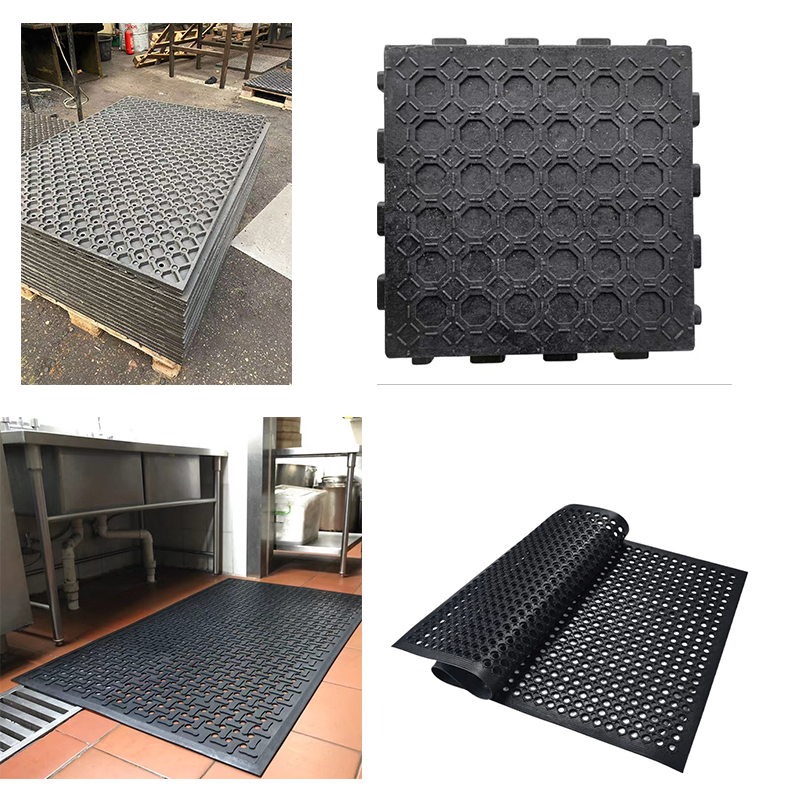

Rubber Horse Mats: Manufacture high-density, wear-resistant rubber horse mats for equestrian arenas, breeding farms, and similar applications.
Automotive Components: Produce rubber shock absorbers, sealing rings, dust covers, and other parts meeting the automotive industry's demands for precision and durability.
Industrial Products: Process rubber bushings, insulating gaskets, anti-slip footpads, and other items suitable for machinery, electronics, construction, and related industries.
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |

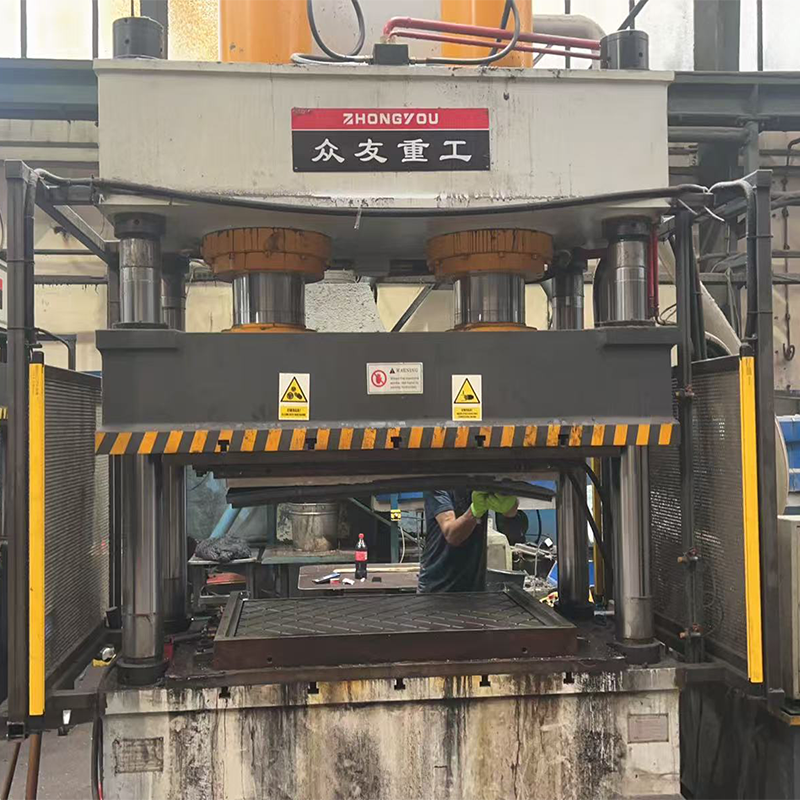

Pressing process

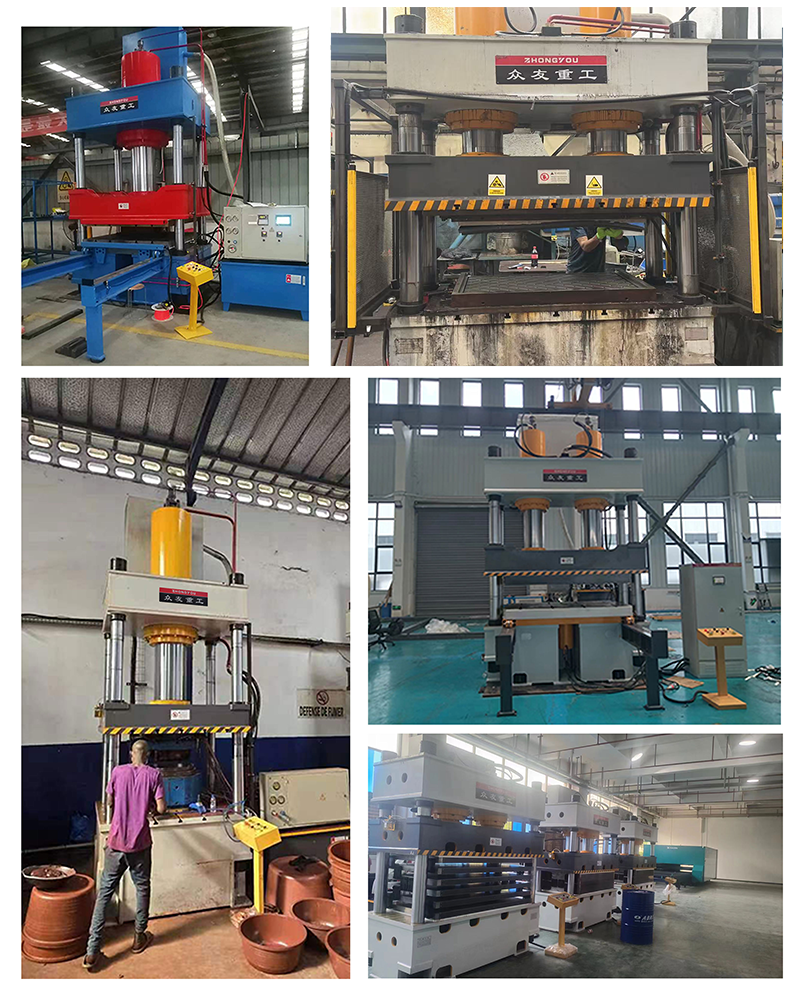

Customer Case
