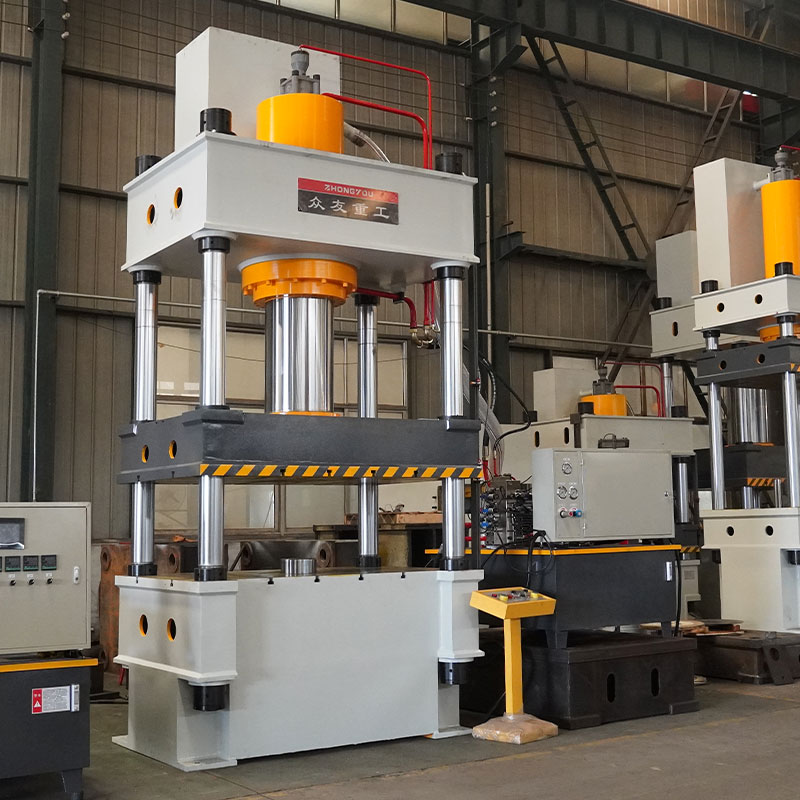

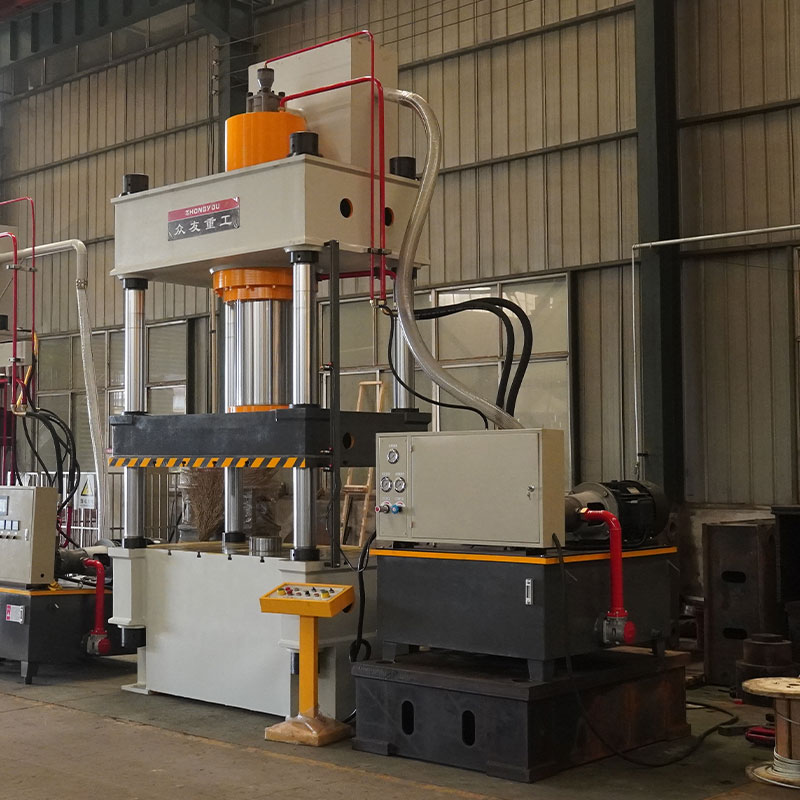

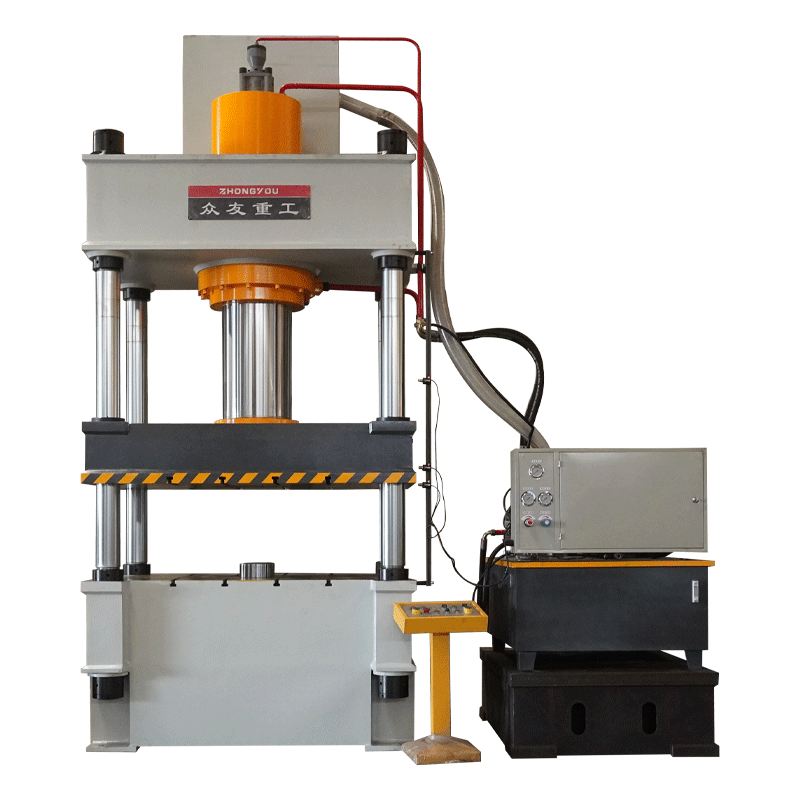

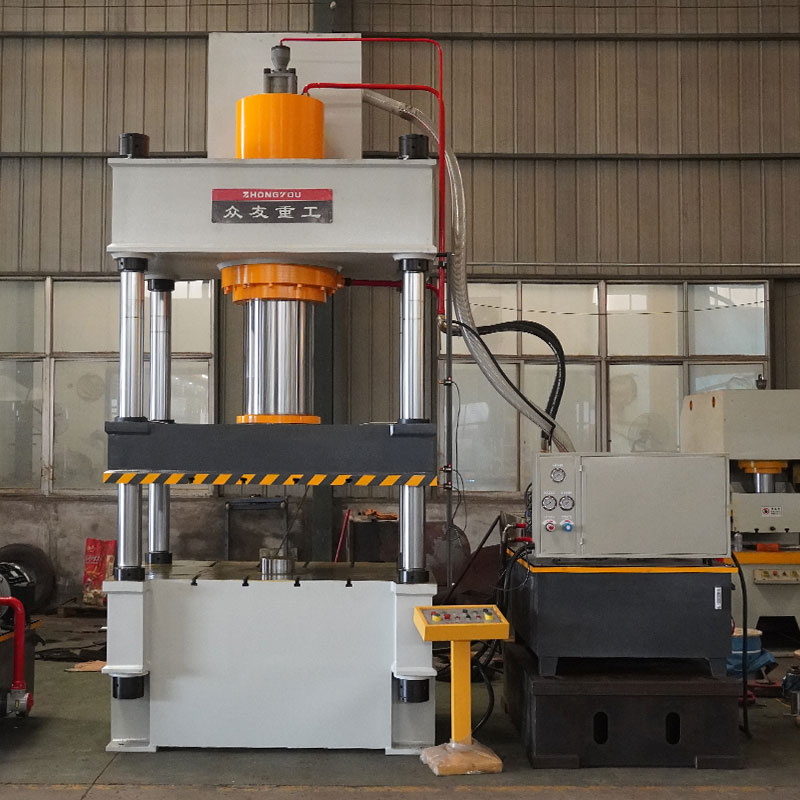

400 tons three-beam four-column continuous steel plate water tank hydraulic pressure machine
The core role of the hydraulic press for connected steel plate water tank is to process the steel plate into the curved surface, flat surface or shaped structural parts required for the water tank thr
+86 13562463338
+86 13562463338
Video Display
Product Introduction
The core role of the hydraulic press for connected steel plate water tank is to process the steel plate into the curved surface, flat surface or shaped structural parts required for the water tank through hydraulic pressure(such as side plate, top plate, bottom plate, flange edge, etc.), to lay the foundation for subsequent welding and assembly into a whole water tank.Specific functions include:

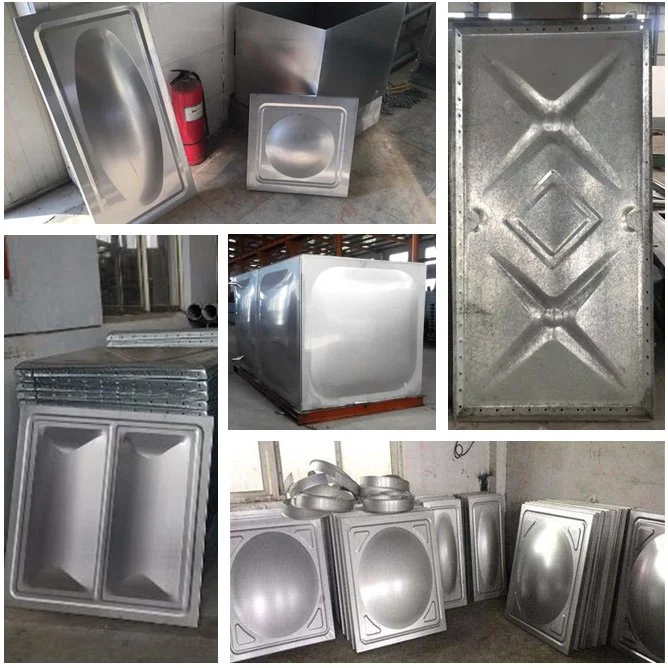

Stretch forming of steel plates: pressing of flat steel plates into curved tank side plates (to accommodate curved surfaces for cylindrical or square tanks);
Folding / crimping: forming reinforcement or welding bevels on the edges of pressed steel plates (to enhance structural strength and sealing);
Pressing and shaping: processing the steel plate into specific parts of the tank (e.g. flanges, reinforcing ribs) in conjunction with a mold;
Auxiliary Welding Positioning: Hydraulic clamping of multiple steel plates to ensure positional accuracy during welding.
Siamese steel plate water tank is widely used in:
Fire-fighting field: water storage for fire-fighting in high-rise buildings
Industrial field: factory circulating water system, boiler softened water storage;
Civil field: community living water reserves, landscape fountain water storage;
Emergency relief: mobile water storage device (need to be quickly assembled).
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |

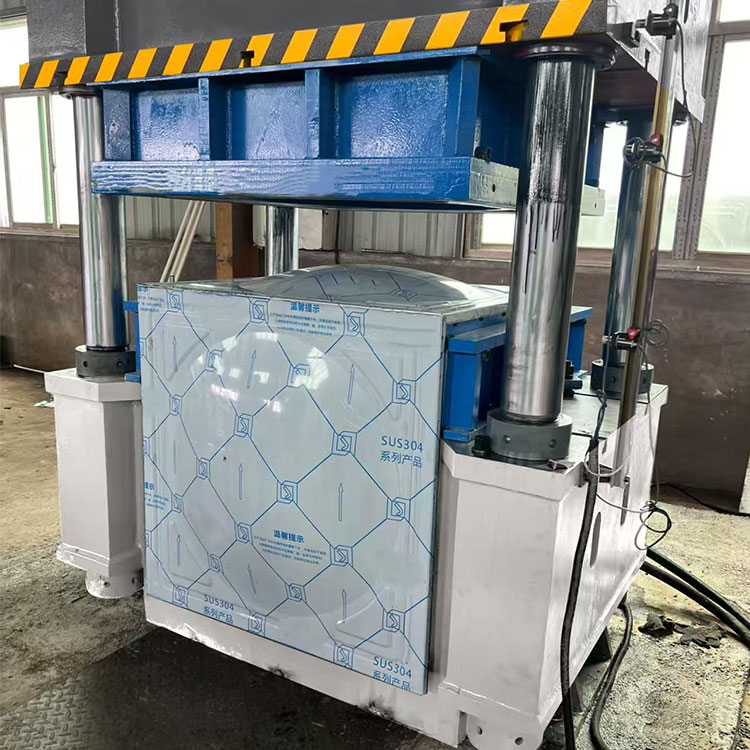

Pressing process

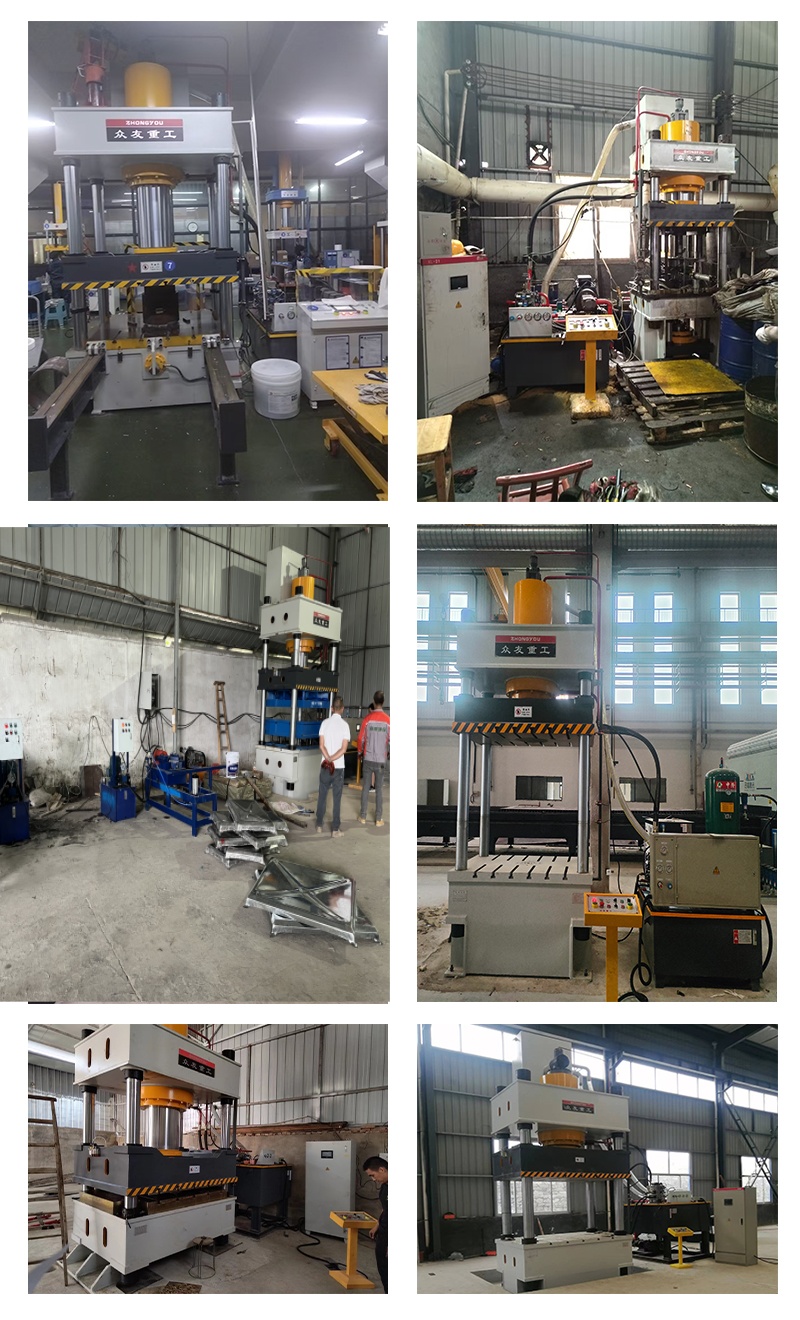

Customer Case
