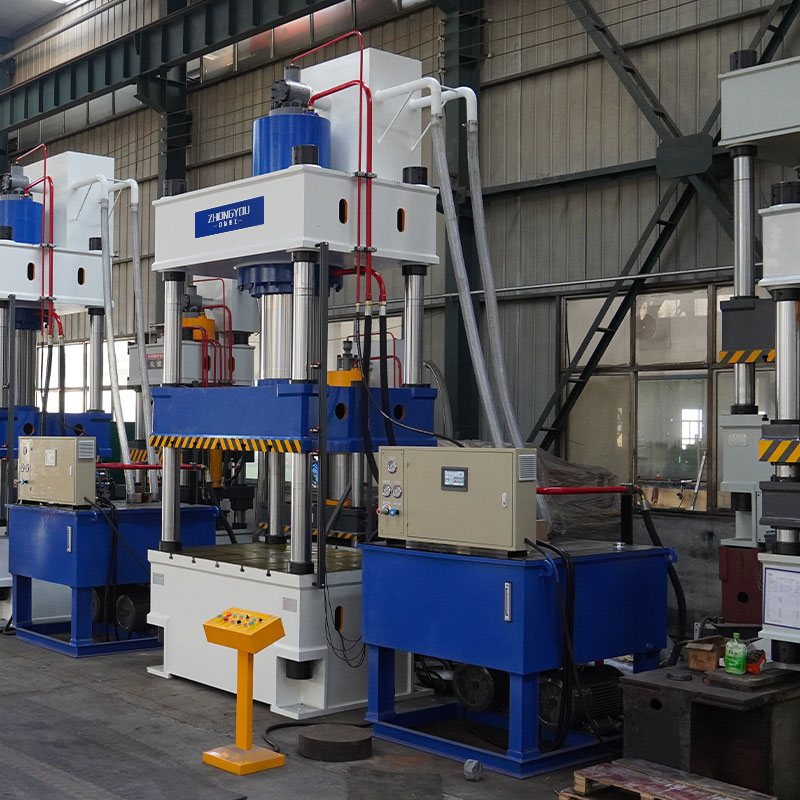

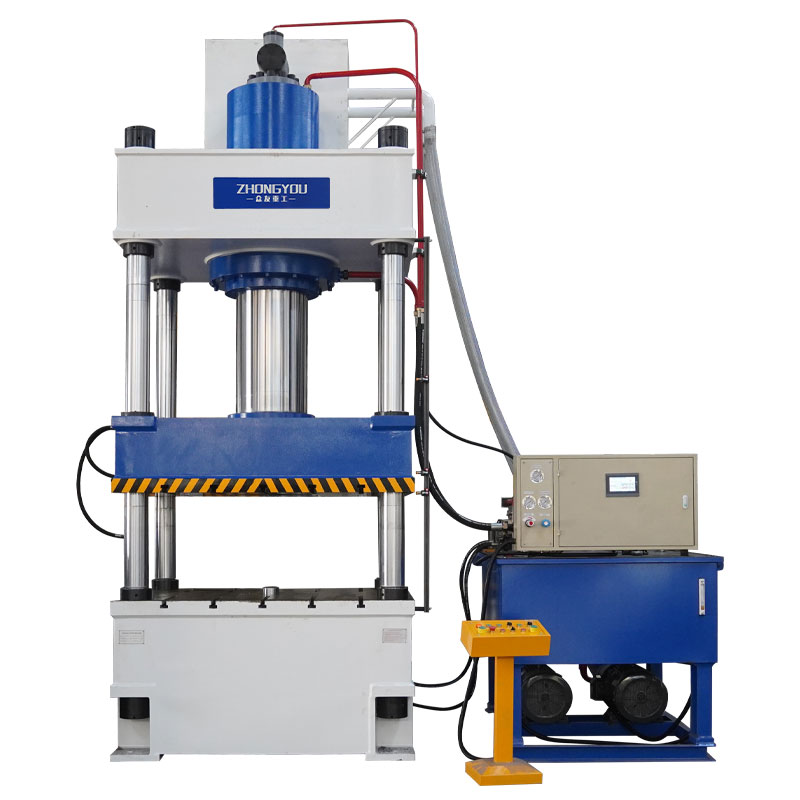

500 tons three-beam four-column hydraulic press Metal stamping and forming presses
This is a customized 500-ton three-beam, four-column hydraulic press is a multi-functional hydraulic equipment with three-beam, four-column structure, suitable for metal and non-metallic materials, su
+86 13562463338
+86 13562463338
Video Display

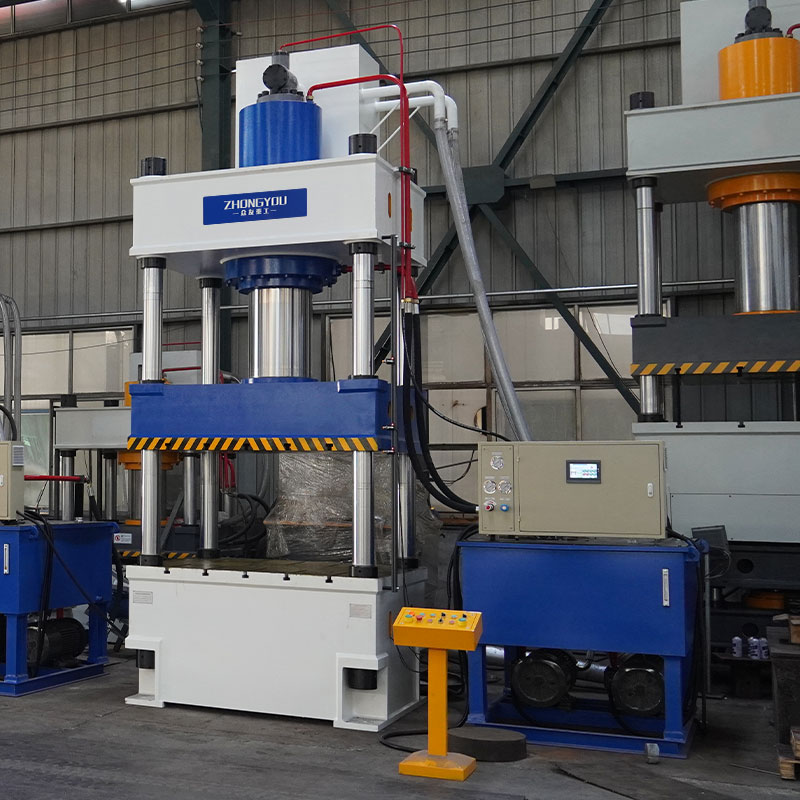

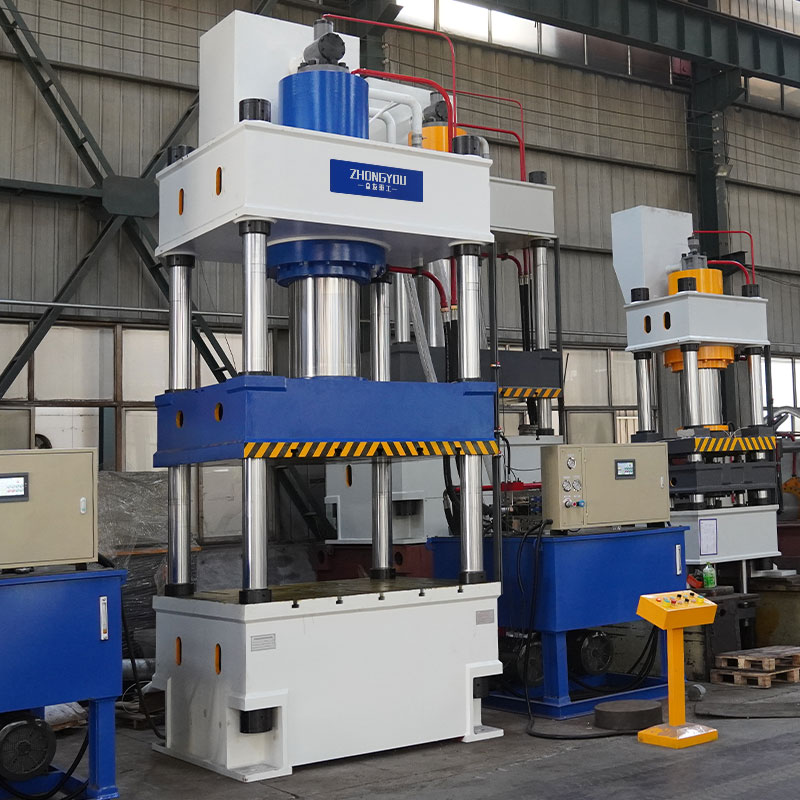

Product Introduction
This is a customized 500-ton three-beam, four-column hydraulic press is a multi-functional hydraulic equipment with three-beam, four-column structure, suitable for metal and non-metallic materials, such as tensile, stamping, bending, calibrating, press-fitting and other processes.With stable structure and high guiding precision, it is widely used in automobile, home appliances, building materials, aerospace and other fields.

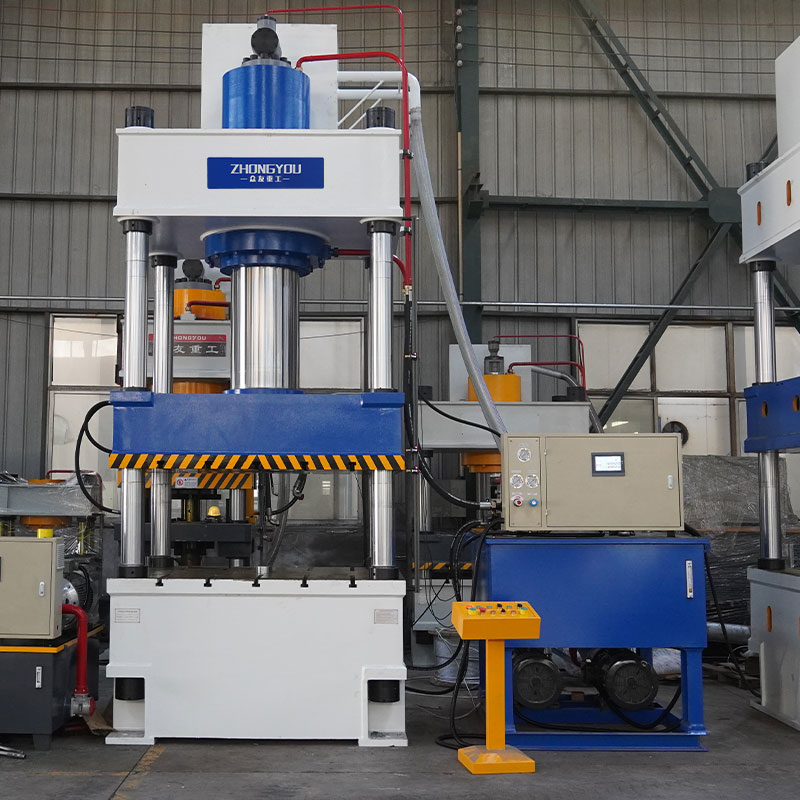

Performance Characteristics
Versatility: suitable for stretching, punching, powder molding, plastic pressing and other processes.
High precision: four-column guiding structure ensures smooth slider movement and high molding precision.
Automatic control: PLC programming supports semi-automatic/full-automatic operation, and can be integrated with robot or conveyor.
Energy-saving design: some models adopt servo hydraulic system, energy consumption is reduced by 30%.
Safe and reliable: Equipped with multiple safety protection, such as light curtain, emergency stop and hydraulic overload protection
Typical applications

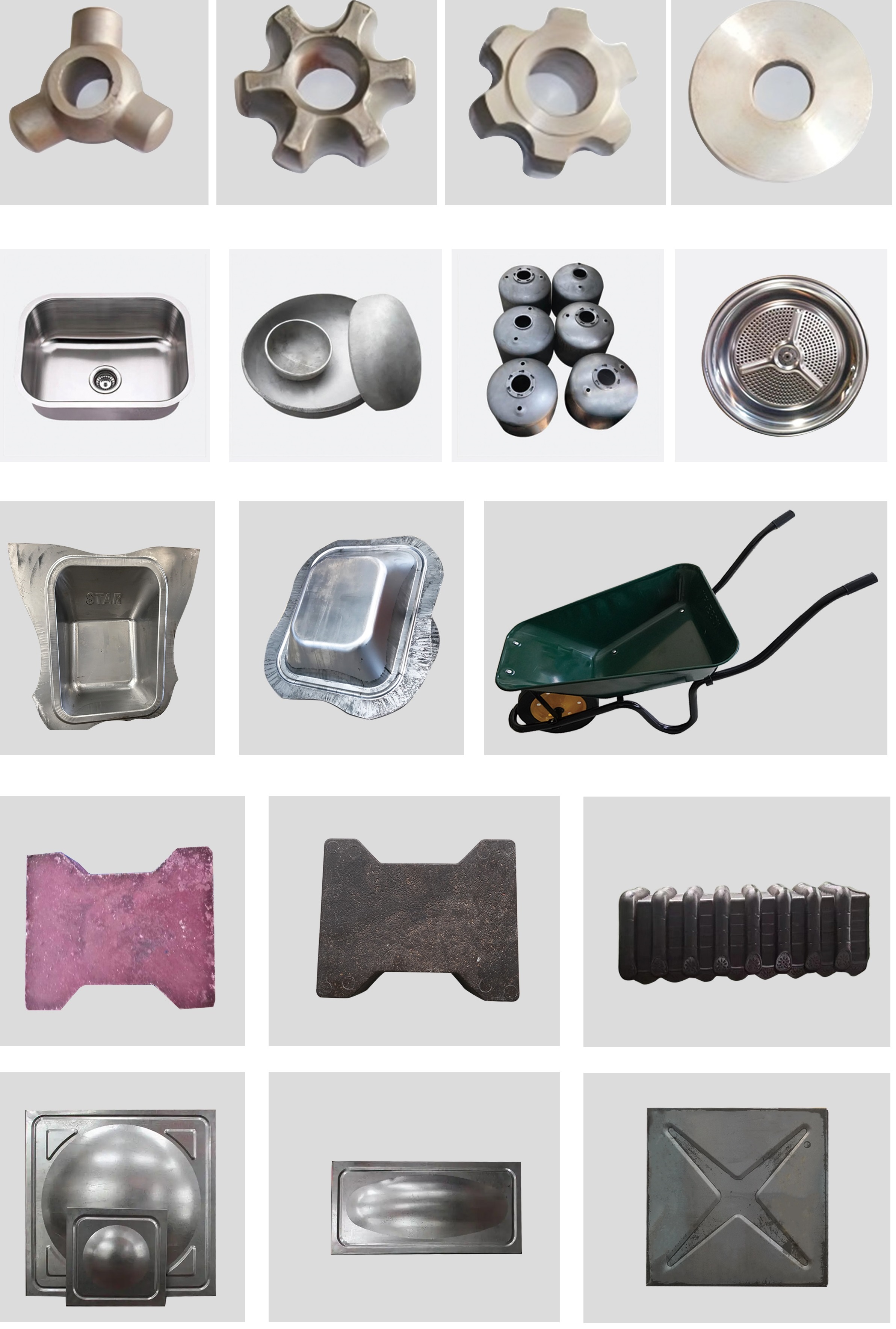

Metal processing: automobile cover parts, head stretching, bearing press fitting.
Building materials industry: resin manhole cover, glass fiber reinforced plastic products, three-dimensional buckle plate molding.
Powder metallurgy: iron powder, copper powder briquette, density up to 6.5g/cm³.
Plastic/rubber: insulating materials, seals hot press molding。
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
