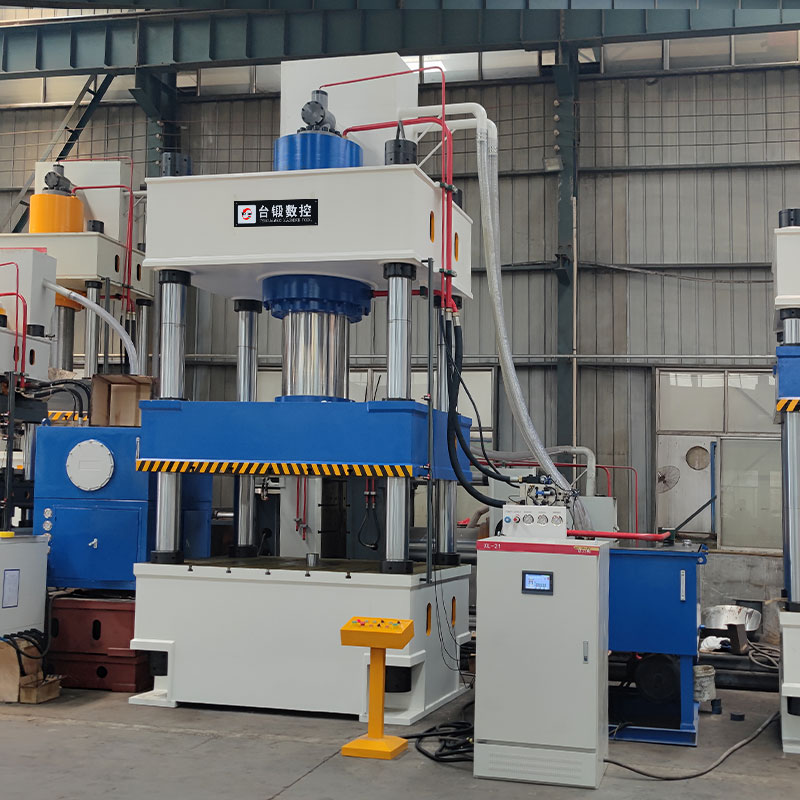

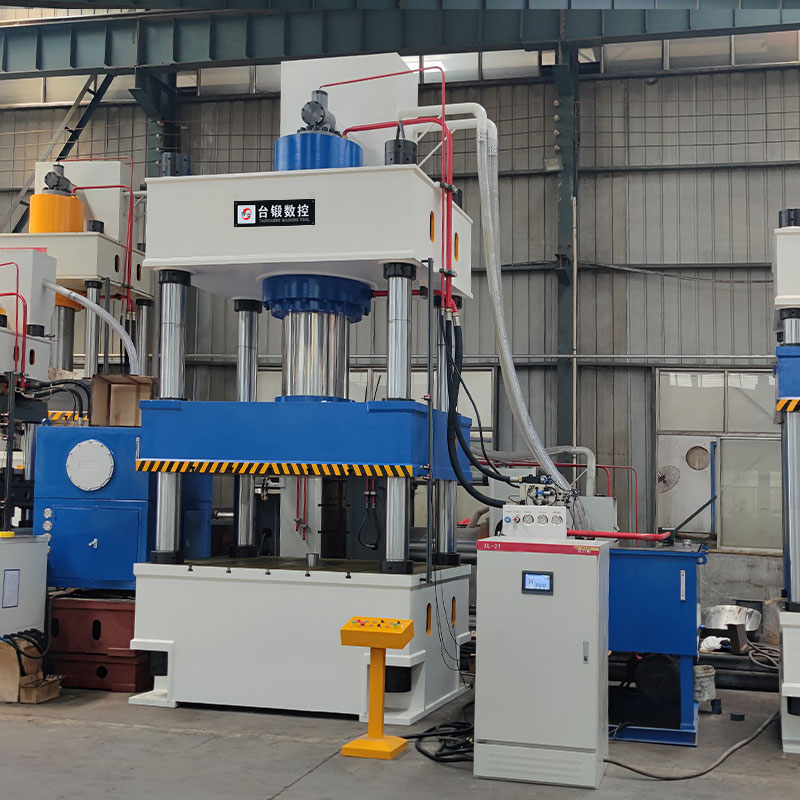

500ton resin manhole cover heat press machine
The 800-ton four-column, double-cylinder hydraulic press for plastic flower pots is a highly efficient machine specifically designed for the hot compression molding of plastic flower potsThe "500-ton
+86 13562463338
+86 13562463338
Video Display
Product Introduction

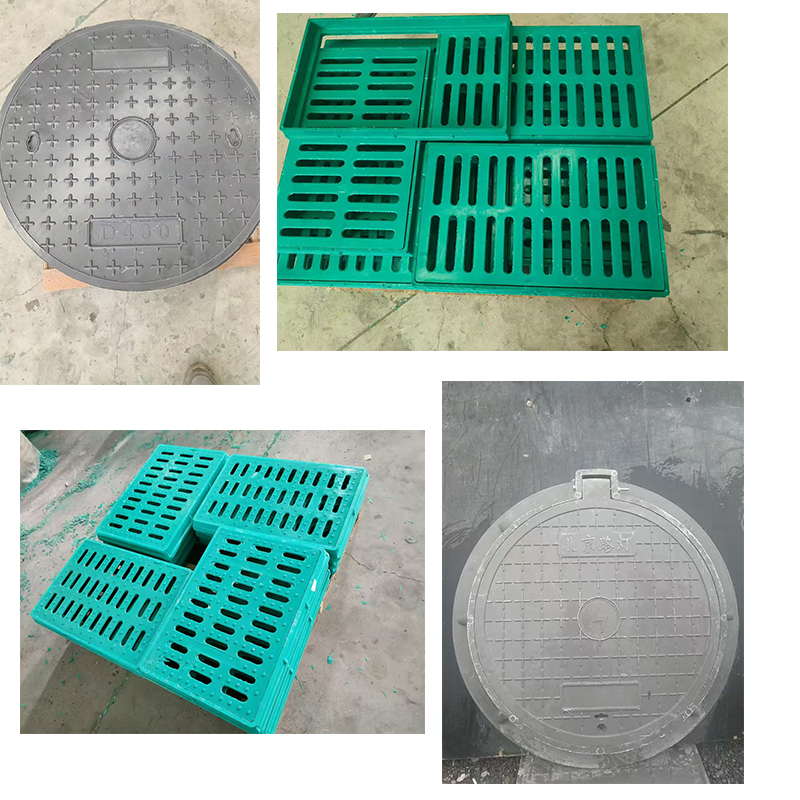

The 800-ton four-column, double-cylinder hydraulic press for plastic flower pots is a highly efficient machine specifically designed for the hot compression molding of plastic flower potsThe "500-ton resin manhole cover hydraulic press" is a compression molding hydraulic press specifically used for producing composite (resin) manhole covers. Resin manhole covers typically refer to BMC (bulk molding compound) or SMC (sheet molding compound) covers, which offer advantages such as light weight, high strength, corrosion resistance, and theft deterrence.
Typical Production Process (Automated)
Automatically weigh and feed a measured quantity of BMC material into the lower mold.
The moving crossbeam rapidly descends → Upon contacting the material, it switches to slow compression and venting → Rises to the set pressure and begins the holding time, while the mold heats to cure the material.
Holding time ends (typically 2–5 minutes, depending on thickness and formulation) → Pressure is released → Mold opens.
A robotic arm reaches in to remove the molded manhole cover and places it on a conveyor belt or palletizing station.
Clean the mold (apply mold release agent if necessary), then proceed to the next cycle.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process
Customer Case
