PE Ballistic Plate Hydraulic Press Machine hydraulic hot press machine price
The PE bulletproof insert hydraulic press is a machine specifically designed for the compression molding of PE (ultra-high molecular weight polyethylene) bulletproof inserts.High-tonnage capacity: PE
+86 13562463338
+86 13562463338
Video Display
Product Introduction
The PE bulletproof insert hydraulic press is a machine specifically designed for the compression molding of PE (ultra-high molecular weight polyethylene) bulletproof inserts.
High-tonnage capacity: PE bulletproof insert hydraulic presses typically feature high nominal tonnages, such as 630 tons, 800 tons, and 1,000 tons, to meet the requirements of PE bulletproof insert compression molding.

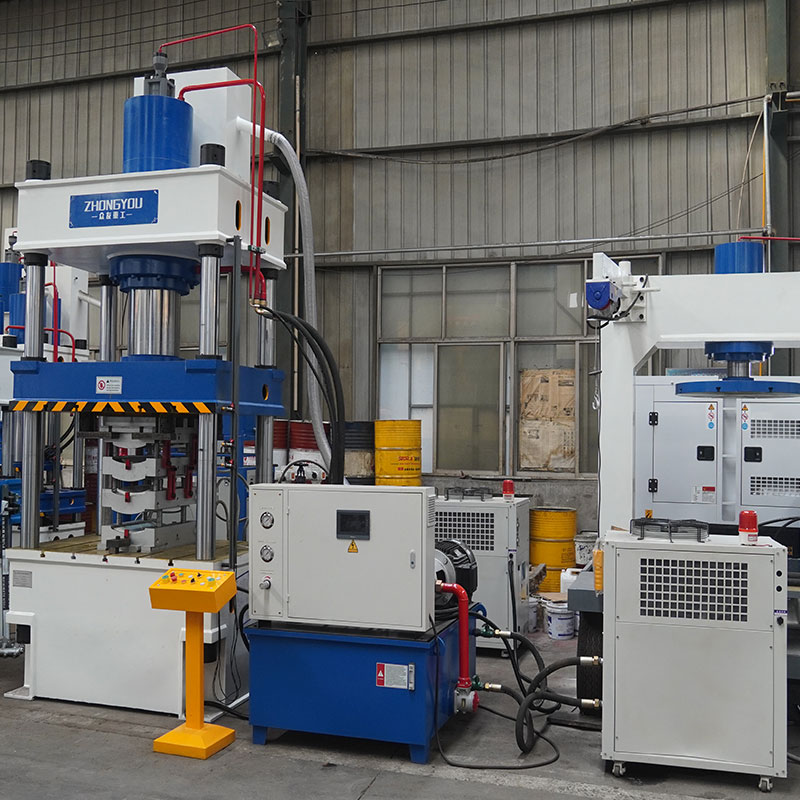

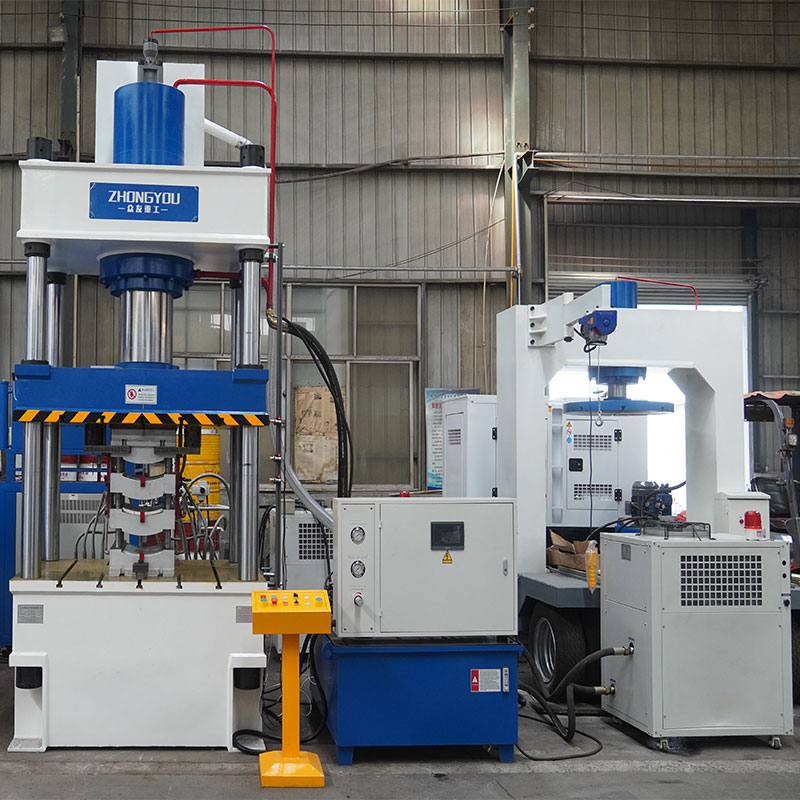

Three-beam, four-column structure: The equipment features a three-beam, four-column design, with the machine body formed by the upper crossbeam, slide beam, and worktable, which are combined with the columns and nuts to create a closed structure. This design offers excellent rigidity, high precision, a compact structure, and cost-effectiveness.
PLC control system: Equipped with a PLC control system, it supports both constant-pressure and constant-stroke molding processes and includes a pressure-holding delay function. Pressure and stroke can be adjusted within specified ranges according to process requirements, and operation is simple and intuitive.
The PE bulletproof insert hydraulic press is primarily used to produce PE bulletproof inserts of various specifications and dimensions. These inserts are widely used in military and police applications to provide personnel with ballistic protection. Additionally, the equipment can be used to mold ceramic bulletproof plates made of aluminum oxide, silicon carbide, and boron carbide, as well as to manufacture products such as bulletproof helmets and face shields.
Technical Parameters| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |

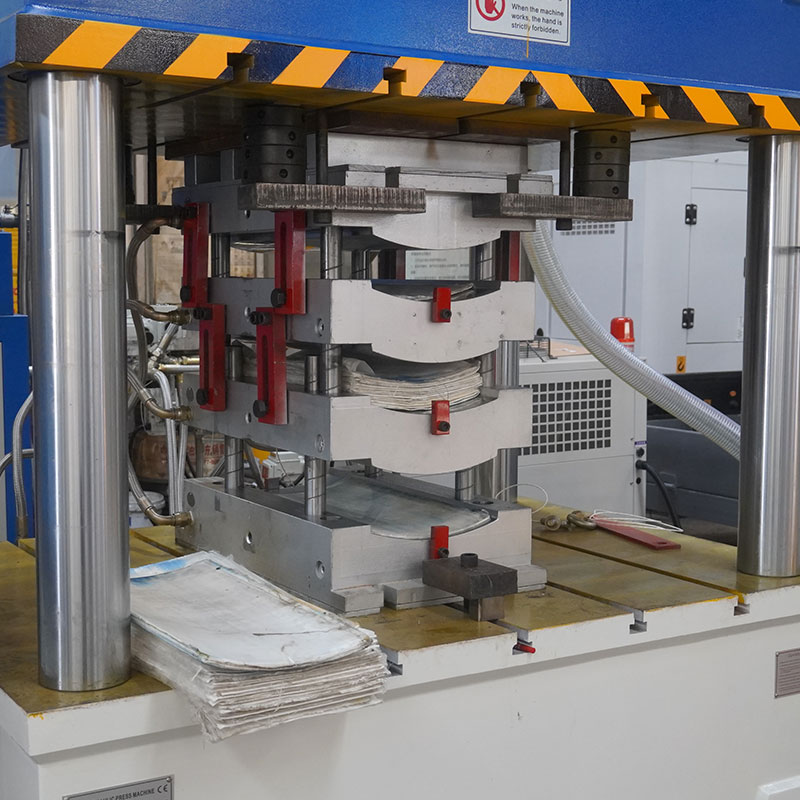

Pressing process
