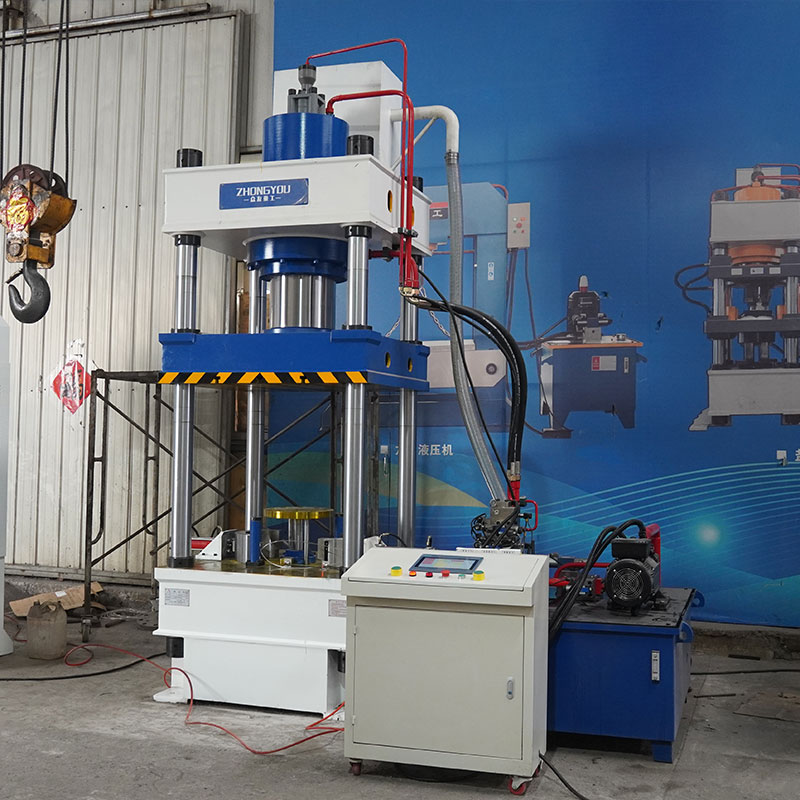

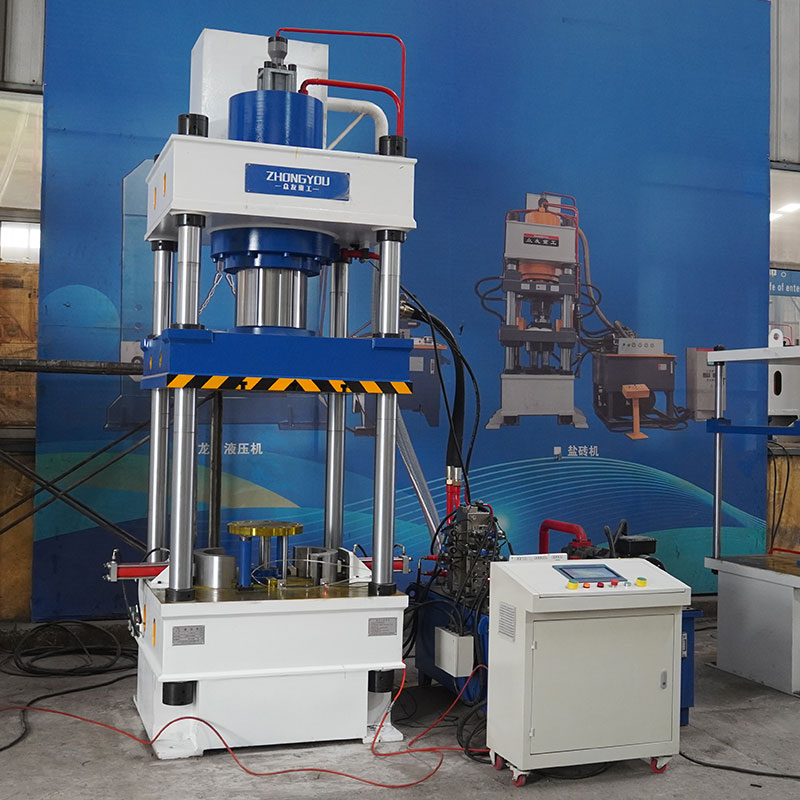

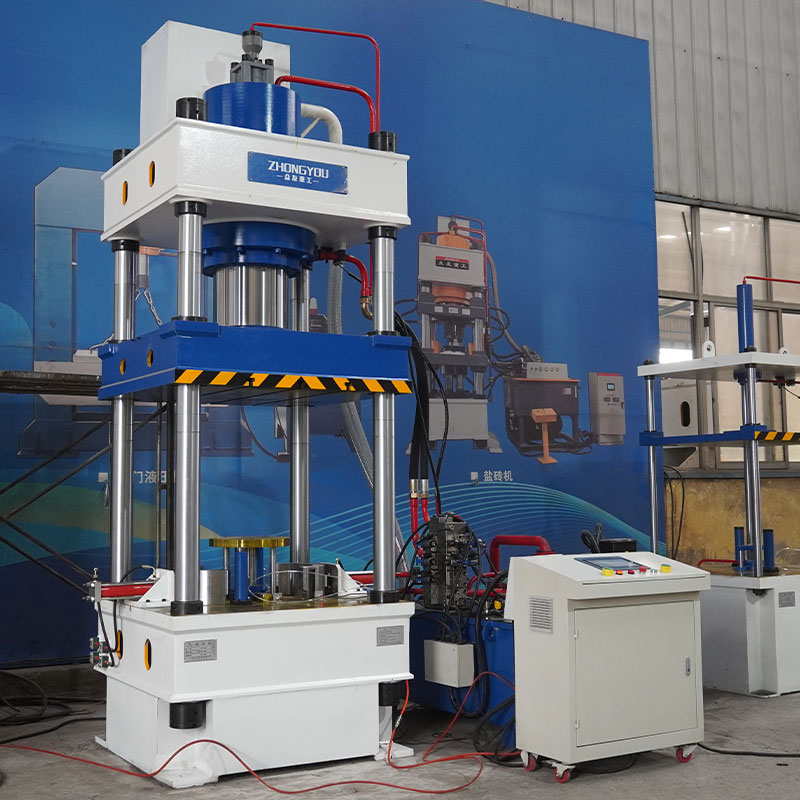

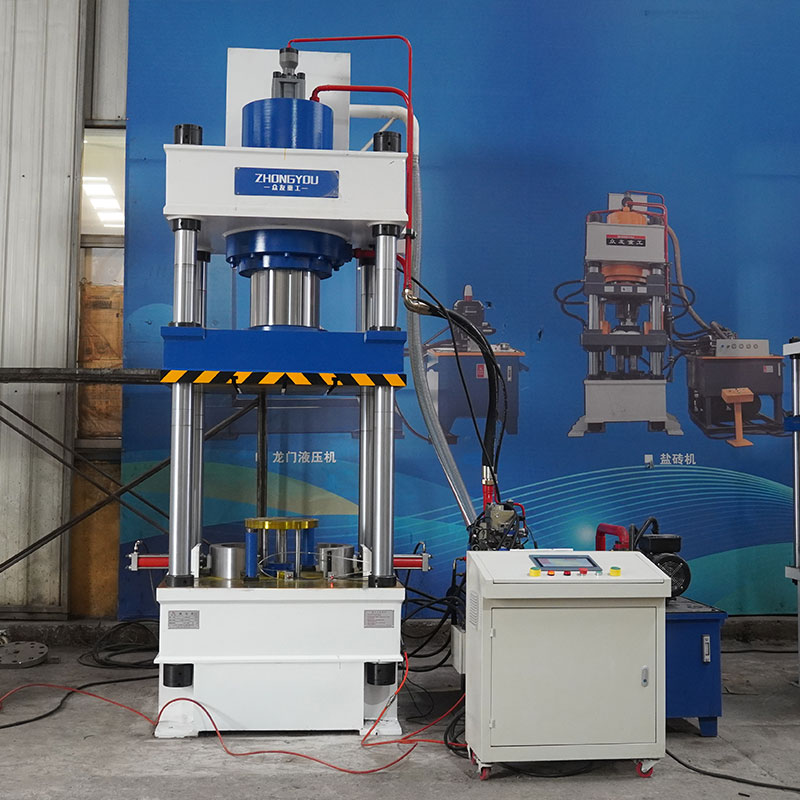

315t hydraulic press hydraulic press Side-mounted cylinder with servo display and linear scale
Servo Motors and Drives: Precise regulation of pressure, speed, and position is achieved through closed-loop control, offering fast response times and high load stiffness.Energy-Efficient Design: Util
+86 13562463338
+86 13562463338
Video Display
Product Introduction
Servo Motors and Drives: Precise regulation of pressure, speed, and position is achieved through closed-loop control, offering fast response times and high load stiffness.Energy-Efficient Design: Utilizing pump-controlled technology, there is no heat generated by overflow. The hydraulic system generates only 10%–30% of the heat produced by traditional hydraulic presses. This results in a smaller oil tank, extended oil change intervals, and a reduction in hydraulic oil consumption of approximately 50%.
Display and Control System
Touchscreen + PLC: Supports numerical input and real-time display of parameters such as pressure, displacement, and hold time. Can store 200 sets of process programs, facilitating quick switching between production tasks.
Online Management Function: Data from the entire pressing process (pressure-displacement curves) can be saved to a computer, ensuring production traceability and facilitating quality control.
Side Cylinder and Pneumatic Cylinder Design
Side Cylinder: Used for auxiliary forming or lateral extrusion, expanding processing flexibility and suitable for multi-directional pressing requirements of complex workpieces.
Pneumatic Cylinder: Can be used for rapid downward strokes or demolding actions, improving production efficiency and reducing non-processing time.
Typical Applications
Metal Forming: Automotive components (e.g., brake drums, wheel hubs), aerospace parts, bearing press-fitting, etc.
Composite Material Processing: SMC/BMC resin molding, hot pressing of plastic products.
Powder Metallurgy: Rapid pressing and forming of metal and non-metal powders.
Straightening and Stamping: Straightening of shaft-type parts, press-fitting of sleeve-type parts, trimming of metal products, etc.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
