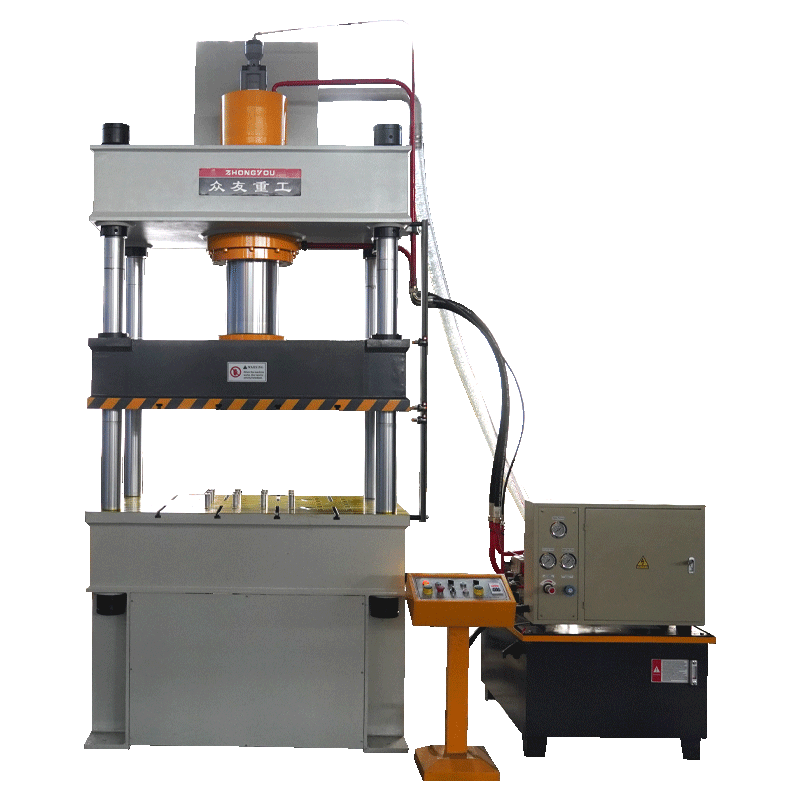

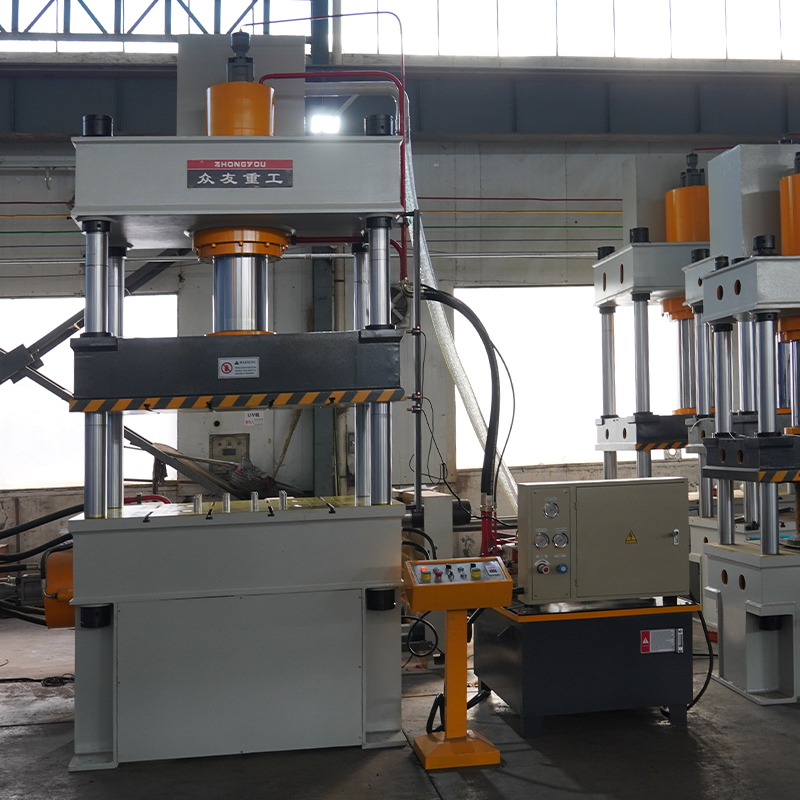

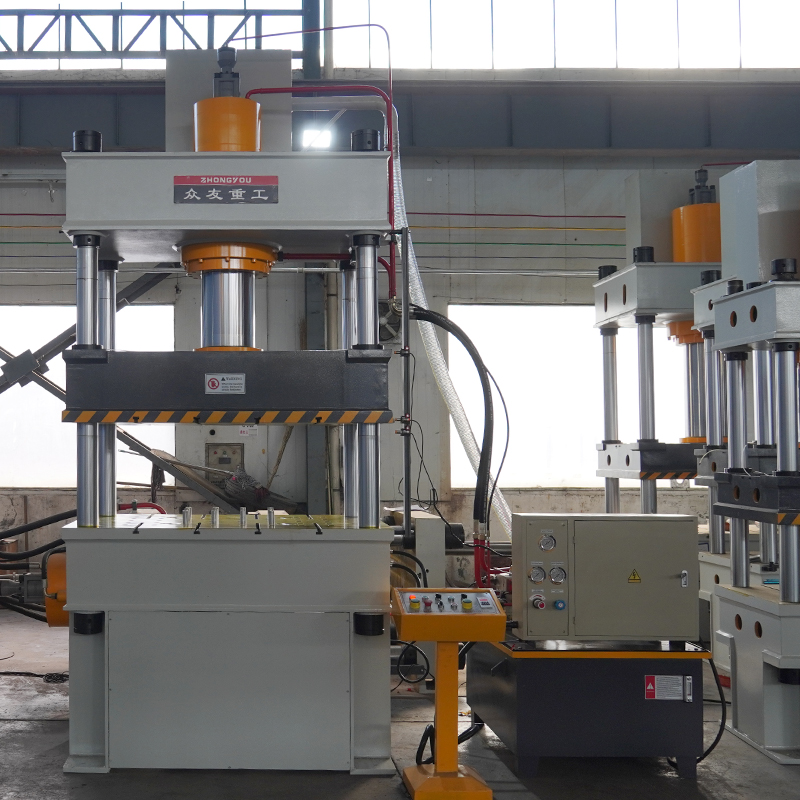

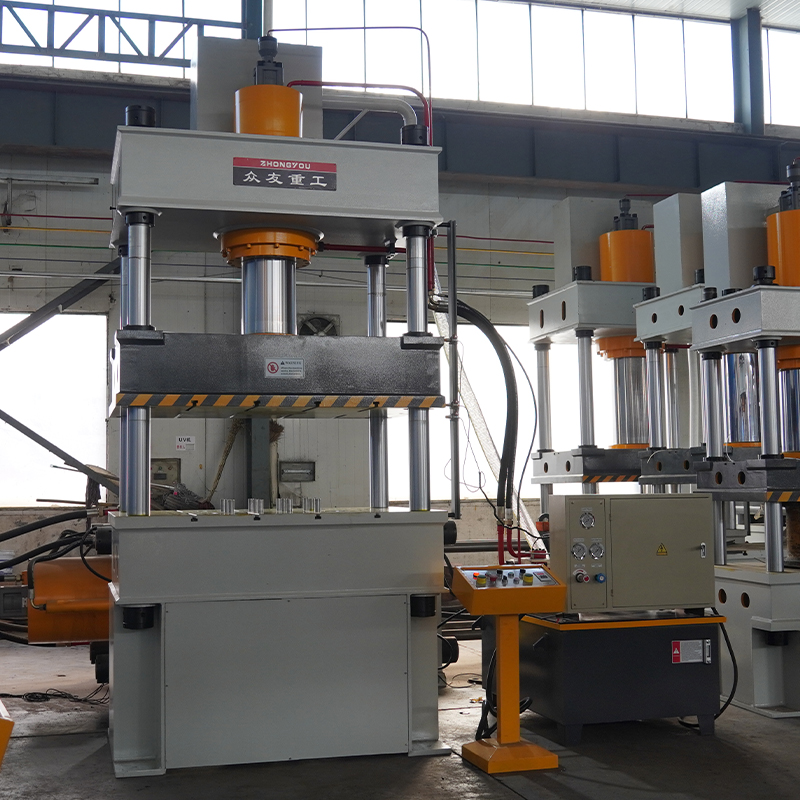

Description
Advantageous features:
1. High-precision moulding, the hydraulic system provides stable pressure output to ensure the dimensional accuracy of the workpiece.High guiding accuracy of the slider reduces the deformation of the workpiece.
2. High efficiency and energy saving Adopt proportional valve or servo valve control, reduce energy loss.Quick return function, improve production efficiency.
3. Easy operation PLC control to achieve automatic production, reduce manual intervention.Touch screen interface is friendly and parameter setting is intuitive.
4. Safe and reliable Multiple safety protection devices to prevent overload and misoperation.Stable structure, suitable for long time continuous operation.
5. Convenient maintenance Modular design, easy to overhaul and replace parts.Hydraulic system filtering device, prolonging the service life of the oil.
Technical Parameters
YD27系列三梁四柱液压机 | |||||||
项目 | 100T | 200T | 315T | 400T | 500T | 630T | 800T |
液体压力Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
滑块有效行程mm | 500 | 700 | 800 | 900 | 1200 | 1200 | 1200 |
开口高度mm | 800 | 1100 | 1250 | 1500 | 1800 | 1800 | 1000 |
工作台有效面积 | 630*550 | 750*700 | 660*600 | 1000*1000 | 800*800 | 1260*1160 | 800*800 |
空程下降速度mm/s | 100 | 100 | 100 | 100 | 100 | 120 | 120 |
压制速度mm/s | 5-10 | 5-15 | 5-10 | 5-10 | 5-10 | 8-15 | 8-15 |
回程速度mm/s | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
电机功率KW | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 22 | 15 |
顶出力t | 200 | 200 | 400 | 400 | 400 | 630 | 630 |
顶出行程mm | 200 | 300 | 200 | 220 | 220 | 300 | 300 |
YD27系列三梁四柱液压机 | |||||||
项目 | 1000T | 1250T | 1600t | 2000T | 2500T | 3000t | 4000t |
液体压力Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
滑块有效行程mm | 1200 | 1400 | 1400 | 1400 | 1400 | 1600 | 1600 |
最大开口高度mm | 1800 | 2000 | 2000 | 2000 | 2000 | 2200 | 2200 |
工作台有效面积 | 1260*1160 | 1600*1000 | 1500*1500 | 1500*1500 | 1800*1600 | 1600*1600 | 1800*1800 |
空程下降速度mm/s | 120 | 150 | 150 | 160 | 160 | 160 | 180 |
压制速度mm/s | 5-12 | 5-12 | 5-12 | 5-12 | 10 | 6-10 | 6-10 |
回程速度mm/s | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
电机功率KW | 45 | 45 | 45 | 37*2 | 37*2 | 37*2 | 37*2 |
顶出力t | 100 | 100 | 100 | 125 | 125 | 200 | 200 |
顶出行程mm | 350 | 350 | 350 | 350 | 350 | 450 | 450 |
