Performance characteristics

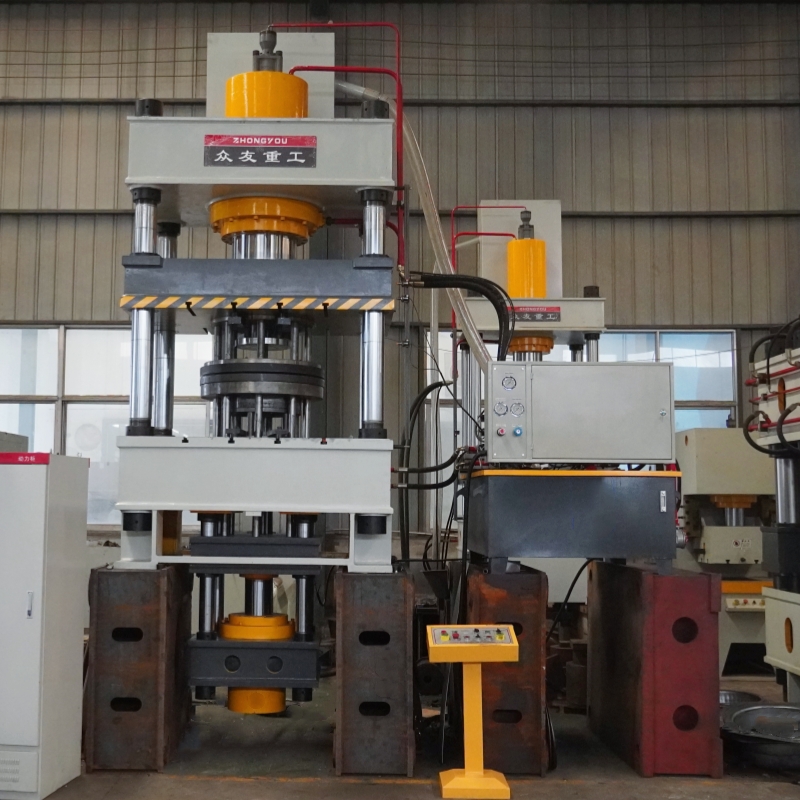

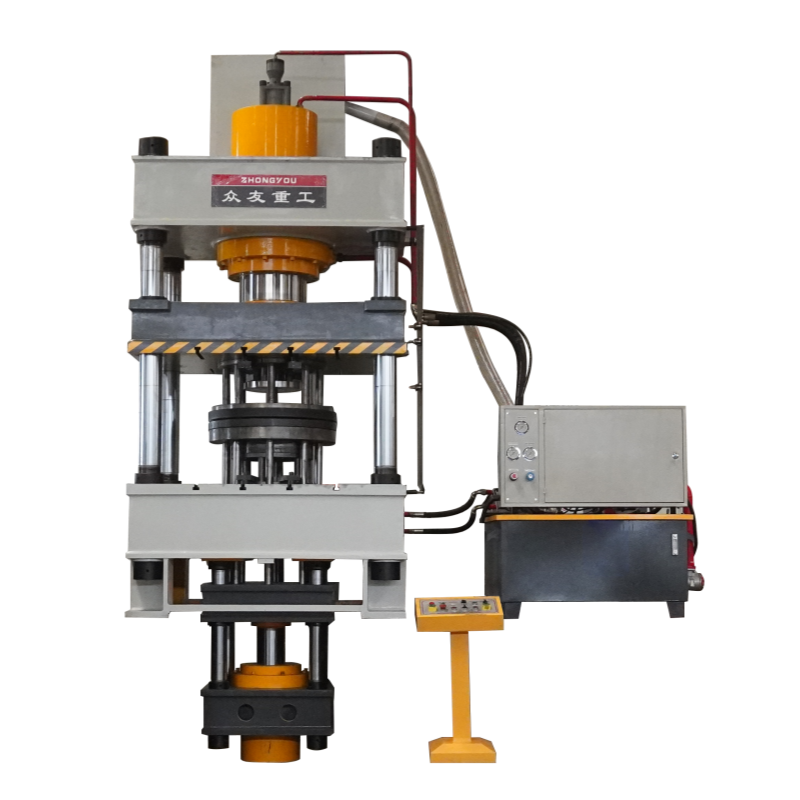

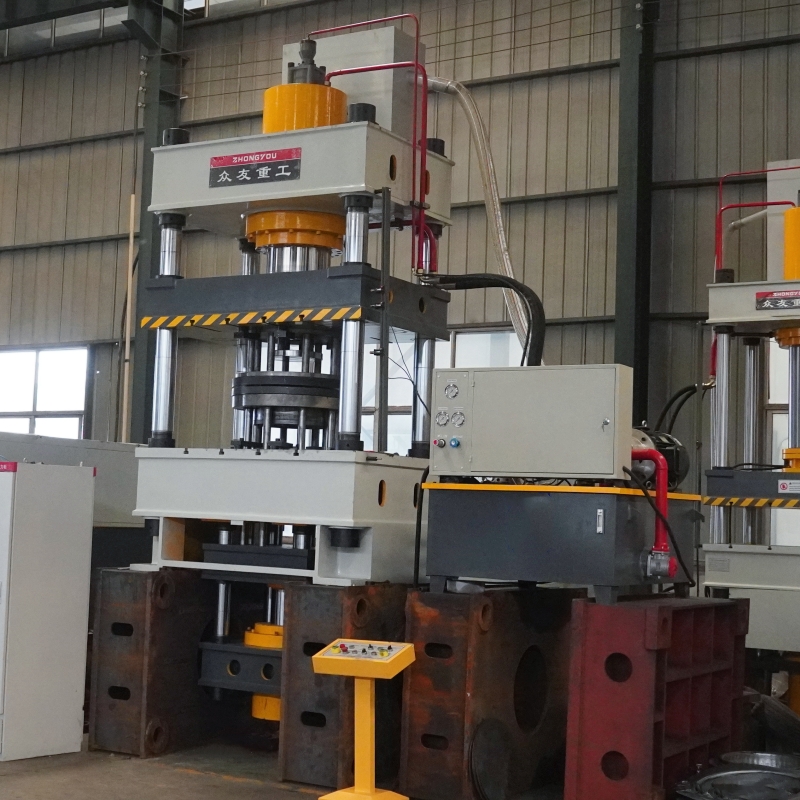

1. The machine body is of three-beam and four-column structure, which has the advantages of high stability, high precision and easy maintenance.
2. The machine has a hydraulic pad ejector, which is specially used in the deep drawing forming process of metal plates.
3. The control system has PLC programmable controller, by setting different procedures, the machine can be made to complete the pressing of different specifications of the product, which further improves the performance of the equipment.
4. The pressure, speed and holding time of the machine are adjustable, which provides conditions for improving product quality and producing more specifications.
4. Operated by push button, the operation mode is simple and easy to learn, which is conducive to improving the production efficiency.
Technical Parameters
| YD27 Series Three-Beam Four-Column Hydraulic Press | |||||||
| Item | 100T | 200T | 315T | 400T | 500T | 630T | 800T |
| Hydraulic Pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider (mm) | 500 | 700 | 800 | 900 | 1200 | 1200 | 1200 |
| Opening Height (mm) | 800 | 1100 | 1250 | 1500 | 1800 | 1800 | 1000 |
| Effective Area of Workbench | 630*550 | 750*700 | 660*600 | 1000*1000 | 800*800 | 1260*1160 | 800*800 |
| Free Fall Speed (mm/s) | 100 | 100 | 100 | 100 | 100 | 120 | 120 |
| Pressing Speed (mm/s) | 5-10 | 5-15 | 5-10 | 5-10 | 5-10 | 8-15 | 8-15 |
| Return Speed (mm/s) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Motor Power (KW) | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 22 | 15 |
| Ejecting Force (t) | 200 | 200 | 400 | 400 | 400 | 630 | 630 |
| Ejecting Stroke (mm) | 200 | 300 | 200 | 220 | 220 | 300 | 300 |
| YD27 Series Three-Beam Four-Column Hydraulic Press | |||||||
| Item | 1000T | 1250T | 1600T | 2000T | 2500T | 3000T | 4000T |
| Hydraulic Pressure (Mpa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Effective Stroke of Slider (mm) | 1200 | 1400 | 1400 | 1400 | 1400 | 1600 | 1600 |
| Maximum Opening Height (mm) | 1800 | 2000 | 2400 | 2600 | 2600 | 2800 | 3000 |
| Effective Area of Workbench | 1200*1200 | 1600*1200 | 1600*1400 | 1800*1600 | 1800*1800 | 2500*2200 | 2500*2400 |
| Free Fall Speed (mm/s) | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Pressing Speed (mm/s) | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 |
| Return Speed (mm/s) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| Motor Power (KW) | 22 | 22 | 30 | 30 | 37 | 45 | 55 |
| Ejecting Force (t) | 630 | 630 | 630 | 630 | 800 | 800 | 800 |
| Ejecting Stroke (mm) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
Pressing Process

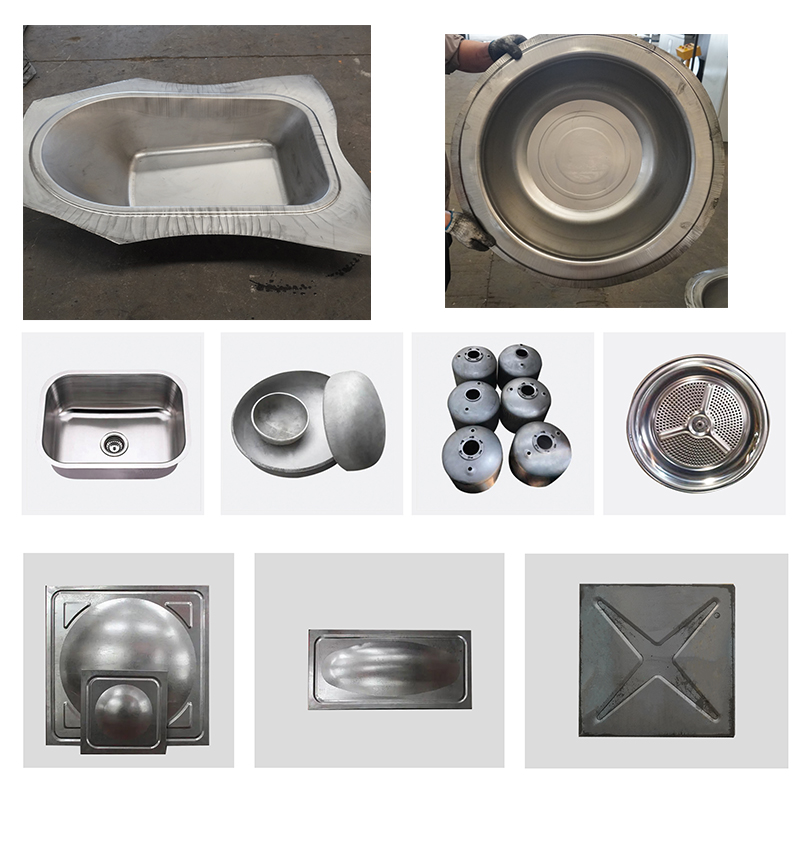

Pressing Case
