VTC75 Heavy-Duty CNC Vertical Lathe High Rigidity Precision Turning Machine

Video Display

Product Introduction

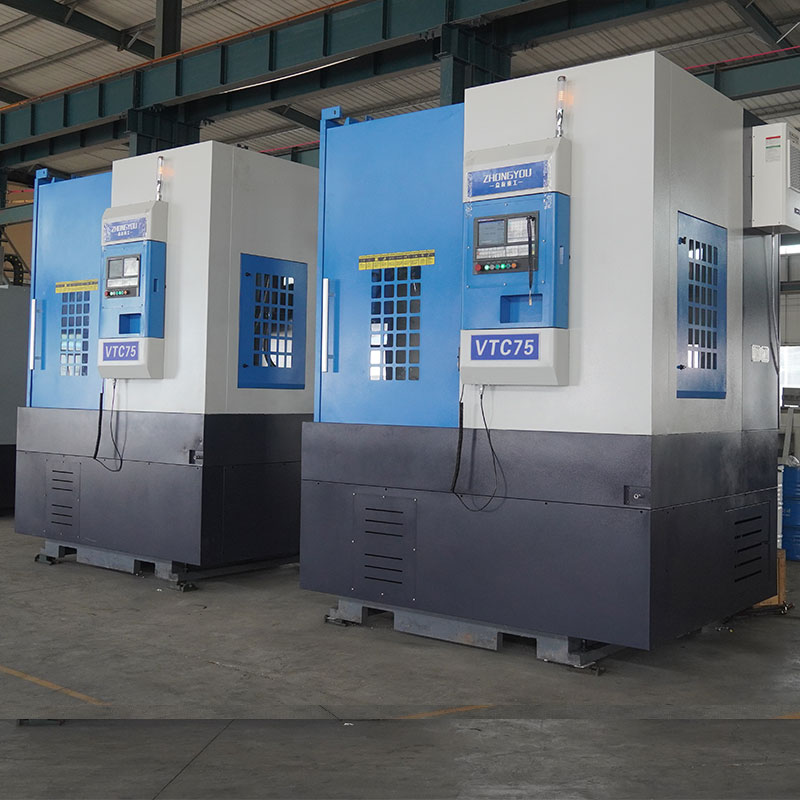

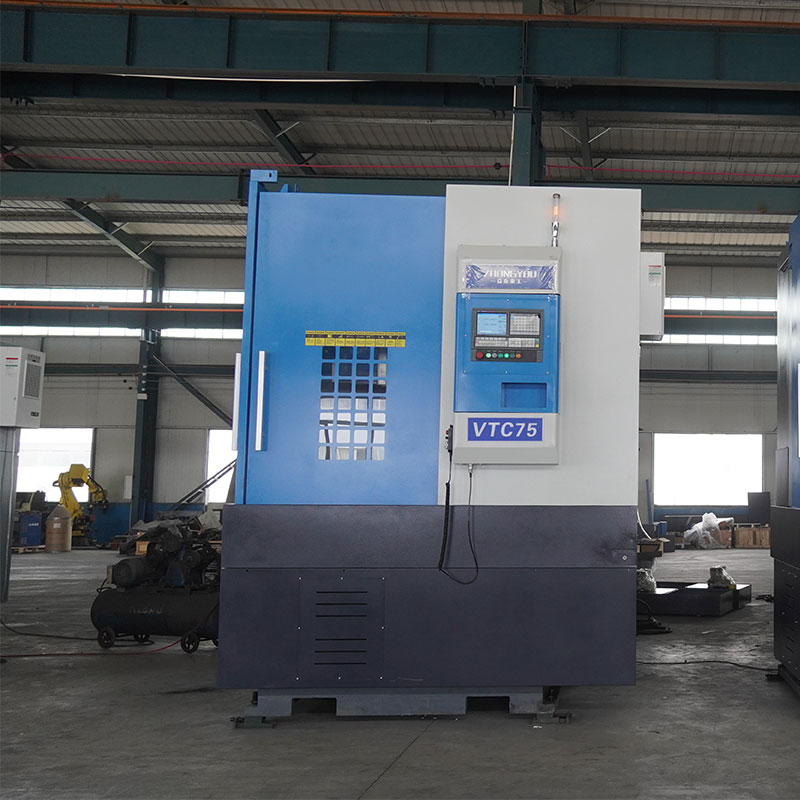

VTC75 CNC Vertical Turret Lathe is a heavy-duty, high-efficiency vertical CNC machining tool tailored for medium and large precision metal parts processing. The whole machine adopts high-strength cast iron structure with integral bed and column, which greatly enhances structural rigidity, vibration resistance and durability, ensuring long-term stable operation and ultra-high machining accuracy. The machine is equipped with an 8-station hydraulic turret, realizing fast and accurate automatic tool change, which effectively shortens auxiliary time and improves production efficiency. Matched with mainstream FANUC or Siemens CNC systems, it features simple operation, powerful programming function and strong anti-interference ability, supporting continuous batch processing.

This 75-series vertical lathe meeting strict precision requirements for fine machining. It is professionally suitable for mass processing of brake drums, wheel hubs, reducer housings, elevator wheels, engineering sprockets and various flange parts, widely used in automobile manufacturing, engineering machinery, petrochemical, hardware and electrical industries. With flexible parameter adjustment and strong compatibility, the equipment can be customized according to customer processing requirements, providing reliable and high-efficiency machining solutions for industrial production.

主要技术参数		Specifications	单位	VTC45	VTC65	VTC75	VTC80	VTC1000	VTC1250	VTC1400	VTC1600
加工 范围	最大回转直径	Maximm tuning diaretr	mm	500	650	750	900	1000	1250	1400	1600
	最大车削直径	Mxirum tuning diaretr	mm	450	600	700	800	850	1000	1200	1400
卡盘	三爪液压卡盘直径	Three jiaw hydraulic chuck diamena	M	12	21	24	24	24	32	手动四爪卡1250	手动四爪卡盘1400
刀塔	刀塔形式	Turet frm		卧式8工位	卧式8工位/立式4工位/立式6工位（选配）	卧式8工位/立式4工位/立式6工位（选配）	卧式8工位/立式4工位/立式6工位（选配）	卧式8工位/立式4工位/立式6工位（选配）	卧式8工位/立式4工位/立式6工位（选配）	卧式8工位/立式4工位/立式6工位（选配）	卧式8工位/立式4工位/立式6工位（选配）
行程	X轴行程	Tool towe X axis travel	mm	400	430	720	700	700	-50-650	-50-750	-50-850
	Z轴行程	Tunet Z-axs ravel	mm	500	550	750	700	700	800	800	800
	刀塔下端面距卡盘上端面距离	Distence between owe eng face of turet andLpo cnd face duck		170-560	0-550	850	0-800	0-800	150-950	150-950	150-950
线规 丝杠	X/Z线规	x/Z wre gauge		45滚柱	45/55滚柱	45/55滚柱	45/55滚柱	45/55滚柱	55/55滚柱	55/65滚柱	65滚柱
	X/Z丝杠直径	X/Z srew daneta	mm	φ40	φ40/φ50	φ40	φ40/φ50	φ40/φ50	φ50/φ50	φ50	①63
外形 尺寸	长×宽×高	Lergh ×wich ×heif	m	2.3×2.2×3.2	2.35*2.26*3.2	2.7×2.1×3.4	2.5×2.25×3.15	2.6×2.35×3.15	2.7×2.85×3.25	2.8×2.95×3.25	3.0×3.0×3.25
				18.8万	24.5	25.8	26.8	28	36.6	47.6	57.8
