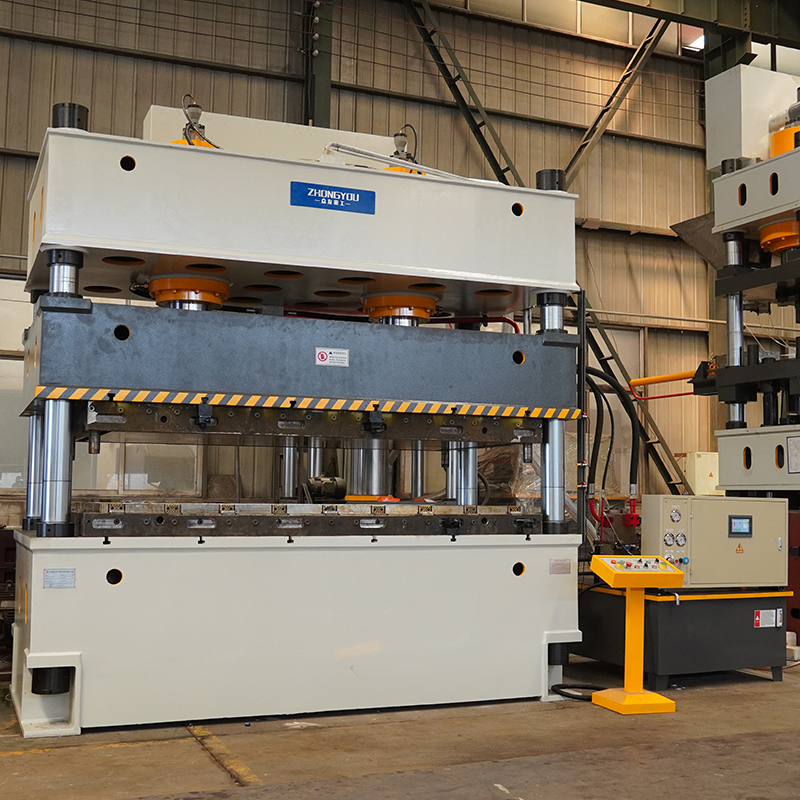

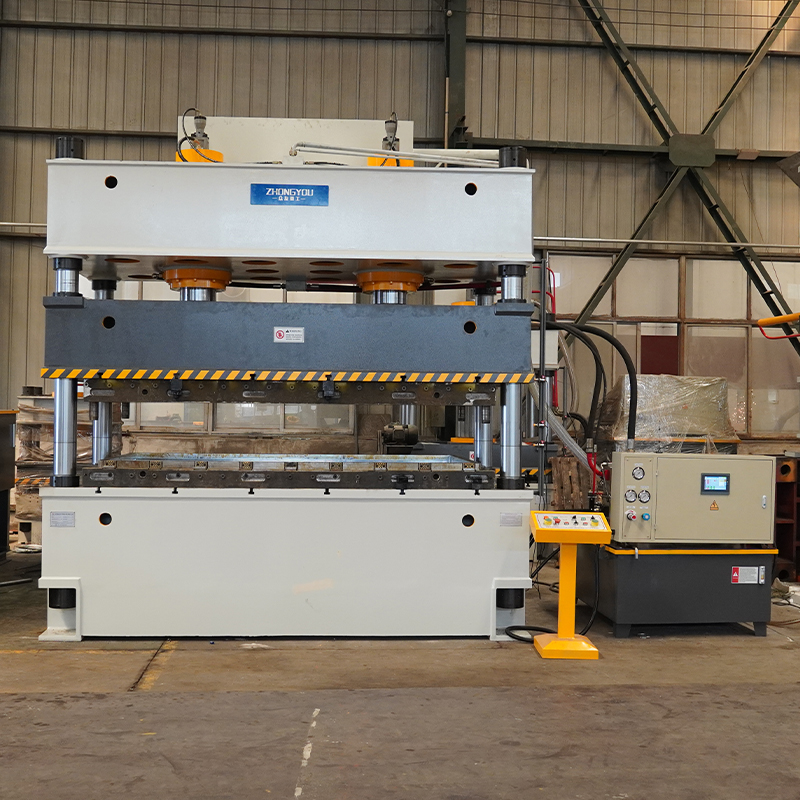

315 tonnes hydraulic press for hot pressing PET sheet
Three-beam and four-column structure: standard three-beam and four-column model, three beams of the main machine are casting, and the rest are welded and tempered, the structure is sturdy and stable,
+86 13562463338
+86 13562463338
Video Display
Product Introduction
Three-beam and four-column structure: standard three-beam and four-column model, three beams of the main machine are casting, and the rest are welded and tempered, the structure is sturdy and stable, and it can withstand high pressure and impact, which helps to keep the machine's running precision and stability.
Cylinder design: single or multi-cylinder design, arranged in the upper beam holes, cylinder and piston rod are high-strength forgings, cylinder wall rolling, piston rod, column tempered, quenched, chrome-plated, sealed with high-quality sealing ring, good sealing and wear resistance.
Precise control: the hydraulic system adopts integral cartridge valve integrated system or two-way cartridge valve, which reduces the leakage point, reliable action and long service life.It can realise two kinds of moulding process: fixed-pressure and fixed-range, with the function of holding pressure delay, adjustable delay time, and the working pressure and stroke can be adjusted within the specified range according to the requirements of the process.
Simple operation: centralised control by push button, with three operation modes of adjustment, manual and semi-automatic, simple operation, humanized operation interface and control system.
High efficiency and energy saving: the hydraulic system provides large pressure and flow rate, which can complete the production and processing of manhole cover in a short time, and the hydraulic system can optimise the energy consumption and reduce the waste of energy during the processing.
Safe and reliable: complete safety devices, such as cylinder lower chamber support circuit, cylinder upper and lower chamber interlock circuit, relief valve pressure regulation and electric contact high pressure limitation dual regulation, upper and lower limit sensing switches, etc., superior safety.At the same time, it is equipped with various safety protection measures, such as static and emergency stop button, two-hand operation button, slide locking device, hydraulic double-support insurance circuit, liquid level alarm, overload protection, and so on.
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
