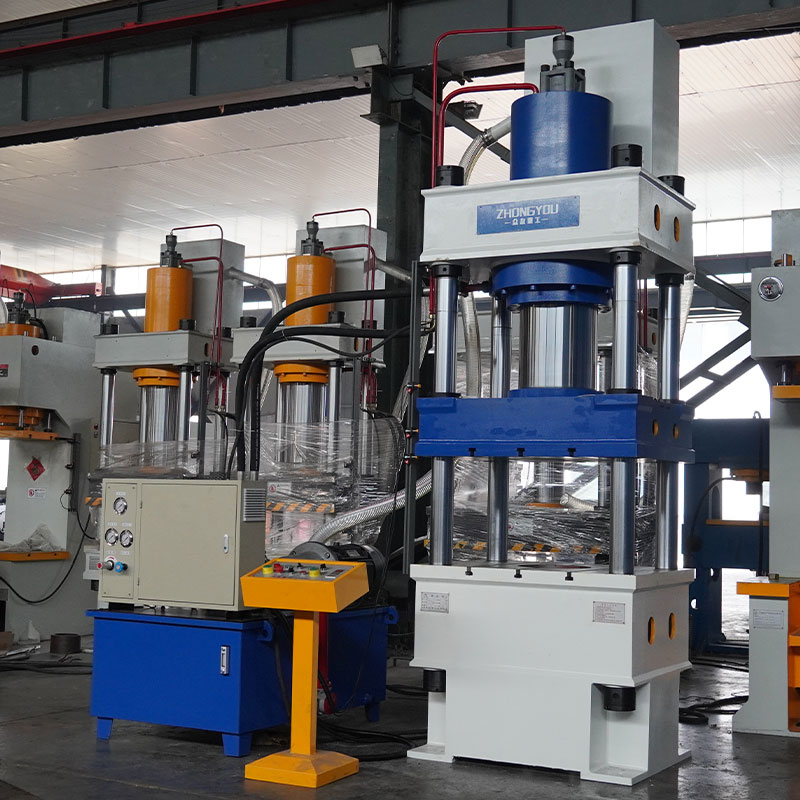

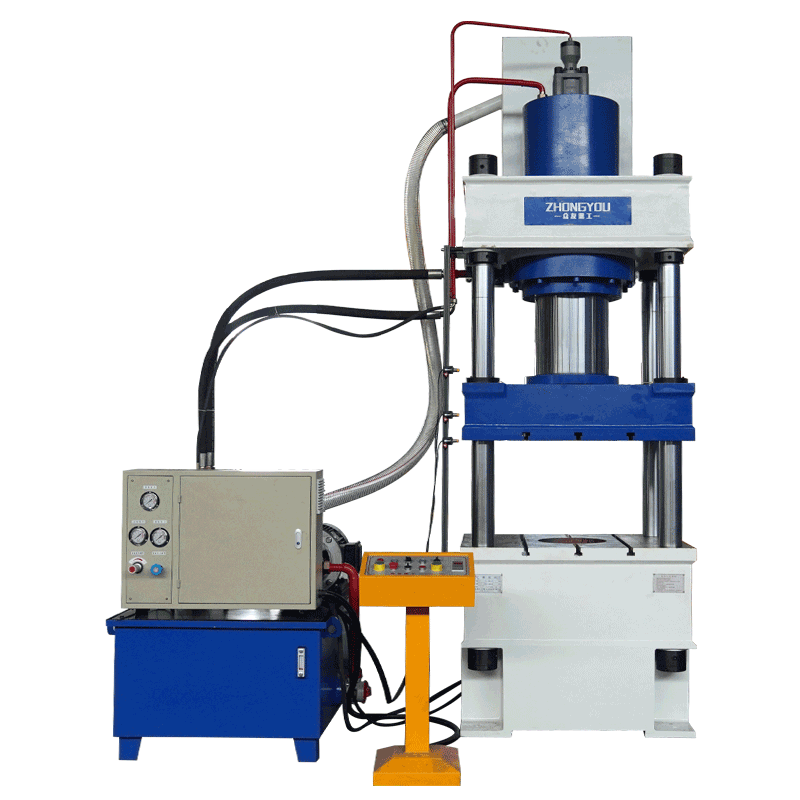

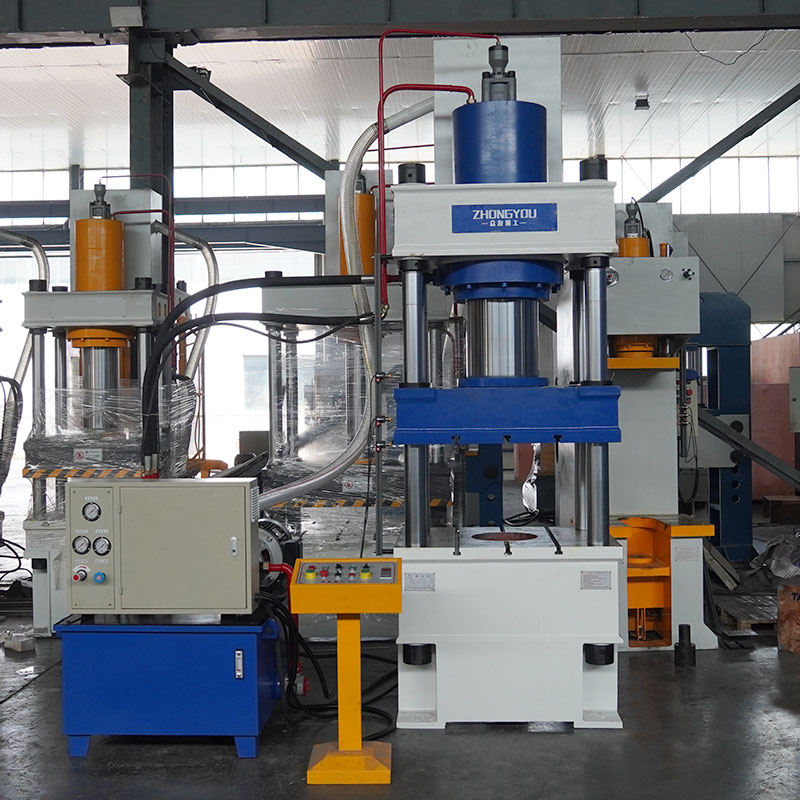

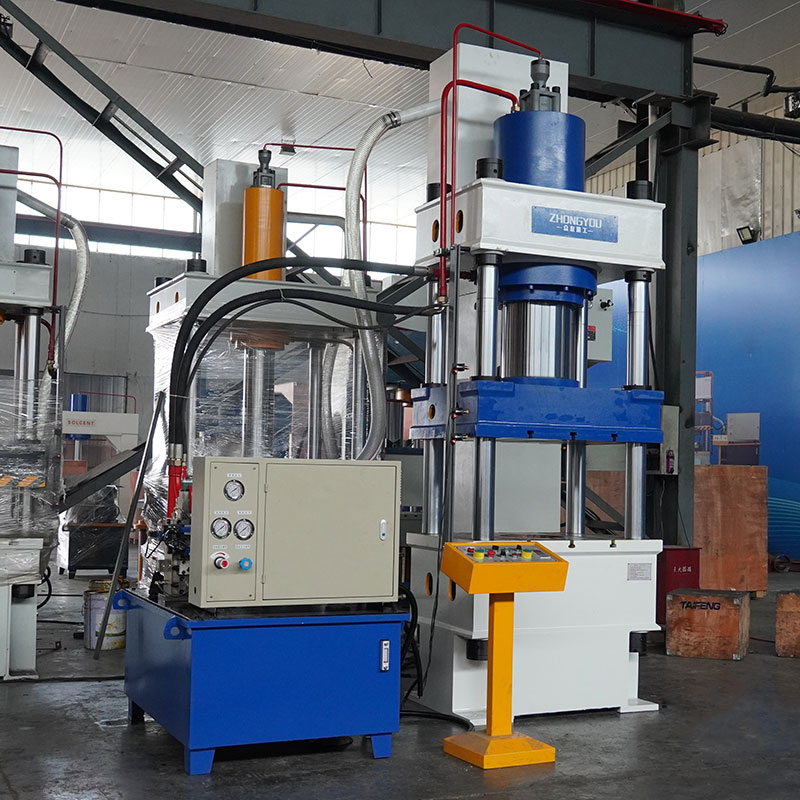

PE plastic sand brick hydraulic press with mold
PE plastic sand brick hydraulic press is a kind of special equipment that uses hydraulic transmission technology to compress PE plastic, sand and other materials into brick shape, its core principle i
+86 13562463338
+86 13562463338
Video Display
Product Introduction
PE plastic sand brick hydraulic press is a kind of special equipment that uses hydraulic transmission technology to compress PE plastic, sand and other materials into brick shape, its core principle is based on Pascal's law, with high pressure, good stability, high degree of automation, etc., which is widely used in the field of construction and building materials.Equipment features
High pressure: PE clinker sand brick hydraulic press adopts high-pressure hydraulic system, which can generate huge pressure to ensure the material is fully compressed into shape.
Good stability: the equipment adopts four-column structure or other stable structure, which improves the stability and bearing capacity of the equipment and ensures that it maintains stable performance during long working hours.
High degree of automation: Equipped with an intelligent monitoring and maintenance system, it is able to monitor the running status and parameter changes of the equipment in real time, and discover and deal with potential problems in time. At the same time, the system is also equipped with fault diagnosis and early warning function, which can detect the equipment failure in advance and carry out maintenance treatment.
Energy saving and environmental protection: the use of new environmentally friendly materials and energy-saving design technology, reducing energy consumption and emissions, in line with the environmental requirements of modern society.
Flexible and efficient: the equipment has flexible and efficient molding and processing capacity, which can meet the user's personalized and customized demand for brick products. At the same time, it is equipped with a quick mold change device, which is convenient for users to change and adjust the molds and improve the production efficiency.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |

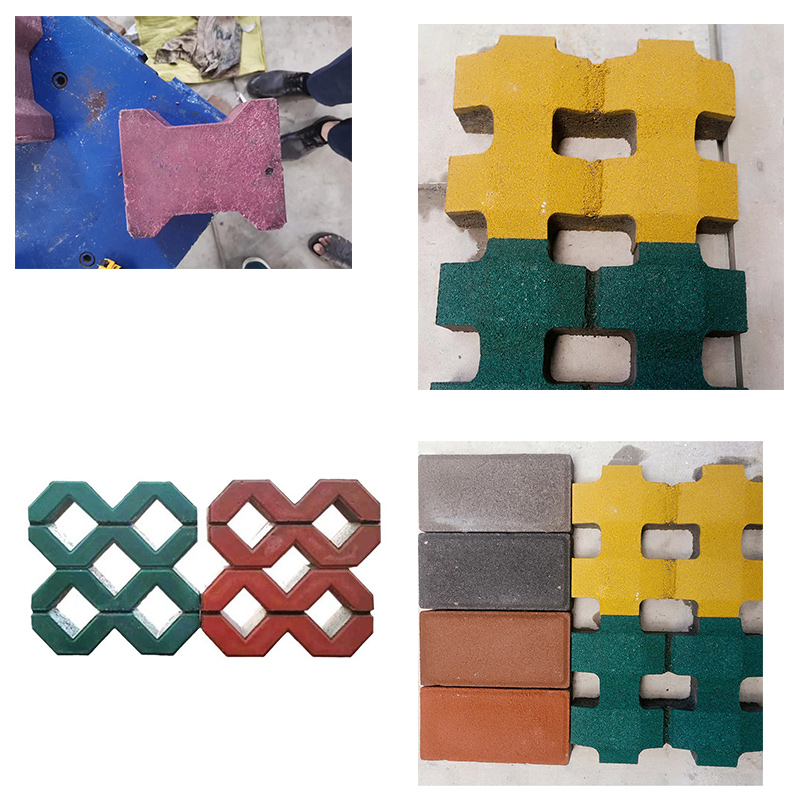

Pressing process

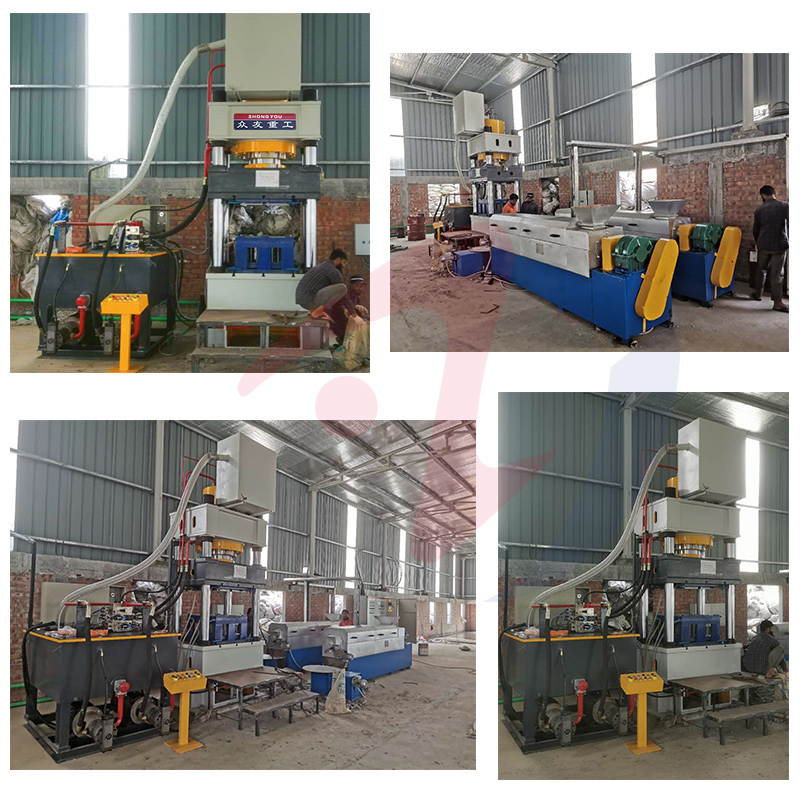

Customer Case
