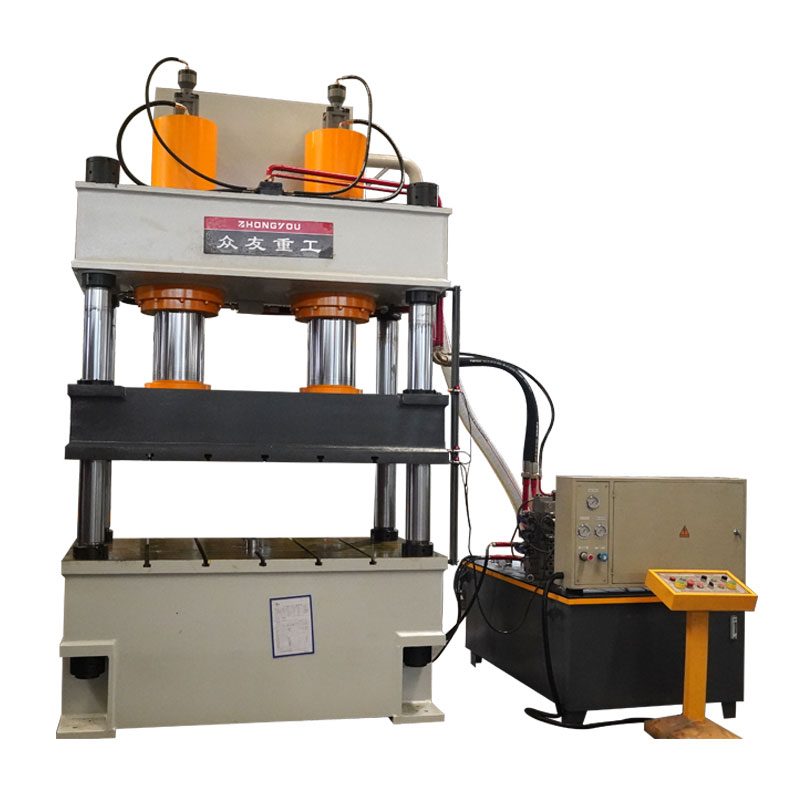

Rubber anti-slip floor mat molding hot press machine
Shandong Zhongyou rubber anti-slip floor mat hydraulic press customized for Tianjin customers is specially designed for rubber anti-slip floor mats (such as industrial plants, commercial premises, spo
+86 13562463338
+86 13562463338
Video Display
Product Introduction
Shandong Zhongyou rubber anti-slip floor mat hydraulic press customized for Tianjin customers is specially designed for rubber anti-slip floor mats (such as industrial plants, commercial premises, sports venues with anti-slip mats) molding design of special hydraulic equipment.
Used in the molding process of rubber anti-slip mats, the mixture is compacted and densified by applying high pressure (combined with temperature control) through a hydraulic press, and anti-slip textures (such as bumps, grooves, wave patterns, etc.) are formed in the molds, which provide subsequent vulcanization (or curing) with a High quality blanks.

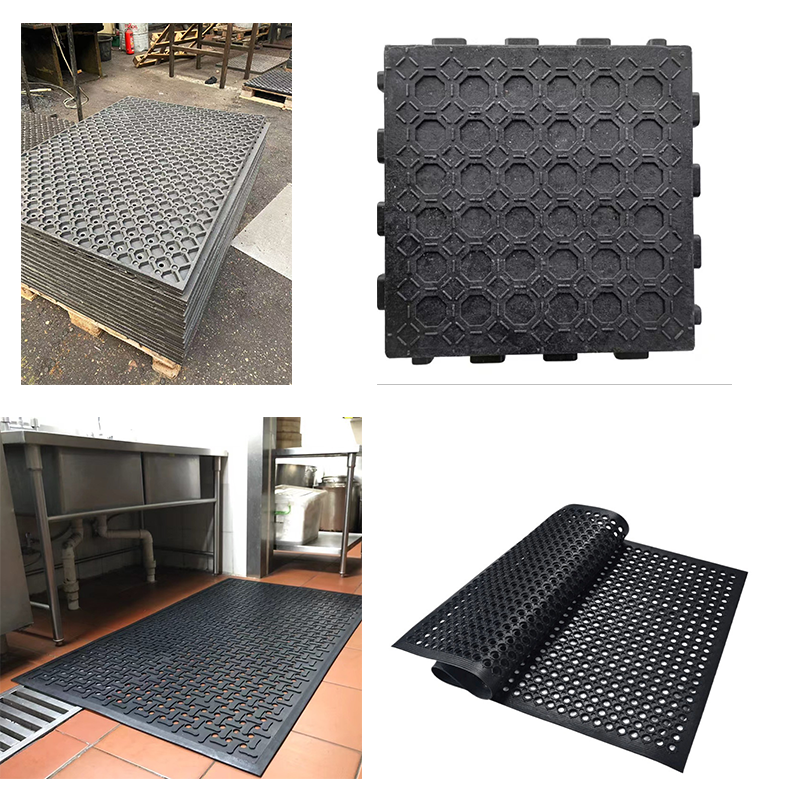

Application Scenario:
The end products are widely used in:
Industrial areas: factory workshops, warehouses, laboratories (anti-oil and anti-slip);
Commercial places: shopping malls, hotels, gyms (wear-resistant and non-slip);
Public facilities: subway stations, airports, poolside (anti-slip + easy to clean);
Special scenes: boat decks, garages (weather resistance + high coefficient of friction).
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process

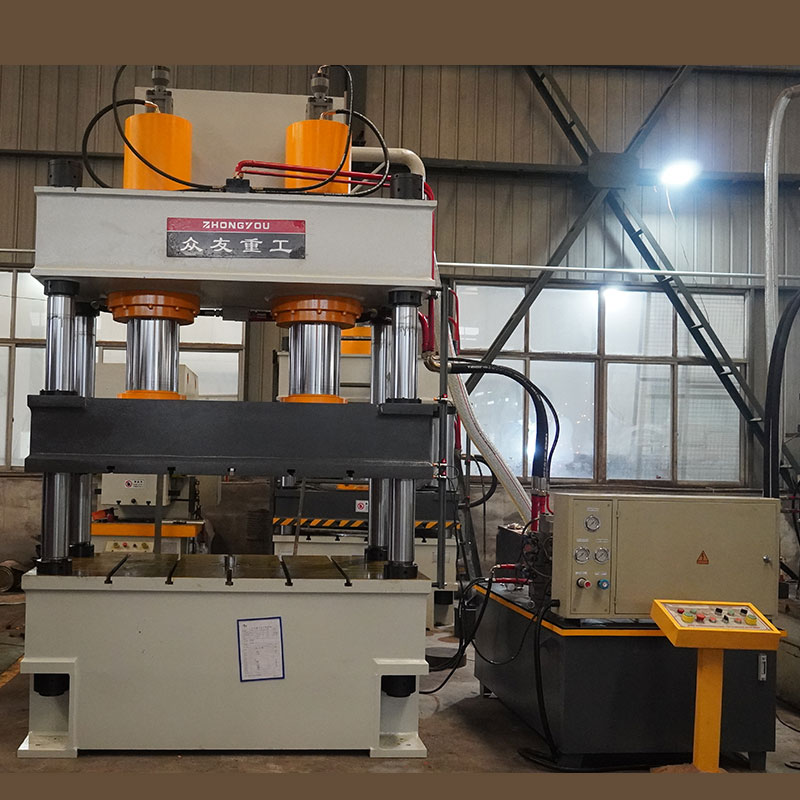

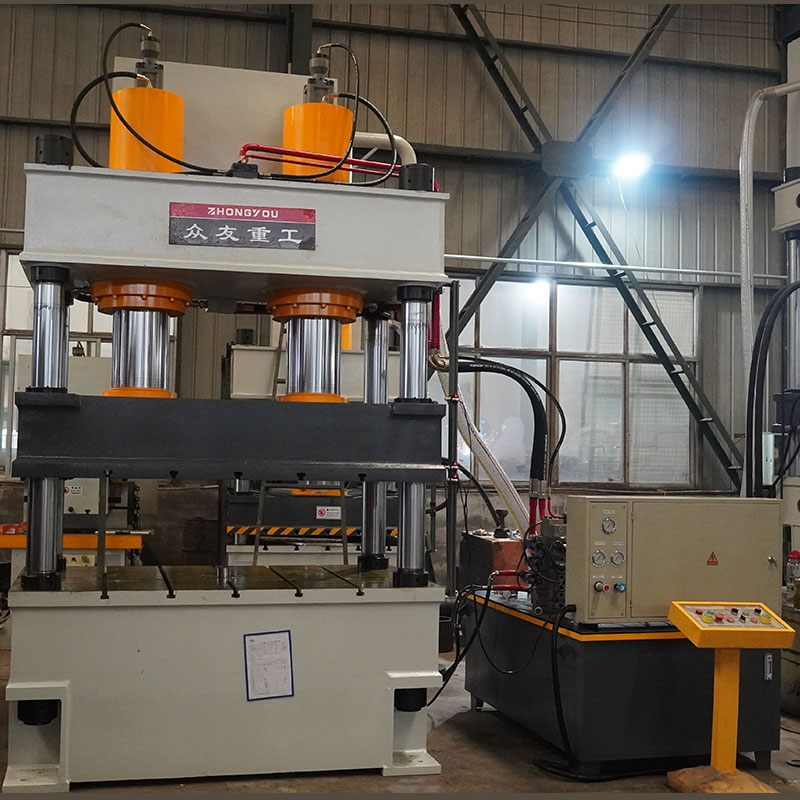

Customer Case
