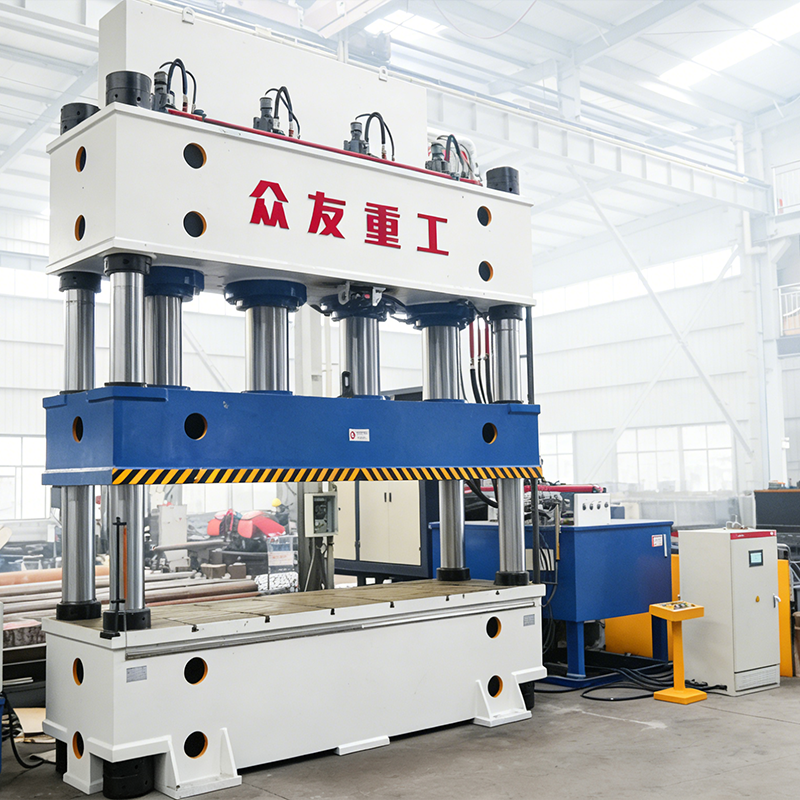

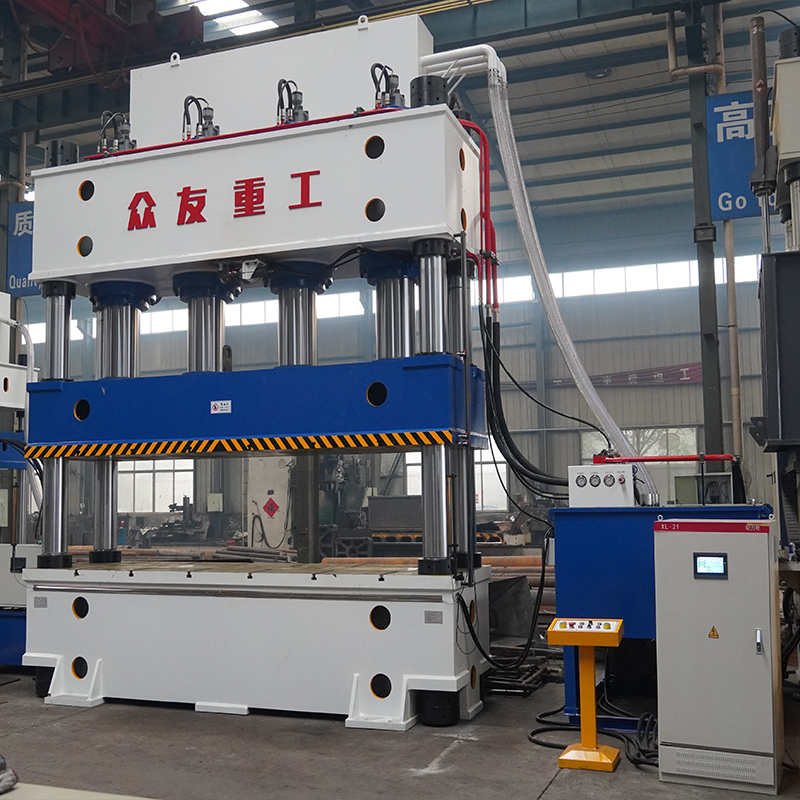

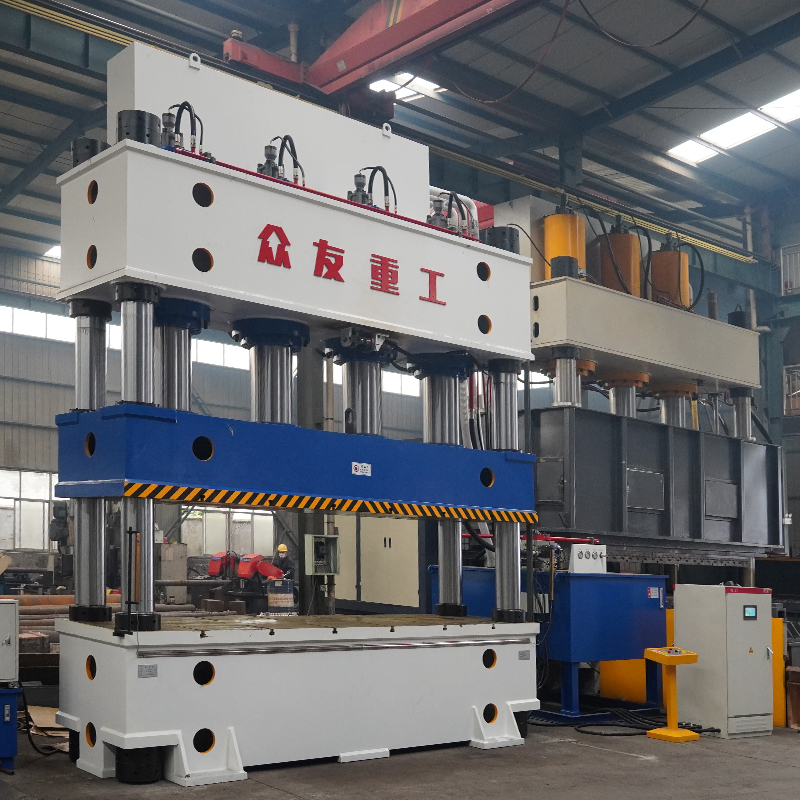

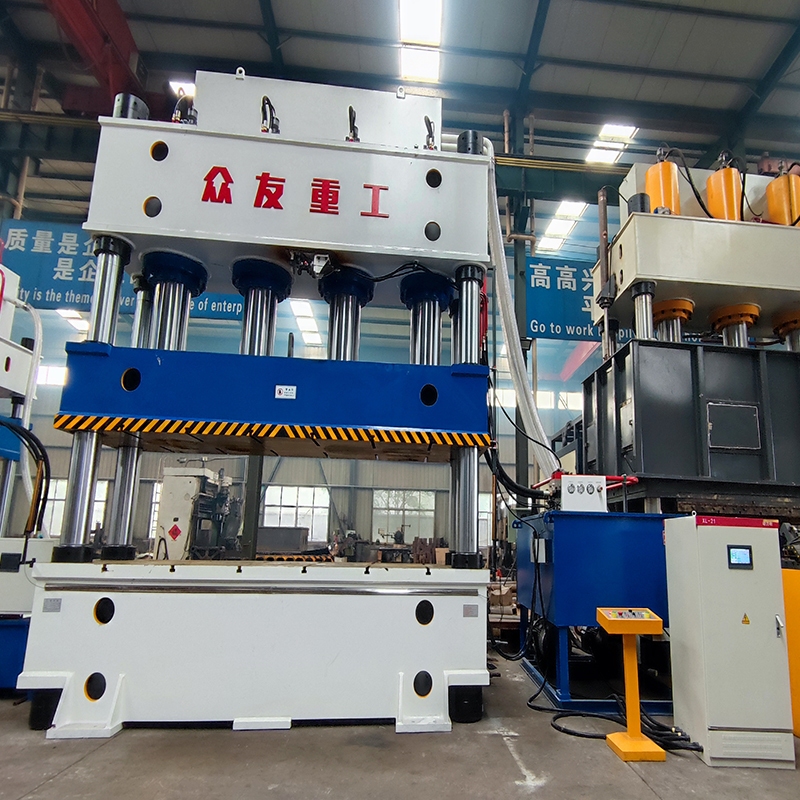

1,250-ton hydraulic press for home furnishings leather mats
This machine is a heavy-duty hydraulic press specifically designed for the compression molding of composite materials. It is primarily used to produce high-end automotive floor mats, home floor mats,
+86 13562463338
+86 13562463338
Video Display
Product Introduction
This machine is a heavy-duty hydraulic press specifically designed for the compression molding of composite materials. It is primarily used to produce high-end automotive floor mats, home floor mats, and industrial floor mats.

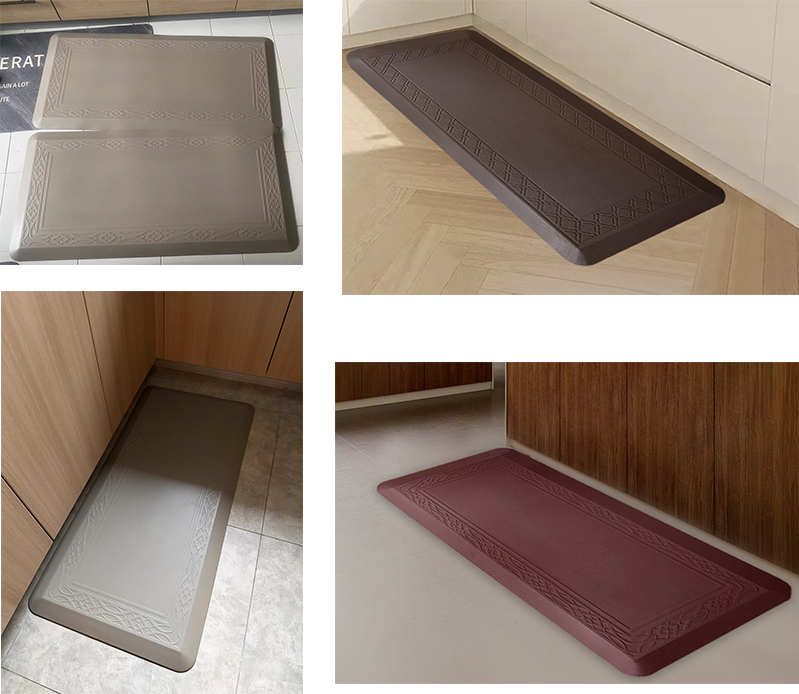

Molding Application: Composite floor mats. The typical structure is as follows:
Top Layer: Leather (or PVC synthetic leather, fabric), providing an attractive, wear-resistant, and easy-to-clean surface.
Middle layer: Foam (typically PVC foam, XPE/IXPE foam, EVA foam, etc.), providing cushioning, sound insulation, thermal insulation, and anti-slip properties.
Sometimes, an anti-slip backing fabric or a rubber dot-patterned layer is also laminated.
Core processes: Hot press molding or cold press lamination.
Hot press molding (mainstream process):
Process: Pre-cut leather (surface layer) and foam (base material) are stacked inside a mold. The mold is closed, and under heat (provided by built-in electric heating elements or oil heating) and high pressure, the foam undergoes plastic flow to fill the mold cavity while firmly bonding with the leather.
Advantages: Single-step molding, high efficiency, clear contours, adjustable foam density, and strong adhesion.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process
Customer Case
