hot press forging machine Fiberglass Bird Deterrent Covers for High-Voltage Power Lines
This machine is specifically designed for the compression molding (SMC/BMC) or hot-press curing of fiberglass-reinforced plastic (FRP) bird guards. Bird guards are commonly used on power transmission
+86 13562463338
+86 13562463338
Video Display
Product Introduction
This machine is specifically designed for the compression molding (SMC/BMC) or hot-press curing of fiberglass-reinforced plastic (FRP) bird guards. Bird guards are commonly used on power transmission towers, substations, and similar structures; they feature complex shapes and must be insulating, lightweight, and weather-resistant.

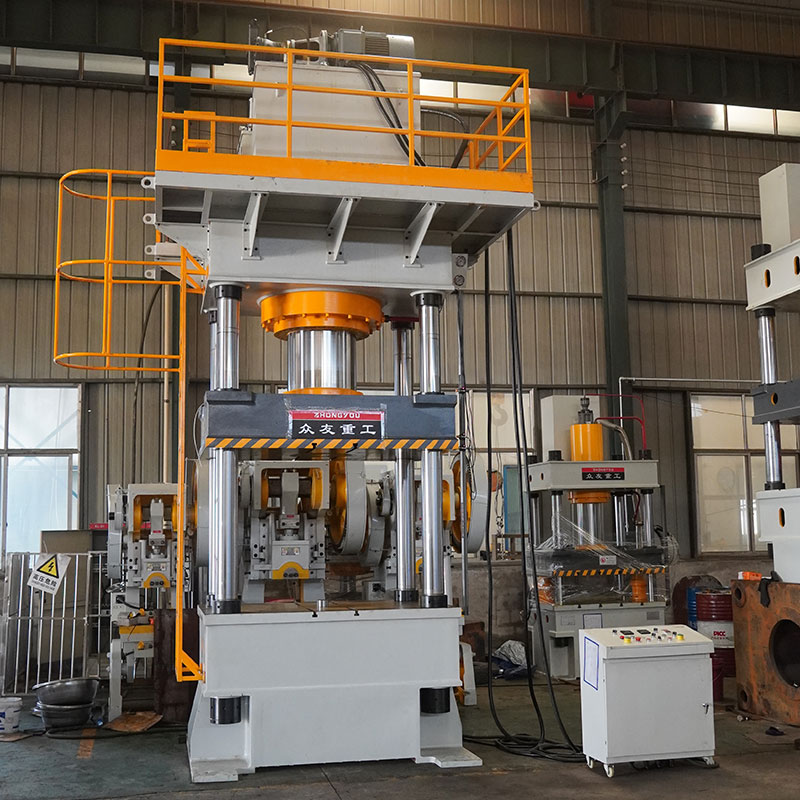

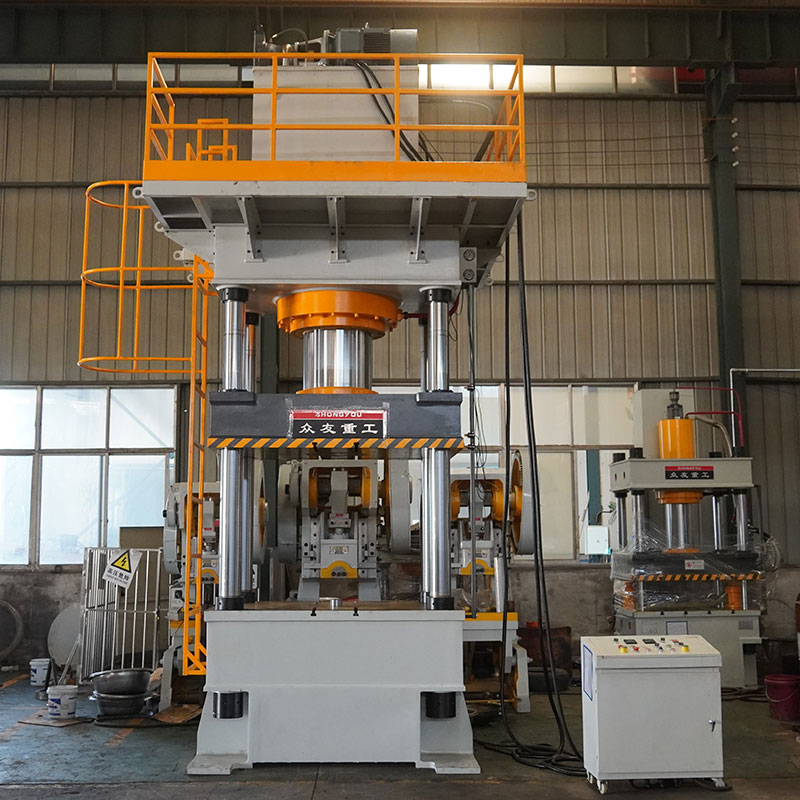

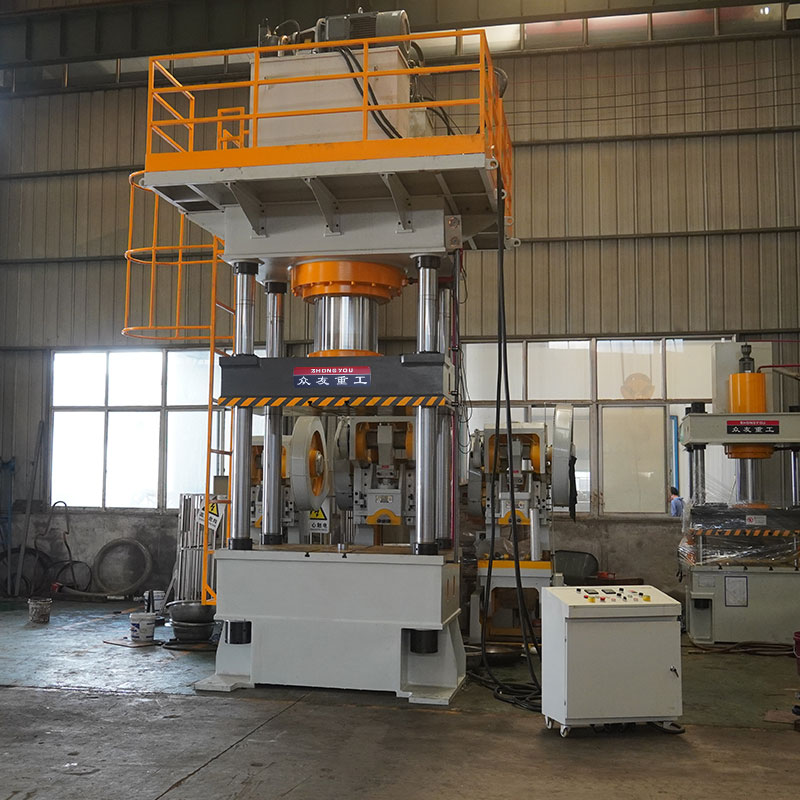

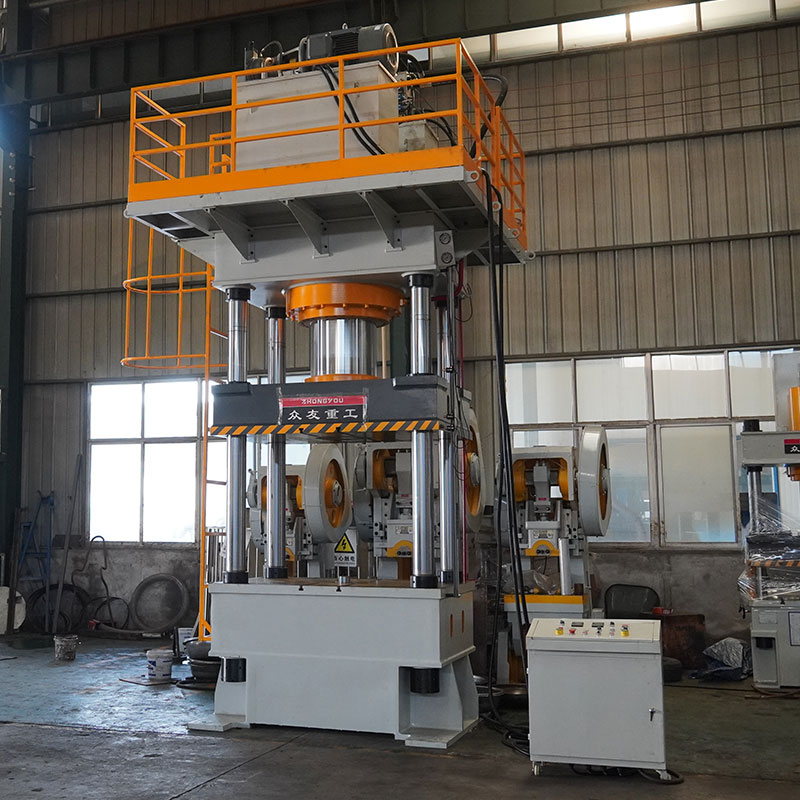

A three-beam, four-column structure is typically used. This design is simple, economical, practical, and stable; it can withstand significant pressure, ensuring the stability and precision of workpiece forming.
The hydraulic control system employs an integrated cartridge valve system, which reduces leakage points, ensures reliable operation, and extends service life. At the same time, it minimizes hydraulic shock, thereby reducing energy loss. Some equipment also incorporates intelligent servo energy-saving systems to further lower energy consumption.

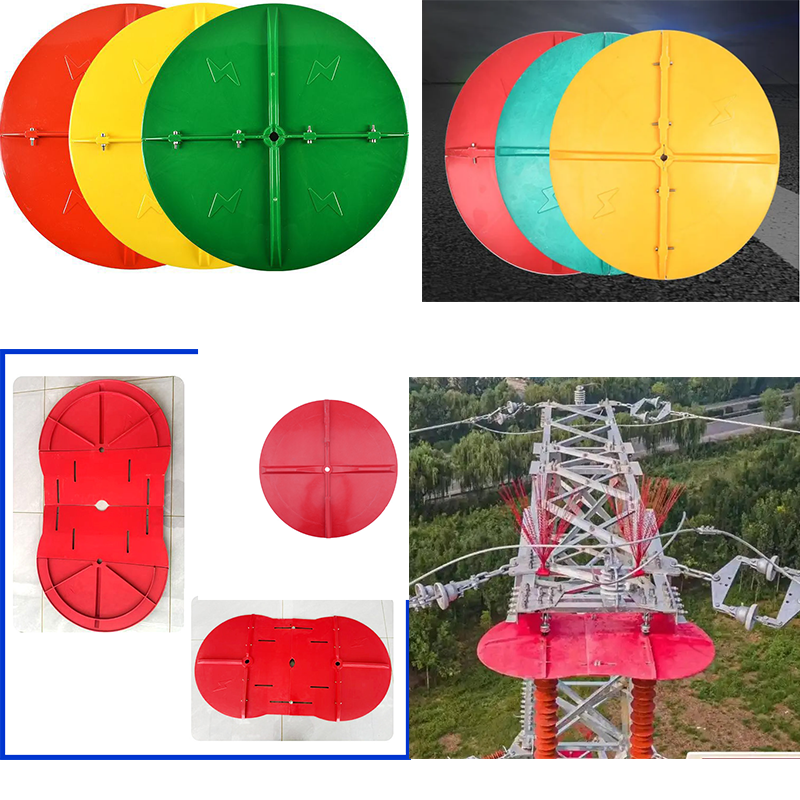

The fiberglass bird-proof covers are made of high-quality fiberglass material, featuring light weight, high strength, corrosion resistance, and excellent insulation properties. They effectively prevent birds from approaching the equipment, reducing the likelihood of malfunctions and ensuring the stable operation of power facilities such as substations.
Technical Parameters
| Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
| Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
| Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
| Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
| Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
| Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
| Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
| Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
| Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
| Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
| Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
| Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
| Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
| Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process
