Description

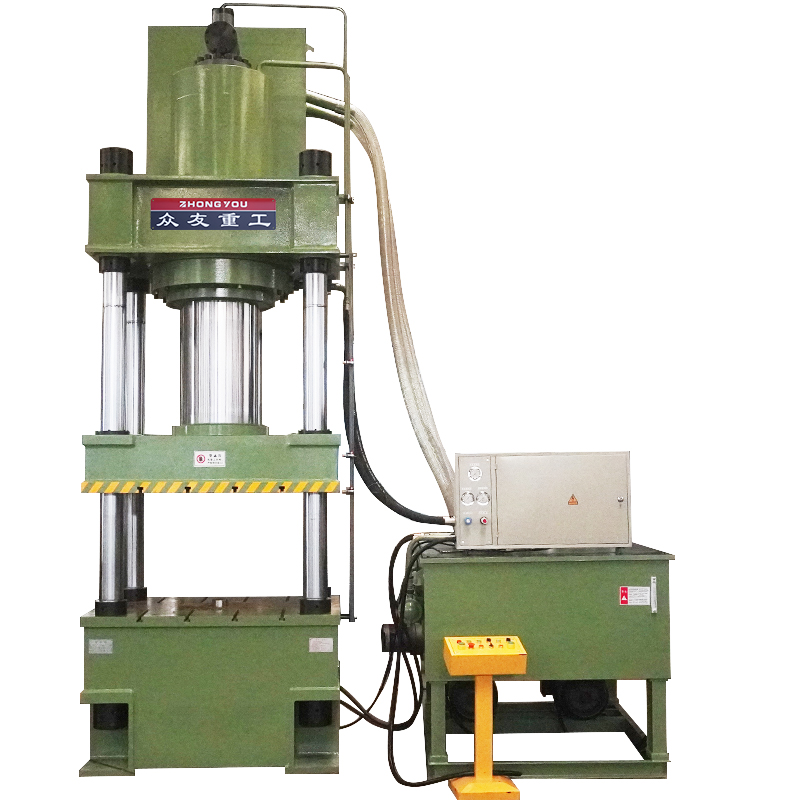

The 630-ton stretch forming hydraulic press is equipped with a hydraulic pad and an ejection cylinder. It has the advantages of high control accuracy, sensitive response, and high quality of formed structural parts.
It is suitable for bending, stretch forming and other pressing processes of high-strength steel plates, and can also be used for other metals. Stretch forming of products. It is widely used in automobiles, aerospace, shipbuilding, machinery manufacturing, hardware tools and other industries, and is used in processes such as stretch forming, bending and pressing of metal sheets, pipes, profiles and other materials.
Technical Parameters
Main Technical Parameters | Unit | YD28-200/315 | YD28-300/500 | YD28-400/650 | YD28-500/800 | YD28-630/1030 | YD28/630/1030 |
---|---|---|---|---|---|---|---|
Nominal Force | KN | 3150 | 5000 | 6500 | 8000 | 10300 | 13000 |
Tensile Force | KN | 2000 | 3000 | 4000 | 5000 | 6300 | 8000 |
Flanging Force | KN | 1150 | 2000 | 2500 | 3000 | 4000 | 5000 |
Hydraulic Cushion Ejecting Force | KN | 630 | 1000 | 1600 | 3000 | 4000 | 5000 |
Tensile Slider Opening Height | mm | 1500 | 1600 | 1800 | 2100 | 2300 | 2200 |
Flanging Slider Opening Height | mm | 1180 | 1150 | 1800 | 2000 | 2200 | 2200 |
Tensile Slider Stroke | mm | 800 | 900 | 1200 | 1100 | 1400 | 1400 |
Flanging Slider Stroke | mm | 800 | 900 | 1100 | 1000 | 1300 | 1400 |
Hydraulic Cushion (Ejecting) Stroke | mm | 300 | 350 | 300 | 300 | 300 | 300 |
