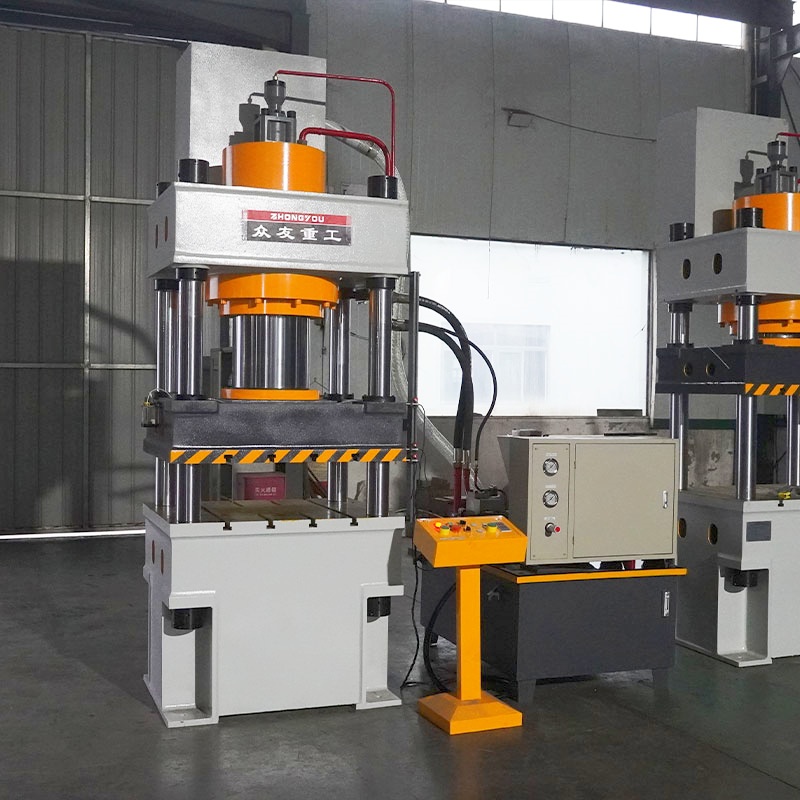

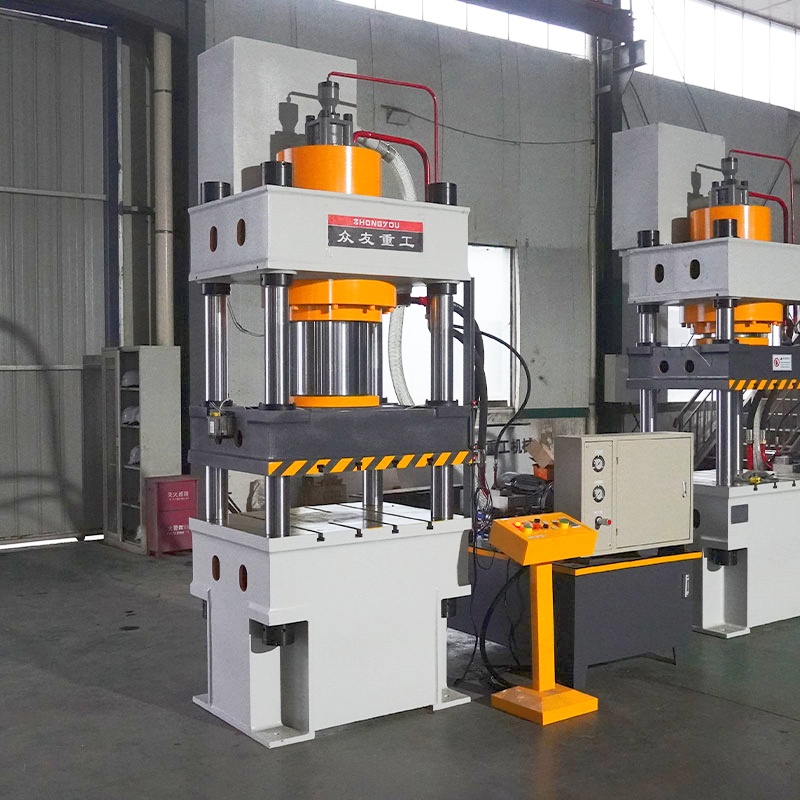

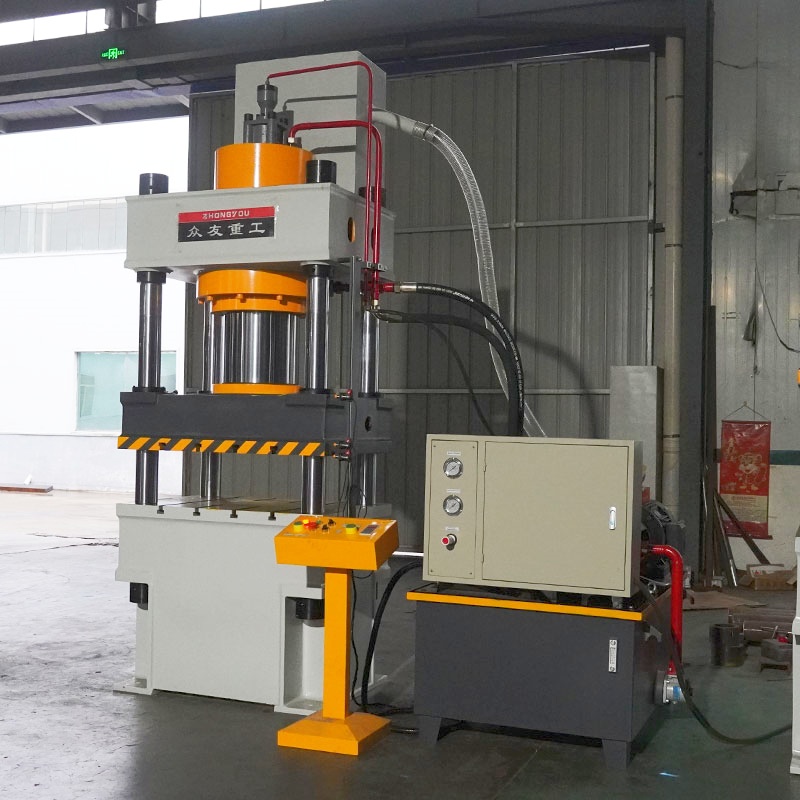

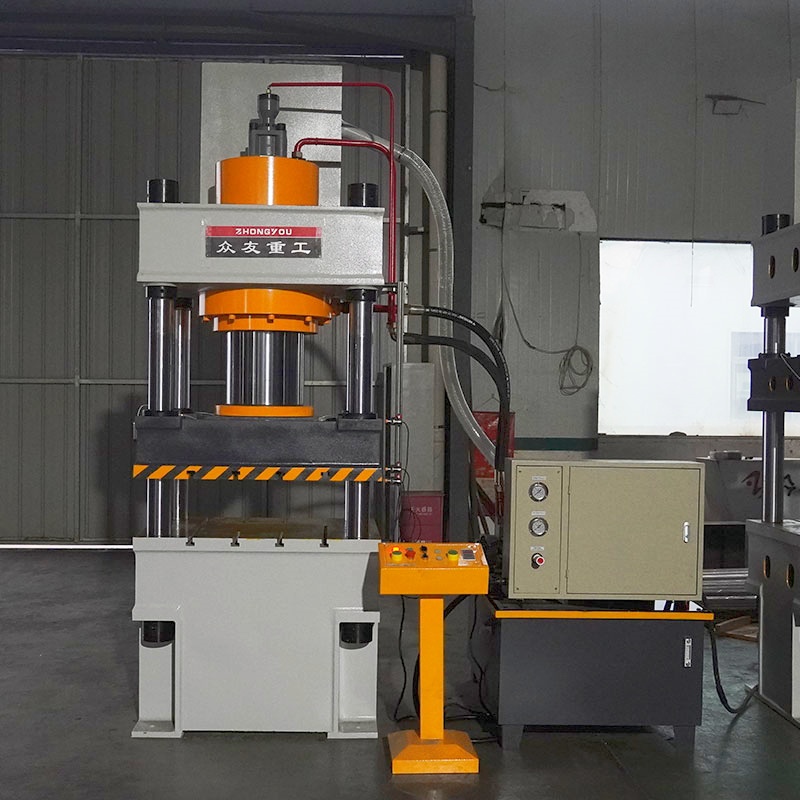

Glass fiber reinforced plastic water tank press
Fiberglass reinforced plastic (FRP) water tanks are widely used in fire fighting, water treatment, building water supply and drainage, industrial liquid storage and other fields because of their advan

+86 13562463338

+86 13562463338
Video Display
Product Introduction

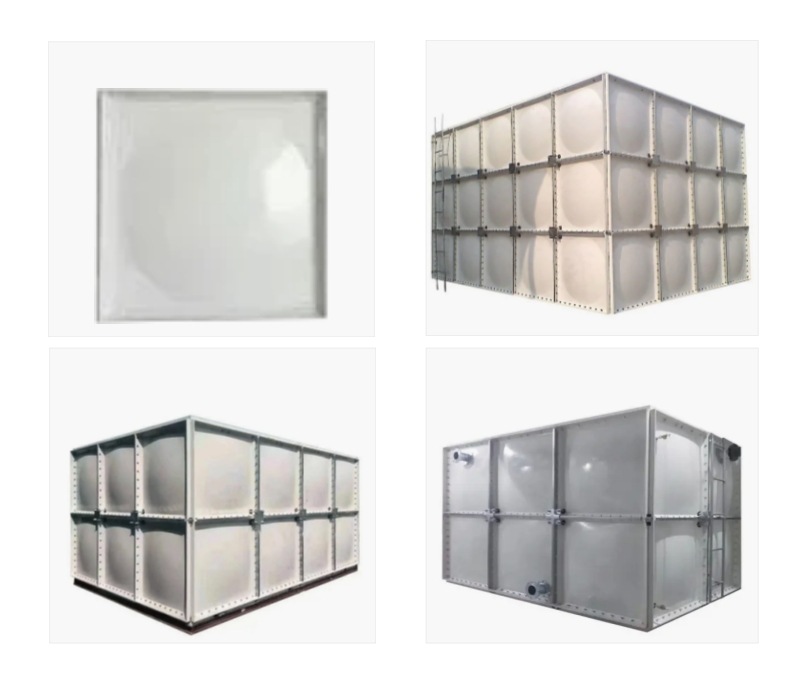

Fiberglass reinforced plastic (FRP) water tanks are widely used in fire fighting, water treatment, building water supply and drainage, industrial liquid storage and other fields because of their advantages of light weight, corrosion resistance, leakage resistance and long service life.The key to its molding lies in the uniform pressure exerted on the fiber layer by the press, which excludes the air bubbles in the resin and promotes the curing reaction of the resin to ensure the structural strength and sealing of the water tank.
The core function of the FRP water tank press is:
Provide constant pressure so that the fiber layer closely fits the mold;
Controlling the pressurization timing and holding time (matching the resin curing process);
Adapting to the mold compatibility of different sizes of water tanks (e.g. round, square water tanks)
Parameter | Unit | YQ32-63 | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
---|---|---|---|---|---|---|---|---|
Nominal Force | kN | 630 | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Maximum Open Height of Slider | mm | 700 | 800 | 900 | 1100 | 900 | 1250 | 1000 |
Maximum Stroke of Slider | mm | 400 | 500 | 600 | 500 | 600 | 800 | 600 |
Effective Area of Workbench | mm | 610×500 | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 800×800 |
Slider Free Fall Speed | mm/s | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Pressing Speed | mm/s | 11-22 | 7-15 | 7-15 | 7-18 | 7-18 | 7-12 | 7-12 |
Return Speed | mm/s | 80 | 90 | 90 | 90 | 90 | 100 | 90 |
Ejecting Force | kN | 100 | 200 | 200 | 400 | 400 | 630 | 630 |
Maximum Ejecting Stroke | mm | 160 | 200 | 200 | 200 | 200 | 300 | 300 |
Name | Unit | YQ32-400 | YQ32-500 | YQ32-630 | YQ32-800 | YQ32-1000 | YQ32-1250 | YQ32-1600 |
---|---|---|---|---|---|---|---|---|
Nominal Force | kN | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 |
Maximum System Working Pressure | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Maximum Open Height of Slider | mm | 1250 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
Maximum Stroke of Slider | mm | 800 | 900 | 900 | 900 | 900 | 900 | 900 |
Effective Area of Workbench | mm | 1250×1160 | 1400×1400 | 1500×1500 | 1600×1600 | 1600×1600 | 1600×1600 | 1600×1600 |
Slider Free Fall Speed | mm/s | 100 | 100 | 150 | 100 | 180 | 180 | 190 |
Pressing Speed | mm/s | 5-11 | 10-18 | 9-18 | 7-18 | 10-18 | 6-15 | 6-14 |
Return Speed | mm/s | 100 | 180 | 200 | 90 | 220 | 200 | 220 |
Ejecting Force | kN | 630 | 1000 | 1000 | 400 | 1000 | 1000 | 1600 |
Maximum Ejecting Stroke | mm | 300 | 300 | 300 | 200 | 300 | 300 | 300 |
Pressing process

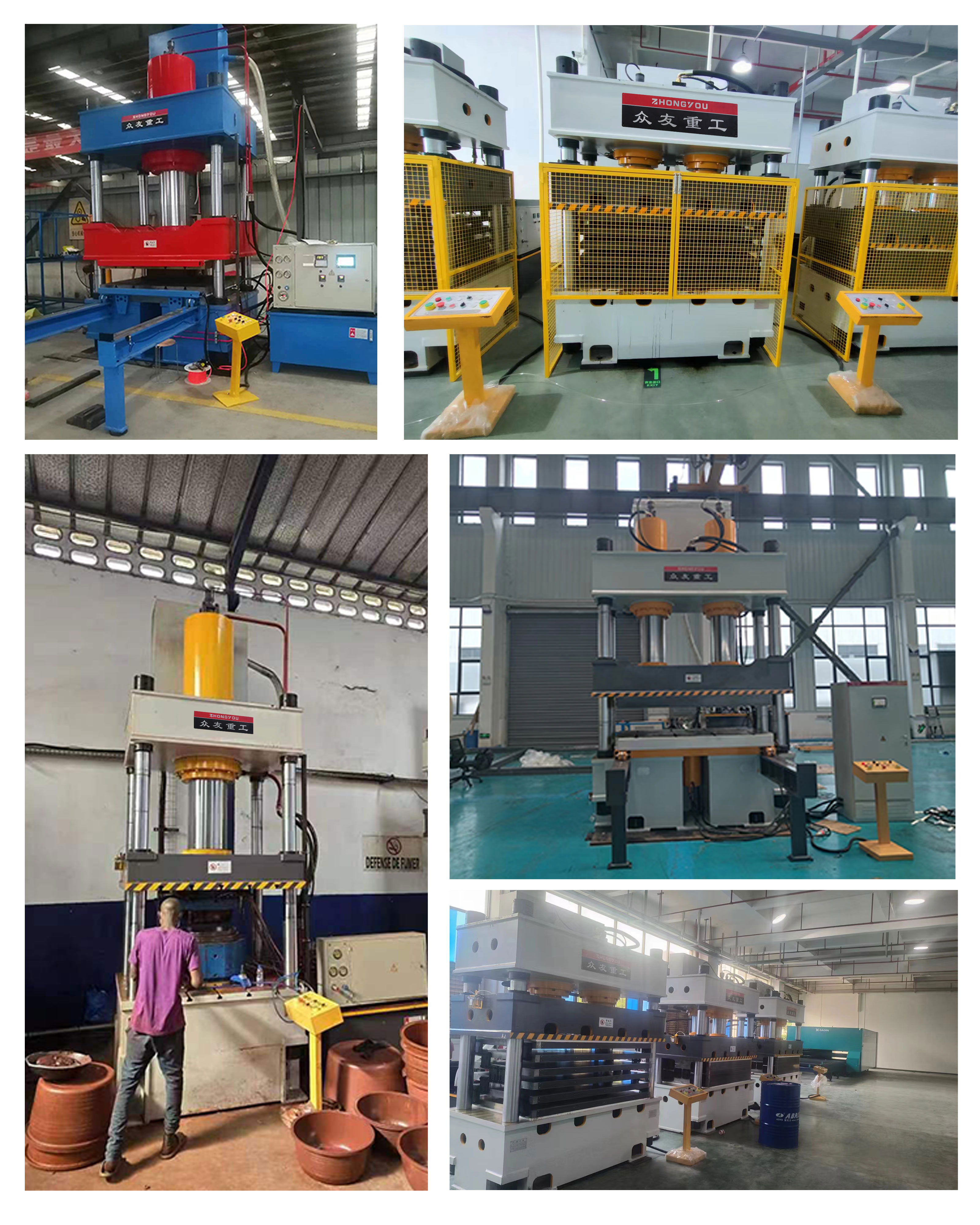

Customer Case
